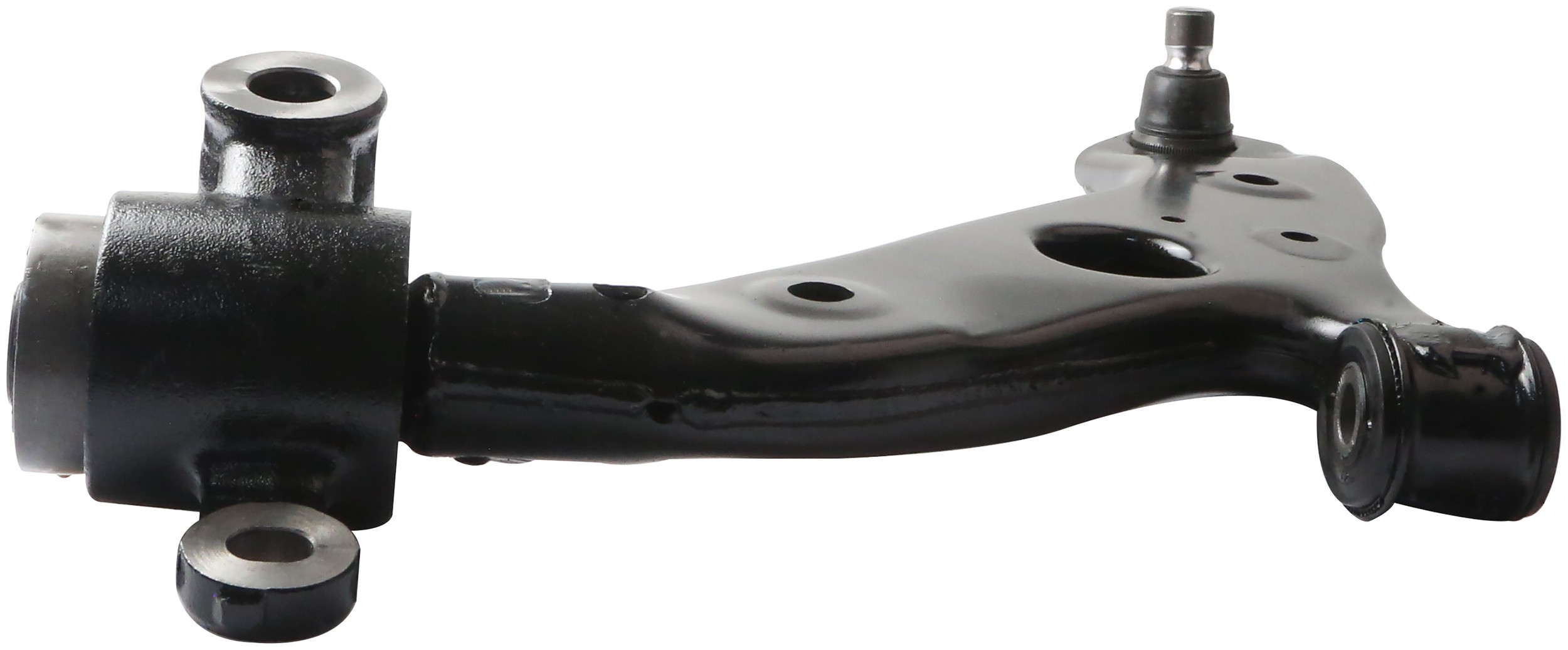

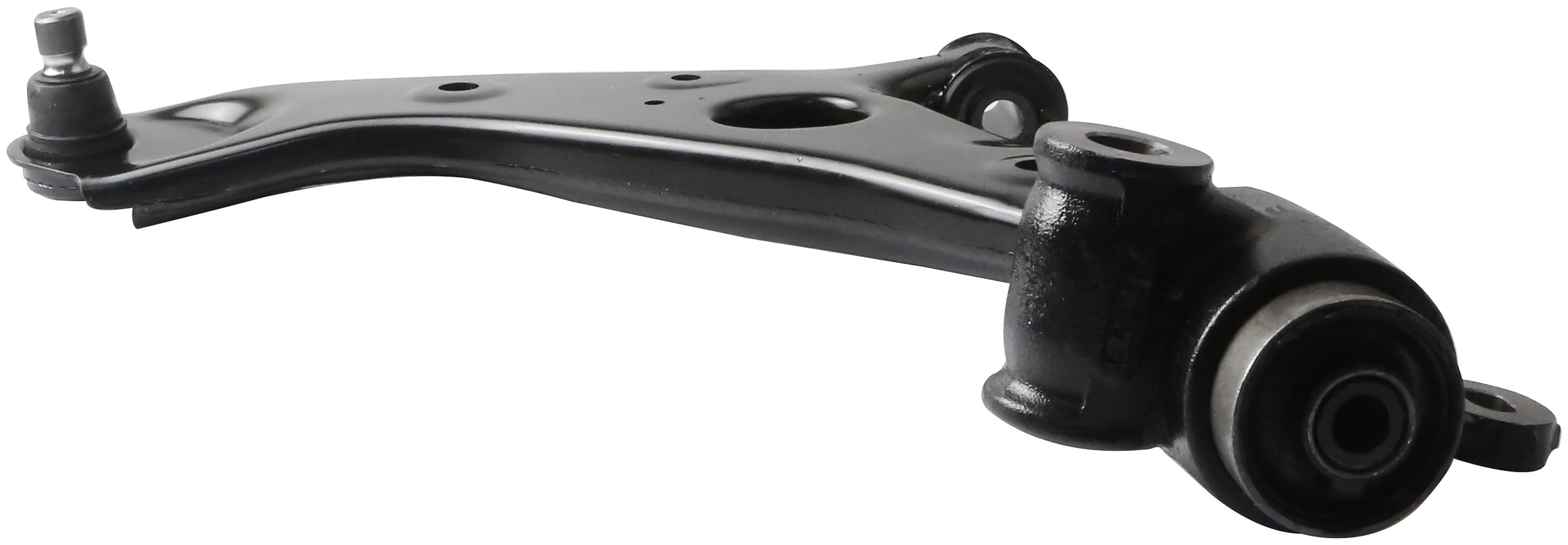

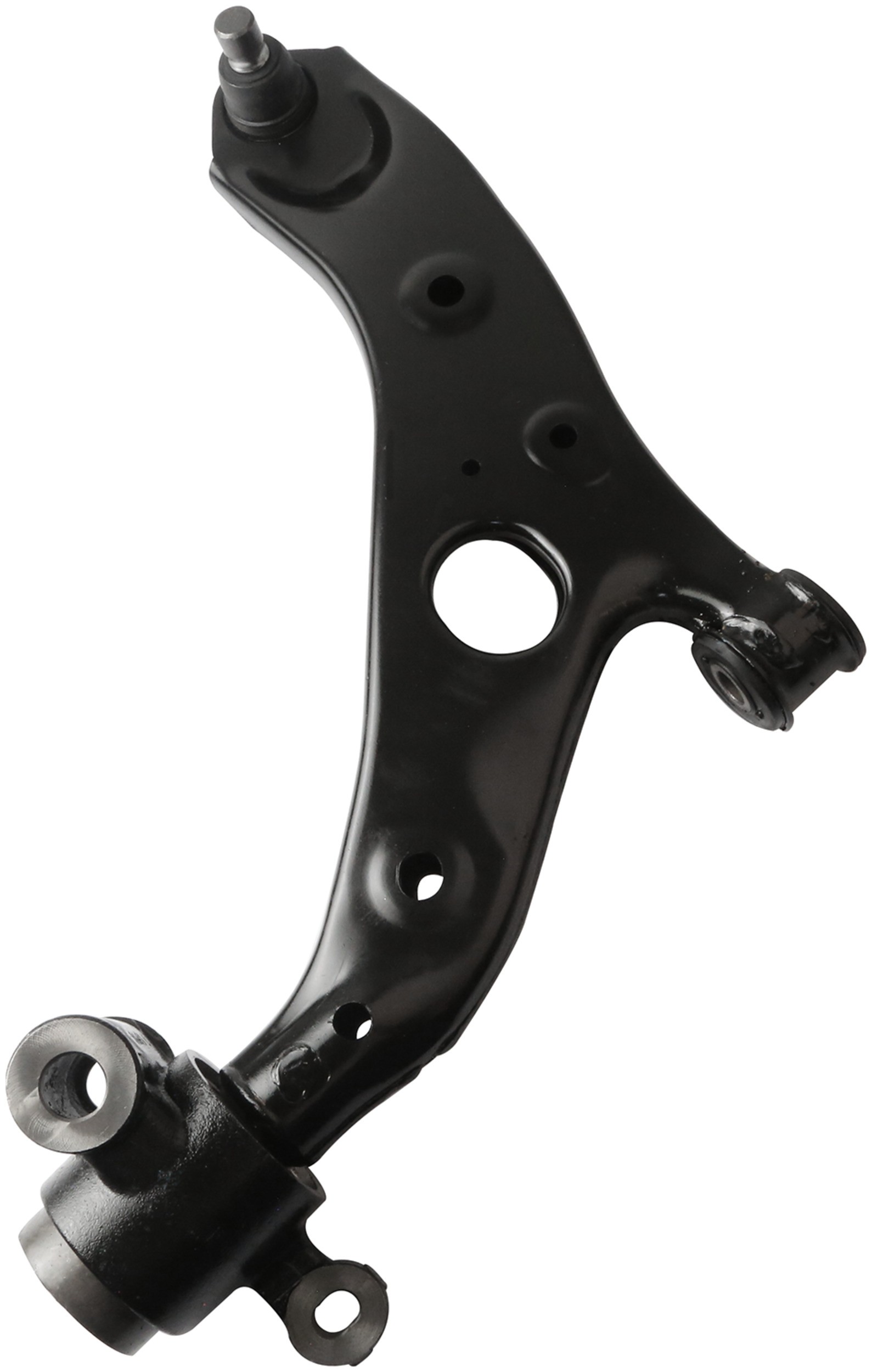

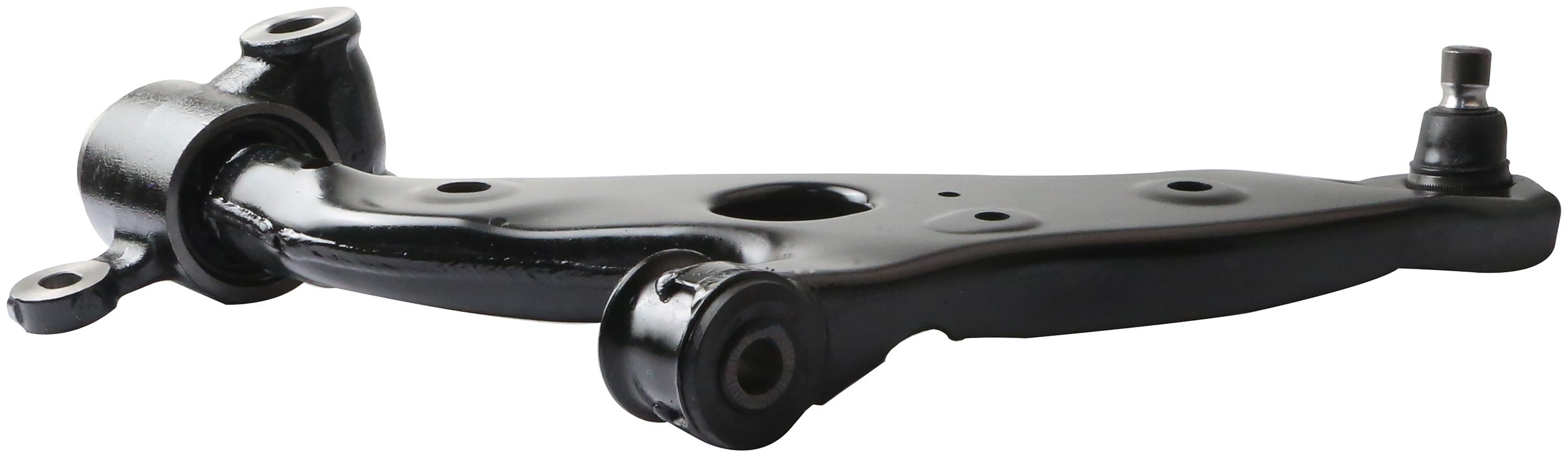

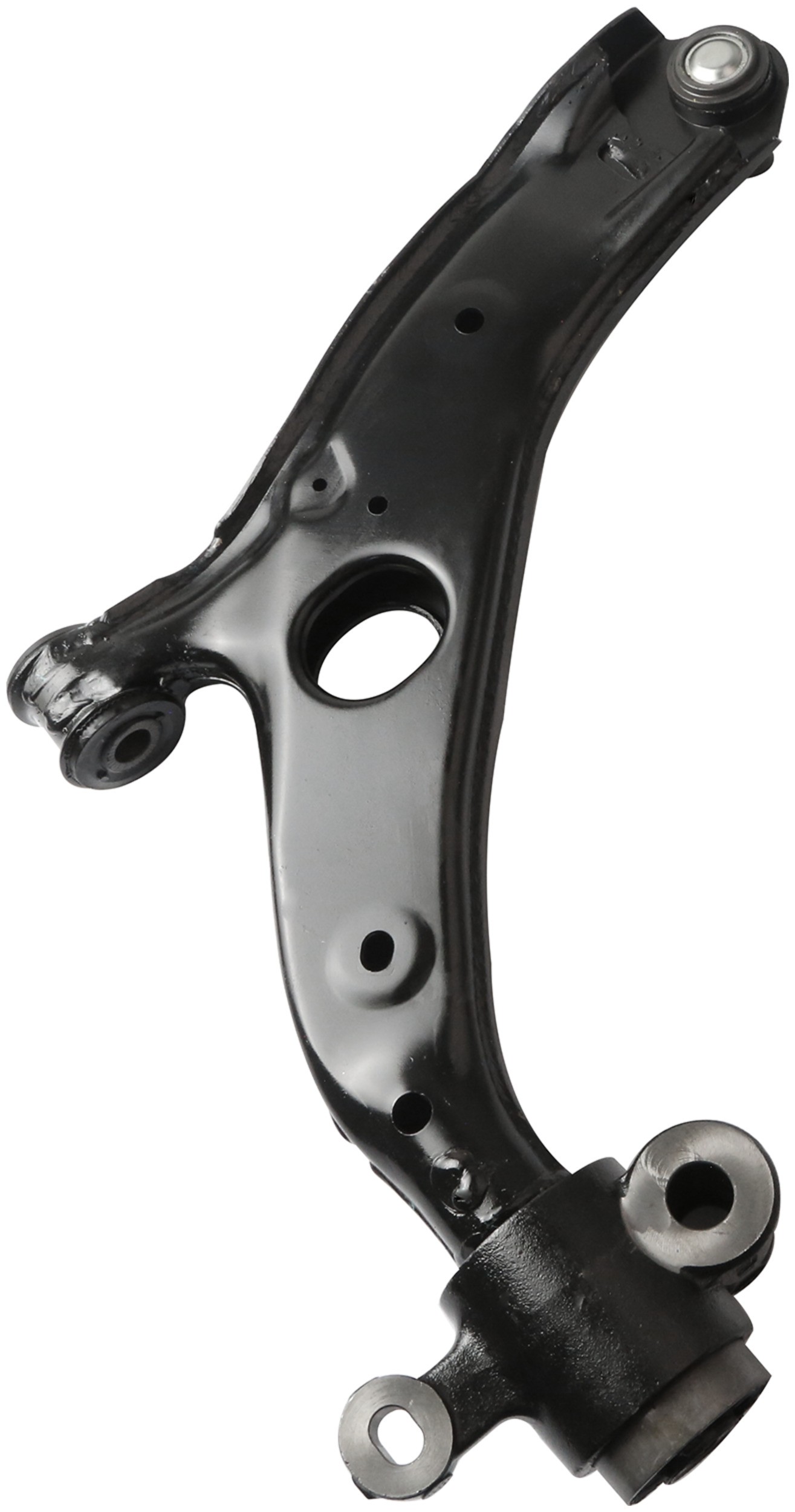

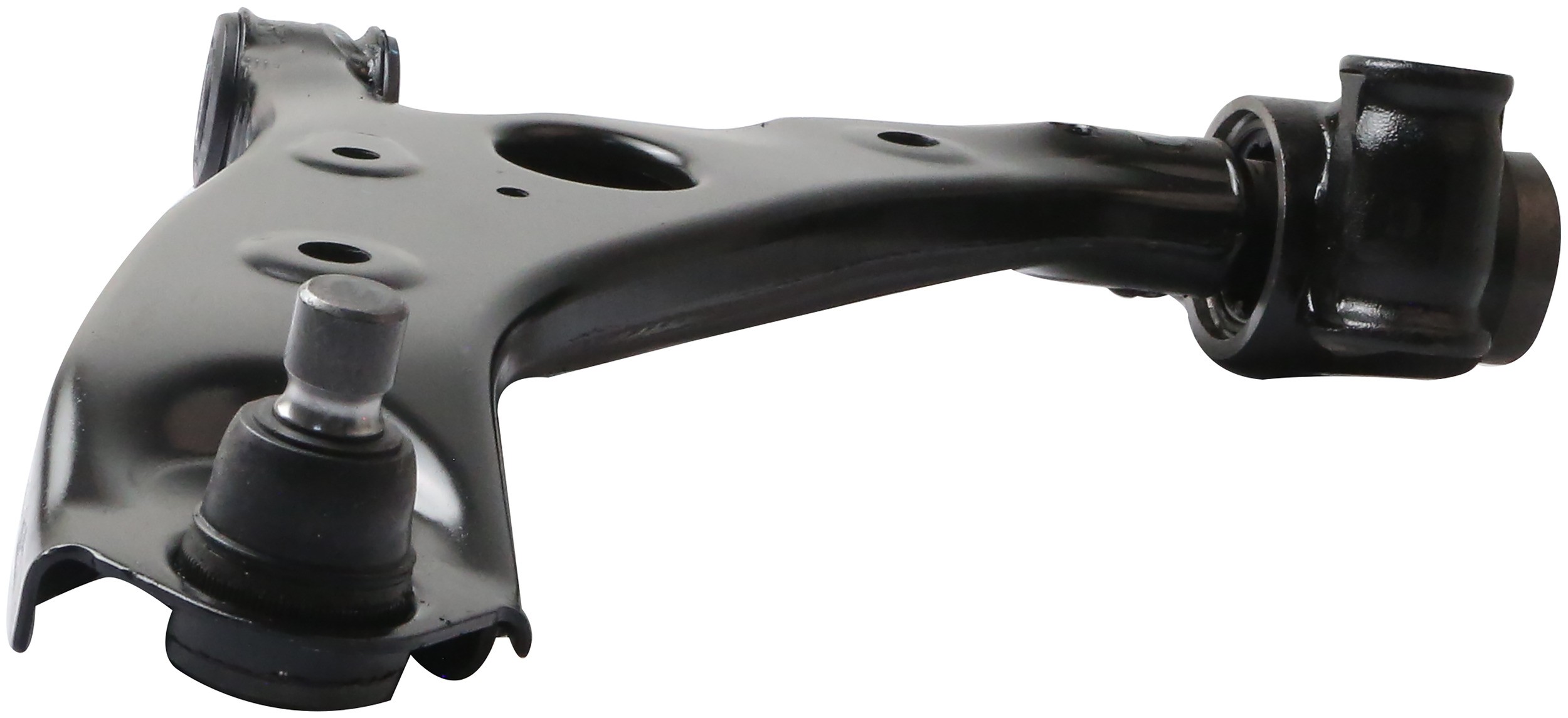

Delphi TC4408 Suspension Control Arm and Ball Joint Assembly

Delphi TC4408 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Length	2.067 IN
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Bushing Inside Diameter	26.80 MM
Bushing Inside Diameter	16.20 MM
Bushing Inside Diameter	1.055 IN
Bushing Inside Diameter	0.638 IN
Boot Material	Rubber
Mounting Hole Quantity	3
Mounting Hardware Included	No
Material	Steel
Position(s)	Front Left Lower
1260	No
2334	No
2384	Yes
2386	Stamped
4887	18.701 IN
4887	475.00 MM
9532	13.508 IN
9532	343.10 MM
Ball Joint Stud Type	Pinch
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
2827	No
Bushing Colour	Black
Grade Type	Standard Replacement
Bushing Type	Rubber
Bearing Material	Plastic
4241	No
6529	Power
Length	20.079 IN
Length	510.00 MM
Mounting Hole Diameter	0.638 IN
Mounting Hole Diameter	1.055 IN
Mounting Hole Diameter	16.20 MM
Mounting Hole Diameter	26.80 MM
9090	Rubber
Bushing Length	97.50 MM
Bushing Length	52.50 MM
Bushing Length	3.839 IN
