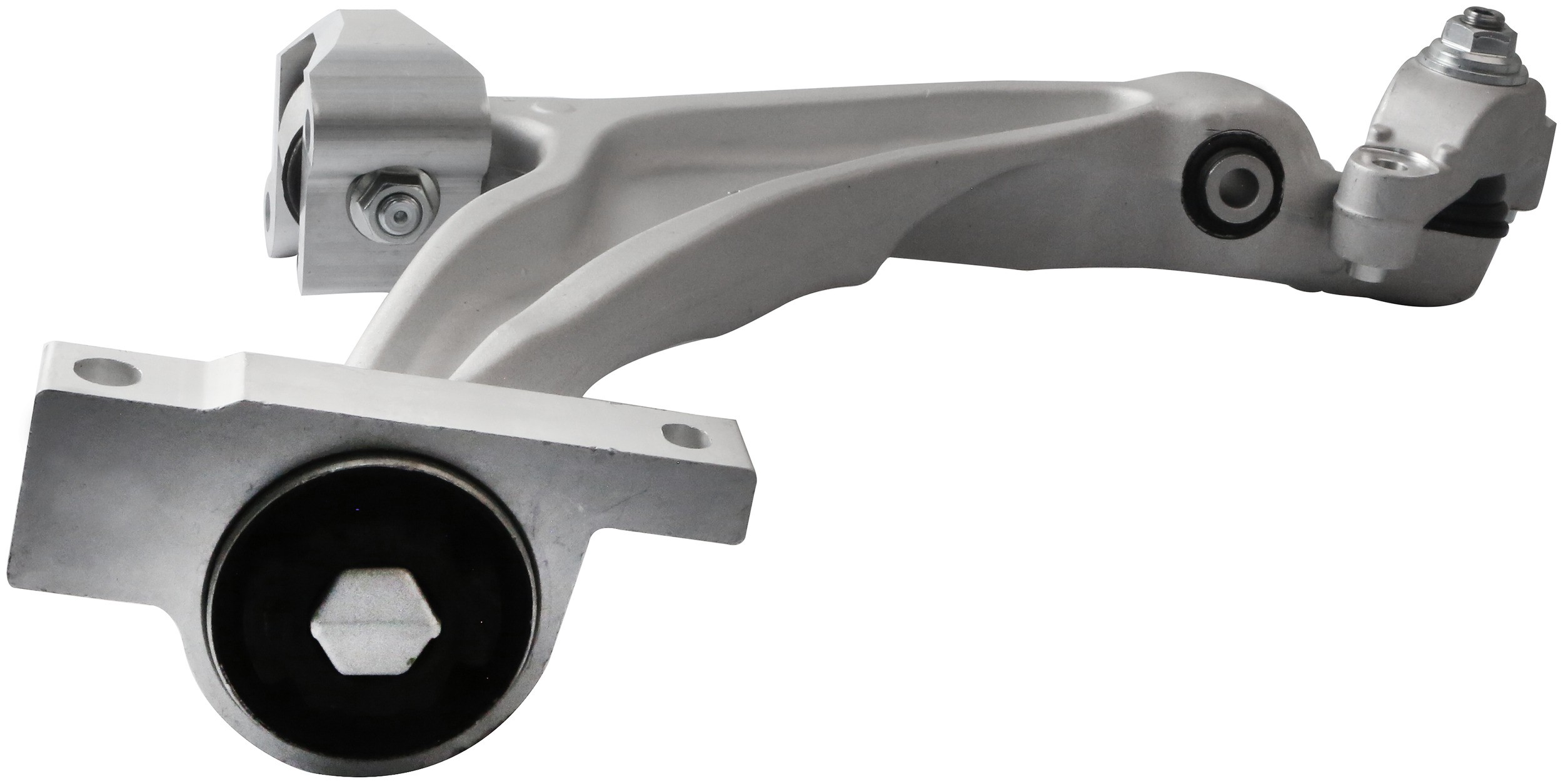

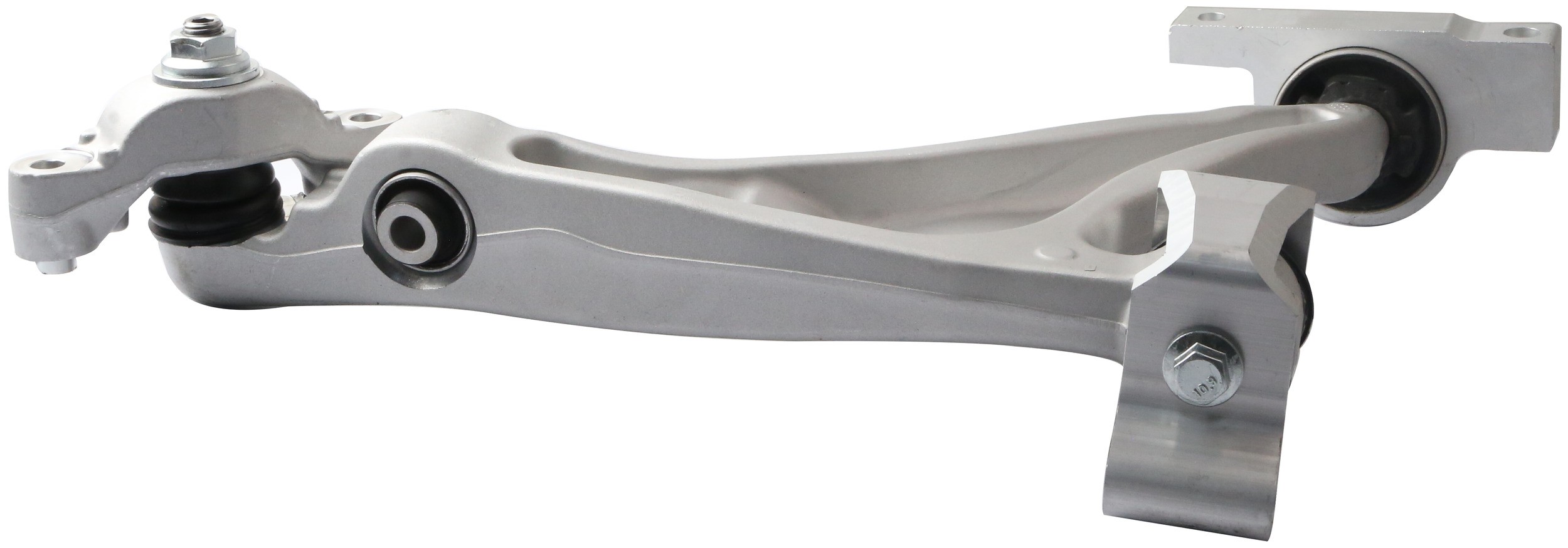

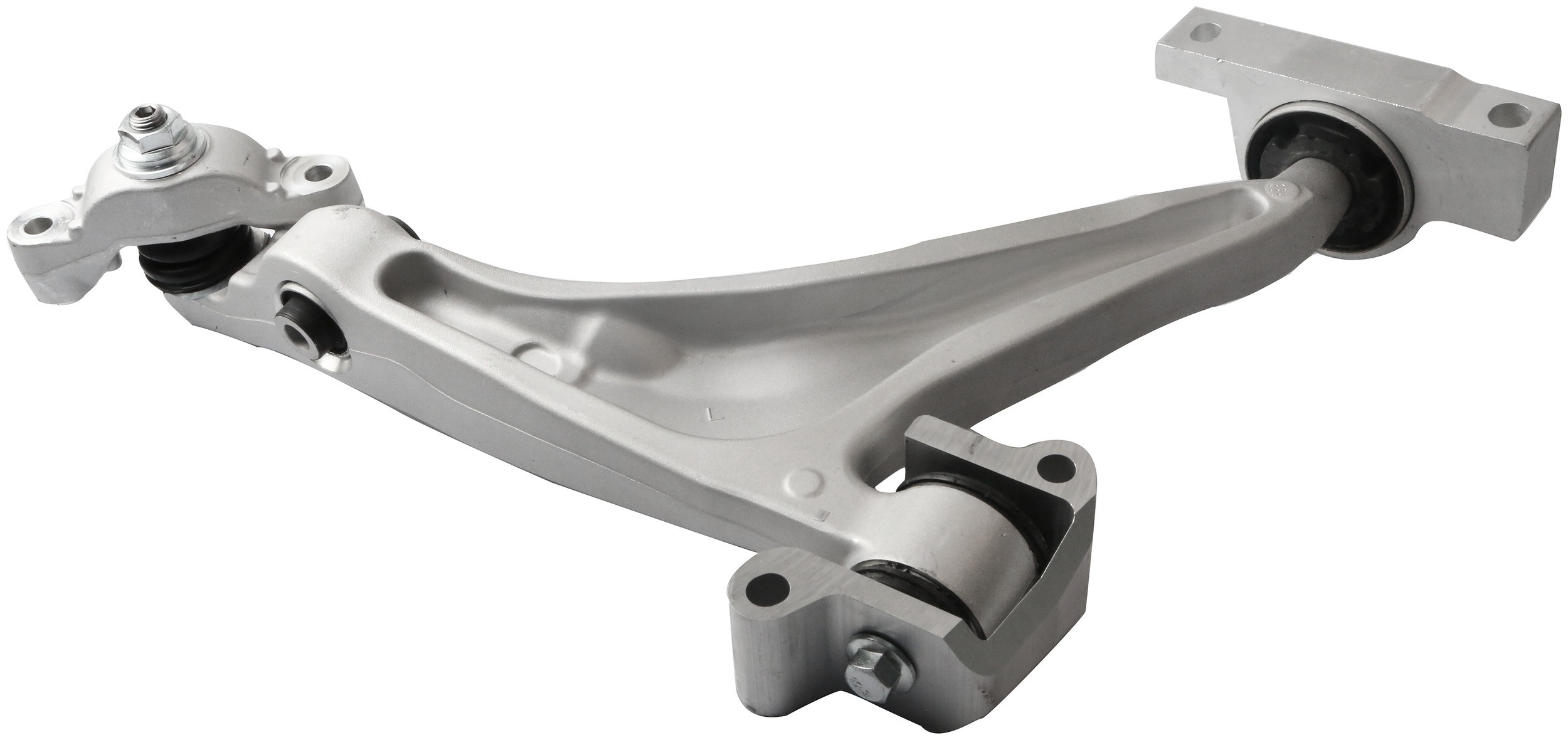

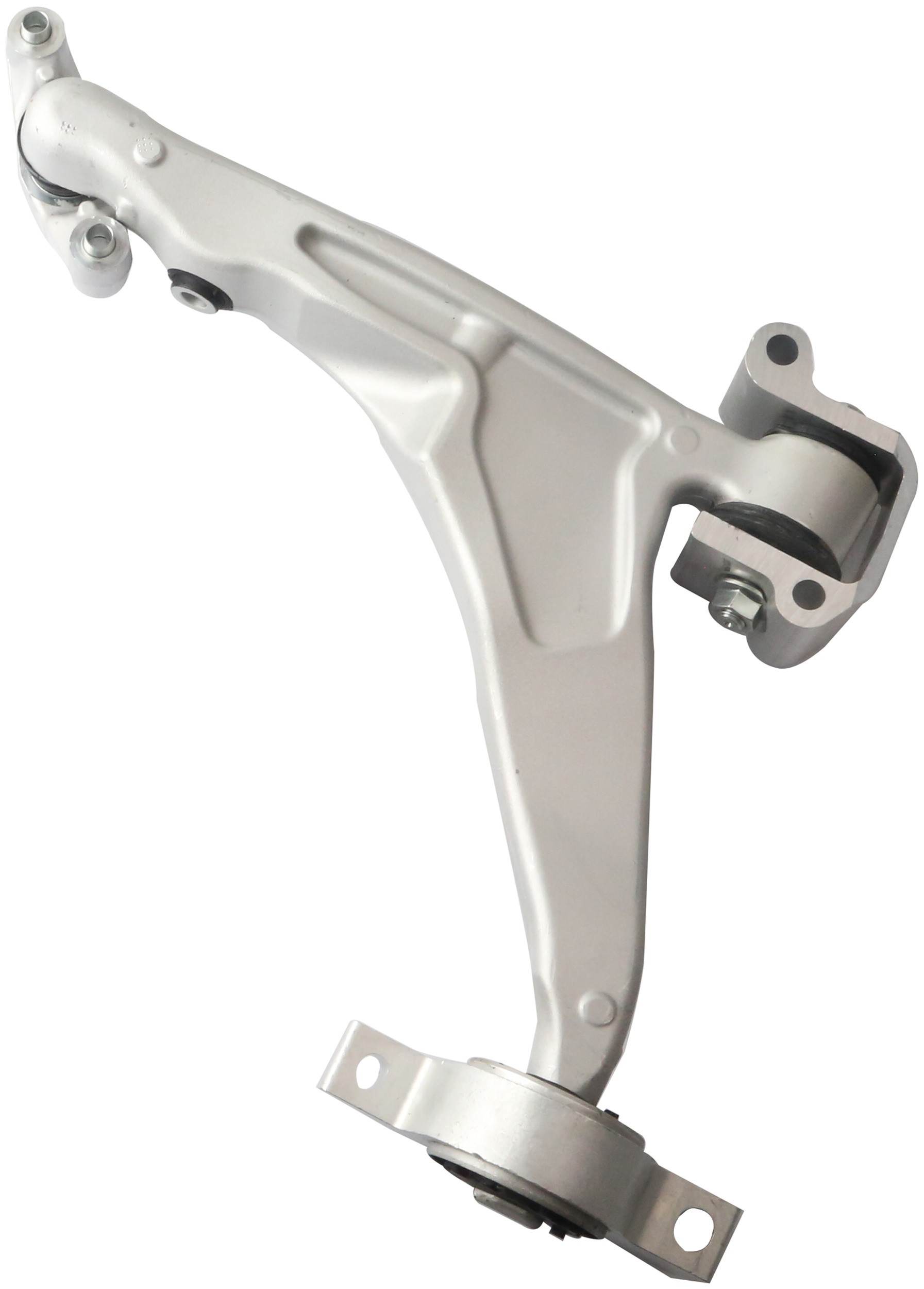

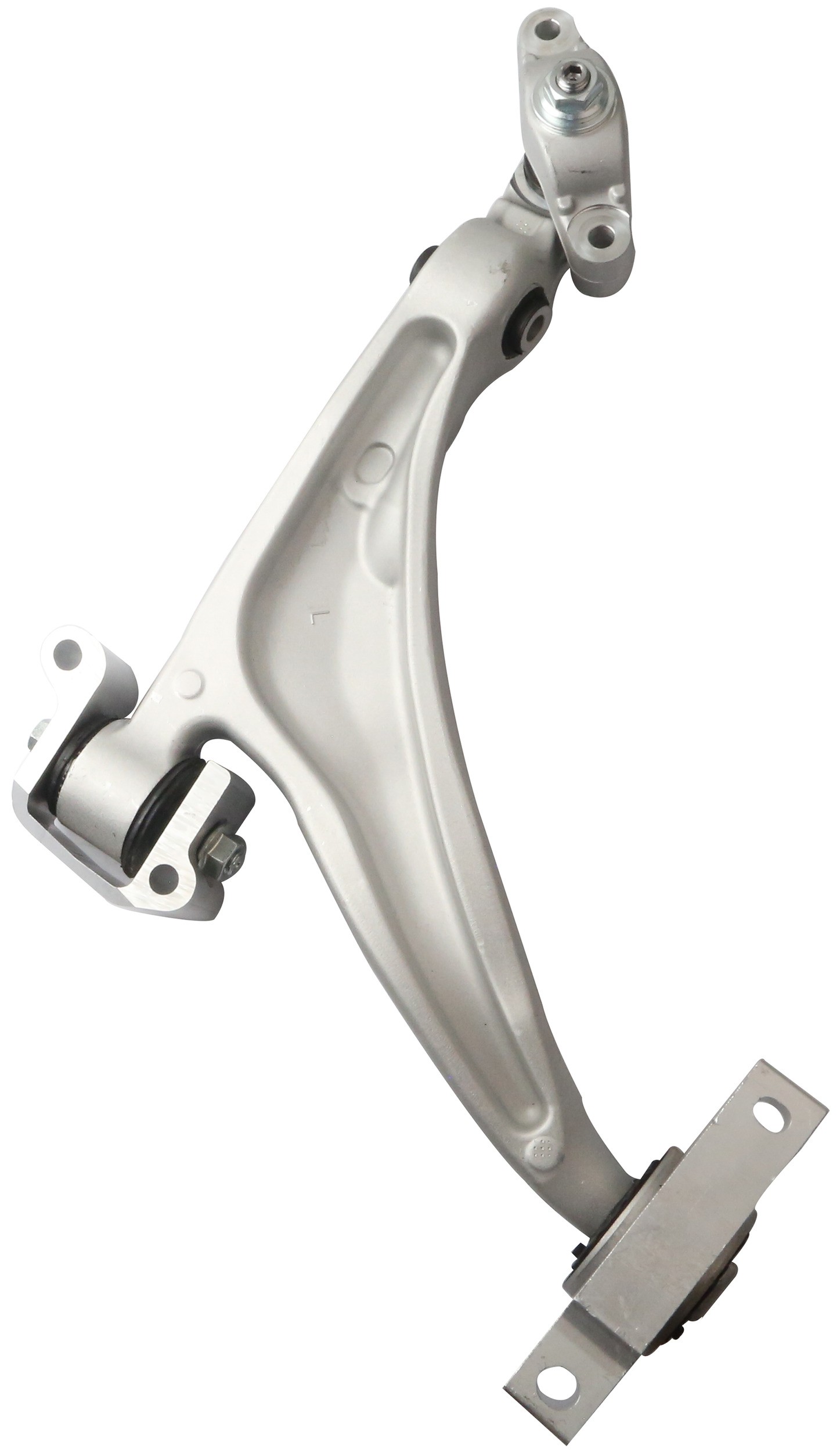

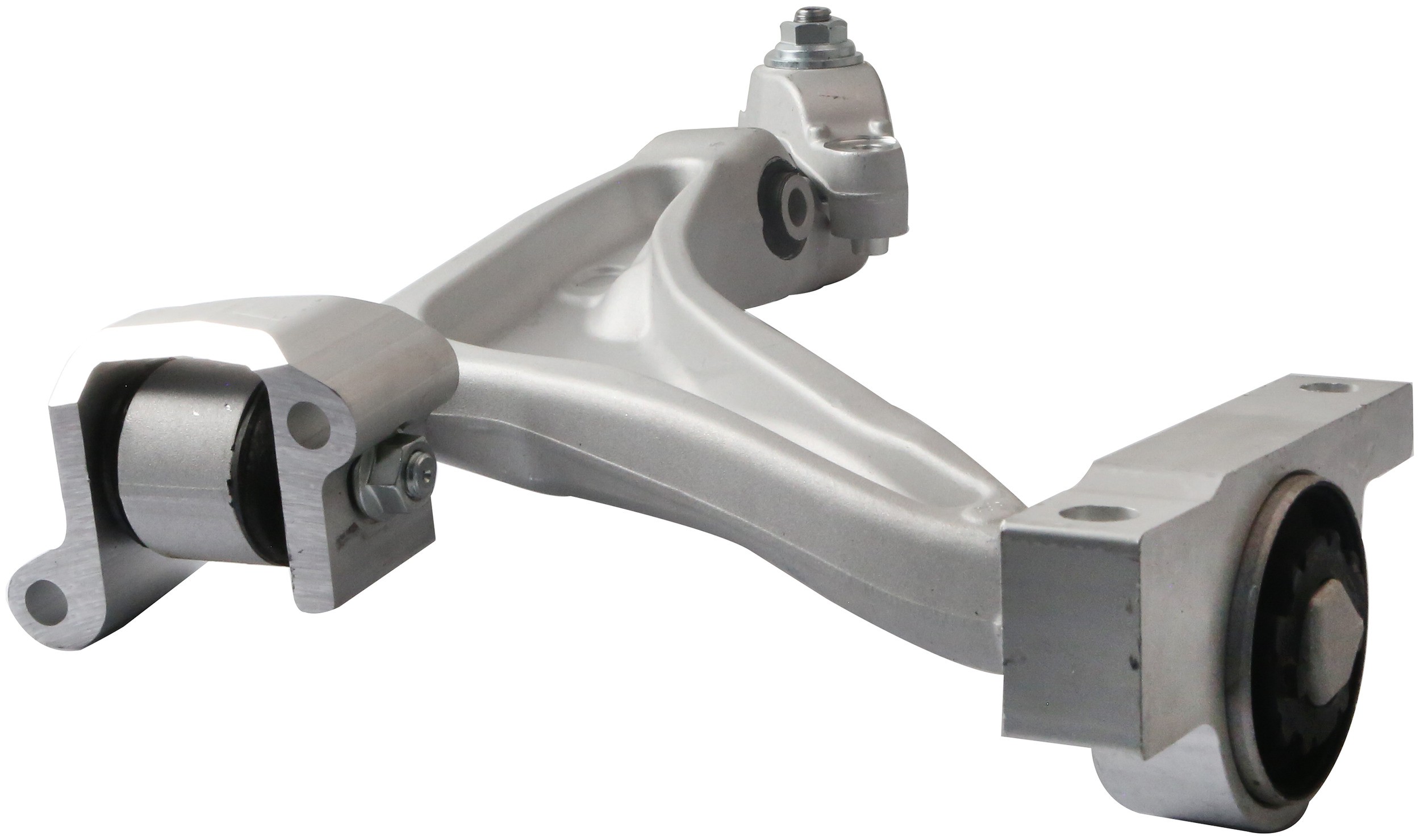

Delphi TC4468 Suspension Control Arm and Ball Joint Assembly

Delphi TC4468 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	17.717 IN
Position(s)	Front Left Lower
1260	No
2334	No
2384	Yes
2386	Casting/Forged
4241	Yes
Bushing Type	Rubber
Grade Type	Standard Replacement
6529	Power
9090	Rubber
Length	15.433 IN
Length	450.00 MM
Mounting Hole Diameter	0.555 IN
Mounting Hole Diameter	14.10 MM
Bushing Inside Diameter	0.555 IN
Bushing Inside Diameter	14.10 MM
Bushing Length	2.717 IN
Bushing Length	69.00 MM
Length	392.00 MM
9532	301.00 MM
9532	11.850 IN
4890	26.00 MM
4890	1.024 IN
4887	190.00 MM
4887	7.480 IN
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Threaded
Material	Aluminum
Mounting Hardware Included	Yes
Mounting Hole Quantity	1
Boot Material	Rubber
Adjustable	No
Greaseable	No
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
