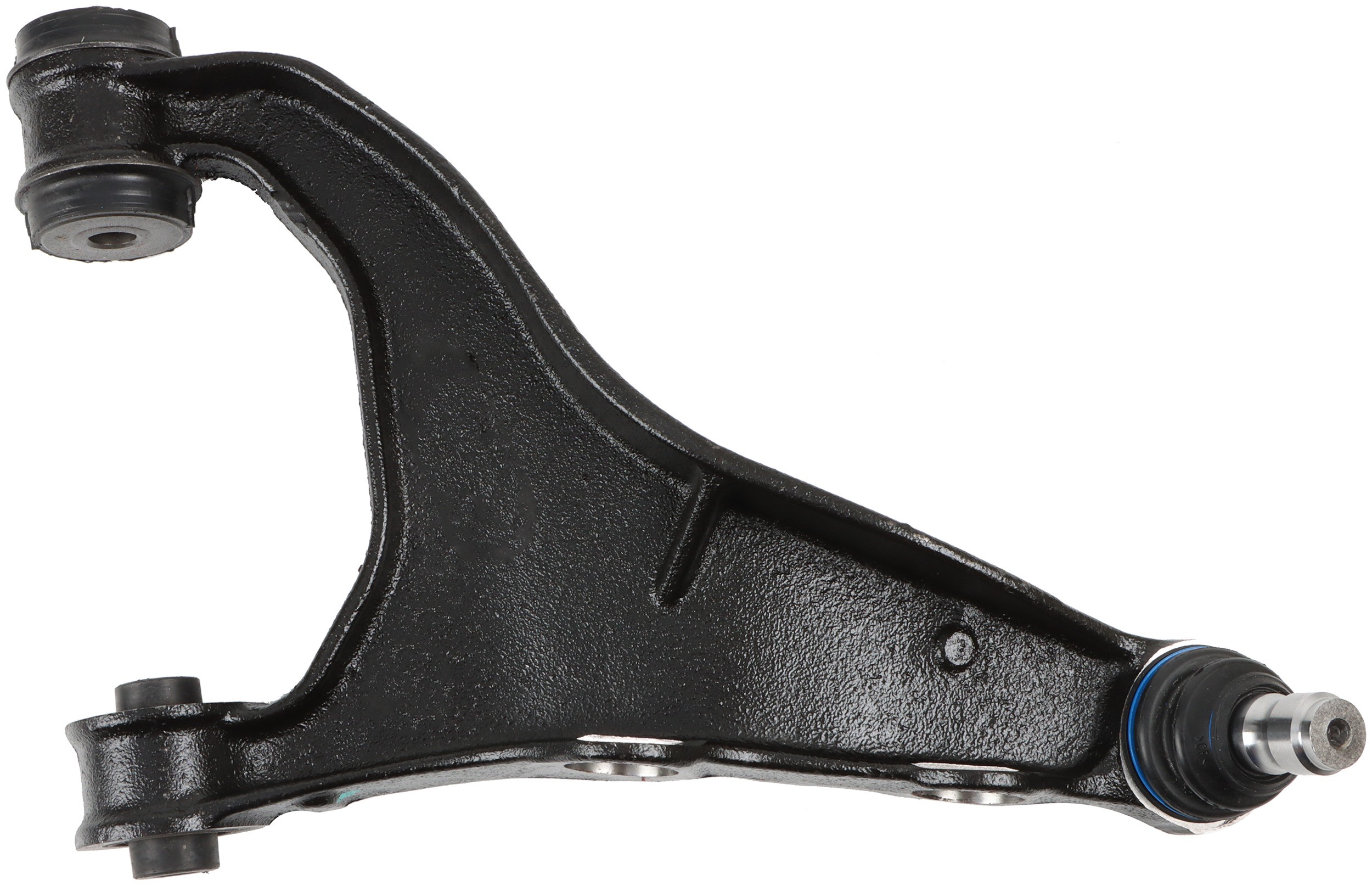

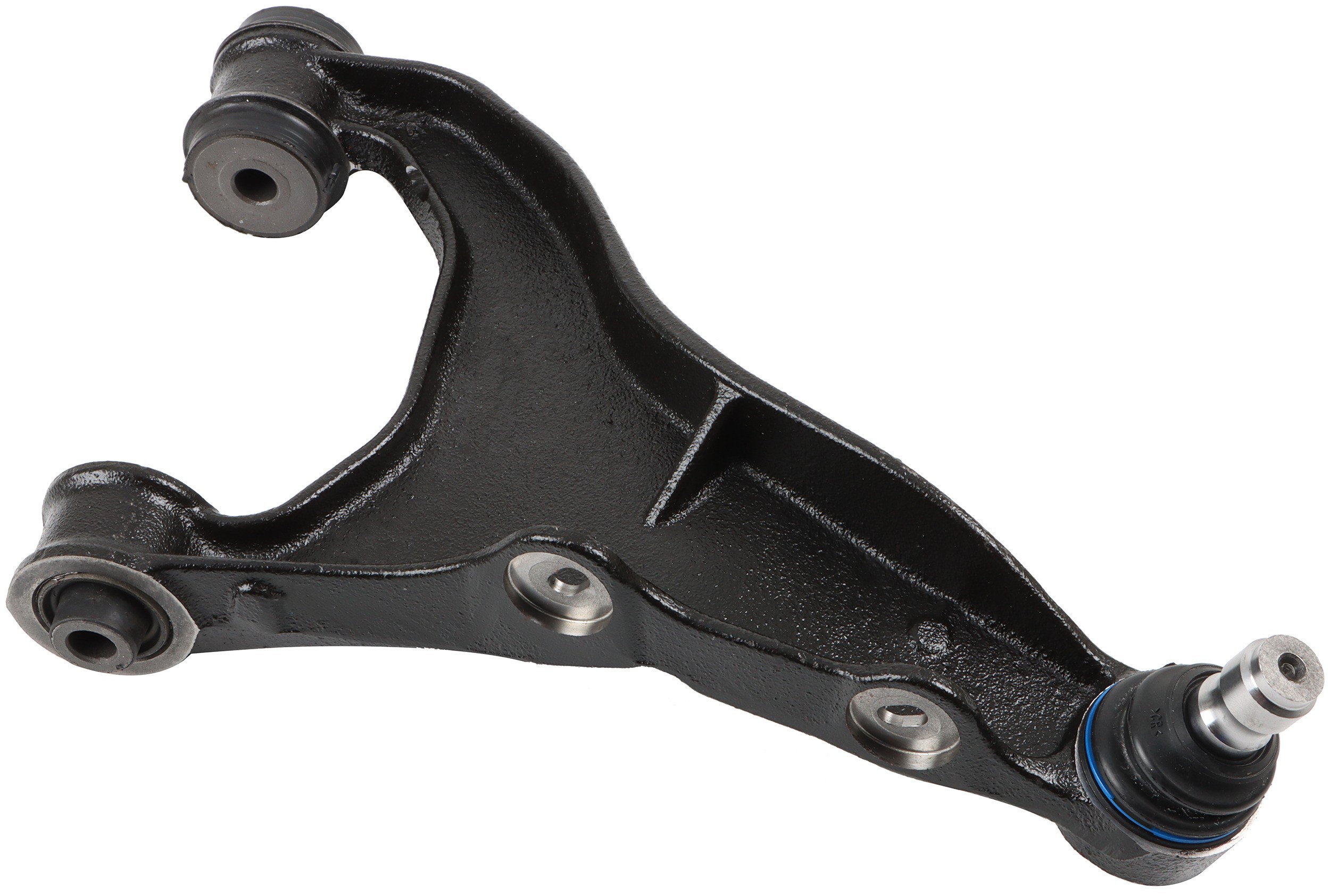

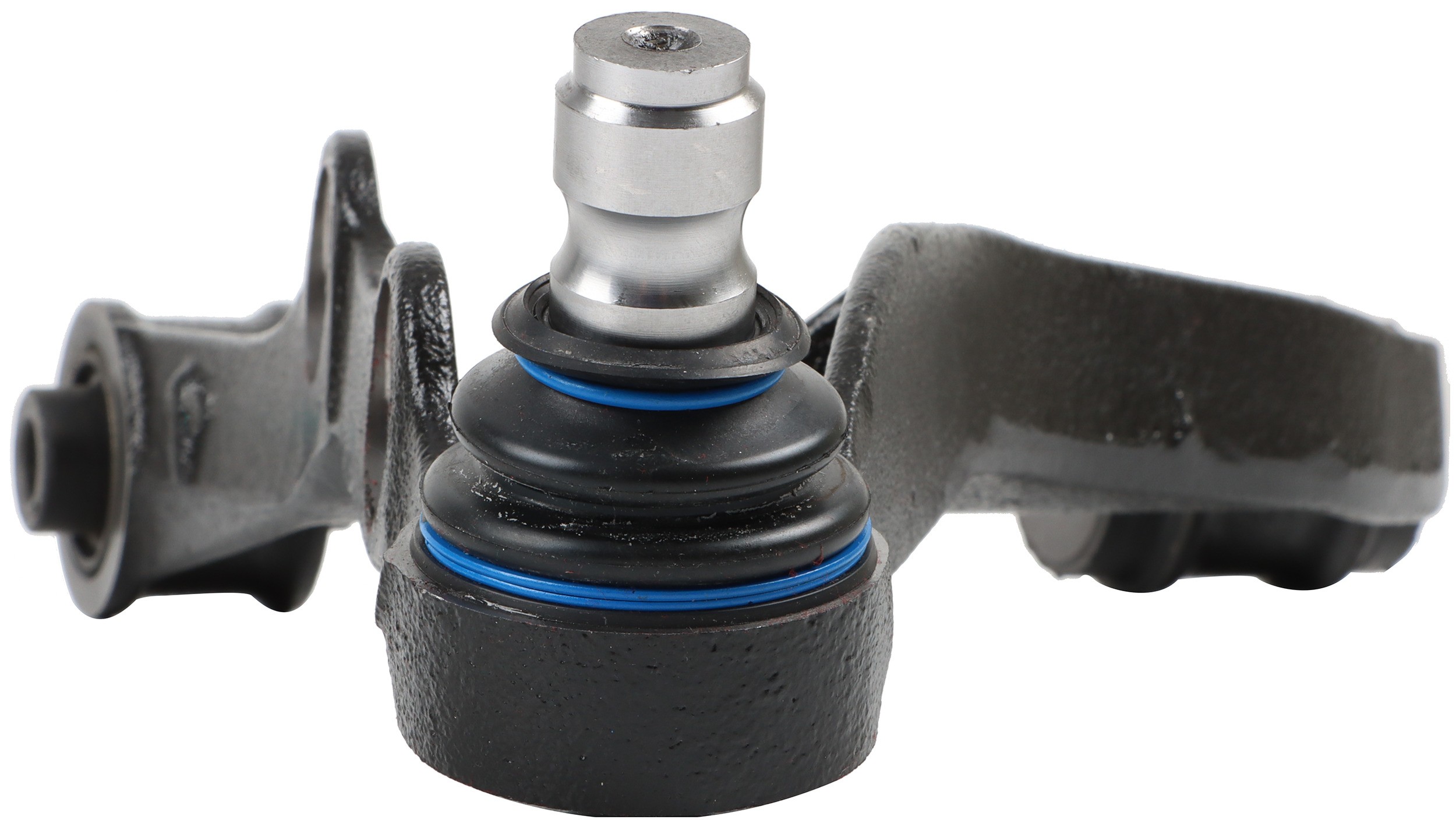

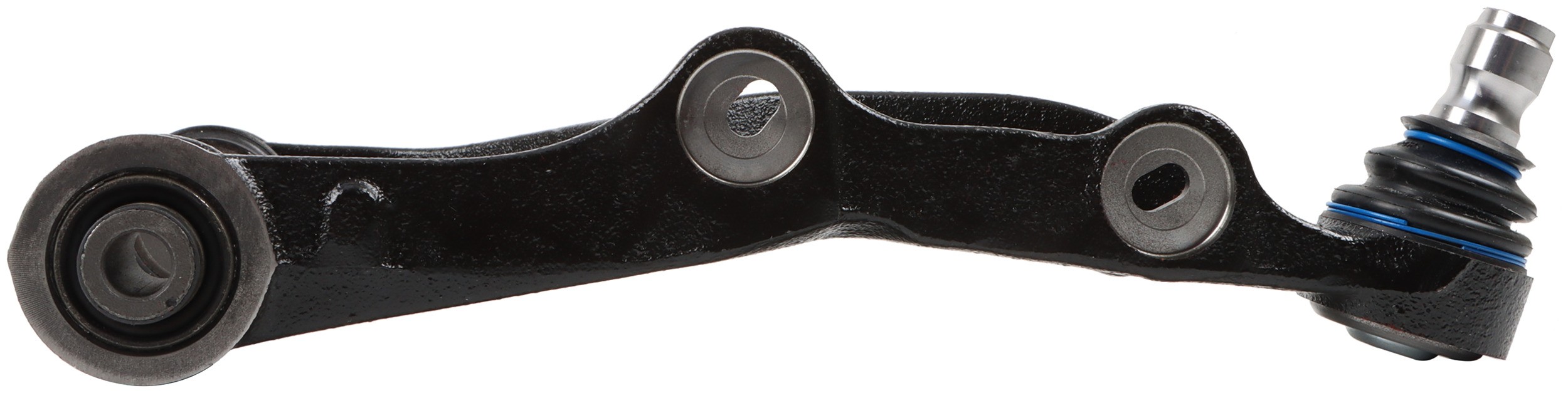

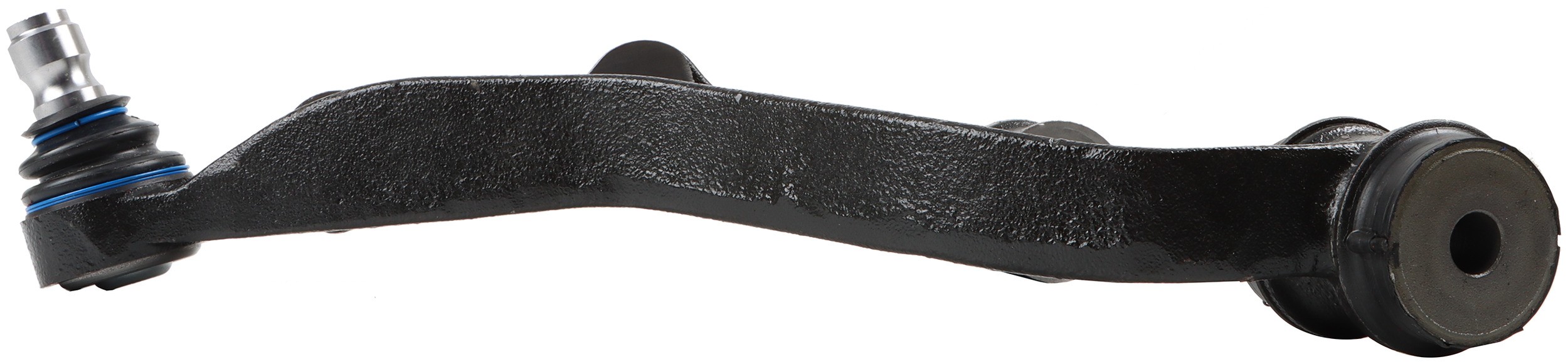

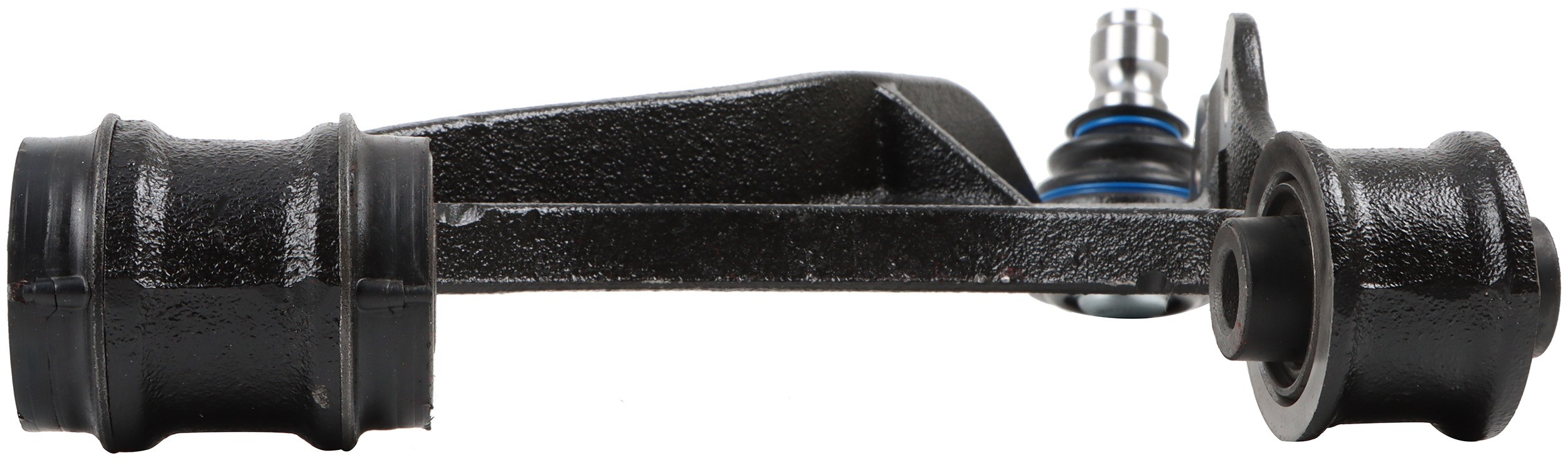

Delphi TC4526 Suspension Control Arm and Ball Joint Assembly

Delphi TC4526 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	305.00 MM
Length	12.000 IN
Length	153.00 MM
Length	6.020 IN
662	20.00 MM
9532	6.850 IN
9532	174.00 MM
Grade Type	Standard Replacement
Bushing Type	Rubber
Bearing Material	Polyoxymethilen (POM)
Boot Colour	Black
Finish	Black
4887	10.030 IN
Bushing Colour	Black
Greaseable	No
Adjustable	No
4887	255.00 MM
4890	0.710 IN
Boot Material	Chloroprene Rubber(CR)
Mounting Hole Quantity	2
Mounting Hardware Included	No
Material	Steel
Ball Joint Stud Type	Grooved
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Finish	Painted
4890	18.00 MM
9090	Chloroprene Rubber(CR)
6529	Power
4241	No
2827	No
2386	Casting/Forged
2384	Yes
2334	No
1260	No
Position(s)	Rear Right Upper
Bushing Length	60.00 MM
Bushing Length	2.360 IN
Bushing Length	50.00 MM
Bushing Length	1.960 IN
Bushing Inside Diameter	12.50 MM
Bushing Inside Diameter	12.20 MM
Bushing Inside Diameter	0.490 IN
Bushing Inside Diameter	0.480 IN
Bore Diameter	34.00 MM
Bore Diameter	1.330 IN
Mounting Hole Diameter	12.50 MM
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	0.490 IN
Mounting Hole Diameter	0.480 IN
