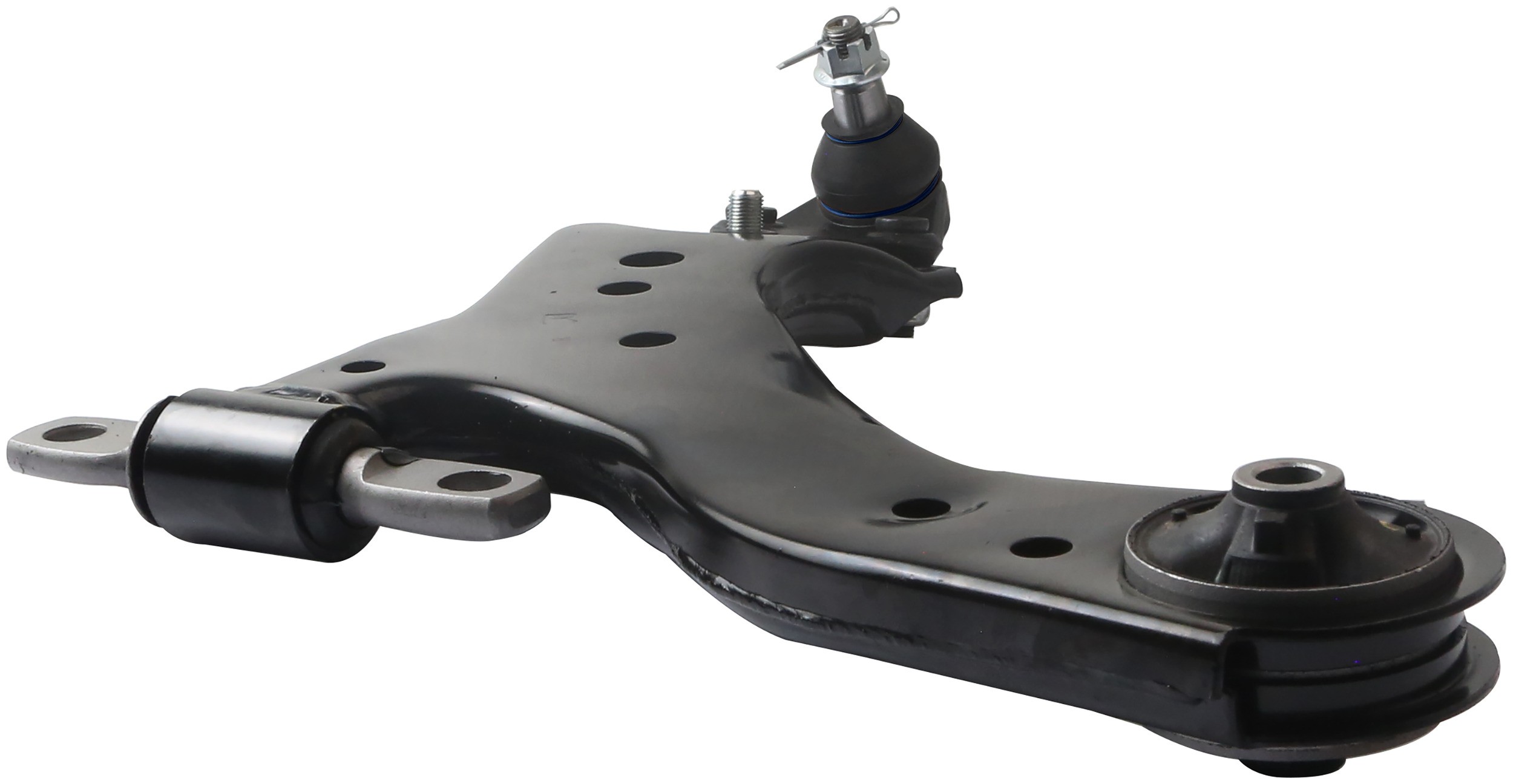

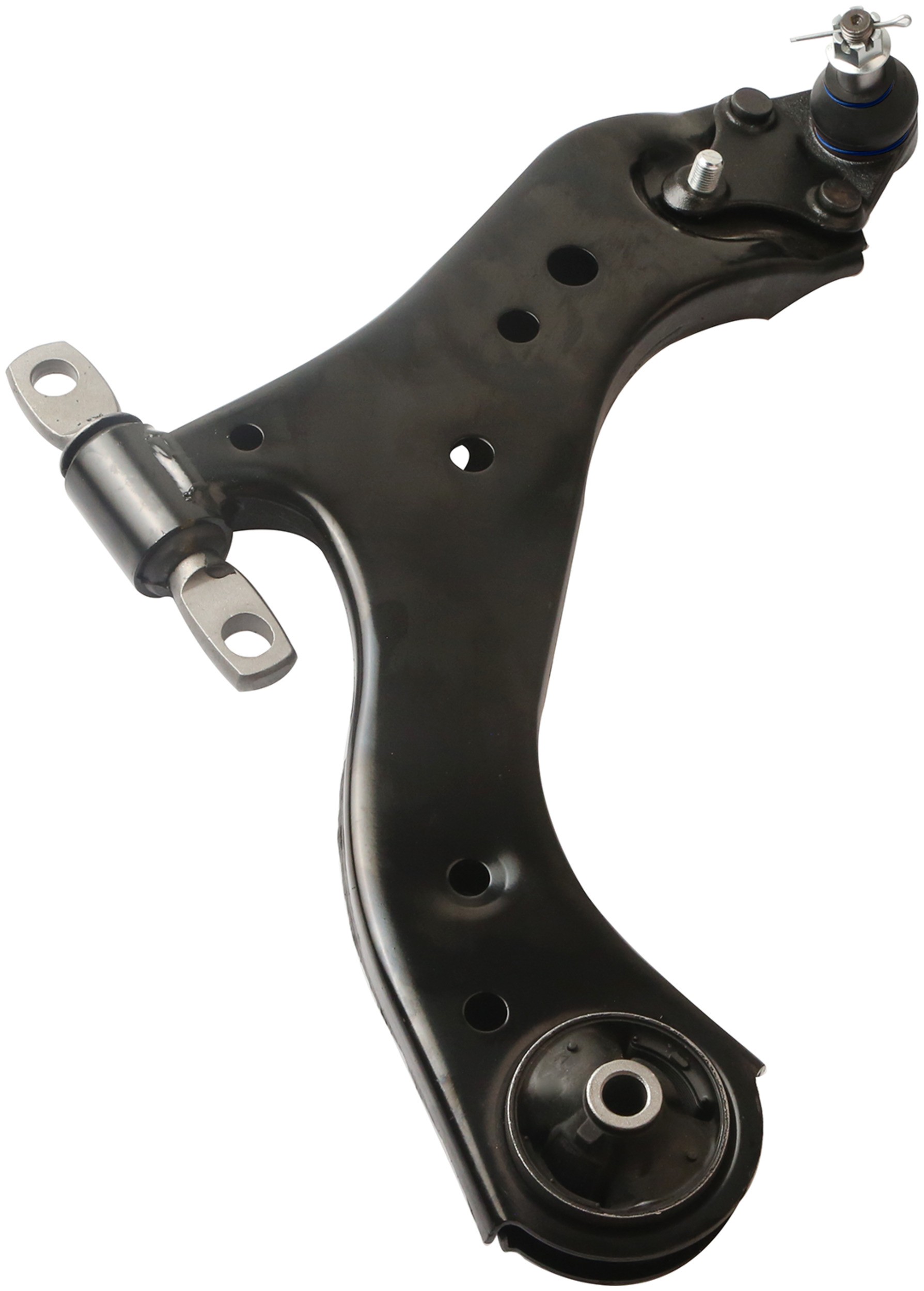

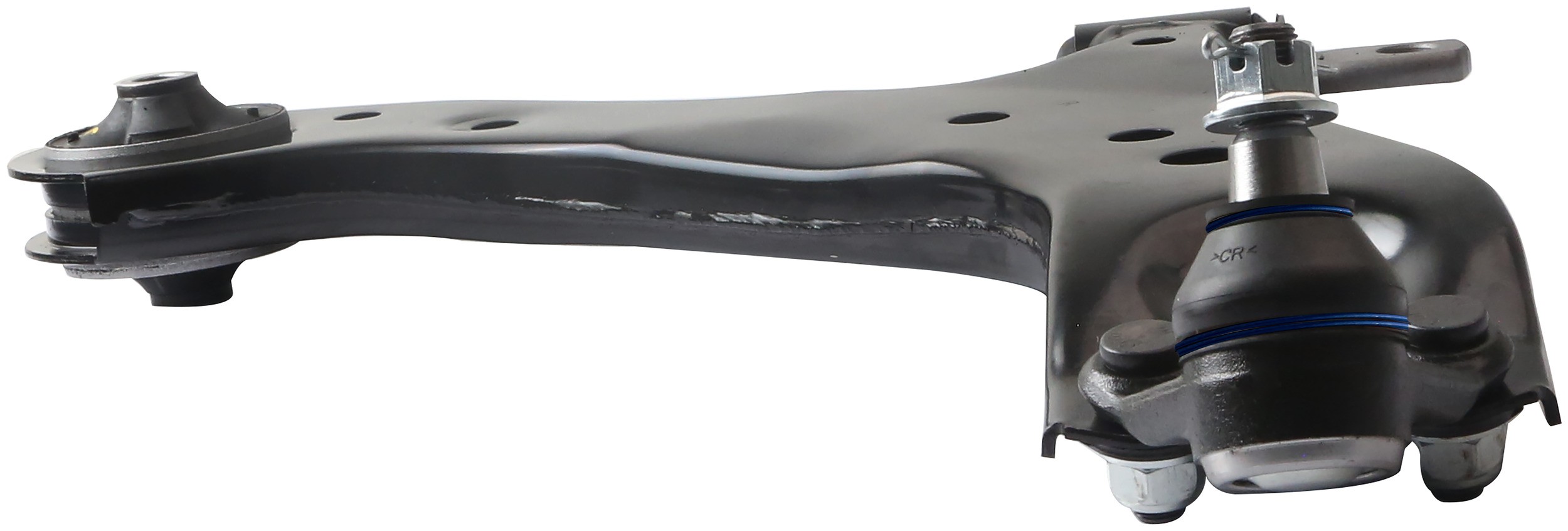

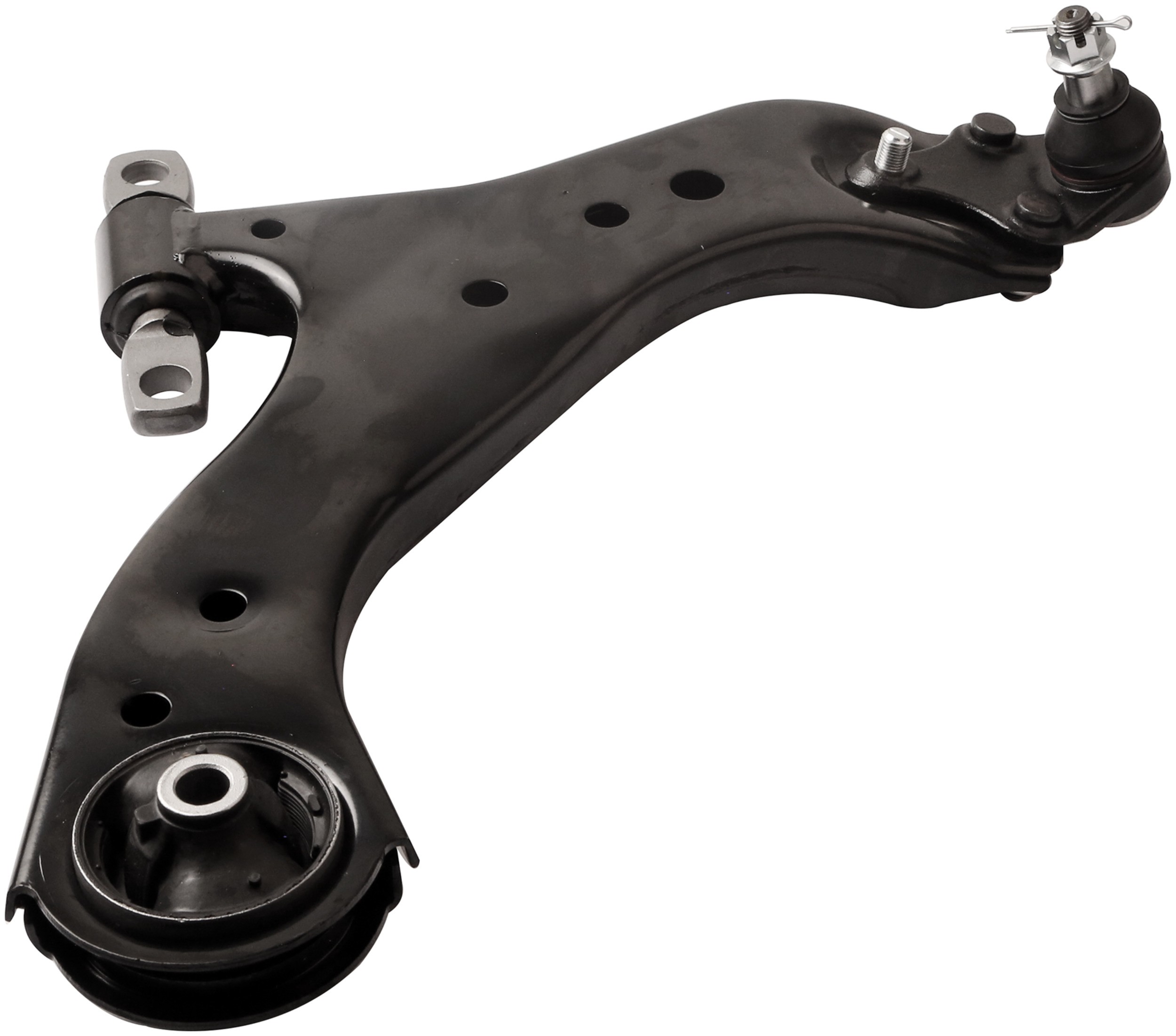

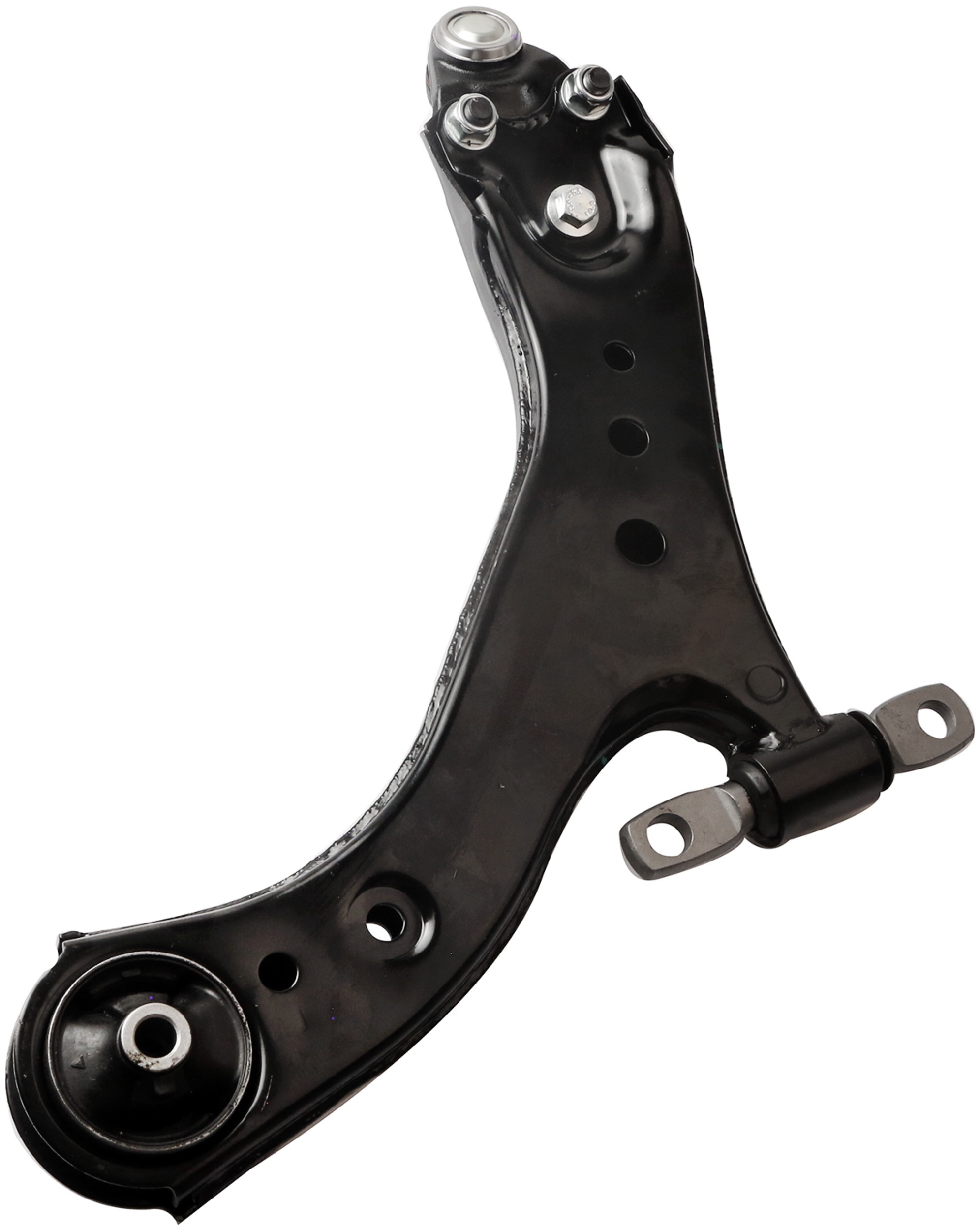

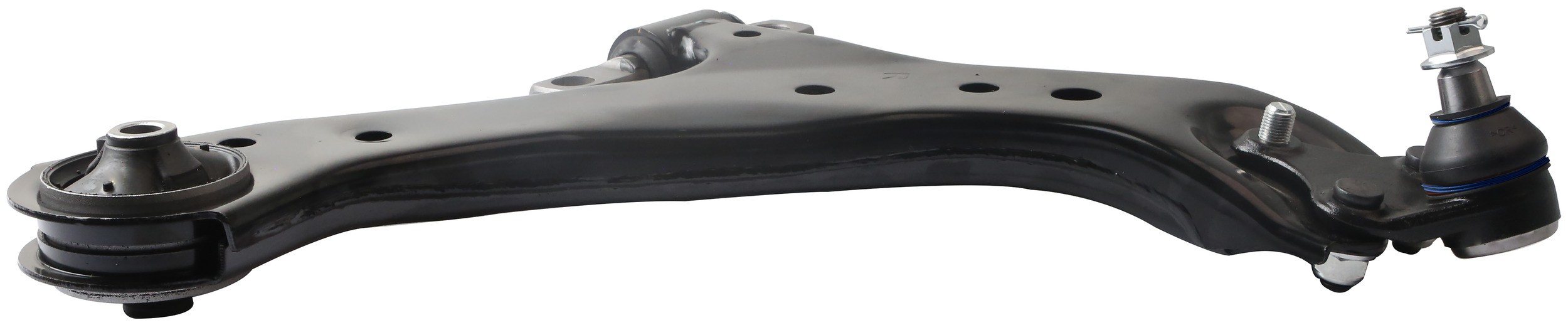

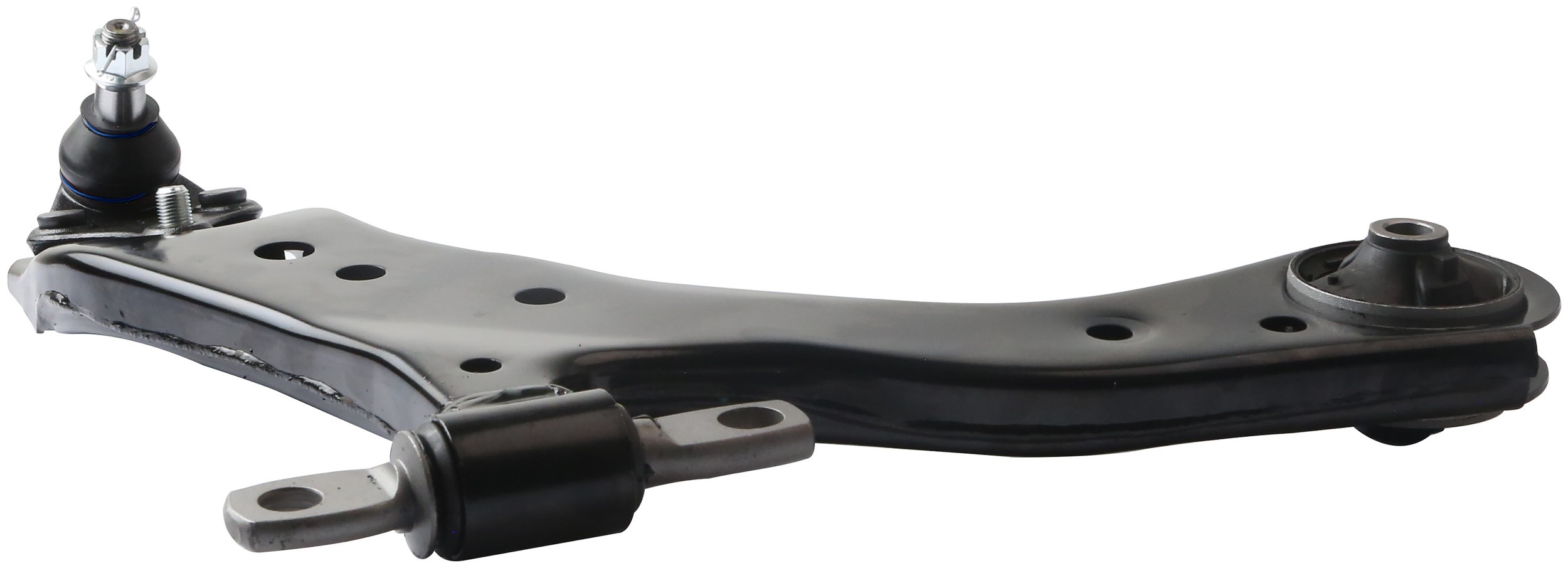

Delphi TC4610 Suspension Control Arm and Ball Joint Assembly

Delphi TC4610 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Colour	Black
Finish	Painted
Attachment Type	Bolt In
Ball Joint Stud Type	Threaded
Mounting Hardware Included	No
Mounting Hole Quantity	1
Mounting Hole Quantity	2
Boot Material	Rubber
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Grade Type	Standard Replacement
Dust Boot Included	Yes
Bushing Inside Diameter	0.563 IN
Material	Steel
Pre-greased	Yes
Bushing Length	67.00 MM
2827	Yes
Position(s)	Front Right Lower
Bushings Included	Yes
Length	17.520 IN
Length	445.00 MM
2386	Stamped
2384	Yes
Bushing Inside Diameter	14.30 MM
9090	Rubber
6529	Power
4241	No
4887	17.126 IN
2334	Yes
Mounting Hole Diameter	0.563 IN
Mounting Hole Diameter	5.374 IN
Mounting Hole Diameter	14.30 MM
Mounting Hole Diameter	136.50 MM
4887	435.00 MM
4890	0.906 IN
4890	23.00 MM
9532	360.50 MM
9532	14.193 IN
Bushing Length	2.638 IN
1260	No
