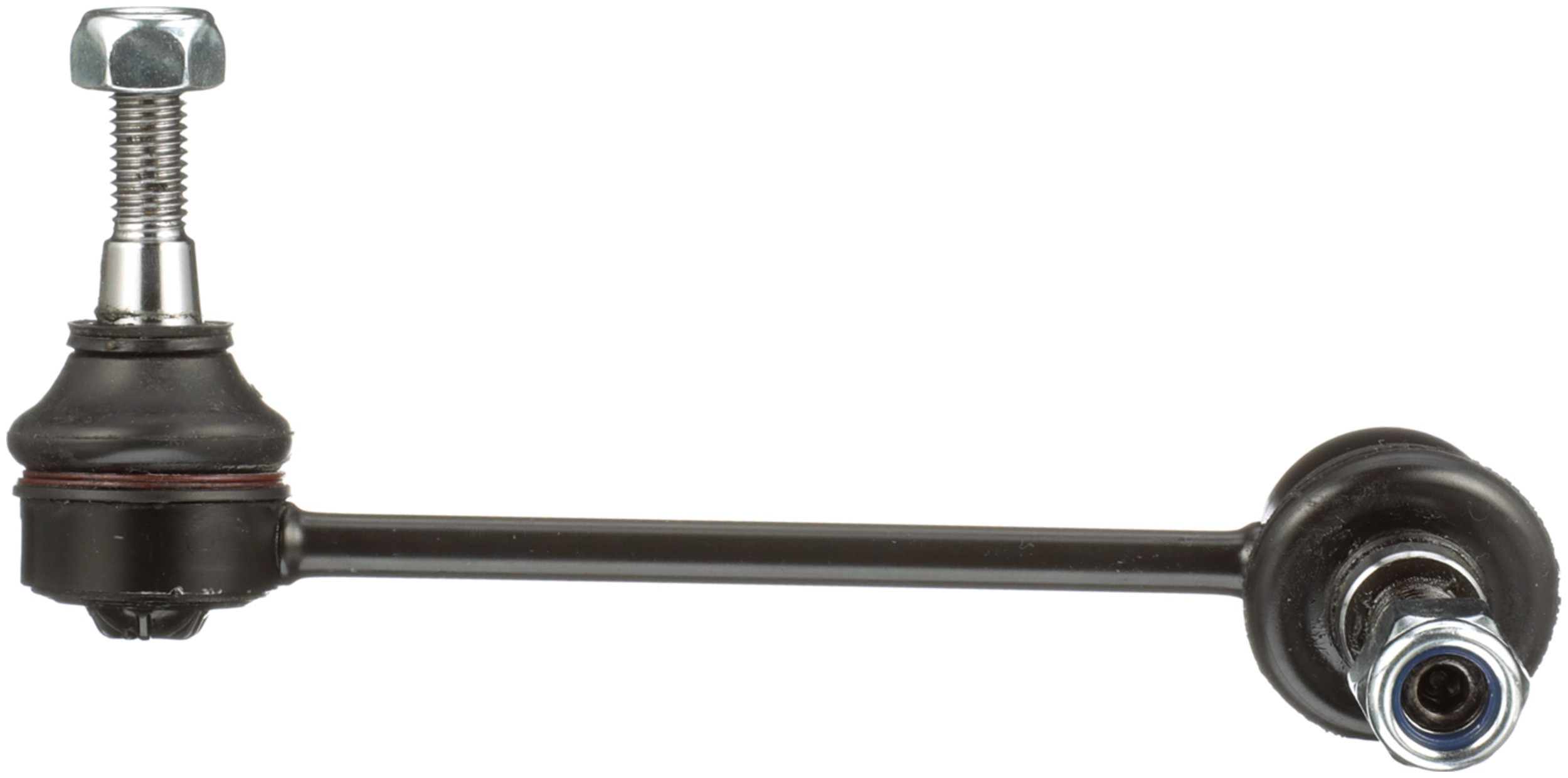

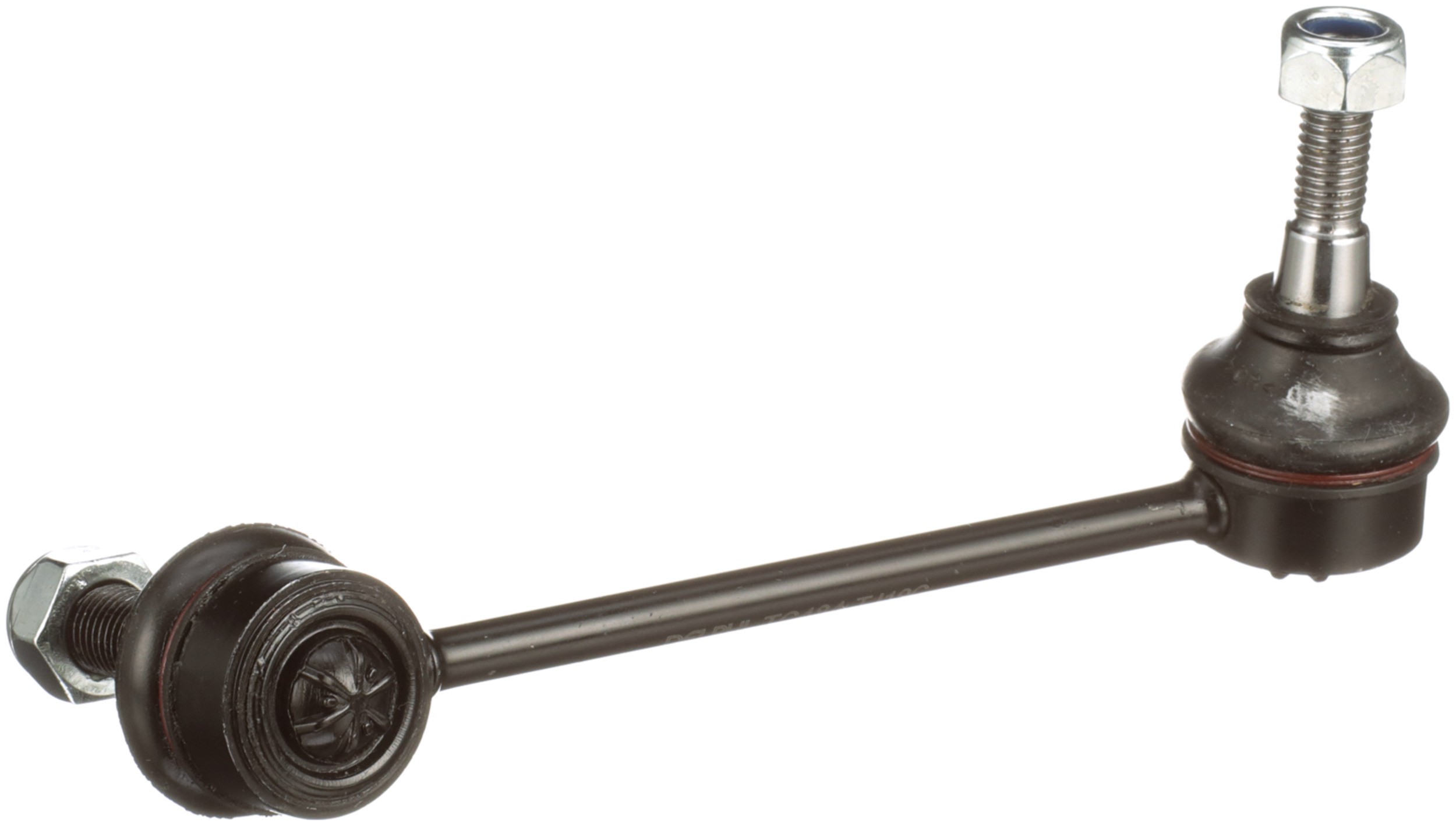

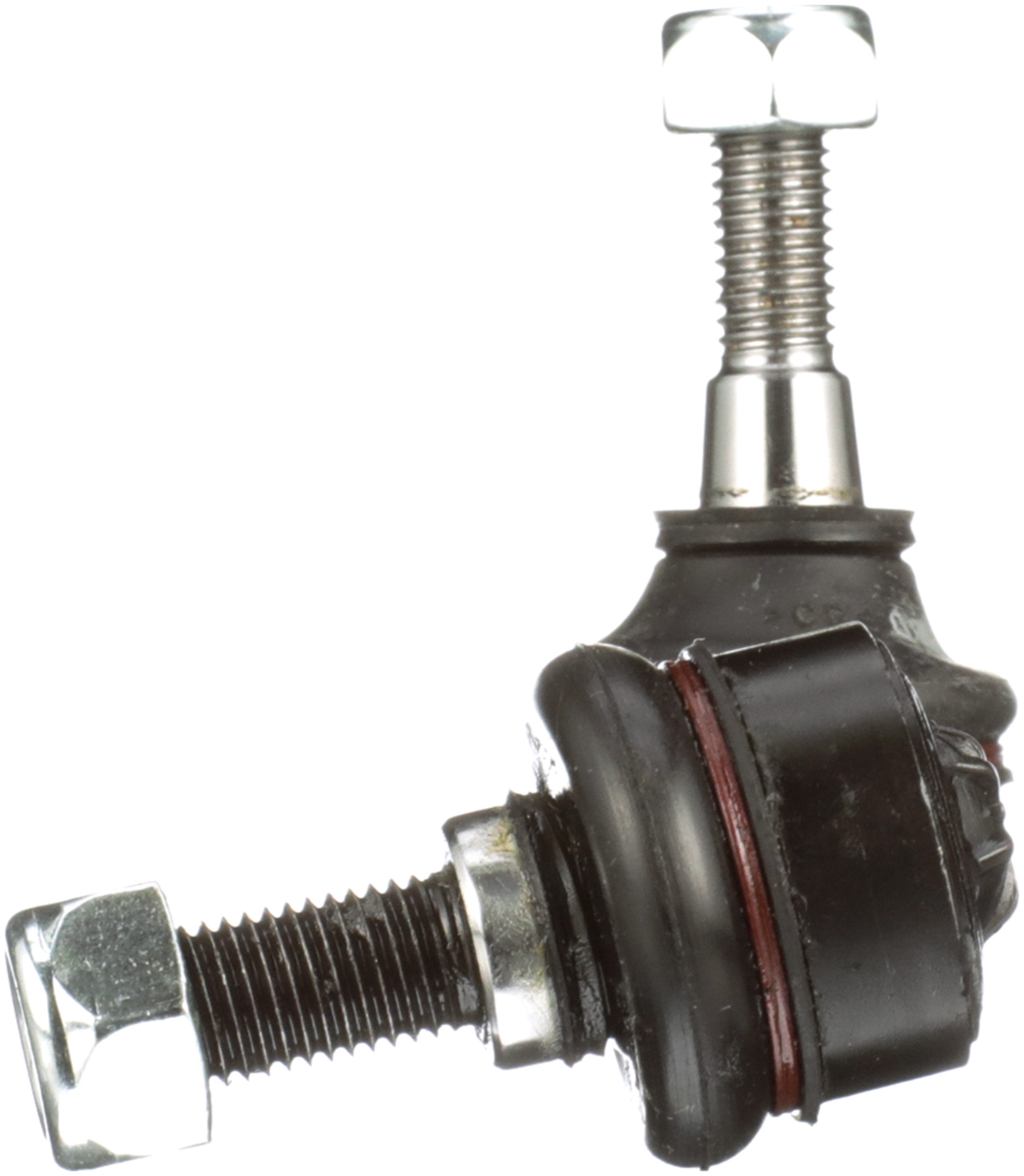

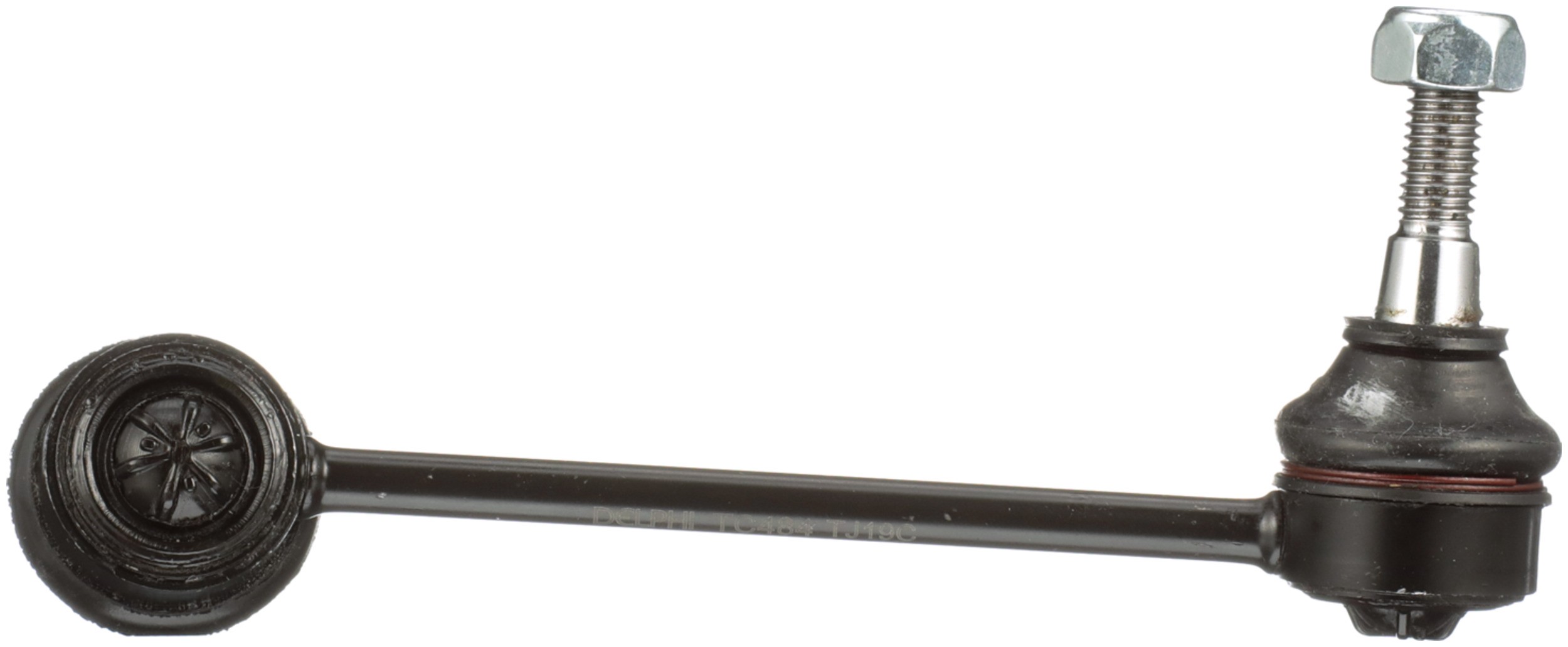

Delphi TC484 Suspension Stabilizer Bar Link

Delphi TC484 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Type	Ball Joint
Position(s)	Front Left
9296	Yes
Washers Included	No
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bushing Type	Rubber
Grade Type	Standard Replacement
Bolt Length	5.984 IN
Bolt Length	152.00 MM
Height	73.00 MM
Height	2.874 IN
Width	2.559 IN
Width	65 MM
Length	152.00 MM
Length	5.984 IN
Bushing Colour	Black
End 1 Type	Ball Joint
Bushings Included	No
Dust Boot Included	Yes
627	0.67 LB

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	300SD	1992 to 1993
Mercedes-Benz	300SE	1992 to 1993
Mercedes-Benz	350SDL	1991 to 1991
Mercedes-Benz	400SE	1992 to 1992
Mercedes-Benz	400SEL	1993 to 1993
Mercedes-Benz	500SEC	1993 to 1993
Mercedes-Benz	500SEL	1992 to 1993
Mercedes-Benz	600SEC	1993 to 1993
Mercedes-Benz	600SEL	1992 to 1993
Mercedes-Benz	CL500	1998 to 1999
Mercedes-Benz	CL600	1998 to 1999
Mercedes-Benz	S320	1994 to 1999
Mercedes-Benz	S350	1994 to 1995
Mercedes-Benz	S420	1994 to 1999
Mercedes-Benz	S500	1994 to 1999
Mercedes-Benz	S600	1994 to 1999
