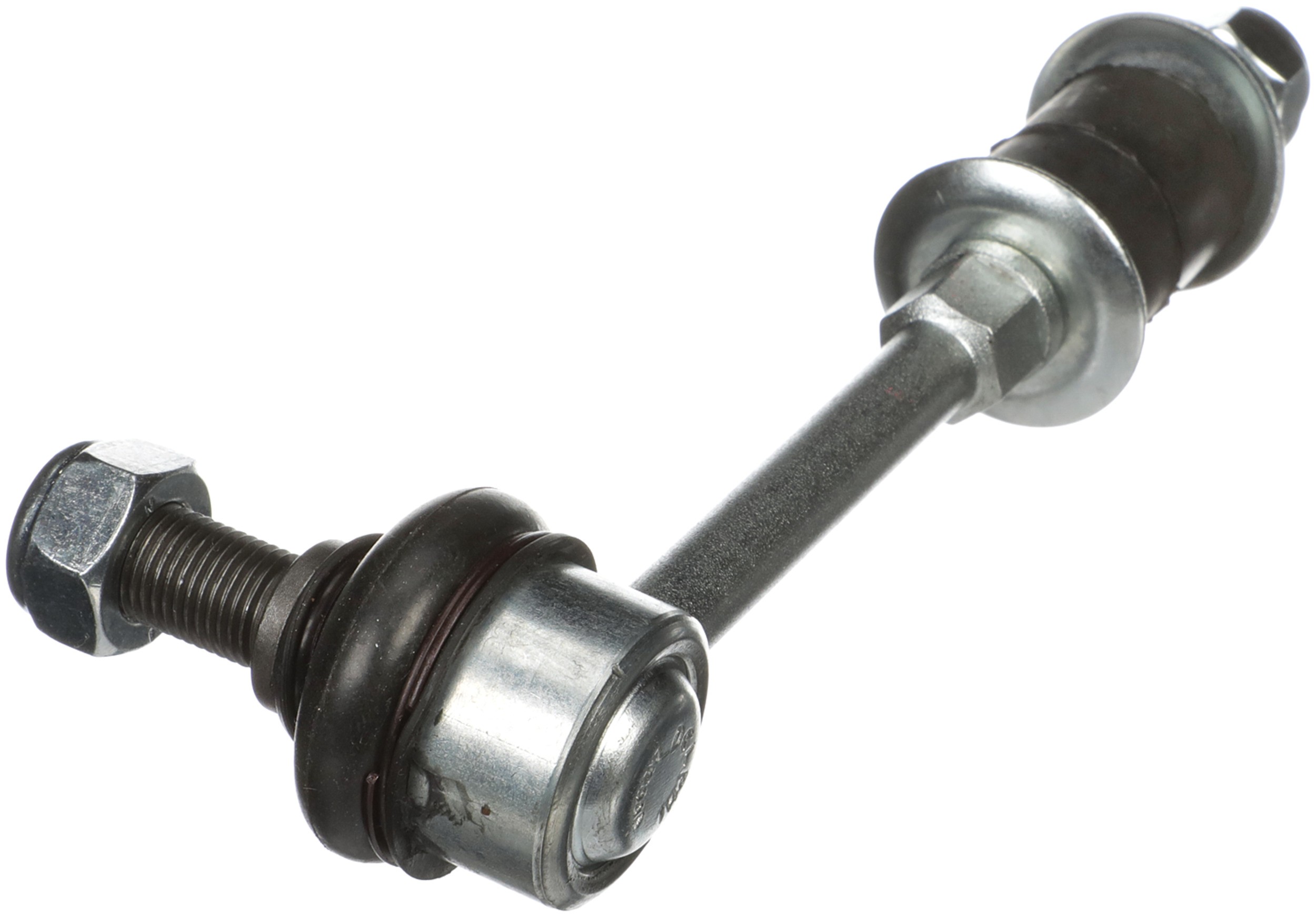

Delphi TC5046 Suspension Stabilizer Bar Link

Delphi TC5046 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

839	14mm
Dust Boot Included	Yes
Position(s)	Front
4504	12.00 MM
4504	0.470 IN
9296	Yes
Bolts Included	No
Washers Included	No
Width	32 MM
Width	1.26 IN
Height	2.953 IN
Height	75.00 MM
Bolt Length	0.972 IN
Bolt Length	24.70 MM
Grade Type	Standard Replacement
Bushing Type	Rubber
Length	151.00 MM
Greaseable	No
Length	5.945 IN
Housing Material	Steel
Bushing Colour	Black
End 1 Type	Bushing
End 2 Type	Ball Joint
Bushings Included	Yes
