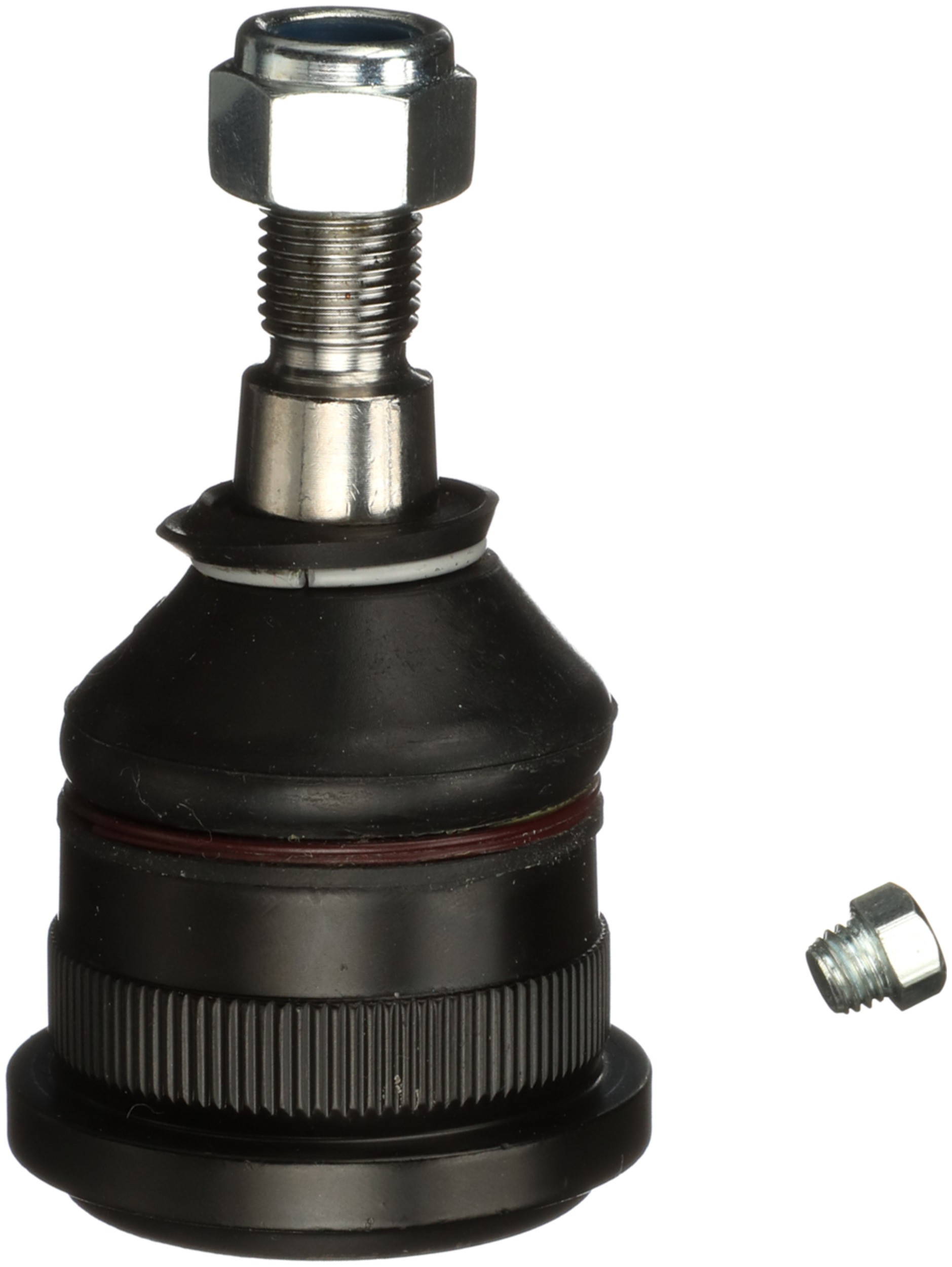

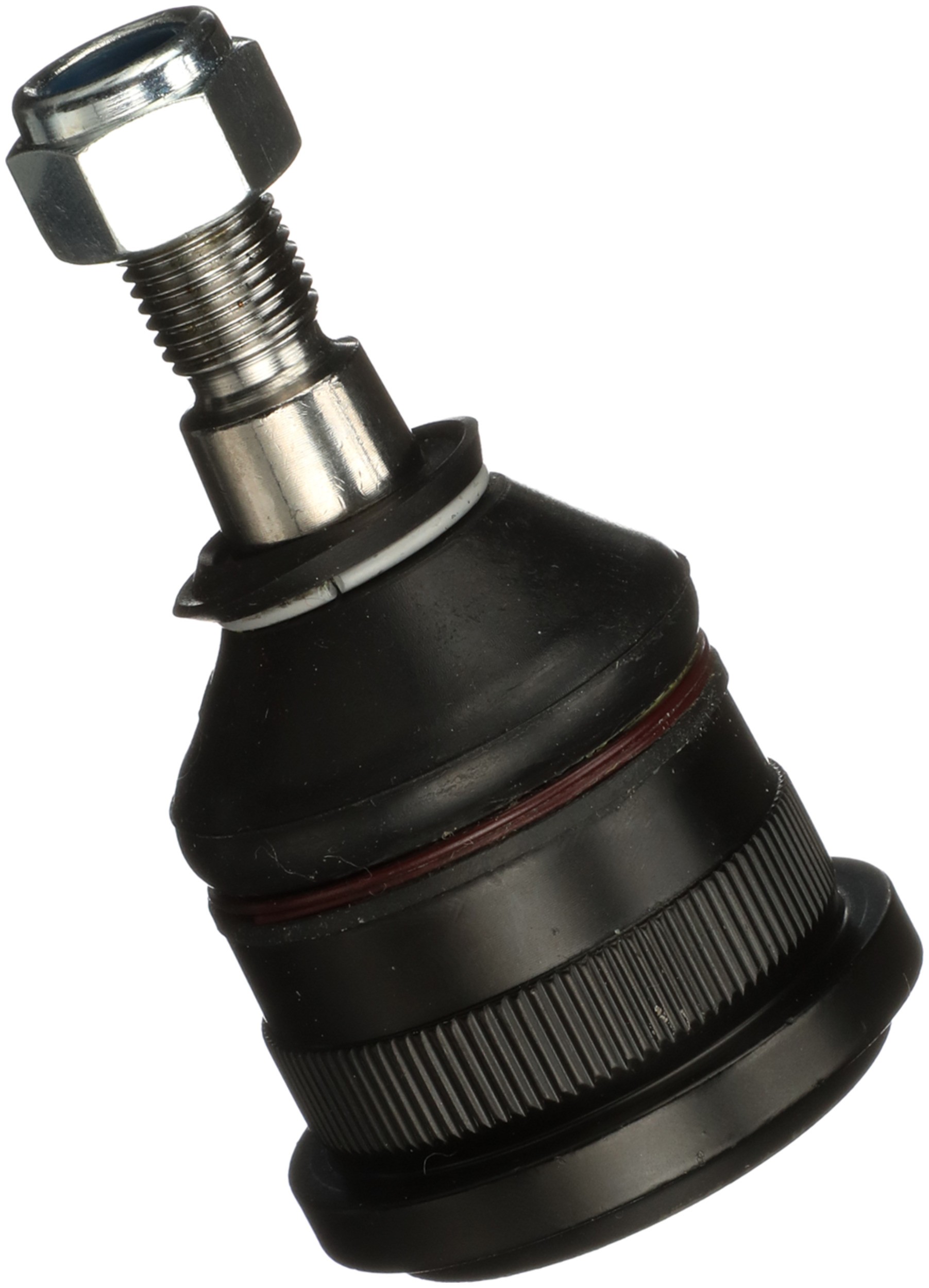

Delphi TC5072 Suspension Ball Joint

Delphi TC5072 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9209	No
2334	Yes
9210	Yes
9090	Rubber
881	Threaded
2381	Yes
Position(s)	Front Lower
Material	Steel
Grease Fitting Included	Yes
Bushings Included	No
Dust Boot Included	Yes
Type	Threaded
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Thread Direction	Clockwise (Right)
Color	Gray
Pre-greased	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Bearing Type	Plastic
Greaseable	Yes
Boot Colour	Black
9213	0.55 IN
9213	14.10 MM
9212	0.63 IN
4966	0.87 IN
4966	22.00 MM
9212	16.20 MM
Maximum Outside Diameter	48.80 MM
Maximum Outside Diameter	1.92 IN
Length	49.00 MM
Length	1.92 IN
Width	49.00 MM
Width	1.92 IN
Outside Diameter	49.00 MM
Outside Diameter	1.92 IN
Height	88.70 MM
Height	3.36 IN
9906	Yes
2827	Yes

Vehicle Applications:

Make	Model	Years
Buick	Opel	1976 to 1979
Chevrolet	Chevette	1976 to 1987
Isuzu	I-Mark	1981 to 1984
Pontiac	Acadian	1976 to 1987
Pontiac	Fiero	1984 to 1987
Pontiac	T1000	1981 to 1987
