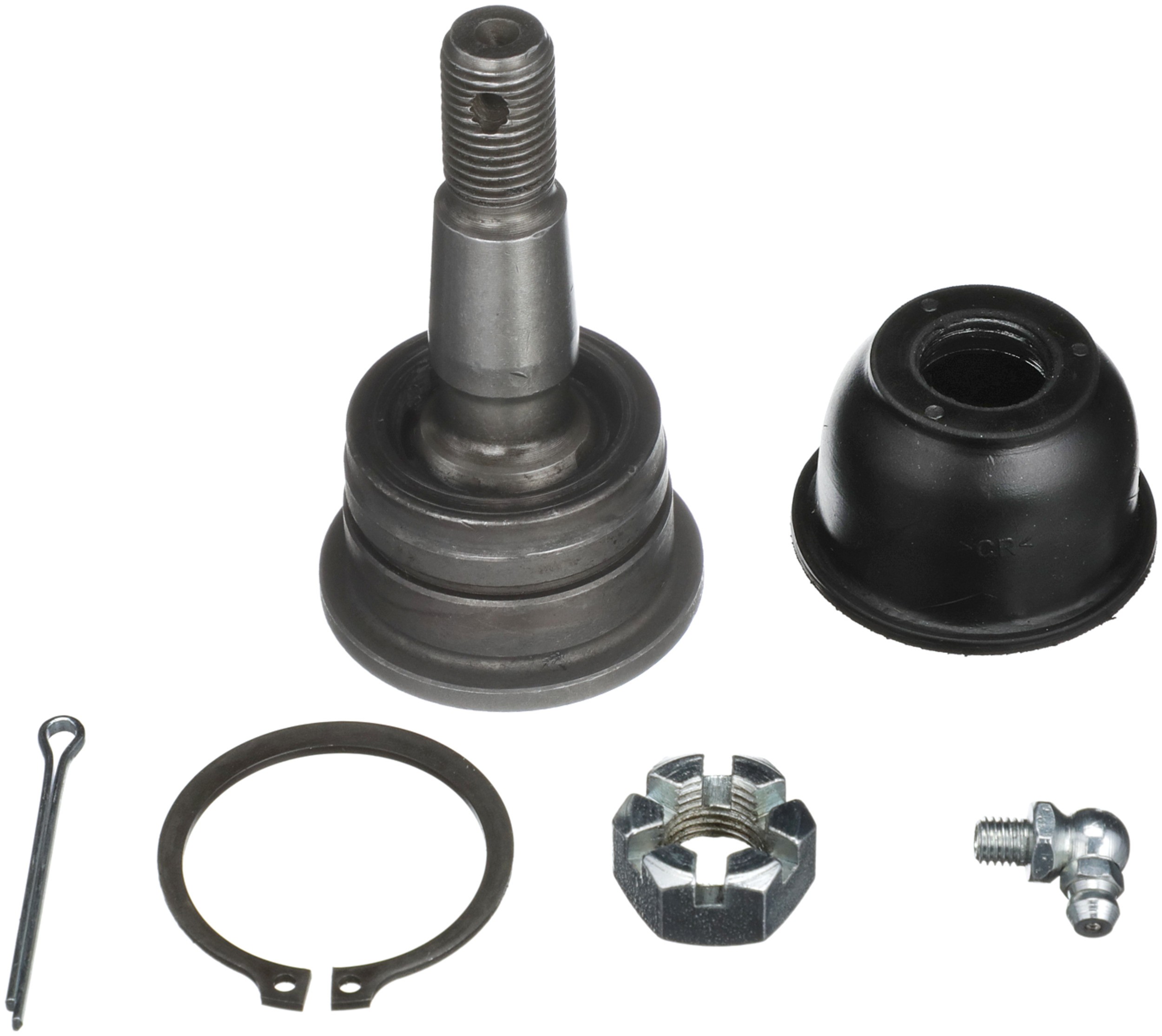

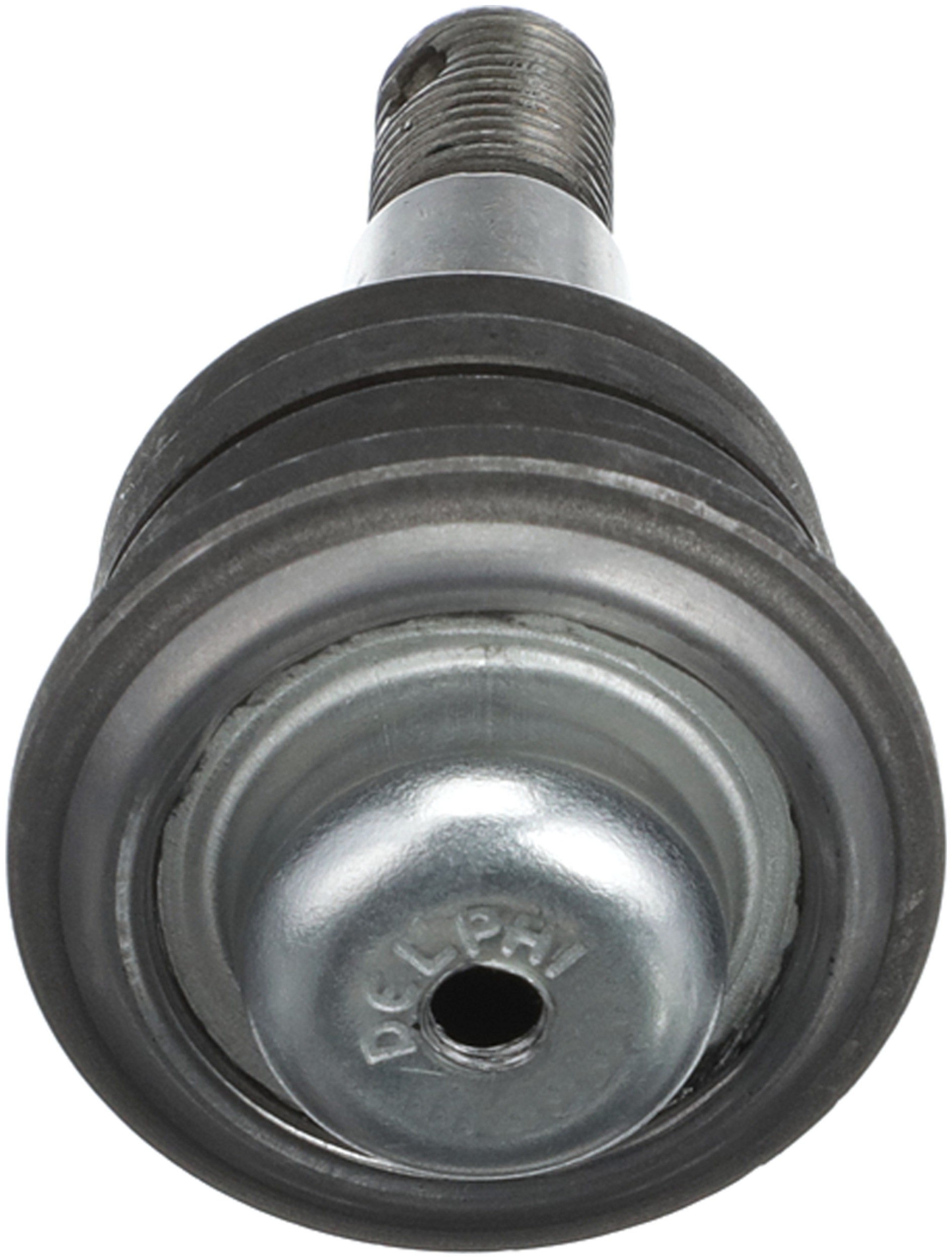

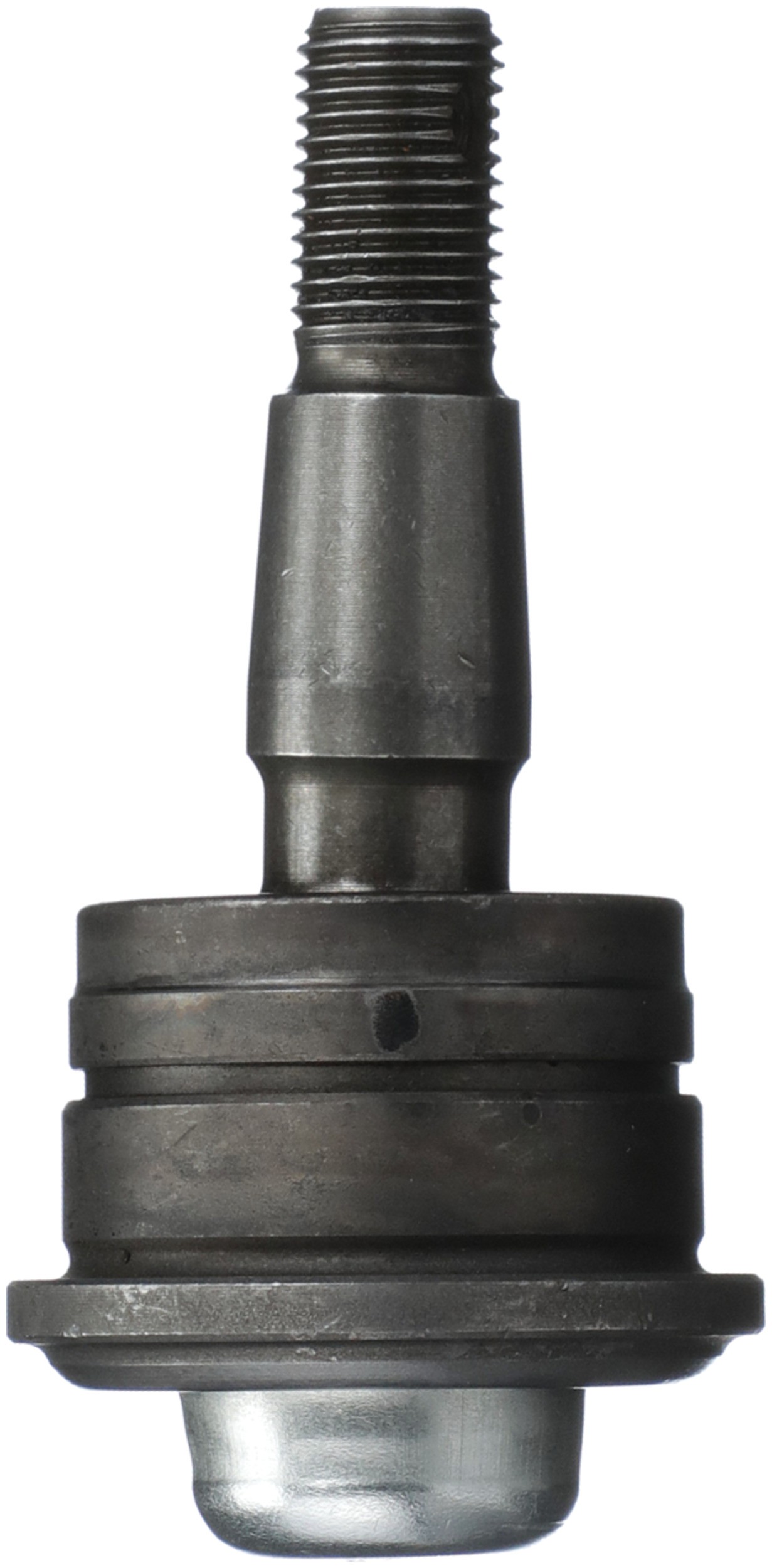

Delphi TC5080 Suspension Ball Joint

Delphi TC5080 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
Width	48.2 MM
Maximum Outside Diameter	48.20 MM
Maximum Outside Diameter	1.898 IN
Height	109.20 MM
Height	4.299 IN
9213	0.634 IN
9212	18.4 MM
9212	0.724 IN
4966	21 MM
4966	0.827 IN
2334	Yes
Position(s)	Front Lower
9213	16.1 MM
9204	No
9090	Rubber
9209	No
9210	Yes
Suspension Grade Type	Standard Replacement
881	Threaded
839	22mm
2827	Yes
2381	Yes
Mounting Type	Press-In
Greaseable	Yes
Adjustable	No
Mounting Hole Quantity	0
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	Yes
Material	Steel
