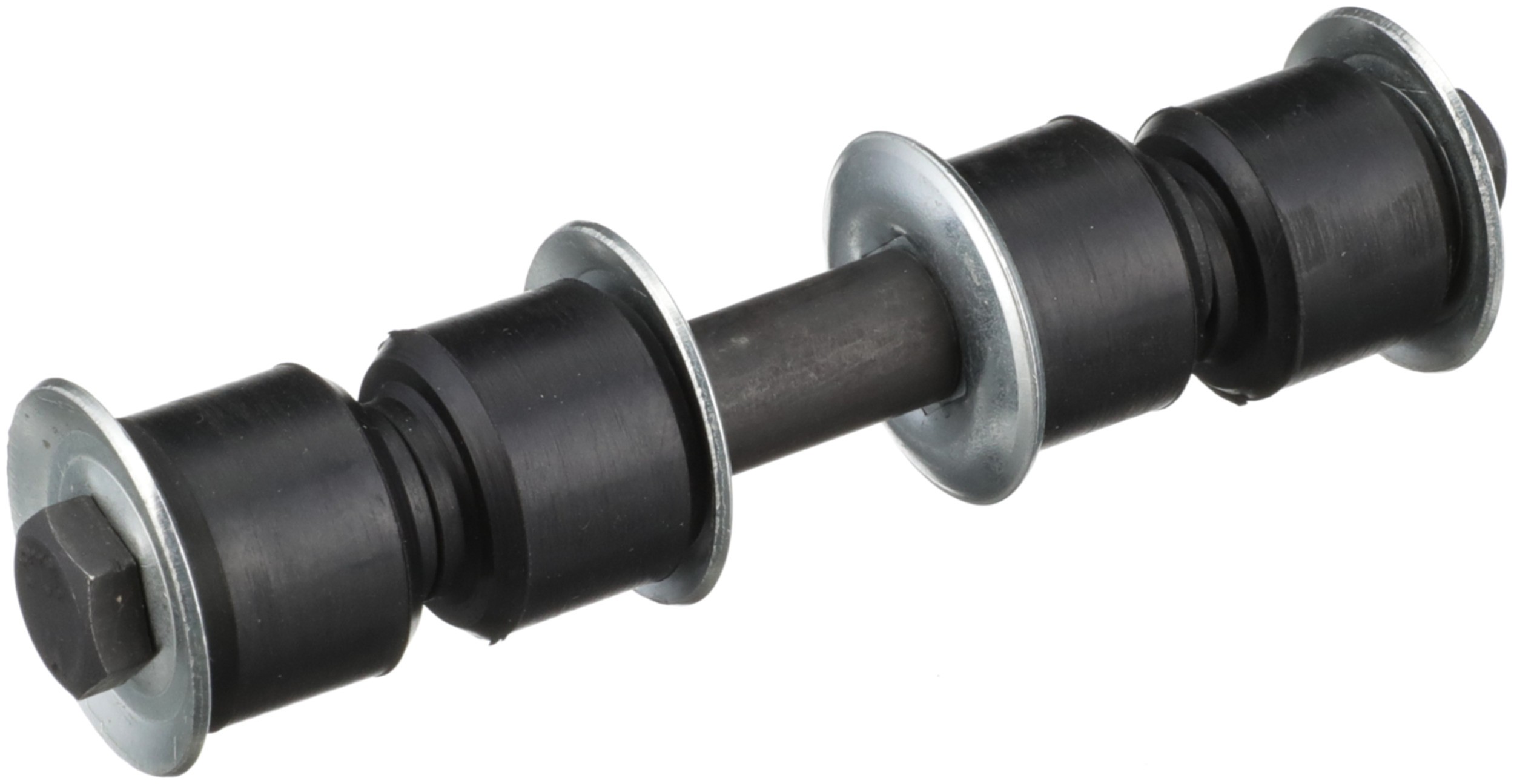

Delphi TC5102 Suspension Stabilizer Bar Link

Delphi TC5102 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bolts Included	Yes
Bushing Colour	Black
Bushings Included	Yes
Dust Boot Included	No
Washers Included	Yes
Greaseable	No
Bushing Type	Rubber
Grade Type	Standard Replacement
627	0.07 LB
9296	No
Position(s)	Front
Bushing Inside Diameter	10.00 MM
Bushing Inside Diameter	0.390 IN
Bolt Length	4.880 IN
Bolt Length	124.00 MM
Height	1.380 IN
Height	35.00 MM
Width	35 MM
Width	1.38 IN
Sleeve Length	26 MM
Sleeve Length	1.02 IN
Length	5.310 IN
Length	135.00 MM
Bushing Outside Diameter	25.00 MM
Bushing Outside Diameter	0.980 IN

Vehicle Applications:

Make	Model	Years
Buick	Electra	1985 to 1990
Buick	LeSabre	1986 to 2005
Buick	Lucerne	2006 to 2011
Buick	Park Avenue	1991 to 2005
Buick	Reatta	1988 to 1989
Buick	Riviera	1979 to 1989
Cadillac	Allante	1987 to 1989
Cadillac	Commercial Chassis	1985 to 1993
Cadillac	DTS	2006 to 2011
Cadillac	DeVille	1985 to 2005
Cadillac	Eldorado	1979 to 1989
Cadillac	Fleetwood	1985 to 1992
Cadillac	Seville	1980 to 2004
Dodge	Challenger	1970 to 1974
Dodge	Dart	1973 to 1976
Ford	Falcon Sedan Delivery	1961 to 1965
Ford	Falcon	1960 to 1965
Ford	Galaxie 500	1962 to 1964
Ford	Galaxie	1959 to 1964
Ford	Granada	1975 to 1980
Ford	Mustang	1965 to 1967
Ford	Ranchero	1960 to 1965
Mercury	Comet	1960 to 1977
Mercury	Meteor	1961 to 1963
Mercury	Monarch	1975 to 1980
Mercury	Villager	1962 to 1965
Mitsubishi	Starion	1983 to 1985
Nissan	200SX	1977 to 1979
Nissan	240Z	1971 to 1973
Nissan	260Z	1974 to 1975
Nissan	280Z	1975 to 1978
Nissan	510	1968 to 1973
Nissan	610	1973 to 1976
Nissan	710	1974 to 1977
Nissan	B210	1974 to 1978
Oldsmobile	88	1992 to 1999
Oldsmobile	98	1985 to 1996
Oldsmobile	Aurora	1995 to 2003
Oldsmobile	Delta 88	1986 to 1991
Oldsmobile	LSS	1996 to 1999
Oldsmobile	Regency	1997 to 1998
Oldsmobile	Toronado	1979 to 1989
Plymouth	Barracuda	1970 to 1974
Plymouth	Cuda	1970 to 1974
Plymouth	Valiant	1974 to 1976
Pontiac	Bonneville	1987 to 2005
