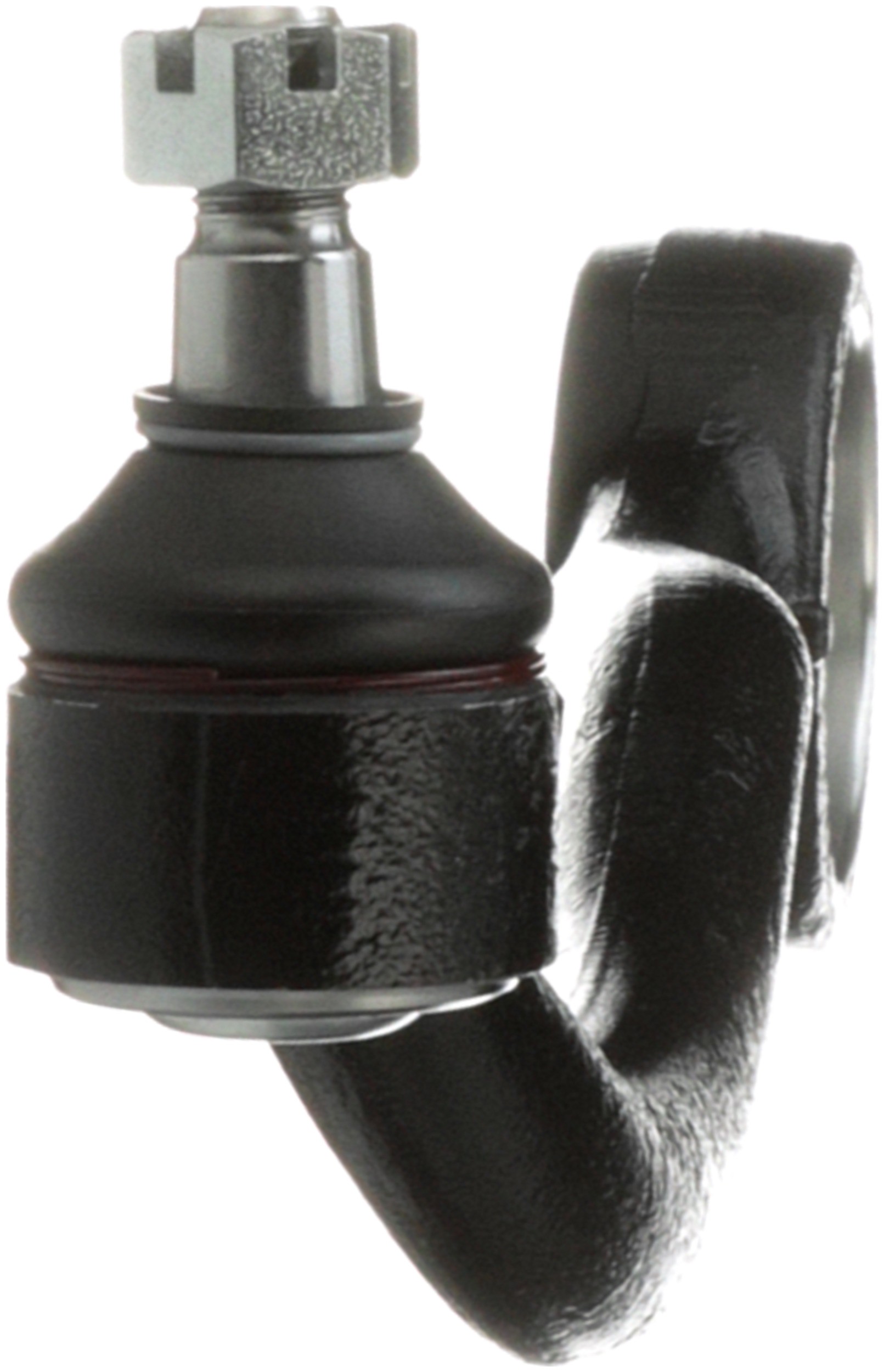

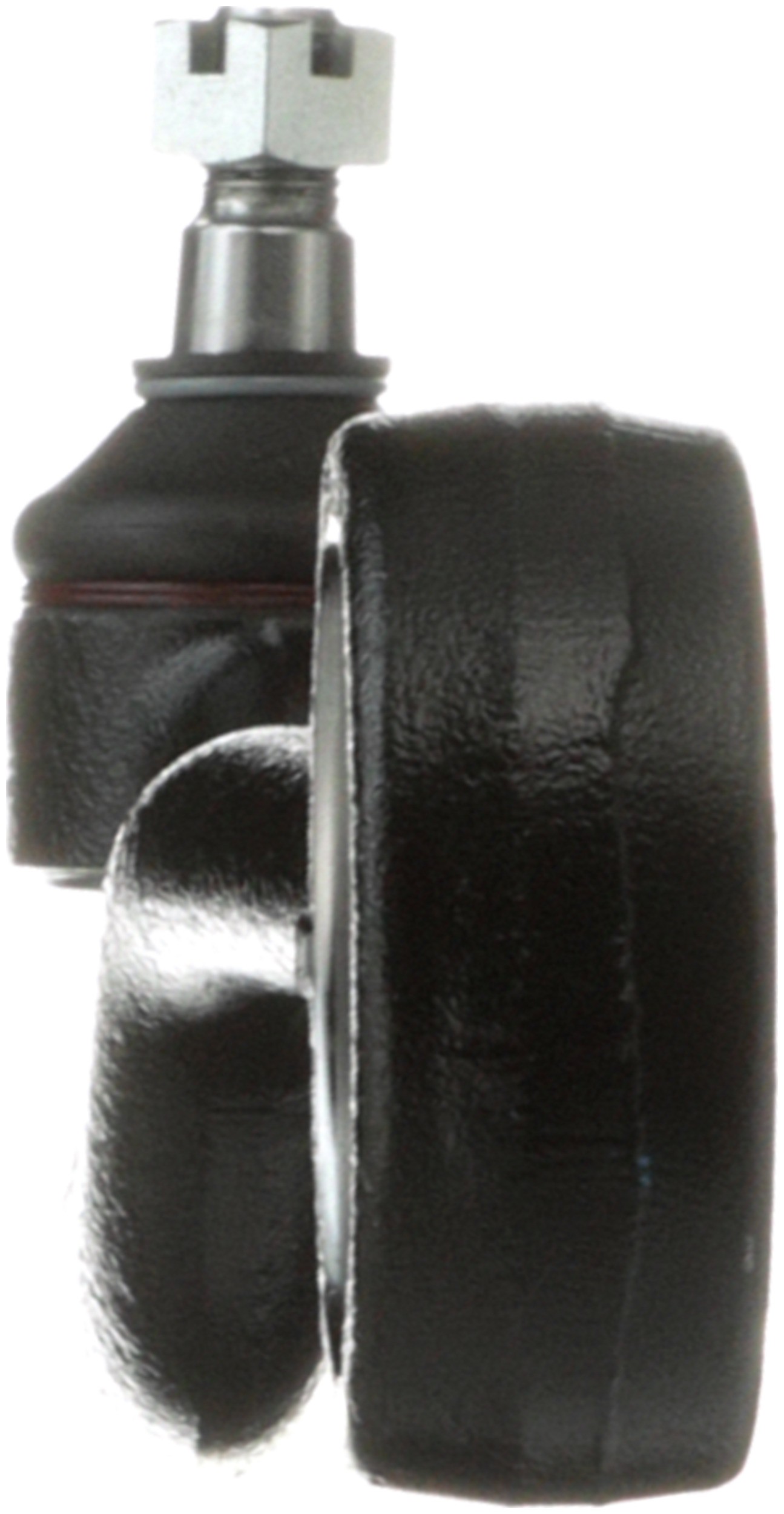

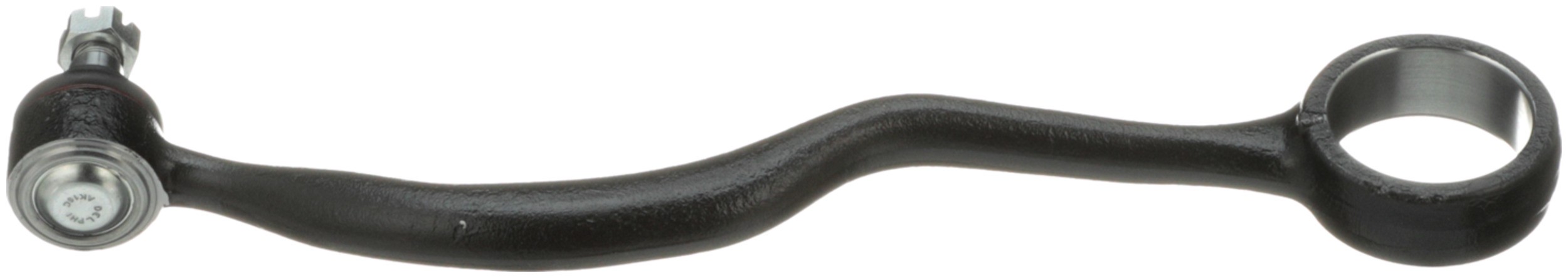

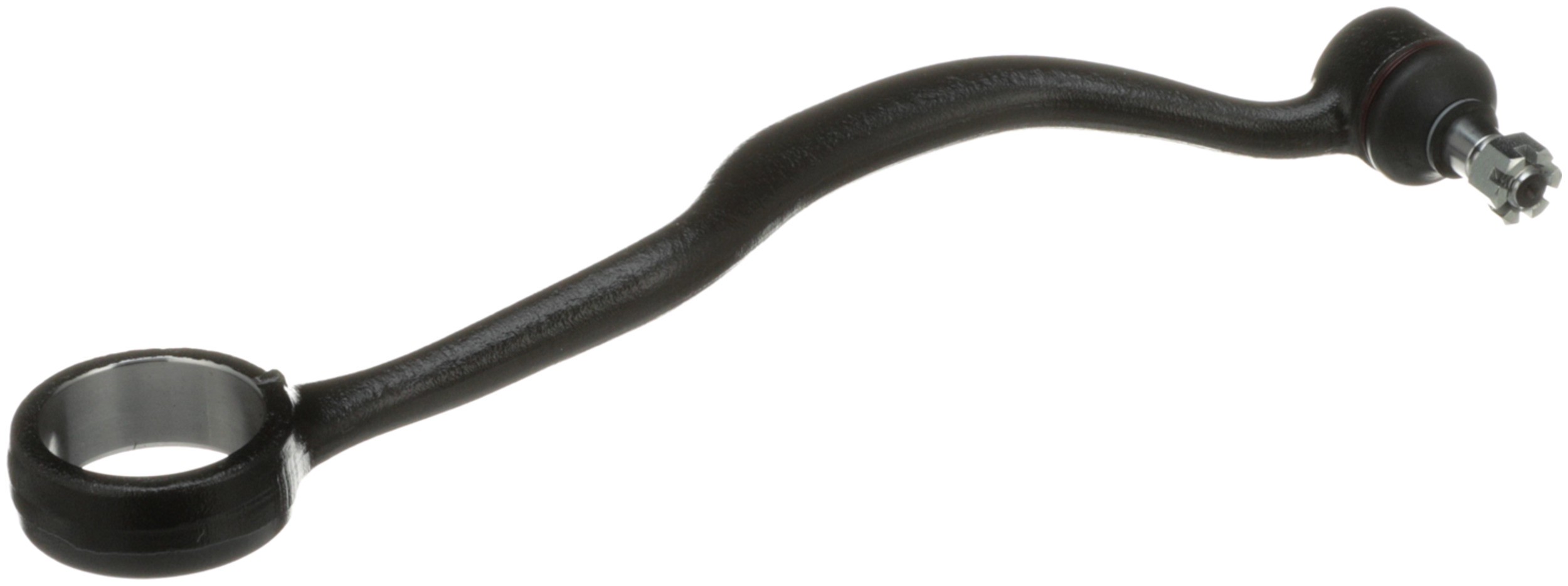

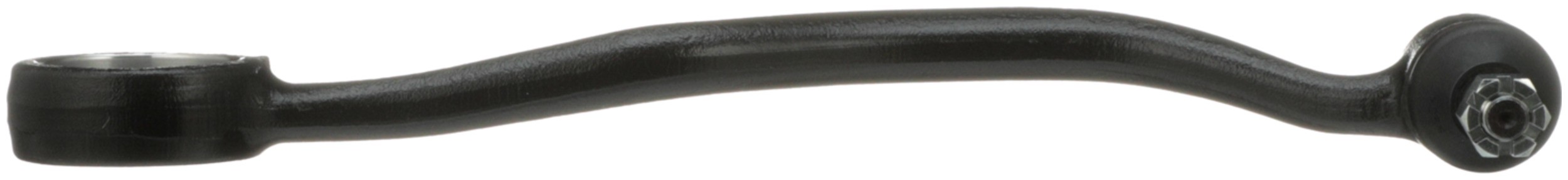

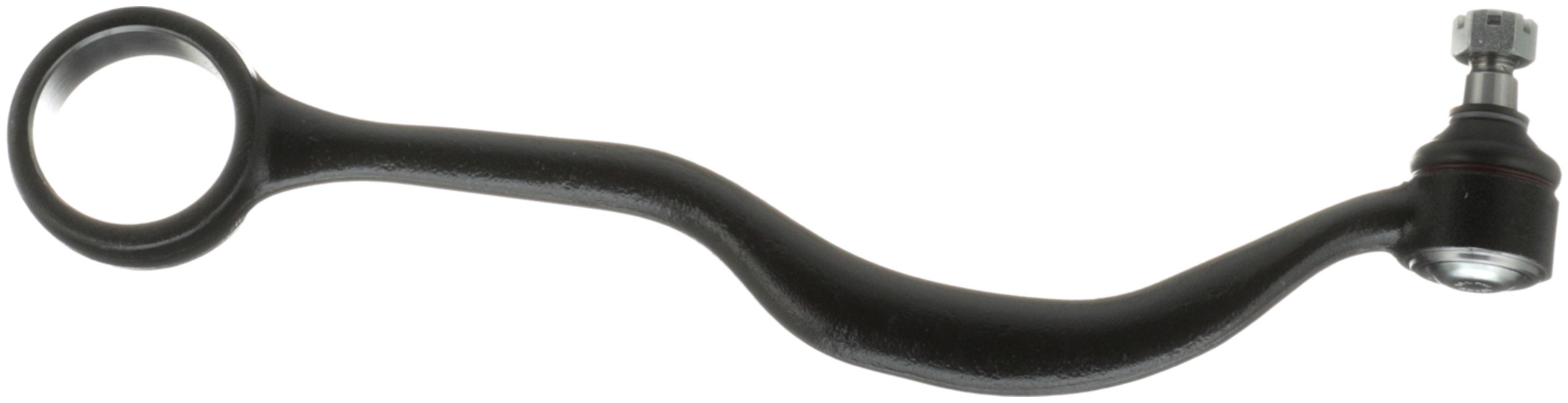

Delphi TC513 Suspension Control Arm and Ball Joint Assembly

Delphi TC513 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Colour	Black
Position(s)	Front Left Lower Forward
Mounting Hole Diameter	0.472 IN
Mounting Hole Diameter	12.00 MM
Length	17.638 IN
2384	Yes
Length	448.00 MM
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Casting/Forged
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
4887	50.00 MM
4887	1.969 IN
4890	60.00 MM
4890	2.362 IN
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)

Vehicle Applications:

Make	Model	Years
BMW	524td	1985 to 1986
BMW	528e	1982 to 1988
BMW	533i	1983 to 1984
BMW	535i	1985 to 1988
BMW	633CSi	1983 to 1984
BMW	635CSi	1985 to 1989
BMW	M5	1988 to 1988
BMW	M6	1987 to 1988
