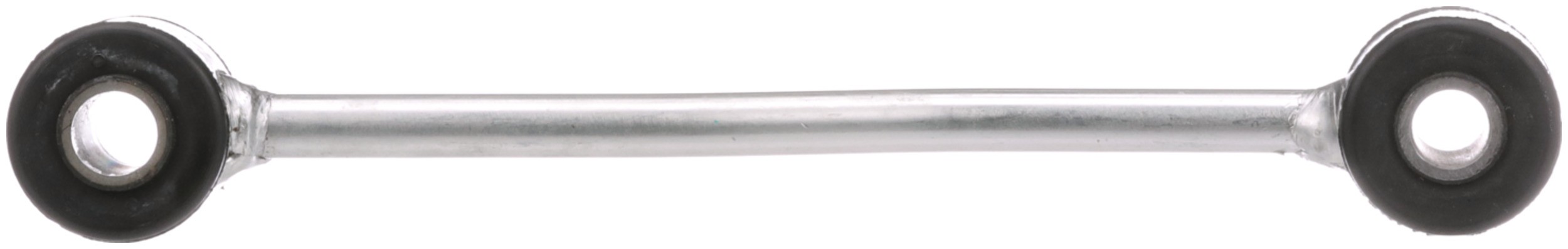

Delphi TC5132 Suspension Stabilizer Bar Link

Delphi TC5132 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	Rear
9058	220.00 MM
9058	8.66 IN
627	0.97 LB
Hardware Included	No
Nuts Included	No
End 2 Type	Female
End 1 Type	Female
Color	Black
Grade Type	Standard Replacement
Bushing Type	Rubber
Greaseable	No
Housing Material	Steel
Bolts Included	No
Washers Included	No
Dust Boot Included	No
Bushings Included	Yes
Bushing Colour	Black
Bushing Outside Diameter	0.550 IN
Bushing Outside Diameter	14.00 MM
Width	1.57 IN
Width	40 MM
Height	50.00 MM
Bushing Inside Diameter	0.490 IN
Bushing Inside Diameter	12.50 MM
Length	255.00 MM
Length	10.03 IN
Pipe Diameter	11.00 MM
Pipe Diameter	0.43 IN
Connection diameter:	13.50 MM
Connection diameter:	0.53 IN
Inside Diameter	12.20 MM
Inside Diameter	0.48 IN
Height	1.97 IN
Bar Diameter	11.00 MM
Bar Diameter	0.43 IN
9296	No
