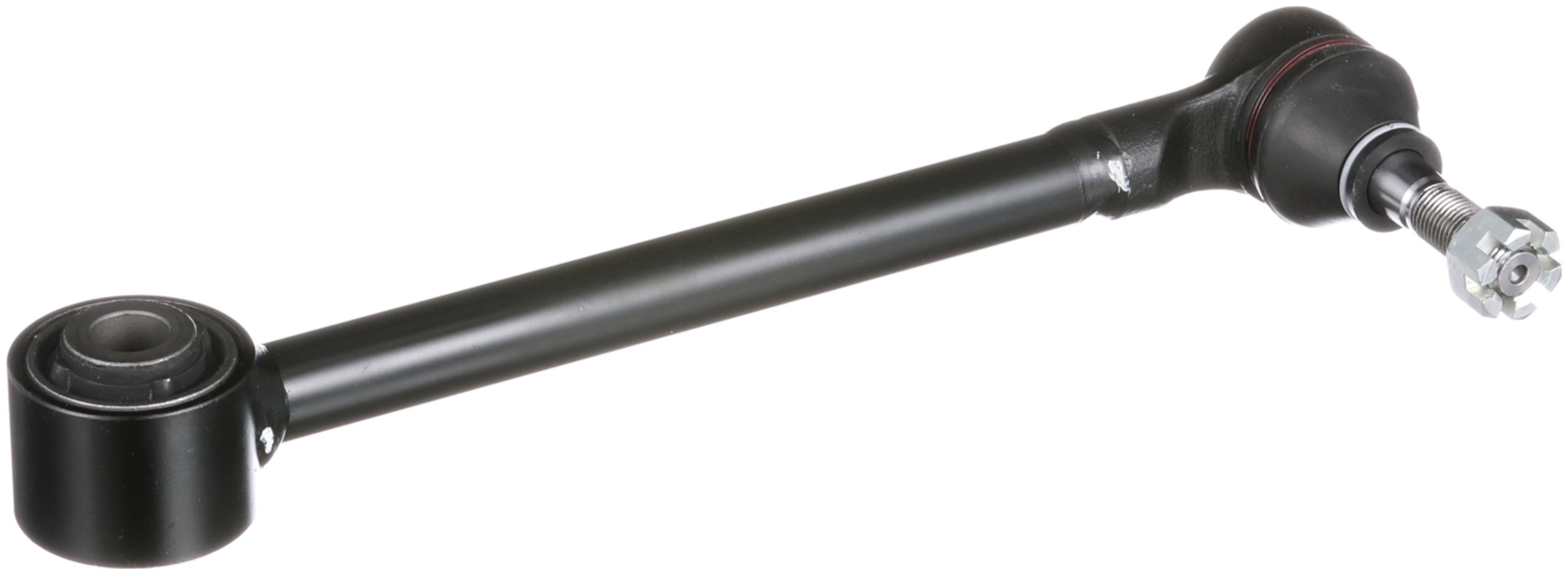

Delphi TC5148 Suspension Control Arm and Ball Joint Assembly

Delphi TC5148 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Ball Joint Stud Type	Threaded
Attachment Type	Bolt In
Dust Boot Included	Yes
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Tubular
2384	Yes
Position(s)	Rear Lower Forward
Length	254.00 MM
4890	2.795 IN
4890	71.00 MM
Length	10.000 IN
4887	3.937 IN
4887	100.00 MM
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	0
Grade Type	Premium
Material	Steel

Vehicle Applications:

Make	Model	Years
Subaru	BRZ	2013 to 2022
Subaru	Crosstrek	2016 to 2022
Subaru	Forester	2009 to 2022
Subaru	Impreza	2009 to 2022
Subaru	Legacy	2010 to 2022
Subaru	Outback	2010 to 2022
Subaru	WRX STI	2013 to 2021
Subaru	WRX	2013 to 2022
Subaru	XV Crosstrek	2013 to 2015
