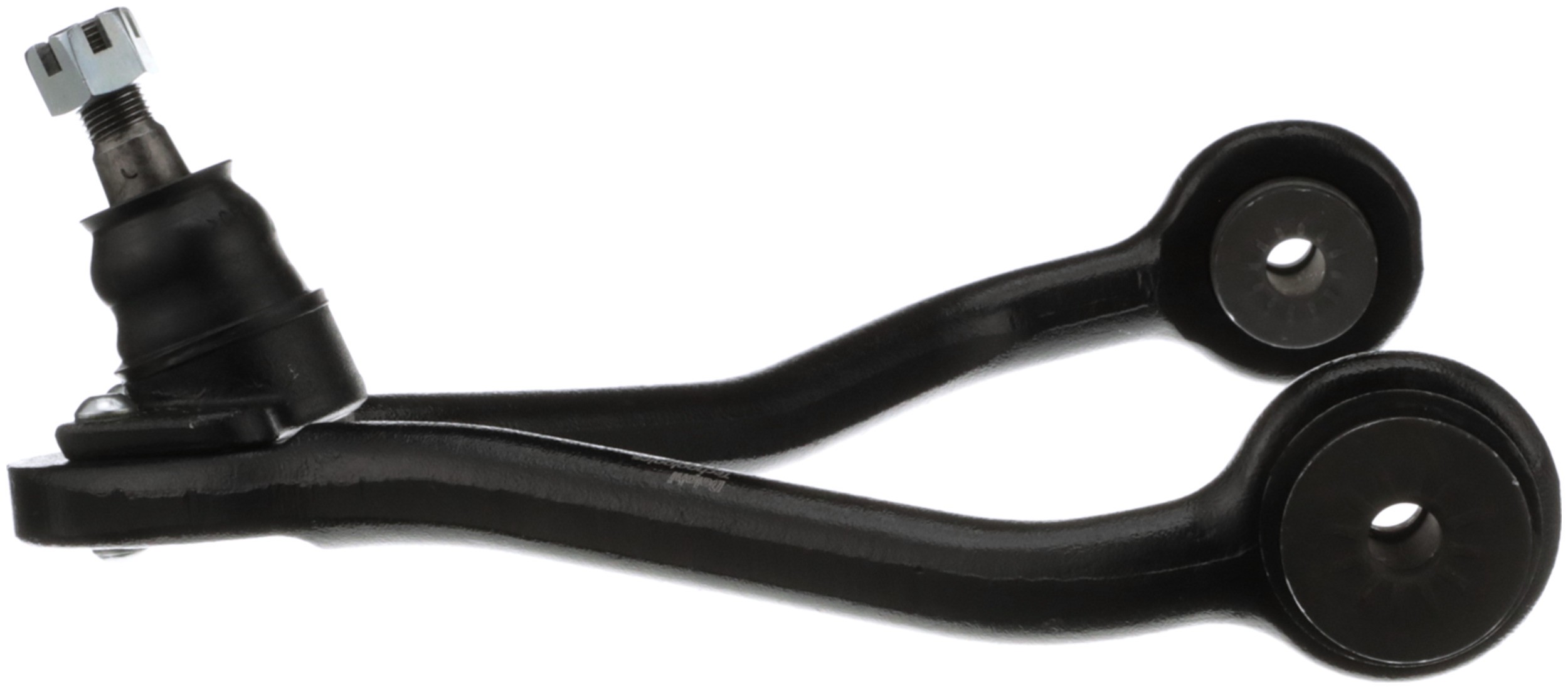

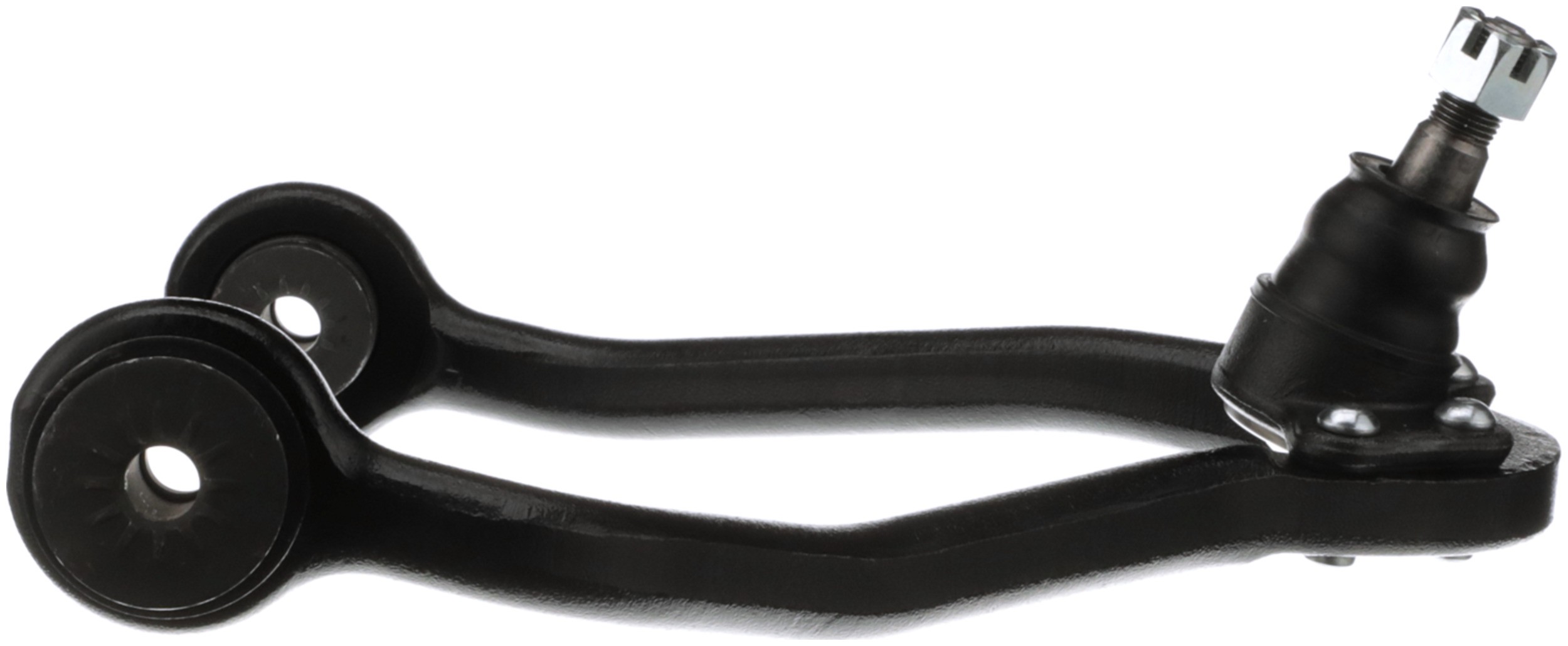

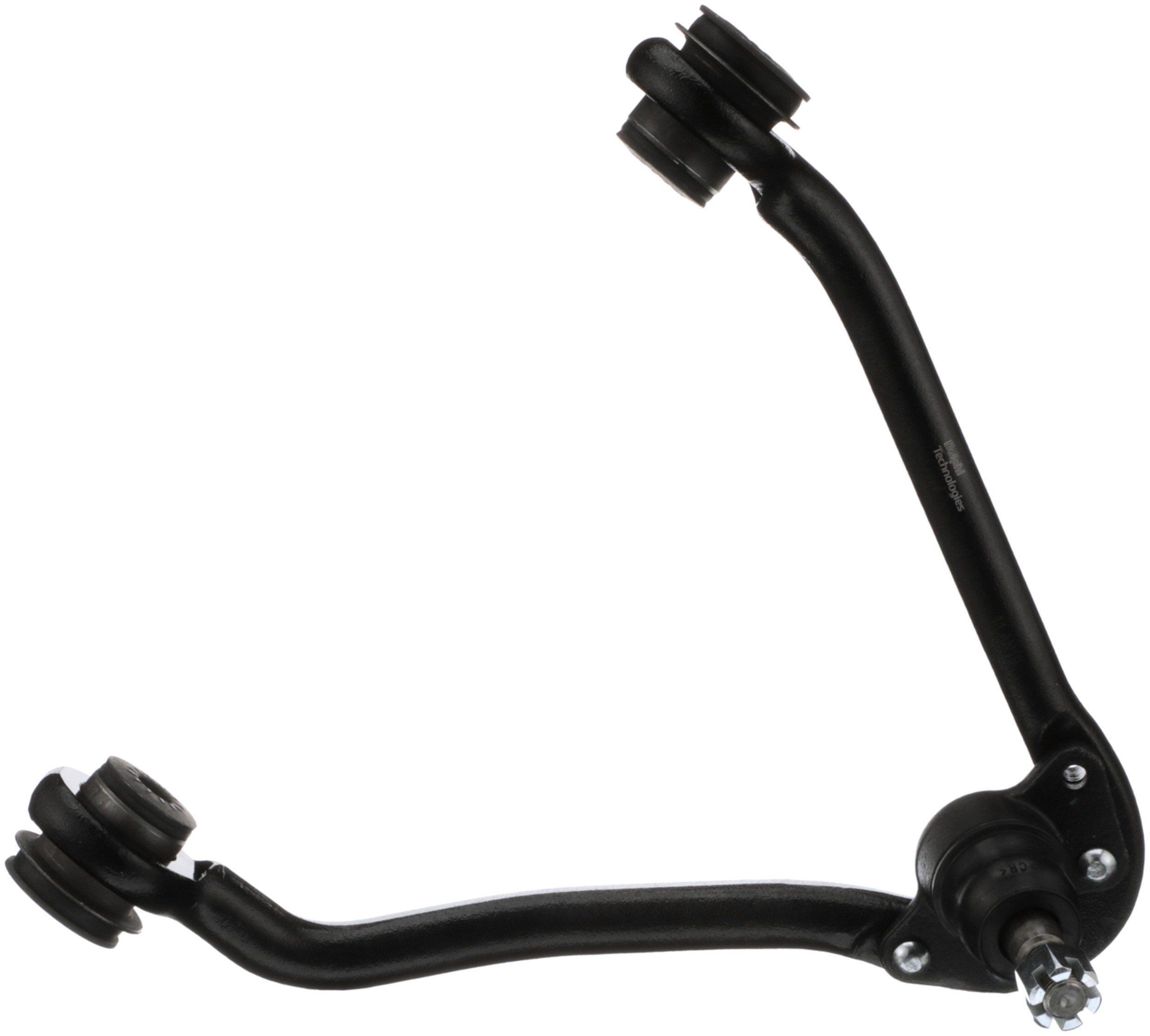

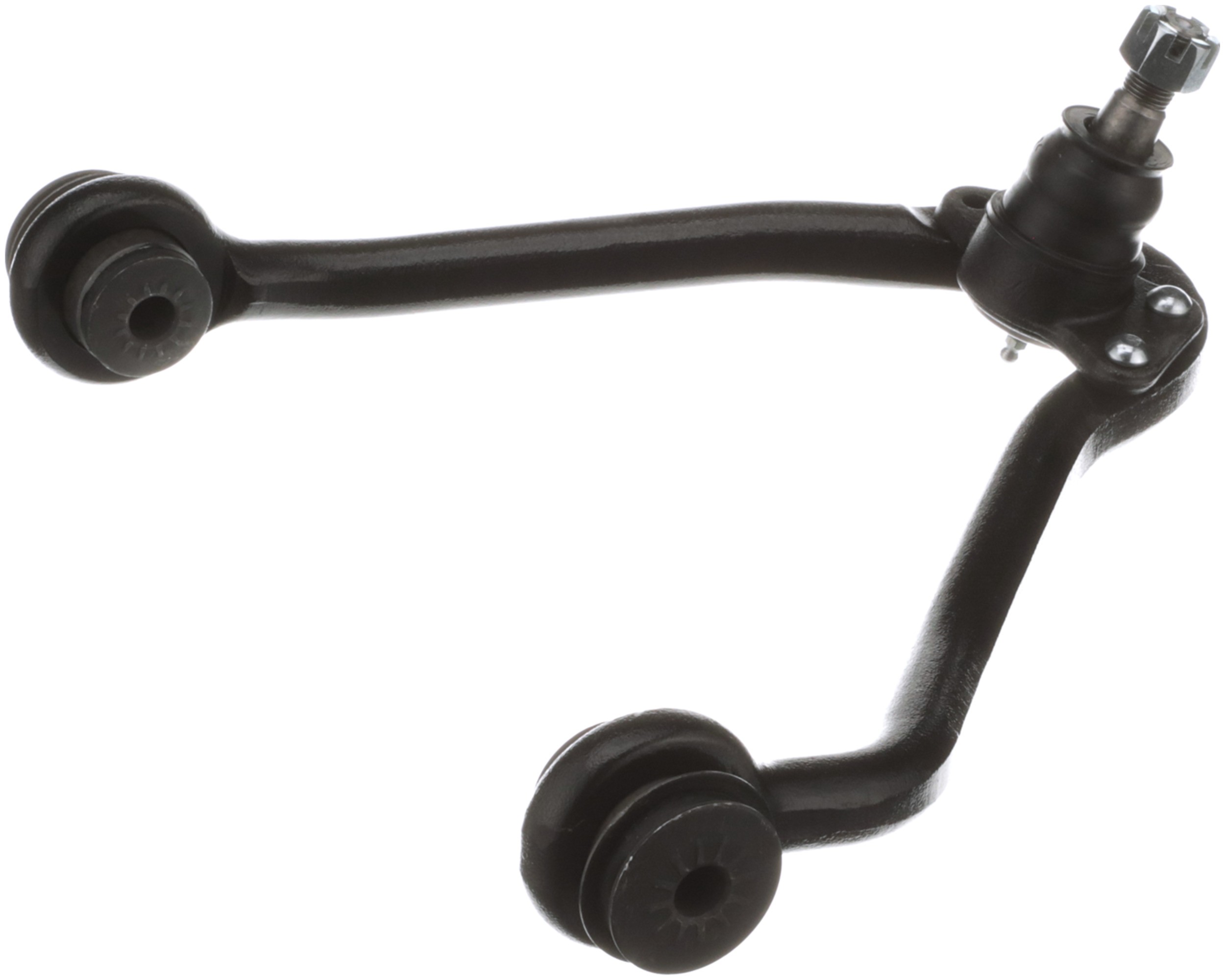

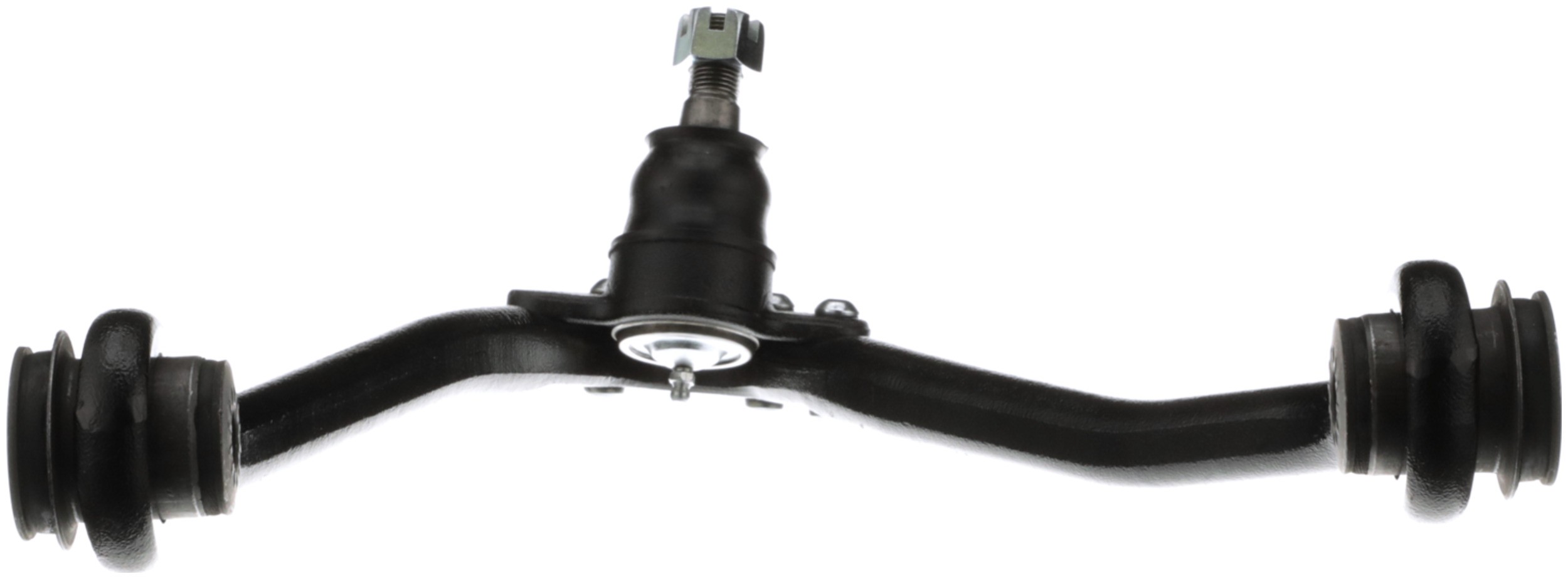

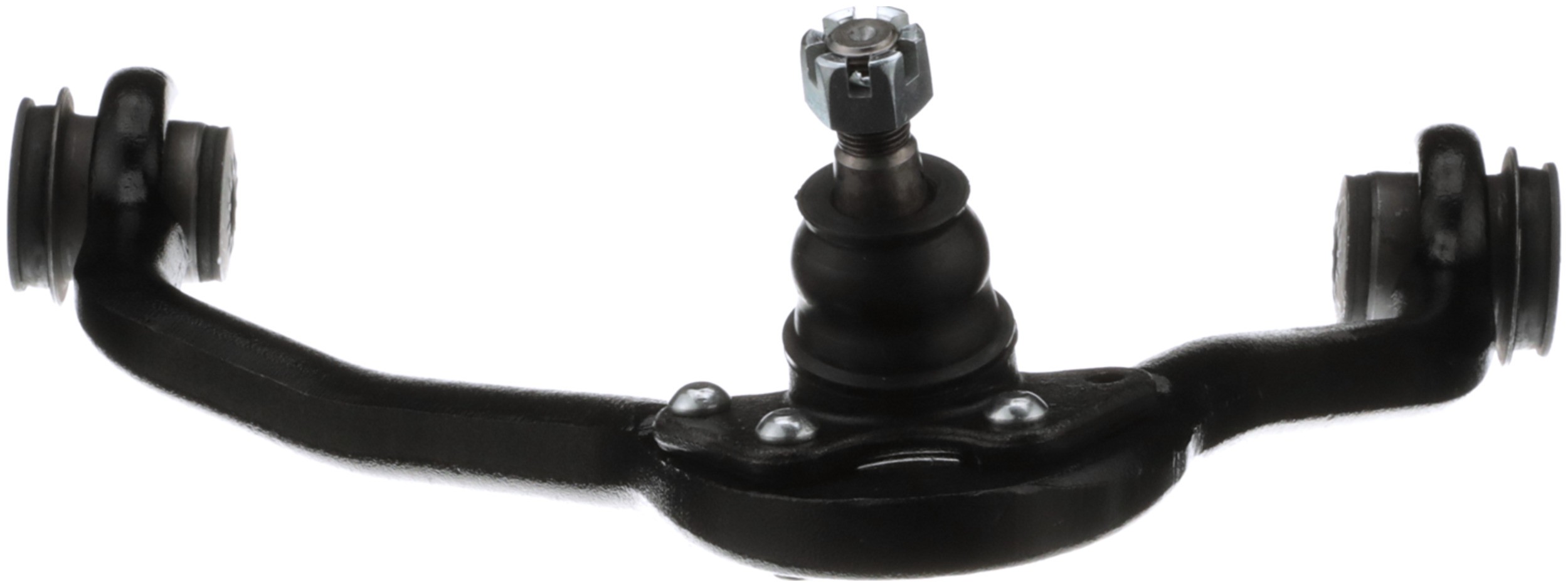

Delphi TC5195 Suspension Control Arm and Ball Joint Assembly

Delphi TC5195 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Diameter	0.571 IN
Mounting Hole Diameter	14.50 MM
Length	15.079 IN
Length	383.00 MM
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	Yes
Finish	Black
Boot Colour	Black
Bushing Type	Rubber
4887	12.913 IN
4887	328.00 MM
Position(s)	Front Left Upper
2384	Yes
2386	Casting/Forged
4241	Yes

Vehicle Applications:

Make	Model	Years
Chevrolet	C1500 Suburban	1994 to 1999
Chevrolet	C2500 Suburban	1992 to 1999
Chevrolet	C2500	1989 to 2000
Chevrolet	C3500	1989 to 2000
Chevrolet	Express 2500	1996 to 2002
Chevrolet	Express 3500	1996 to 2002
GMC	C1500 Suburban	1995 to 1999
GMC	C2500 Suburban	1992 to 1999
GMC	C2500	1989 to 2000
GMC	C3500	1989 to 2000
GMC	Savana 2500	1996 to 2002
GMC	Savana 3500	1996 to 2002
