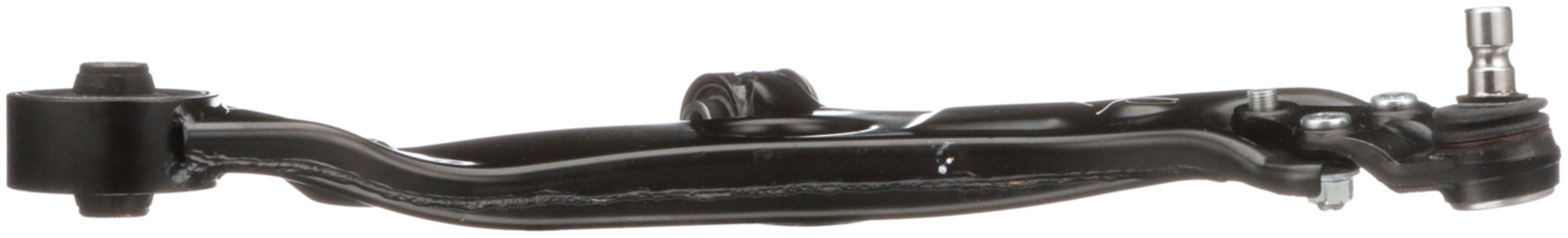

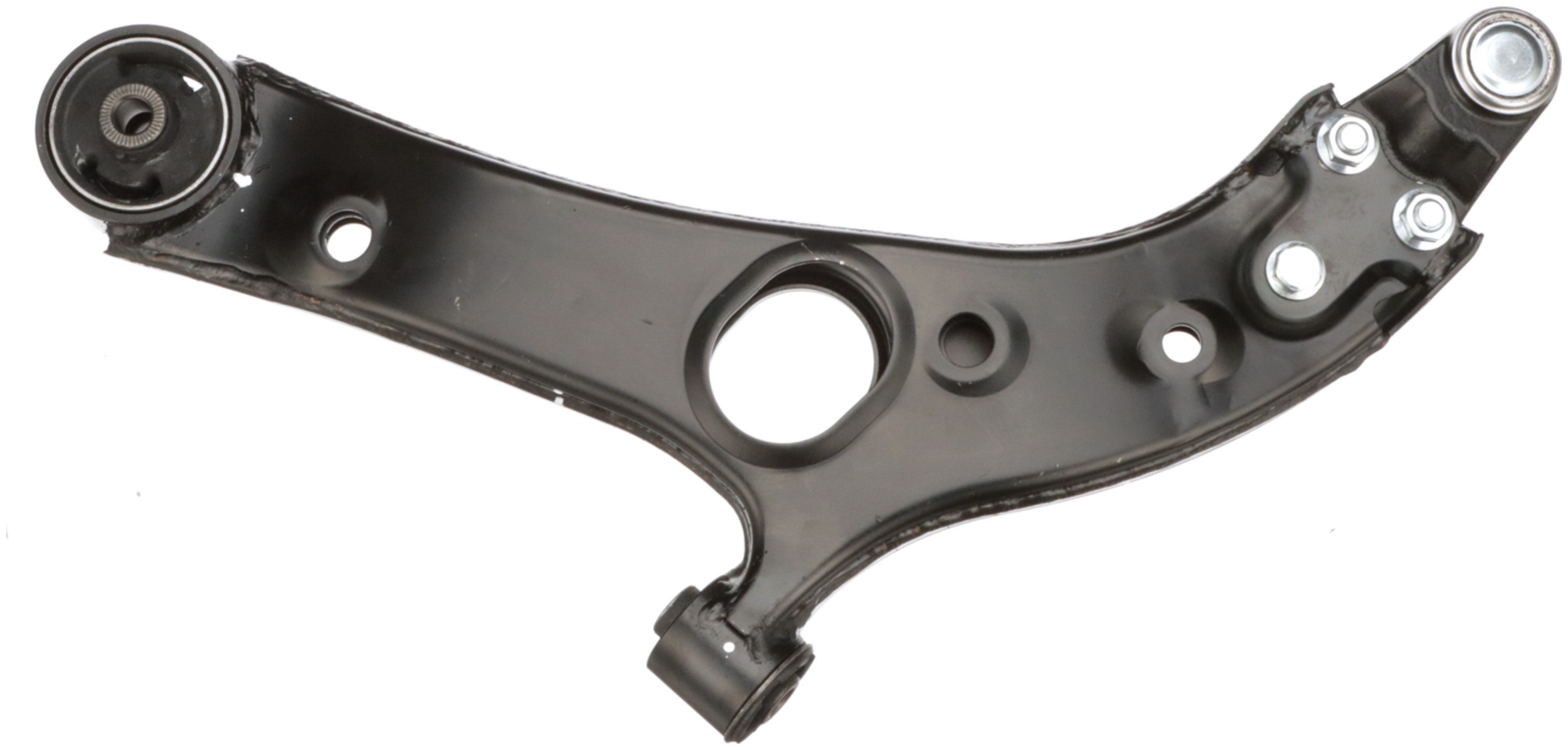

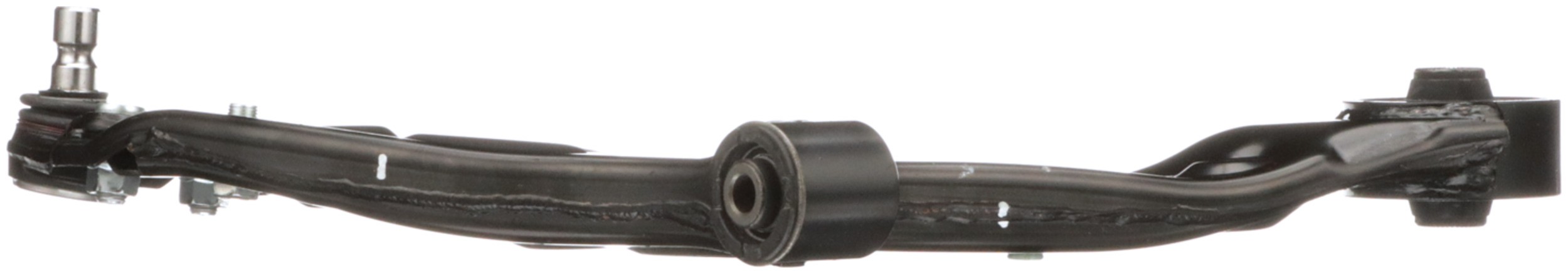

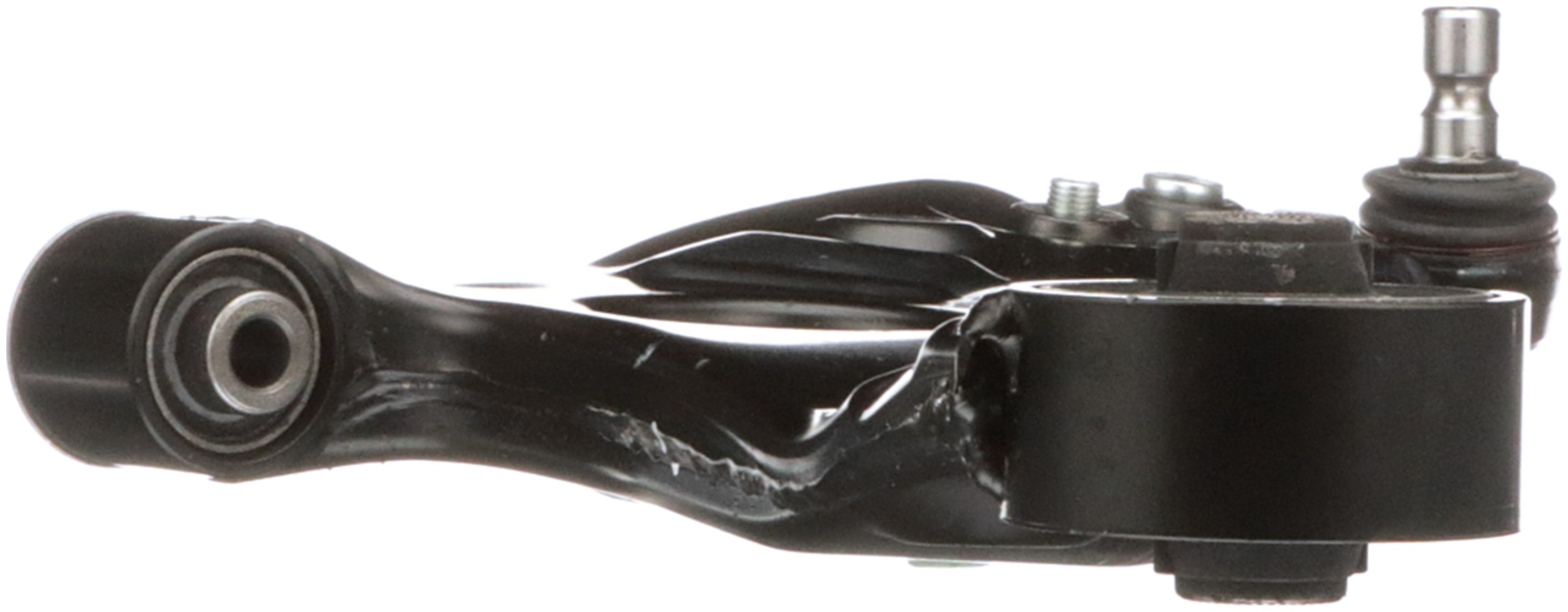

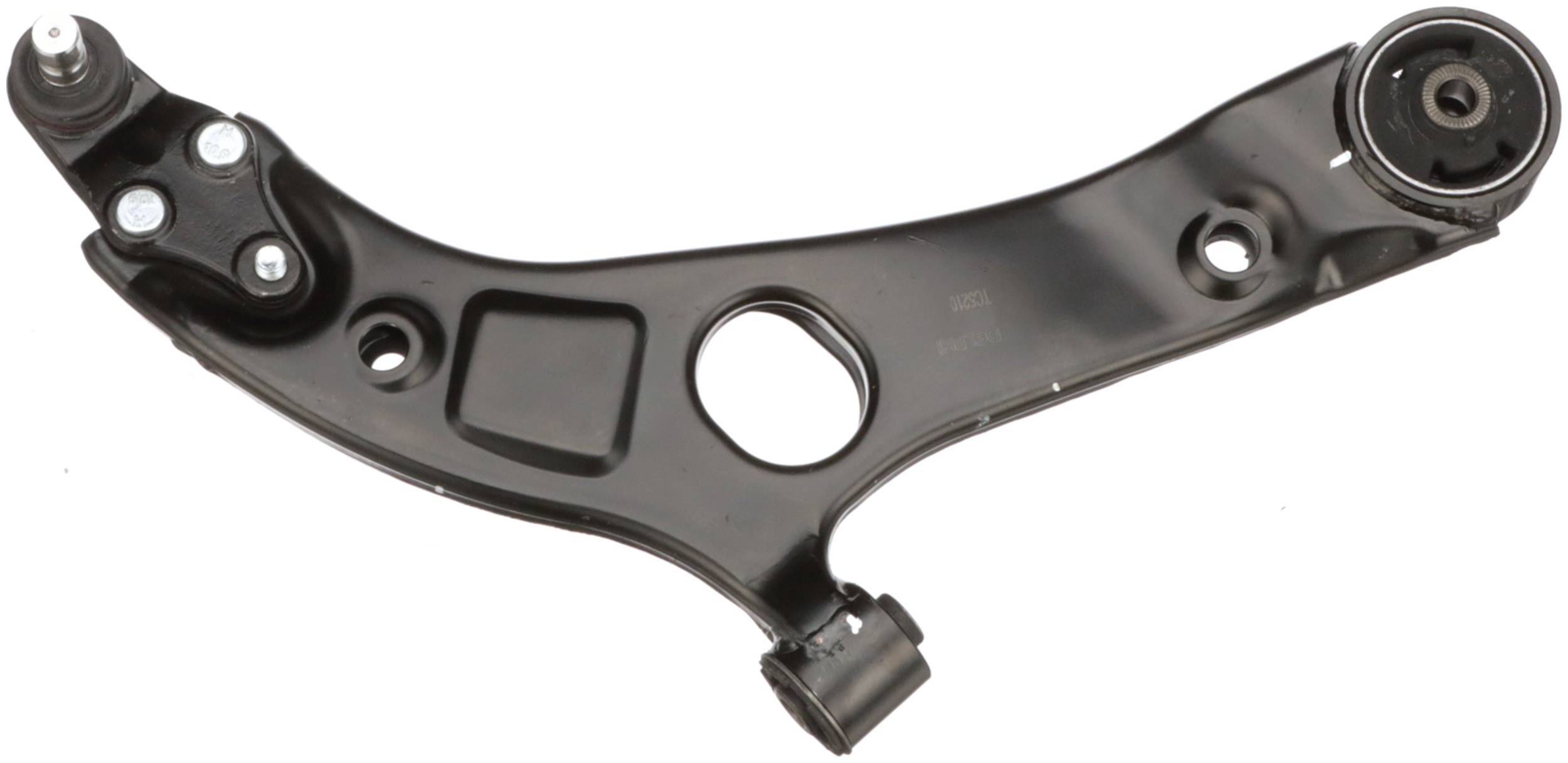

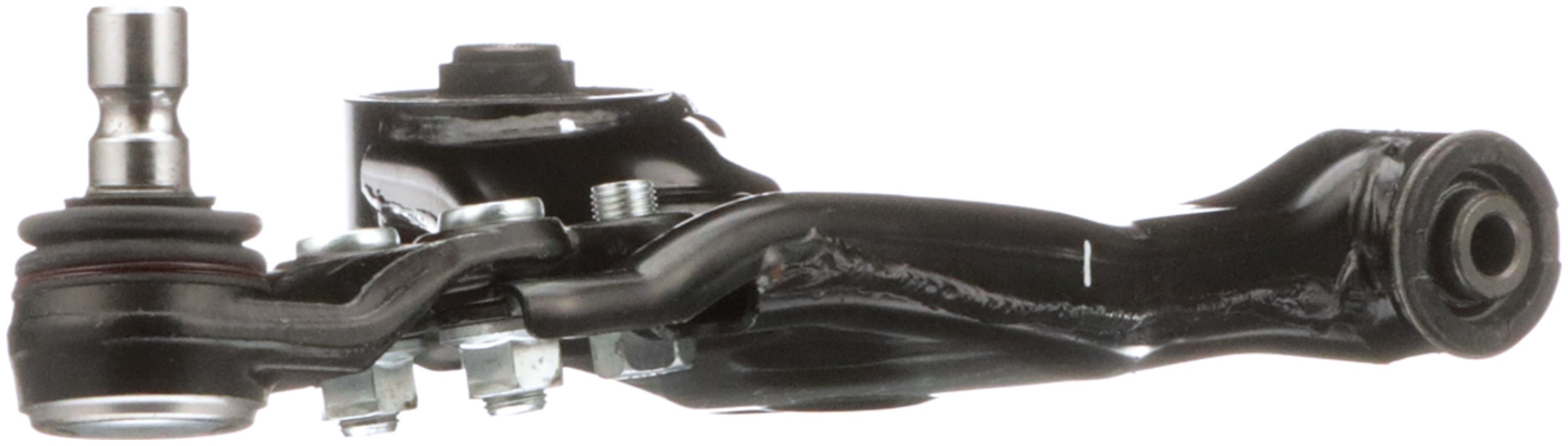

Delphi TC5210 Suspension Control Arm and Ball Joint Assembly

Delphi TC5210 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	18.110 IN
Length	460.00 MM
Boot Material	Chloroprene Rubber (CR)
4887	440.00 MM
Mounting Hole Quantity	2
Pre-greased	Yes
Adjustable	No
Greaseable	No
Mounting Hole Diameter	12.00 MM
Mounting Hole Diameter	0.472 IN
Bushing Type	Rubber
Bearing Material	Plastic
9090	Chloroprene Rubber (CR)
6529	Power
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Ball Joint Stud Type	Grooved
Attachment Type	Bolt In
4890	2.205 IN
4890	56.00 MM
4887	17.323 IN
Dust Boot Included	Yes
Bushings Included	Yes
Finish	Painted
Bushing Colour	Black
Boot Colour	Black
Finish	Black
2386	Stamped
2384	Yes
Position(s)	Front Right Lower
