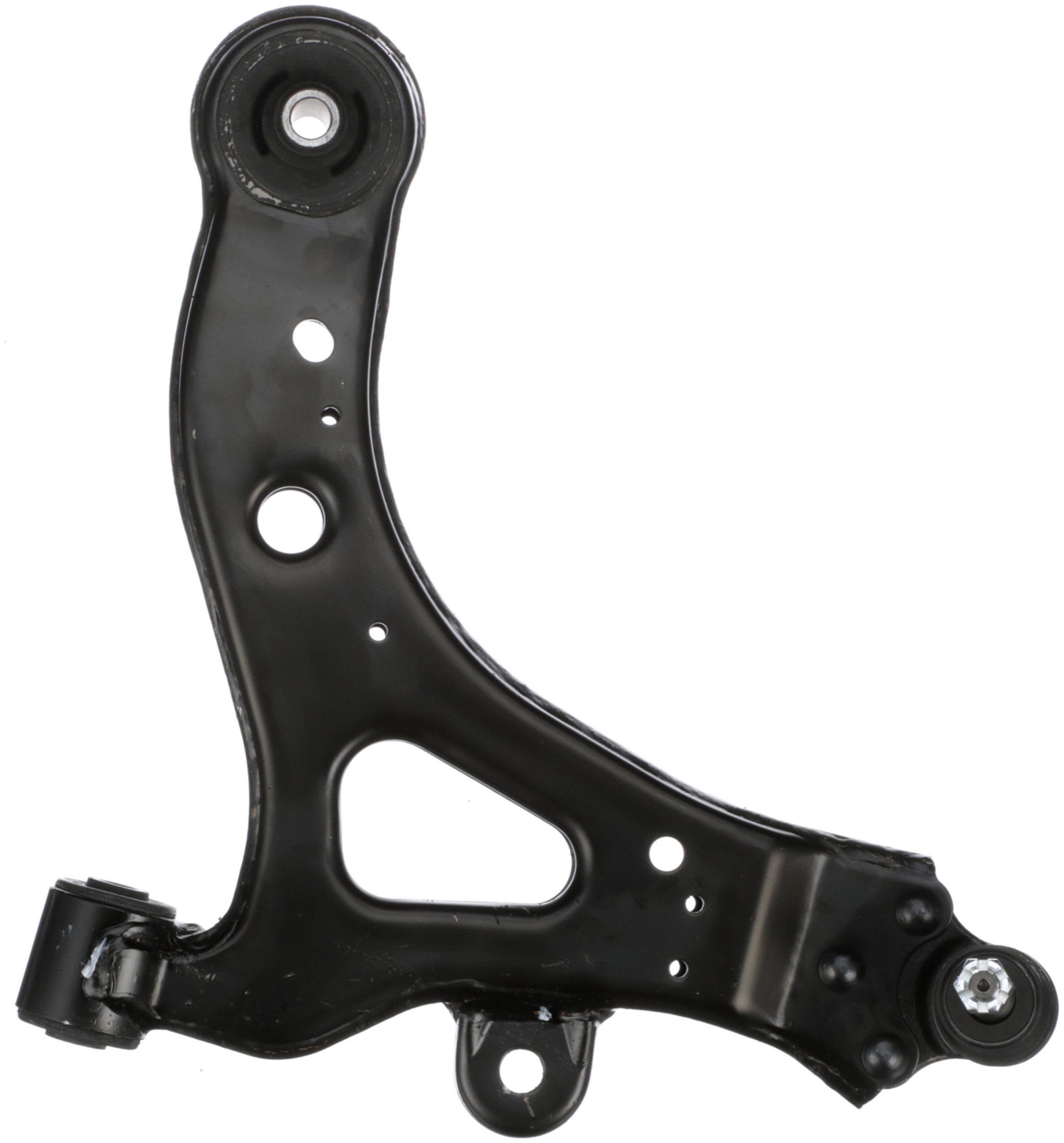

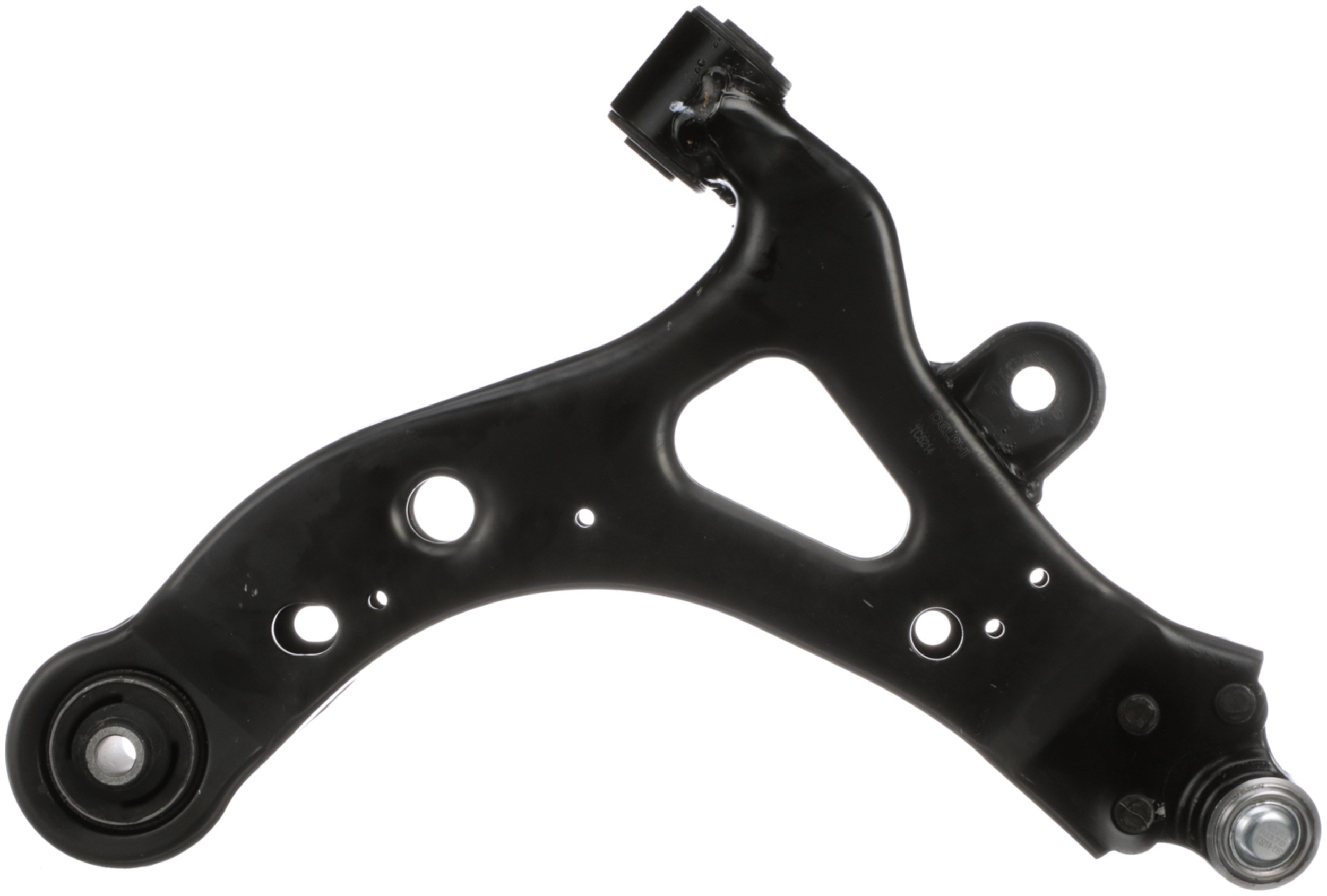

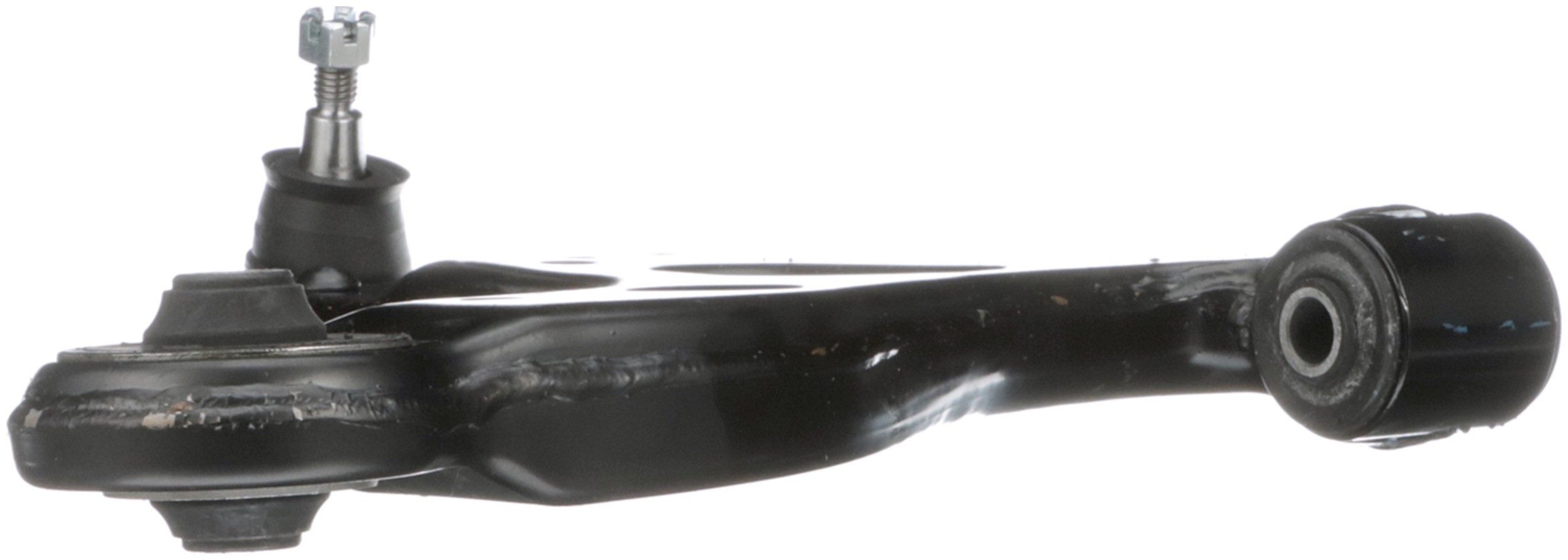

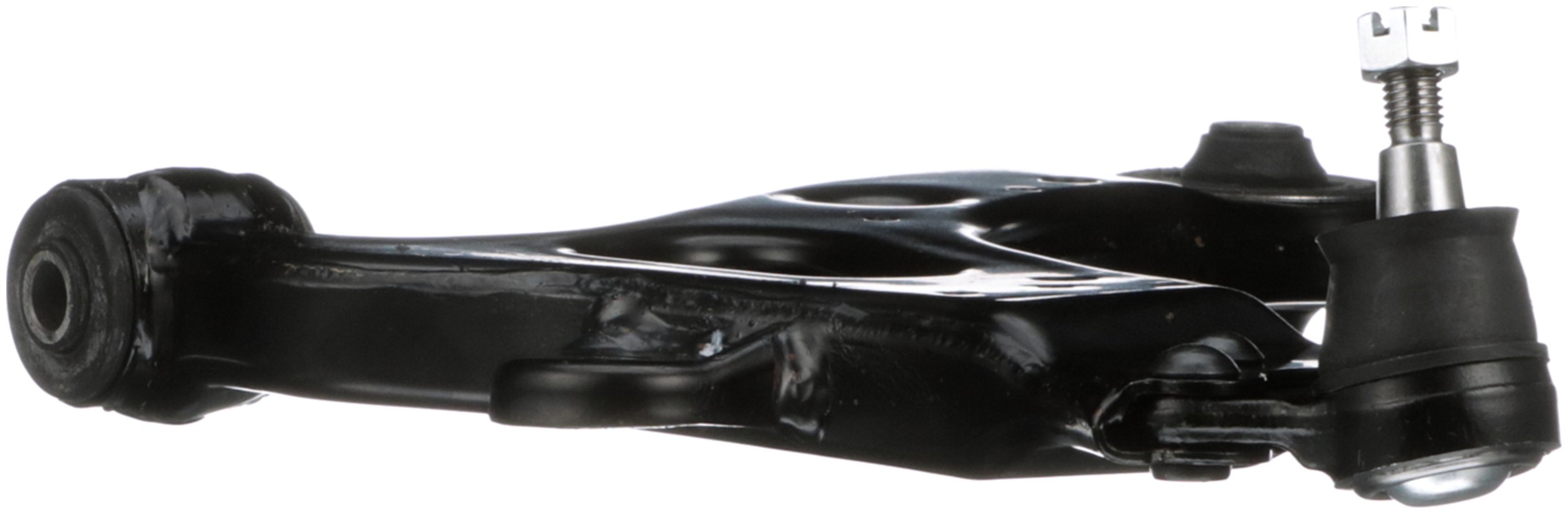

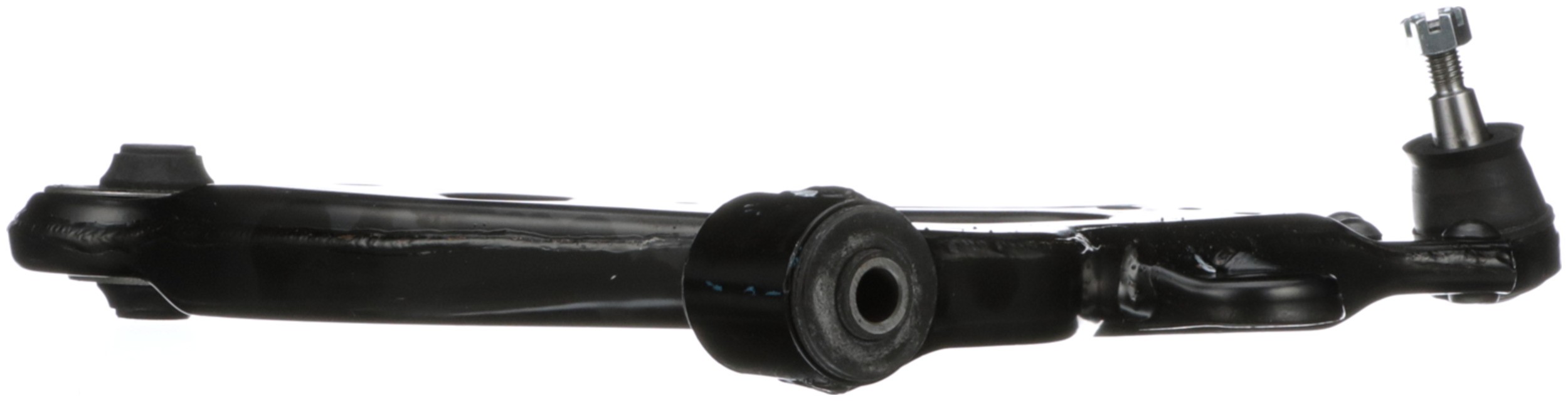

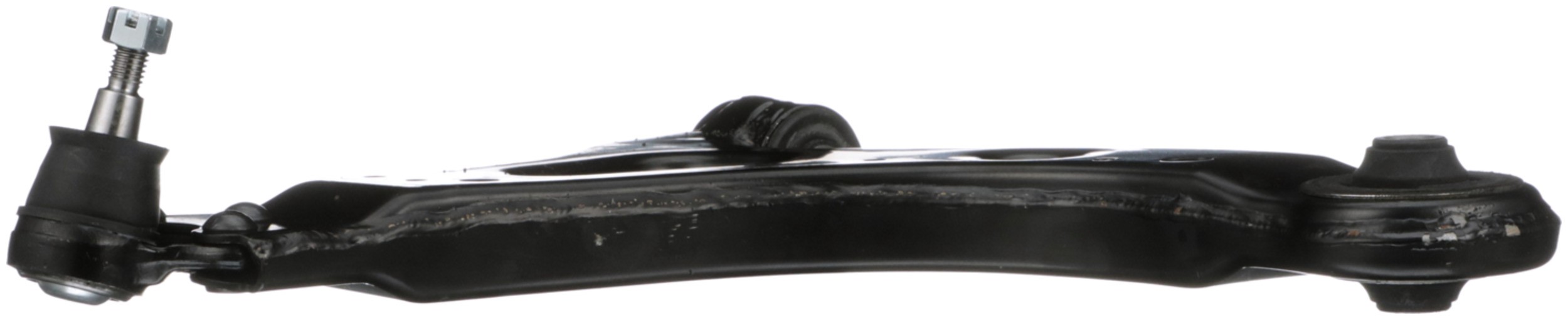

Delphi TC5214 Suspension Control Arm and Ball Joint Assembly

Delphi TC5214 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	Front Right Lower
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	0
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Length	15.945 IN
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Bolt In
Ball Joint Stud Type	Threaded
4890	2.913 IN
4890	74.00 MM
4887	15.945 IN
4887	405.00 MM
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Pre-greased	Yes
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Length	405.00 MM
Bushing Type	Rubber
