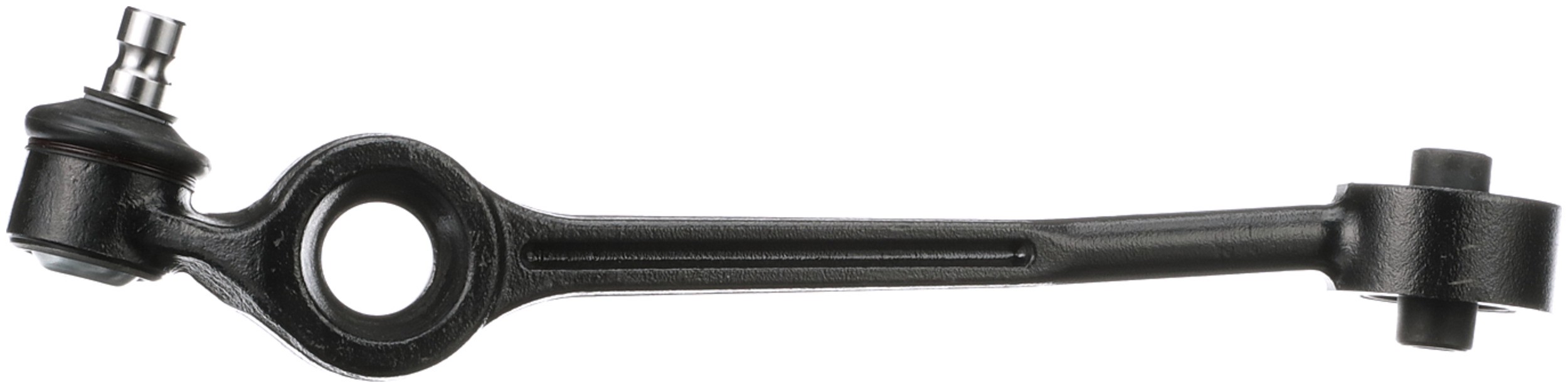

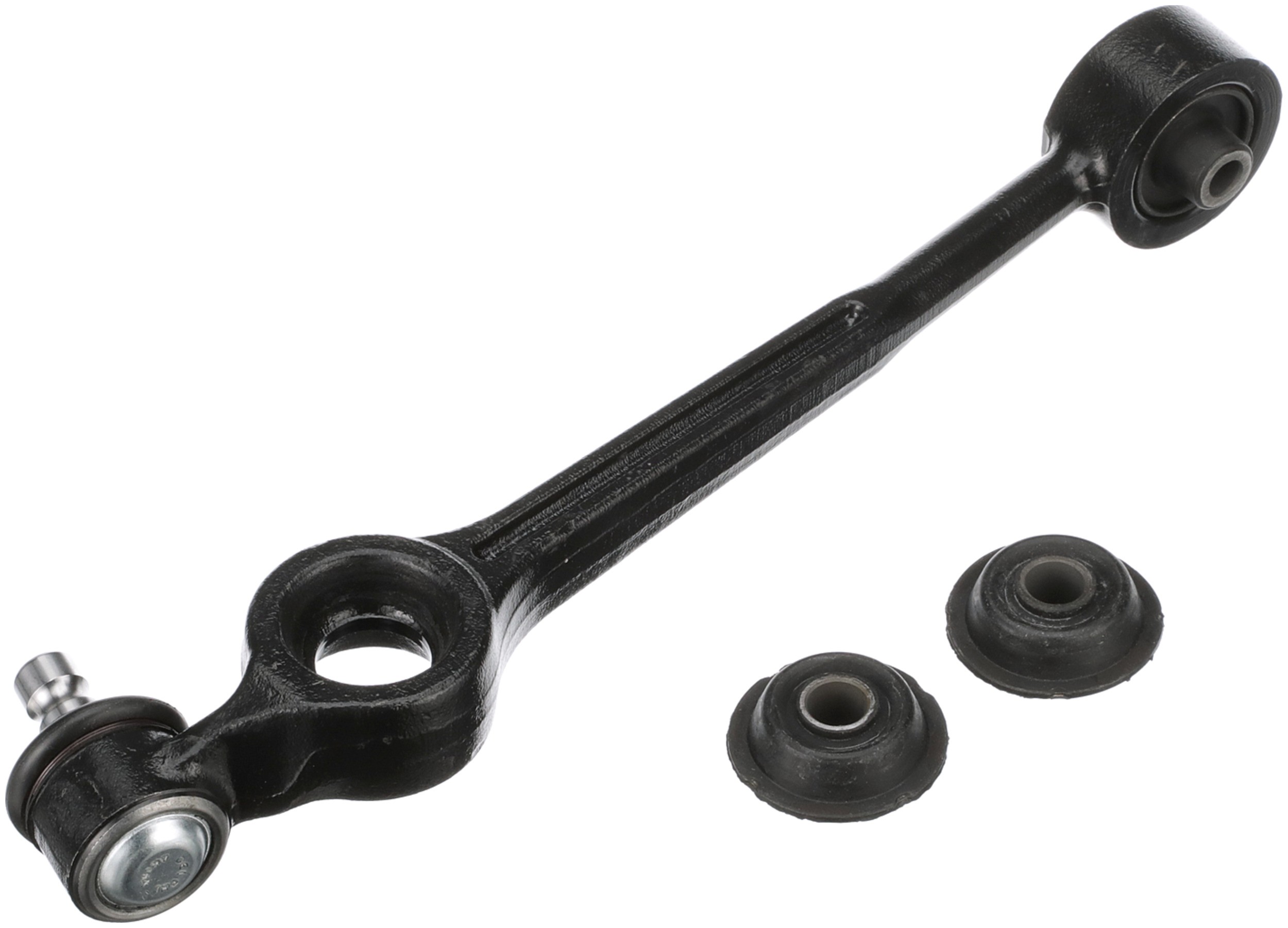

Delphi TC5243 Suspension Control Arm and Ball Joint Assembly

Delphi TC5243 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Finish	Black
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Grooved
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	12.20 MM
Length	17.323 IN
Length	440.00 MM
2384	Yes
9090	Chloroprene Rubber (CR)
6529	Power
2386	Casting/Forged
4887	76.00 MM
4887	2.992 IN
4890	70.00 MM
4890	2.756 IN
Position(s)	Front Left Lower

Vehicle Applications:

Make	Model	Years
Audi	100 Quattro	1989 to 1991
Audi	100	1989 to 1991
Audi	200 Quattro	1989 to 1991
Audi	200	1989 to 1991
Audi	5000 Quattro	1986 to 1988
Audi	5000	1980 to 1988
