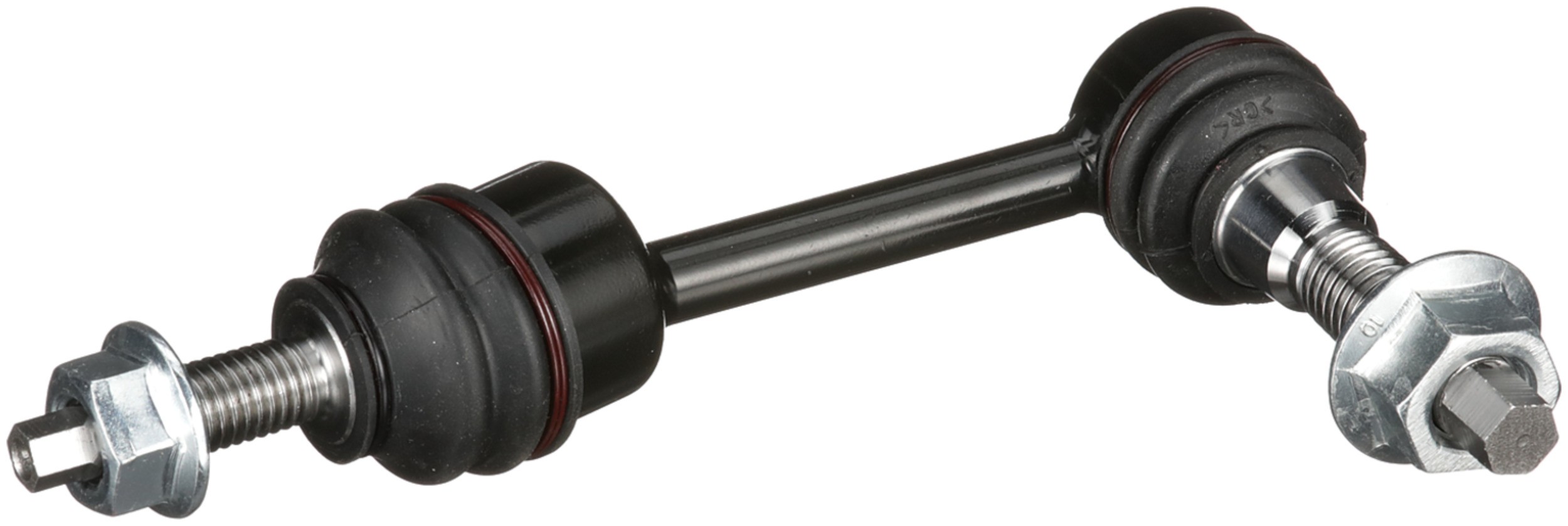

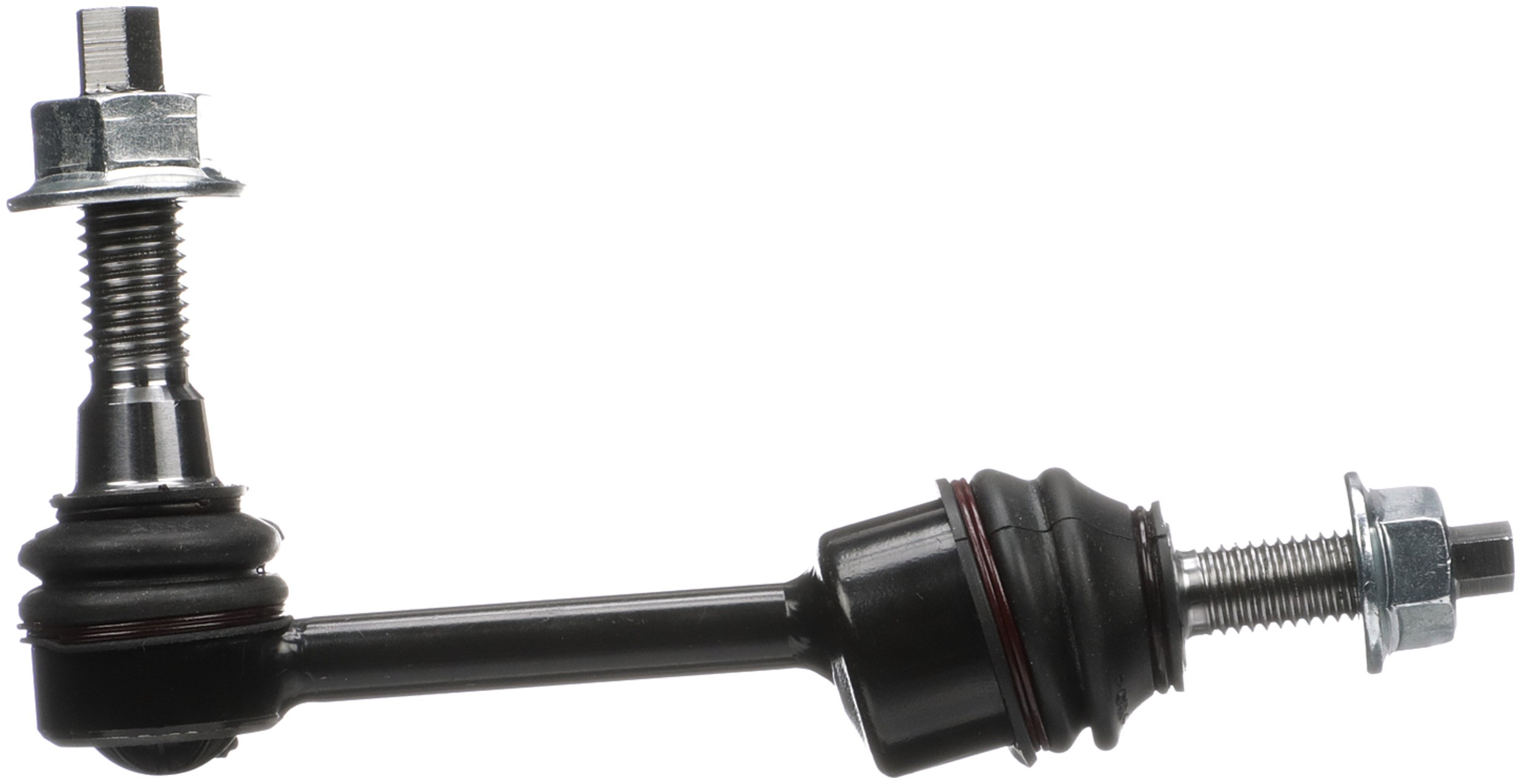

Delphi TC5246 Suspension Stabilizer Bar Link

Delphi TC5246 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

839	10mm
Grade Type	Standard Replacement
Greaseable	No
Housing Material	Steel
Bolts Included	No
Washers Included	No
Dust Boot Included	Yes
Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
Bushing Colour	Black
9296	Yes
Position(s)	Front
Bolt Length	49.40 MM
Bolt Length	1.945 IN
Height	3.740 IN
Height	95.00 MM
Width	50 MM
Width	1.969 IN
Length	126.49 MM
Length	4.980 IN
4504	0.470 IN
4504	0.550 IN
4504	12.00 MM
4504	14.00 MM
