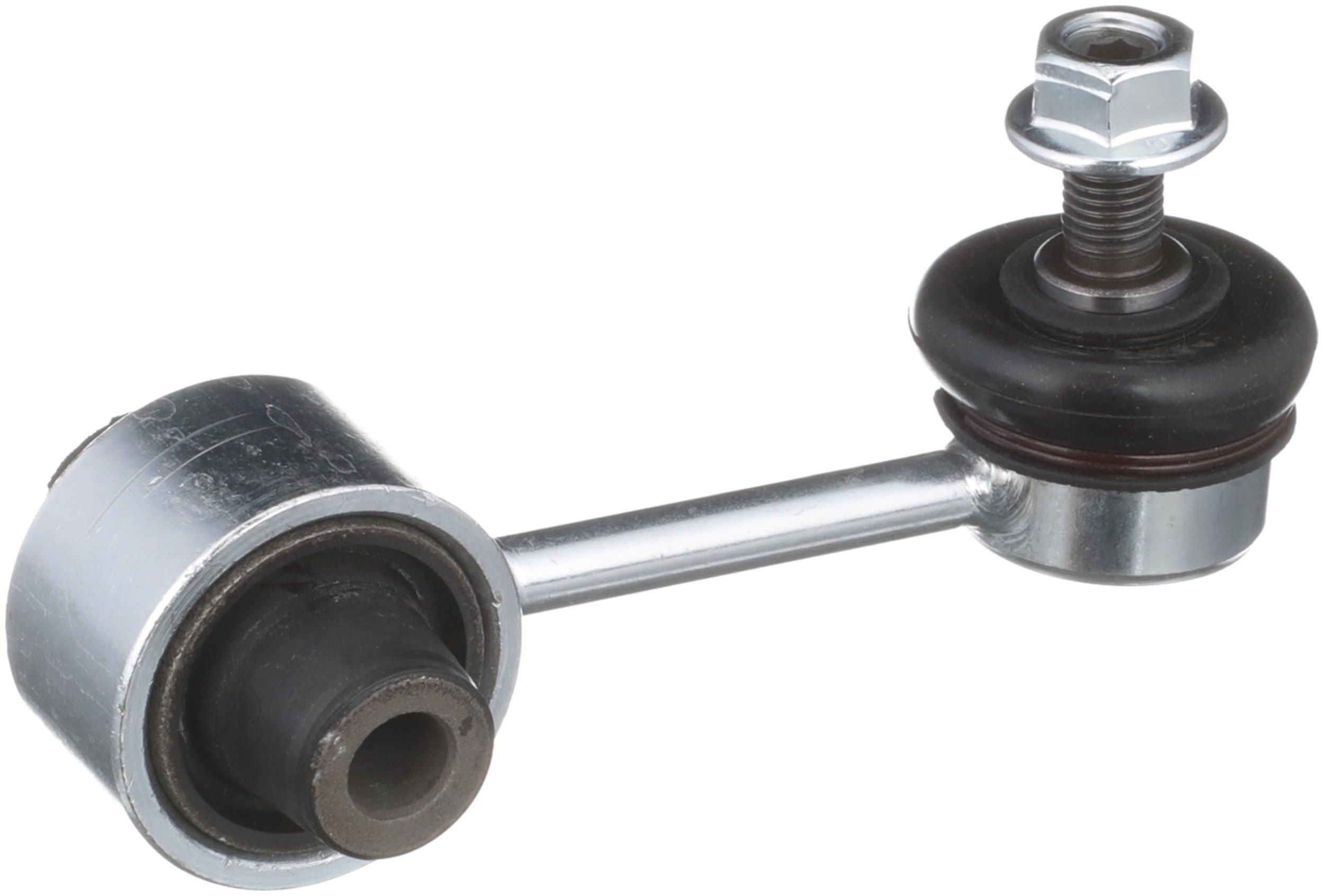

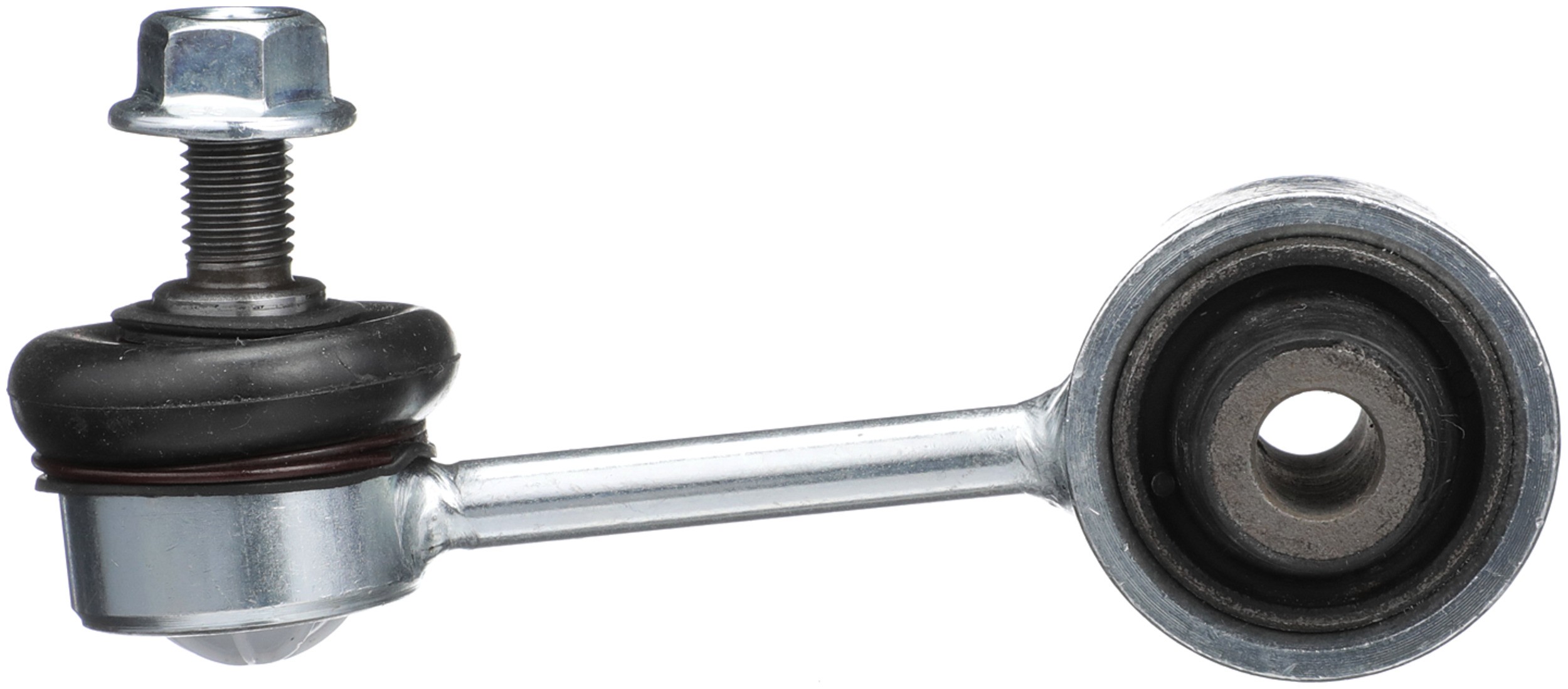

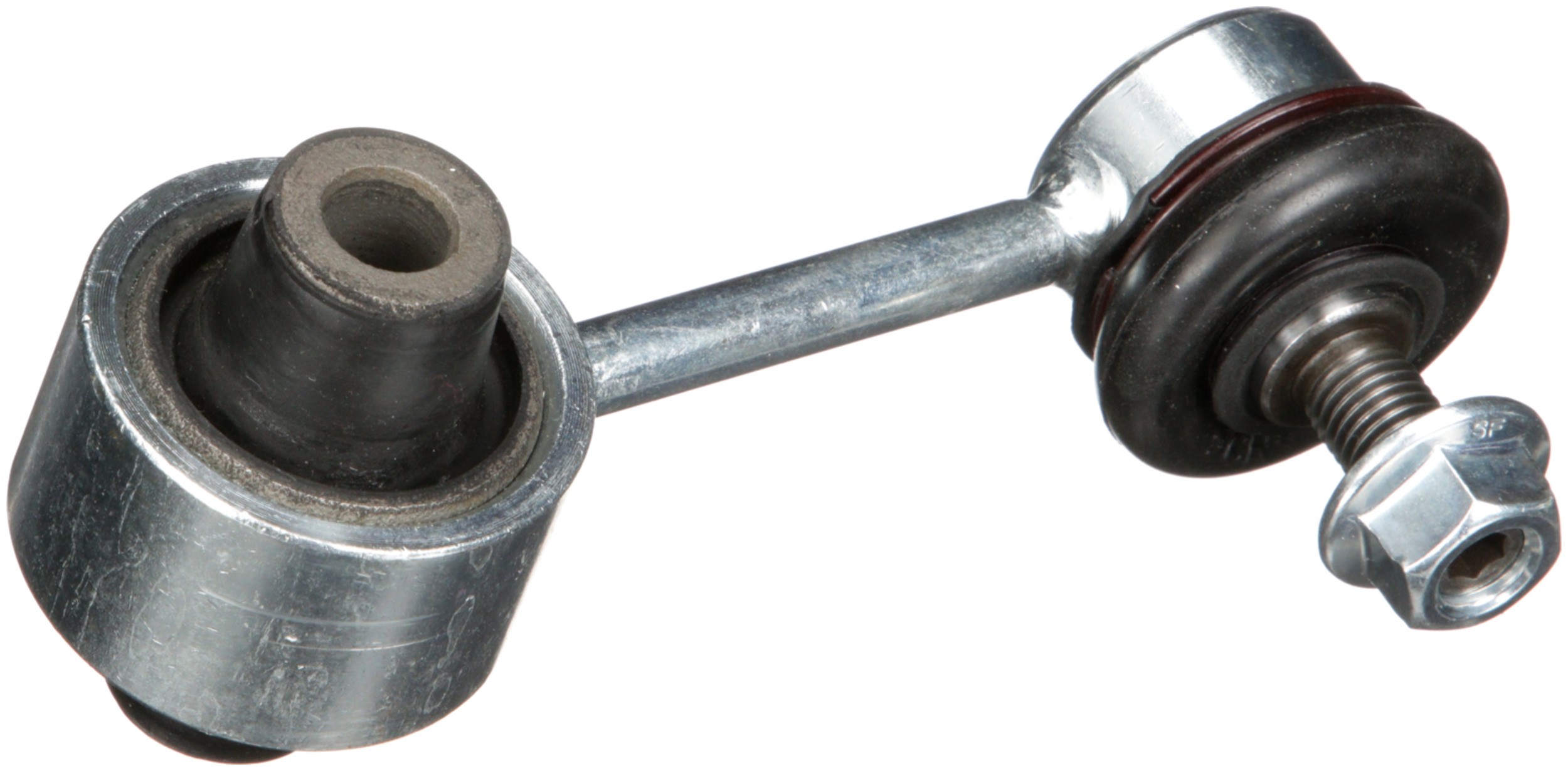

Delphi TC5266 Suspension Stabilizer Bar Link

Delphi TC5266 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bolt Length	0.846 IN
4504	10.00 MM
4504	0.390 IN
627	0.23 LB
9296	Yes
Position(s)	Rear
End 2 Type	Ball Joint
Bushing Inside Diameter	0.410 IN
Grade Type	Standard Replacement
Bushing Type	Rubber
Width	54.7 MM
Width	2.154 IN
Height	70.00 MM
Bushing Colour	Black
End 1 Type	Bushing
Length	94.00 MM
Length	3.701 IN
Height	2.756 IN
Greaseable	No
Housing Material	Steel
Bolts Included	No
Washers Included	Yes
Dust Boot Included	Yes
Bushings Included	Yes
Bolt Length	21.49 MM
Bushing Inside Diameter	10.40 MM

Vehicle Applications:

Make	Model	Years
Scion	FR-S	2013 to 2016
Subaru	BRZ	2013 to 2017
Subaru	Impreza	2008 to 2016
Subaru	Legacy	2010 to 2019
Subaru	WRX STI	2013 to 2019
Subaru	WRX	2013 to 2019
Toyota	86	2017 to 2020
Toyota	GR86	2022 to 2023
