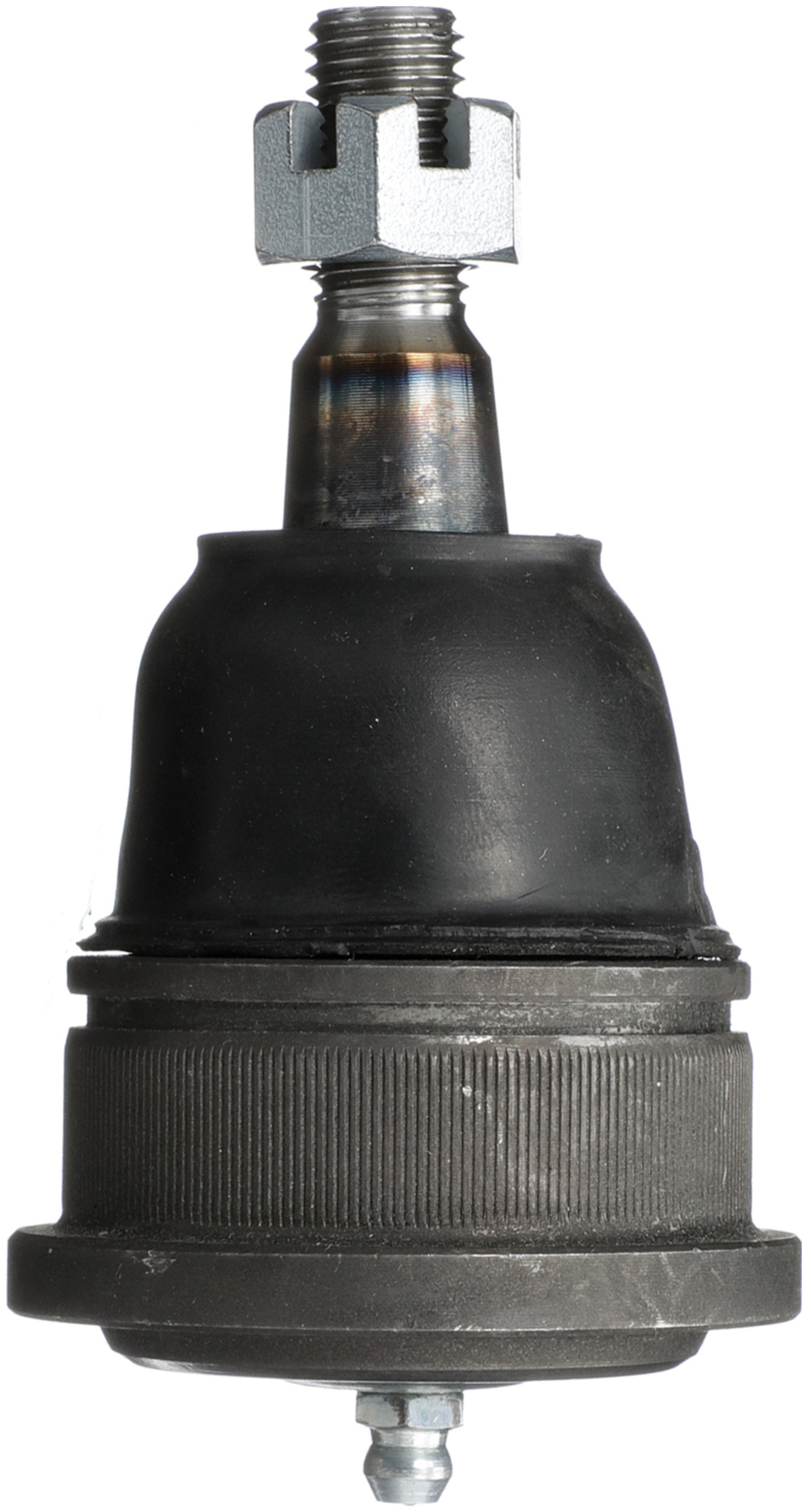

Delphi TC5288 Suspension Ball Joint

Delphi TC5288 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Height	3.728 IN
4966	0.945 IN
4966	24 MM
9212	0.748 IN
9212	19 MM
9213	0.61 IN
9213	15.5 MM
Width	55.5 MM
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Position(s)	Front Lower
2381	Yes
9090	Rubber
9209	No
9210	Yes
Height	94.70 MM
Color	Gray
Bushings Included	No

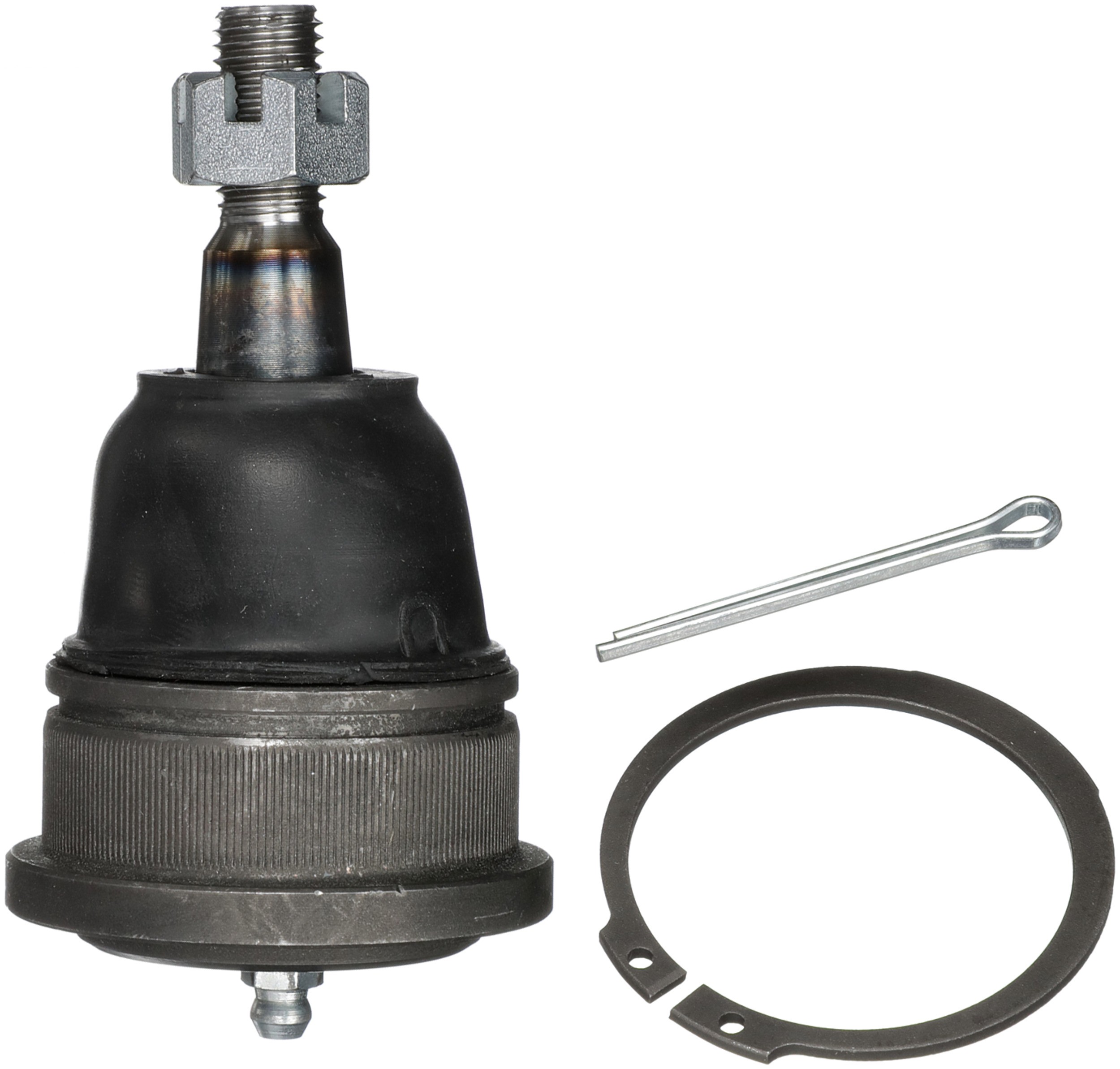

Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Mounting Type	Press-In
