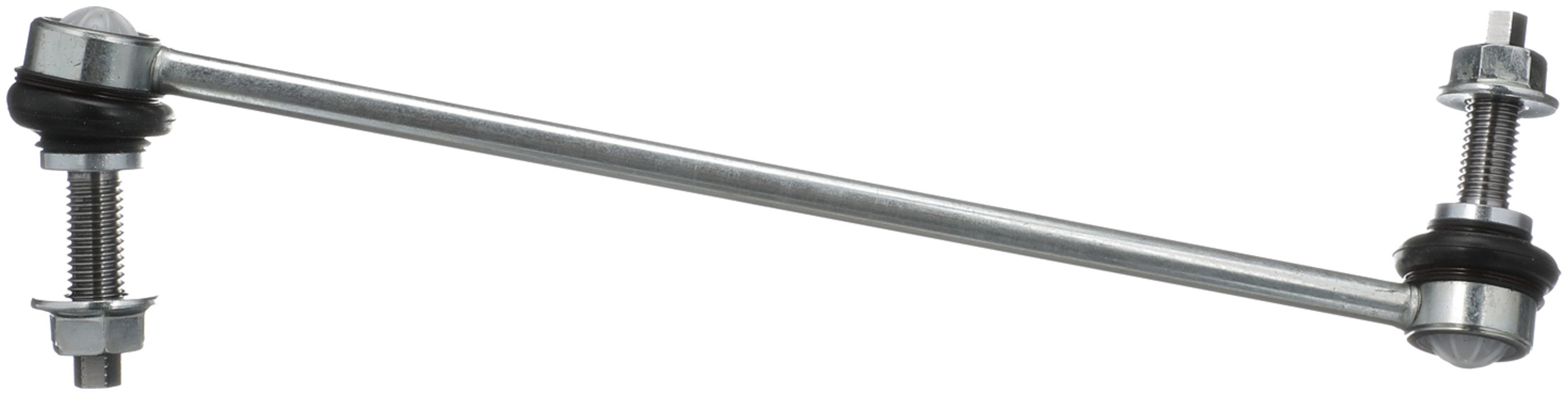

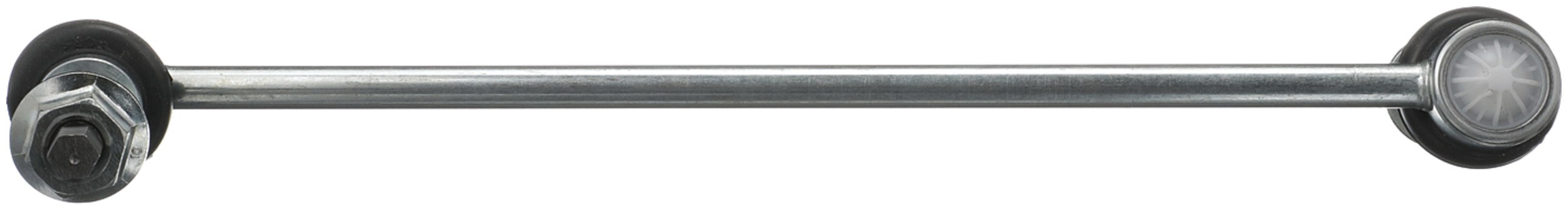

Delphi TC5301 Suspension Stabilizer Bar Link

Delphi TC5301 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Type	Ball Joint
Bolt Length	52.50 MM
Bolt Length	2.067 IN
Height	226.00 MM
Height	8.898 IN
Bushing Colour	Black
End 1 Type	Ball Joint
Washers Included	No
Dust Boot Included	Yes
Width	70 MM
Length	340.00 MM
Length	13.386 IN
Bushings Included	No
Width	2.756 IN
Greaseable	No
Bushing Type	Rubber
Grade Type	Standard Replacement
Position(s)	Front Left
4504	0.550 IN
627	0.29 LB
Bolts Included	No
Housing Material	Steel
839	10mm
9296	Yes
4504	14.00 MM
