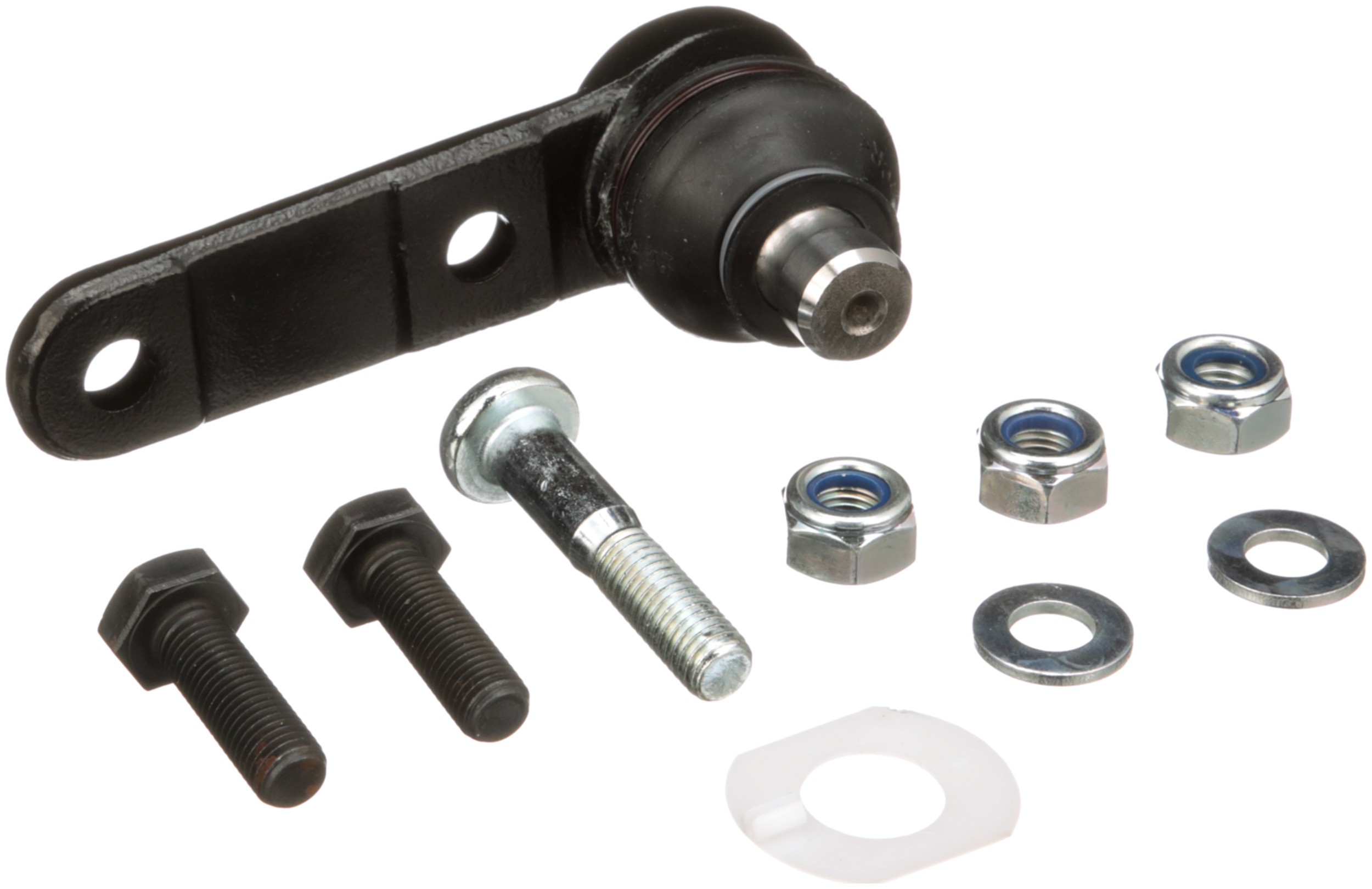

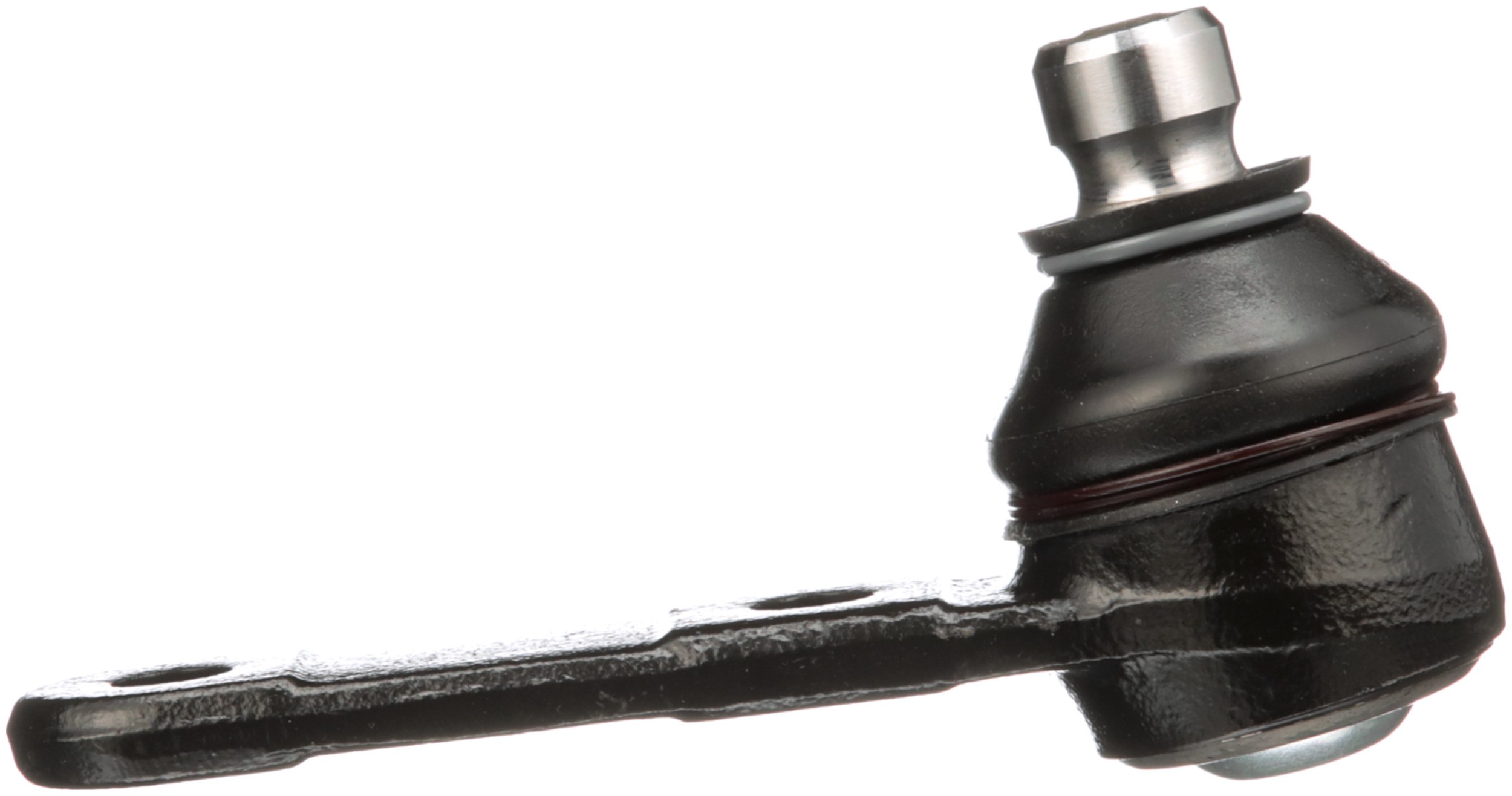

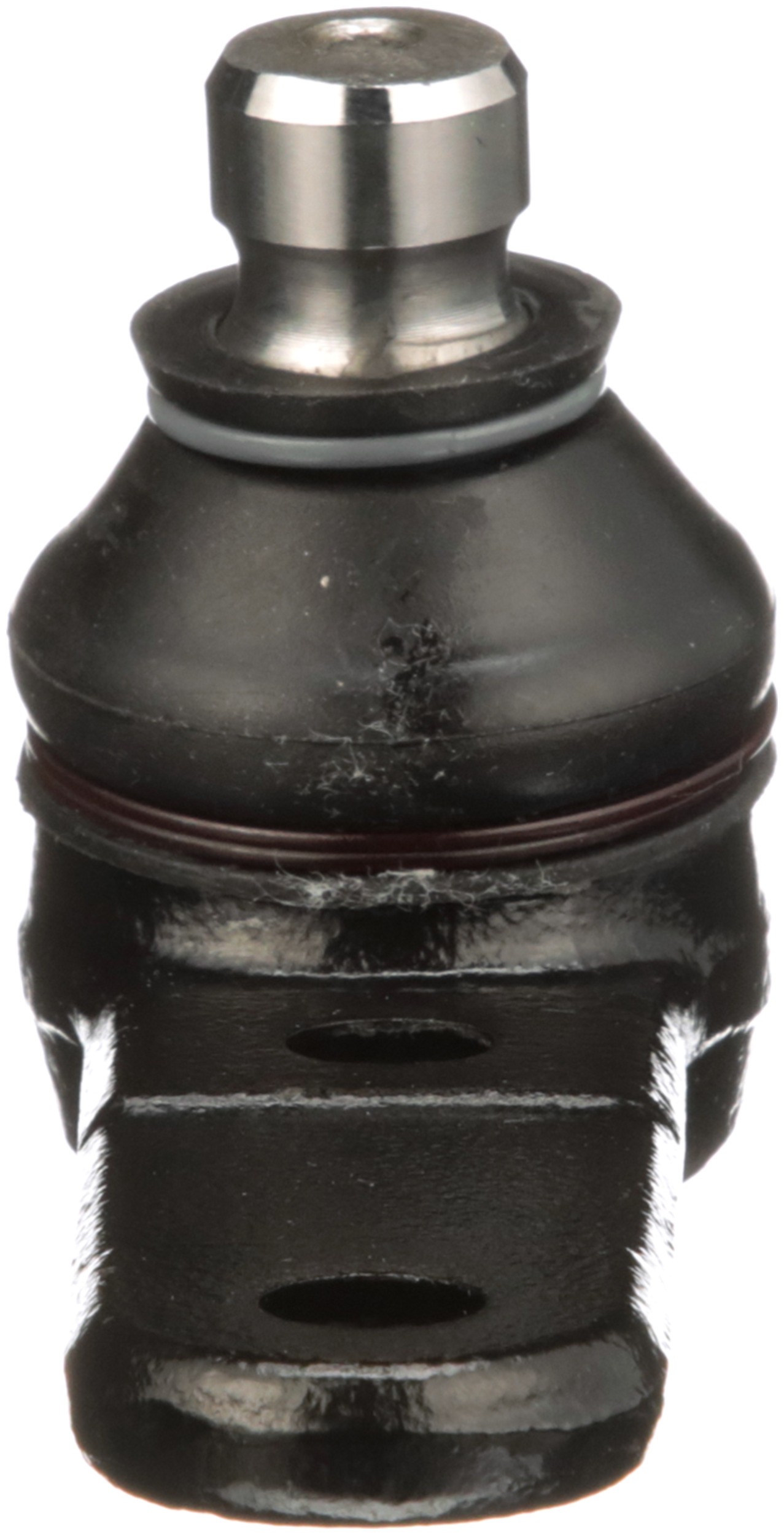

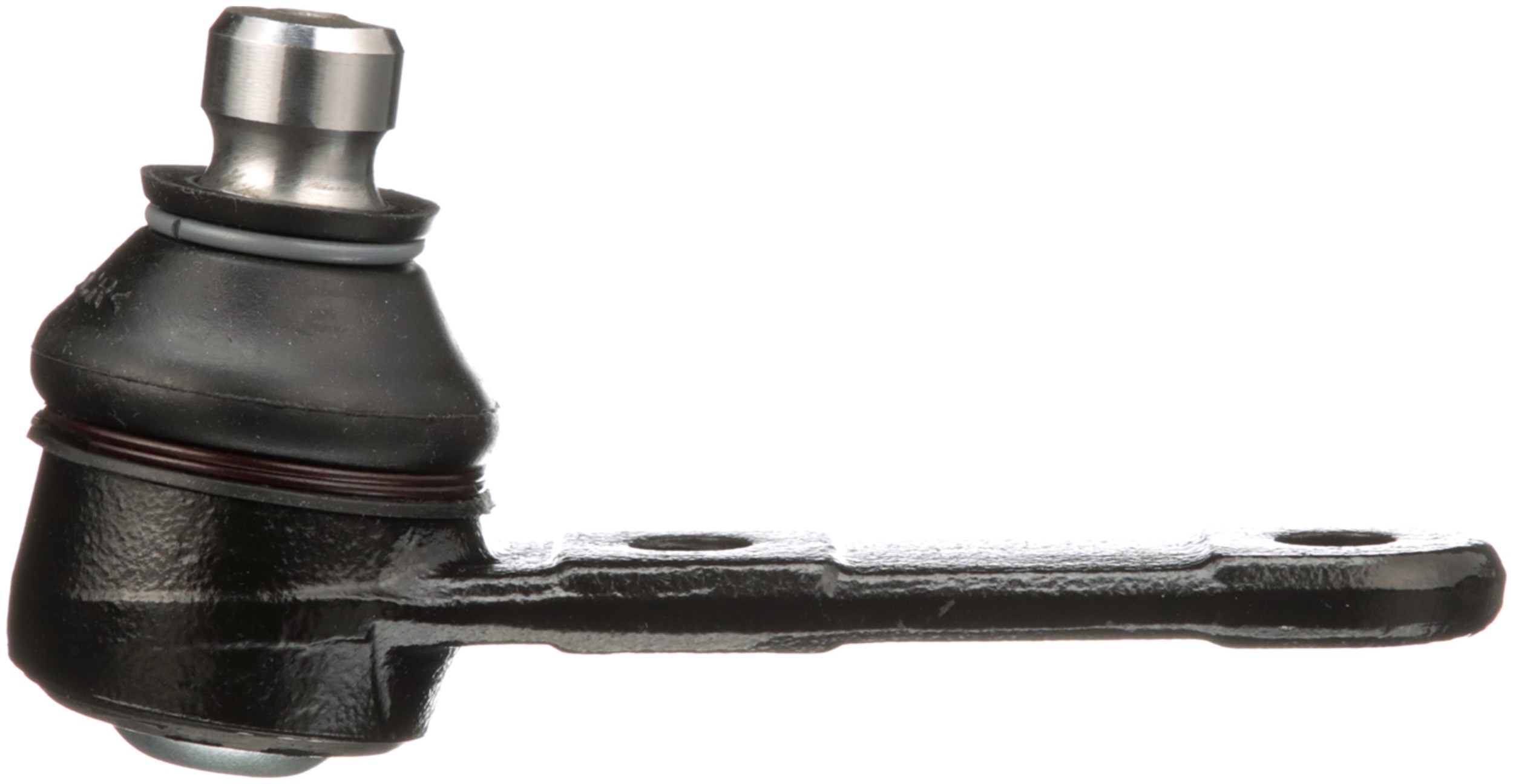

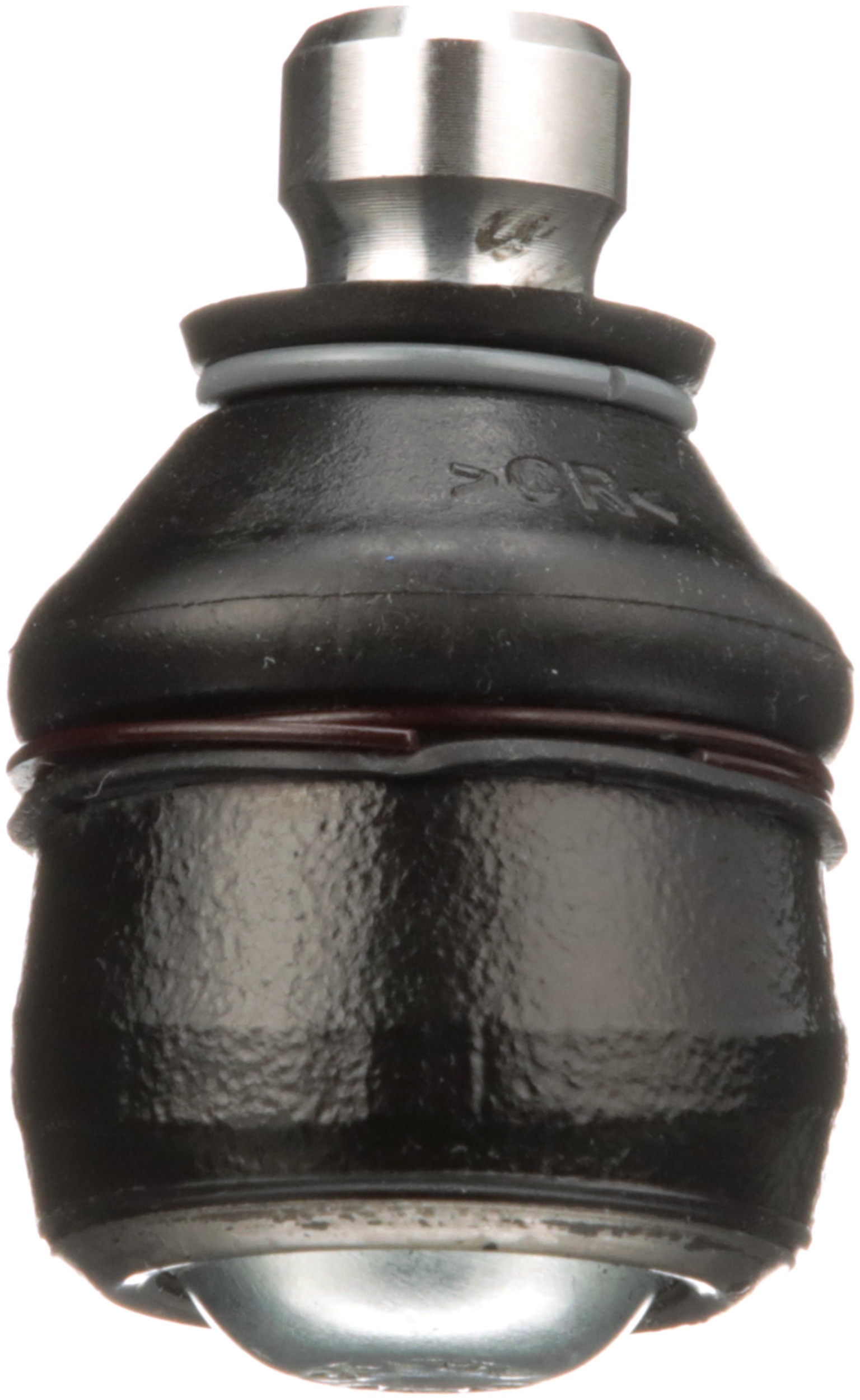

Delphi TC532 Suspension Ball Joint

Delphi TC532 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Mounting Type	Bolt-In
Suspension Grade Type	Standard Replacement
Maximum Outside Diameter	40.00 MM
Length	128.00 MM
Length	5.040 IN
9207	30.00 MM
9207	1.181 IN
9203	19.00 MM
9203	0.748 IN
9202	10.00 MM
9202	0.394 IN
9058	55.00 MM
3068	30.00 MM
3068	1.181 IN
Position(s)	Front Lower
2334	No
2381	Yes
2827	No
839	17mm
9090	Rubber
9204	Yes
9209	No
9210	No
Material	Steel
Color	Black
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	Yes
Mounting Hole Quantity	2
Greaseable	No
Width	40 MM
Height	2.520 IN
Height	64.00 MM
Maximum Outside Diameter	1.575 IN
