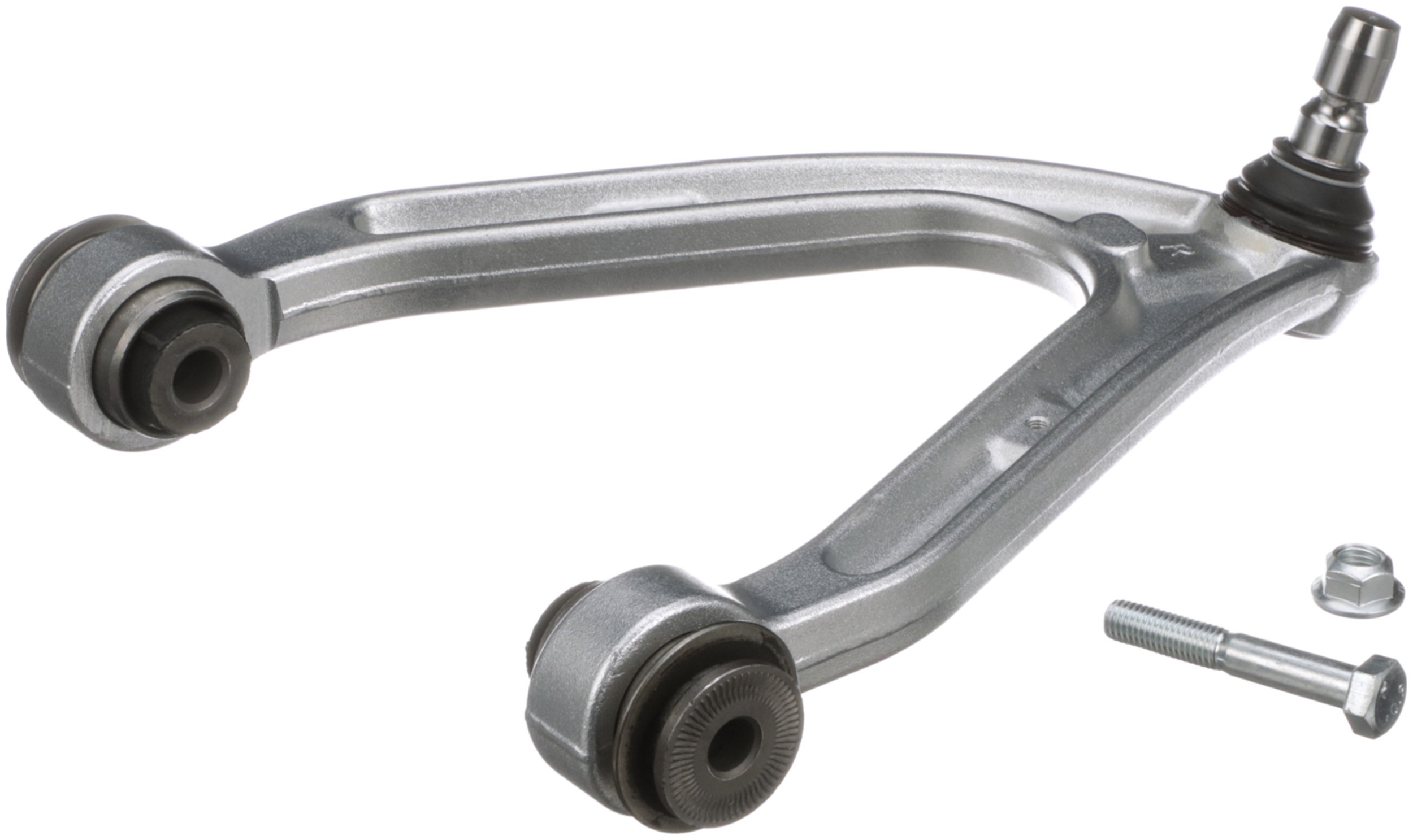

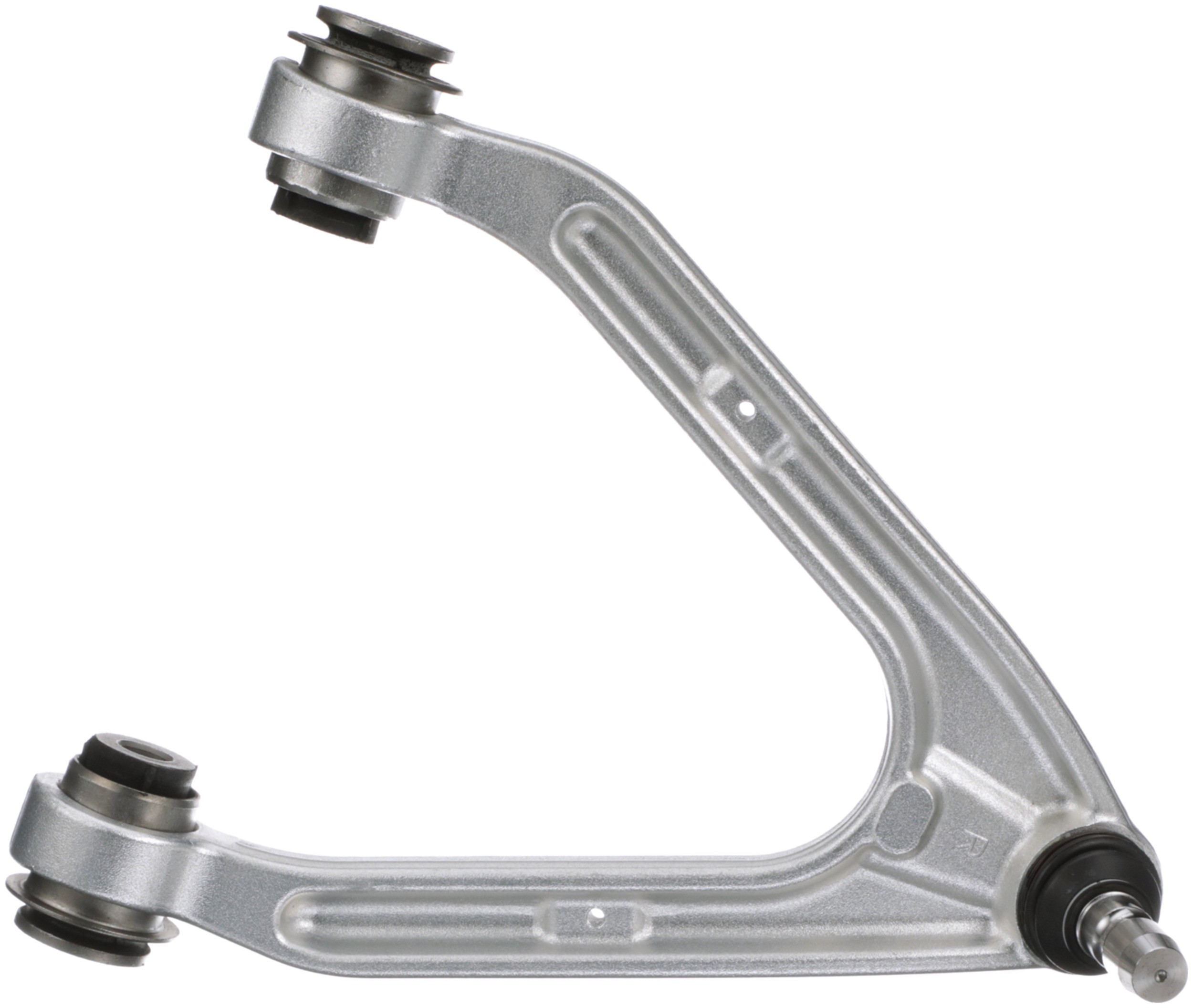

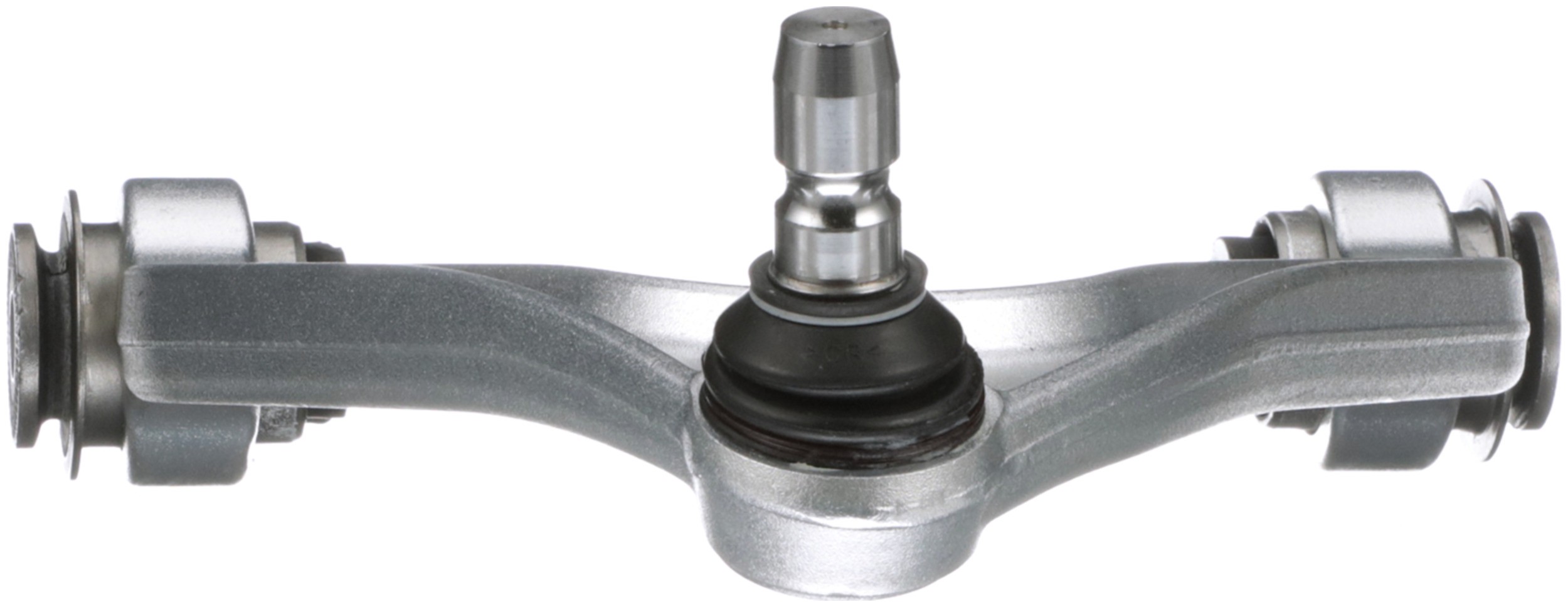

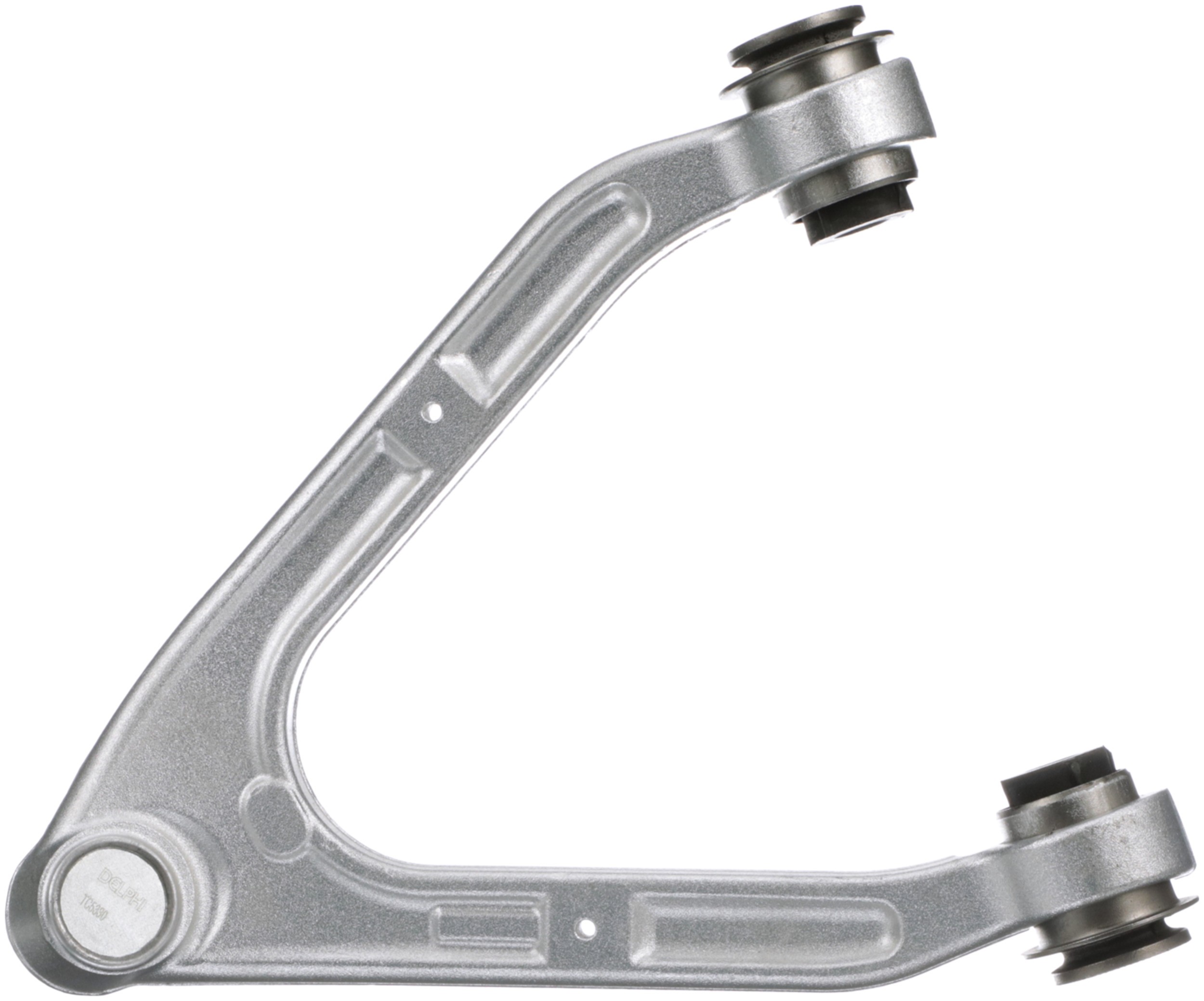

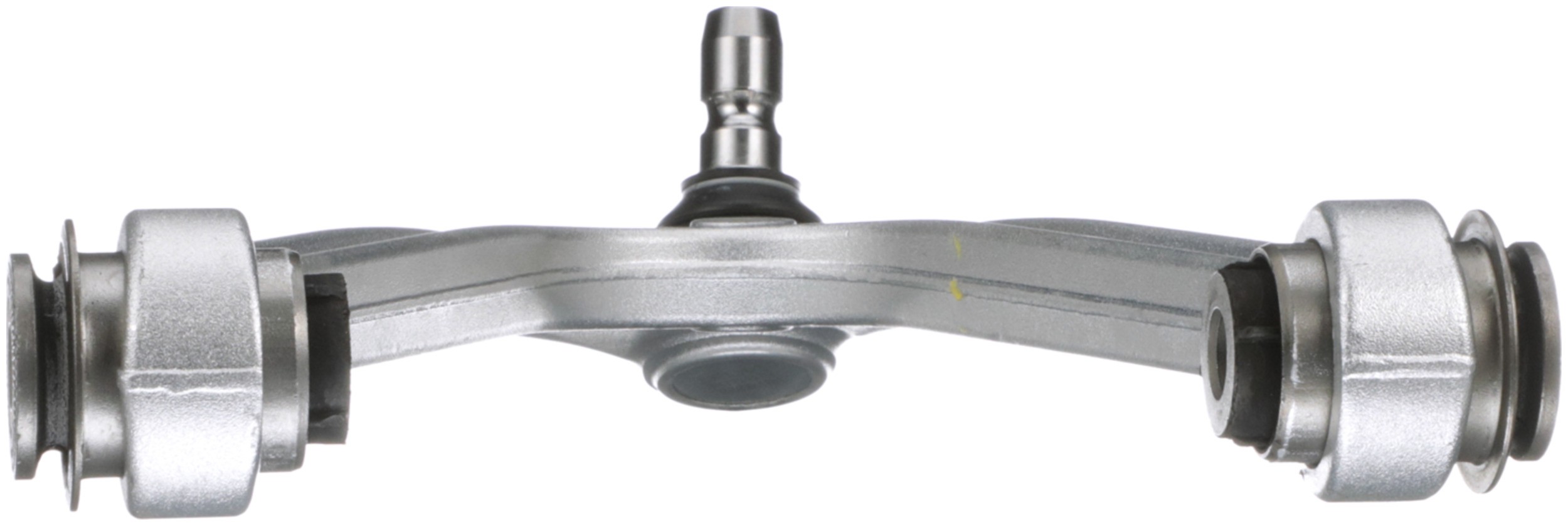

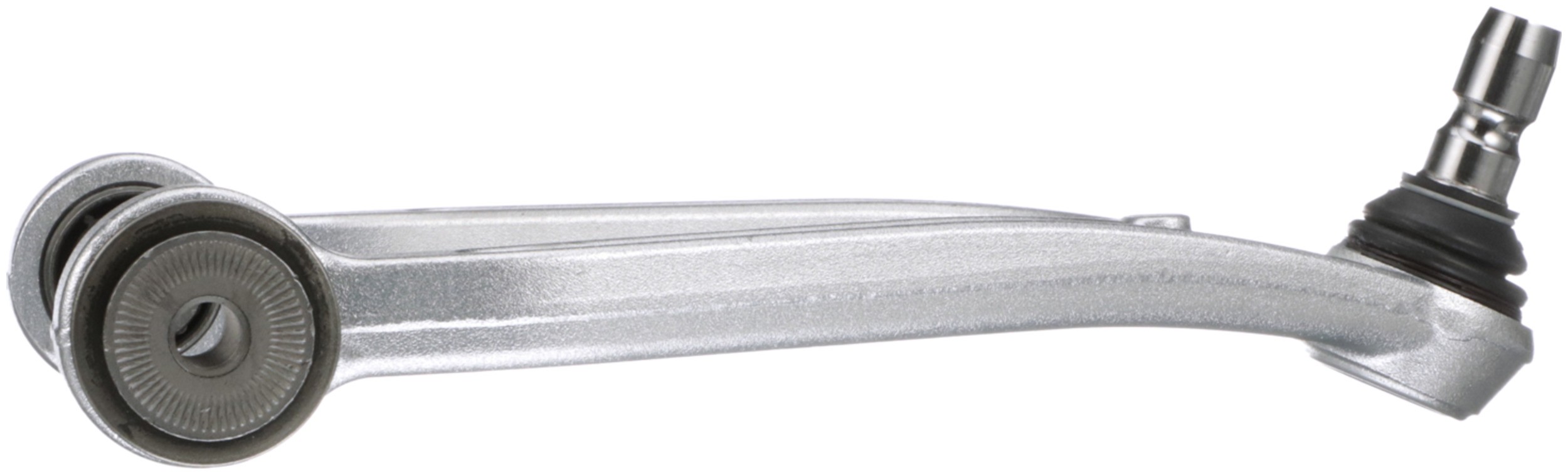

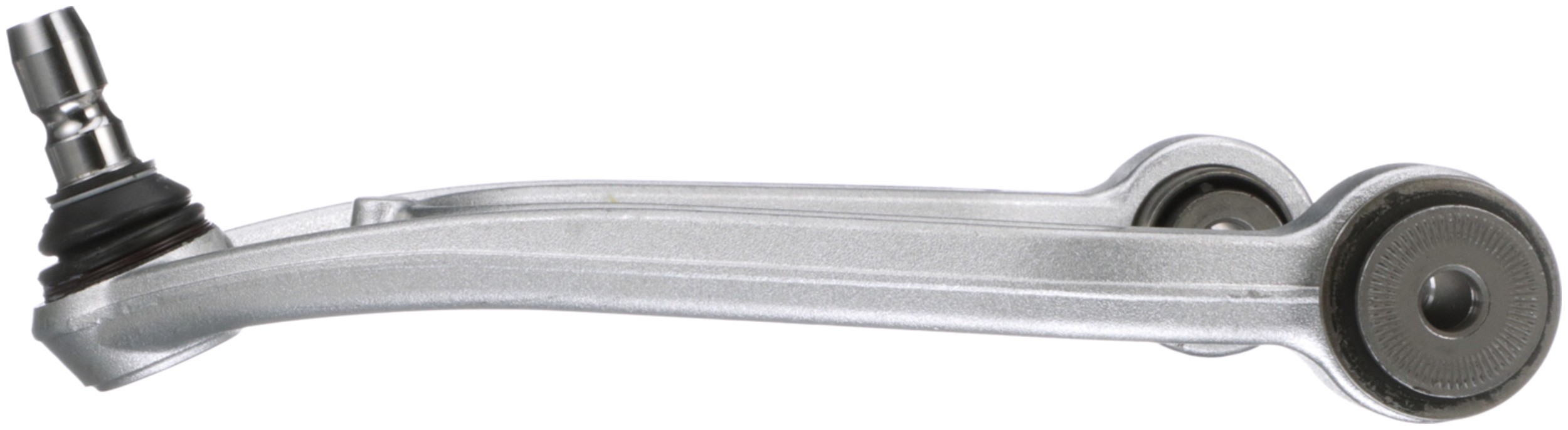

Delphi TC5330 Suspension Control Arm and Ball Joint Assembly

Delphi TC5330 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2384	Yes
Position(s)	Front Right Upper
Boot Colour	Black
Finish	Gray
Greaseable	No
Length	365.00 MM
Length	14.370 IN
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
4887	305.00 MM
4887	12.008 IN
4890	70.00 MM
4890	2.756 IN
Mounting Hole Diameter	6.00 MM
Mounting Hole Diameter	0.236 IN
Bushing Type	Rubber
Bearing Material	Plastic
Bushing Colour	Black
Finish	Uncoated
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Grooved
Material	Aluminum
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
9090	Chloroprene Rubber (CR)
6529	Power
2386	Casting/Forged
