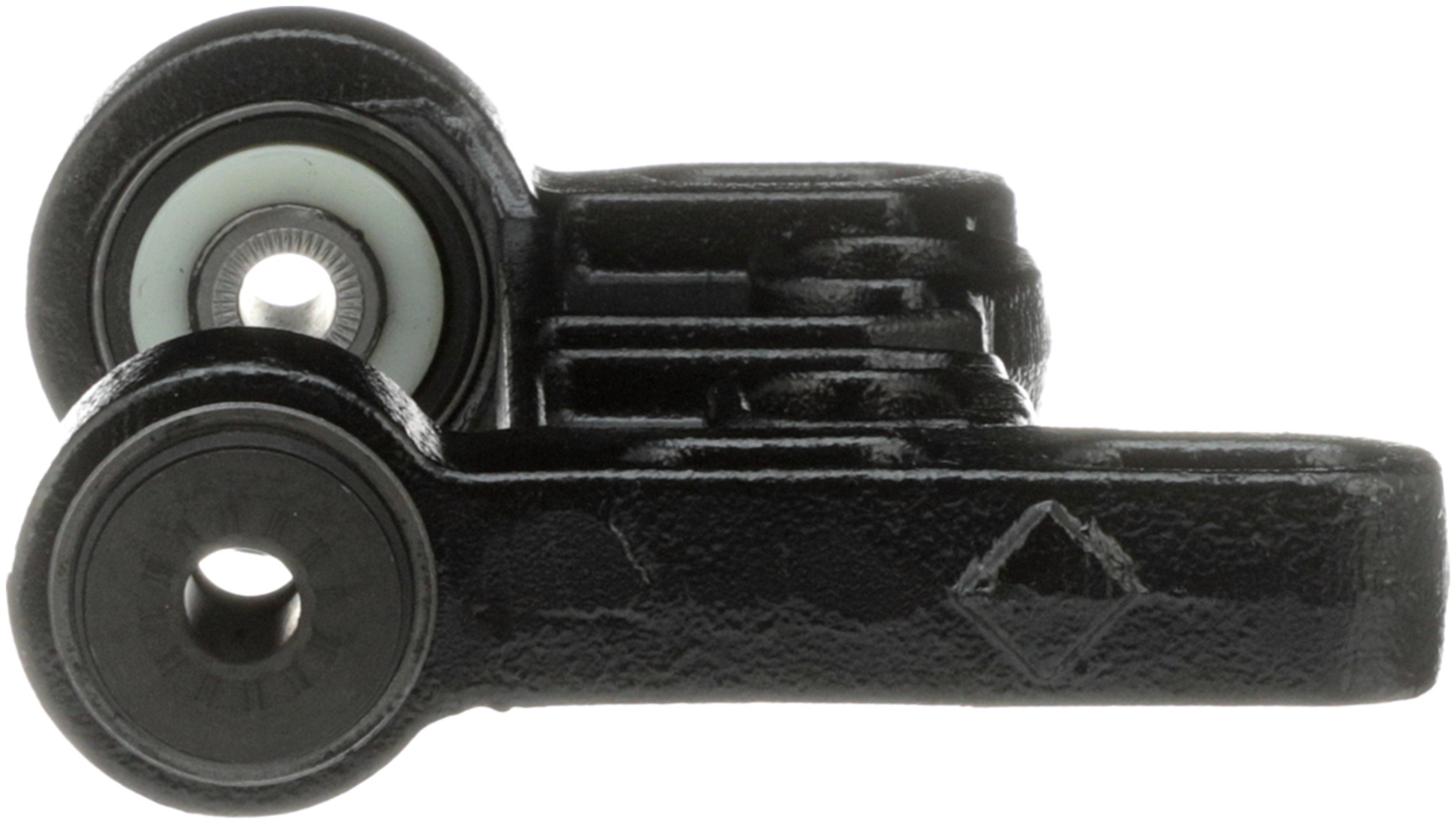

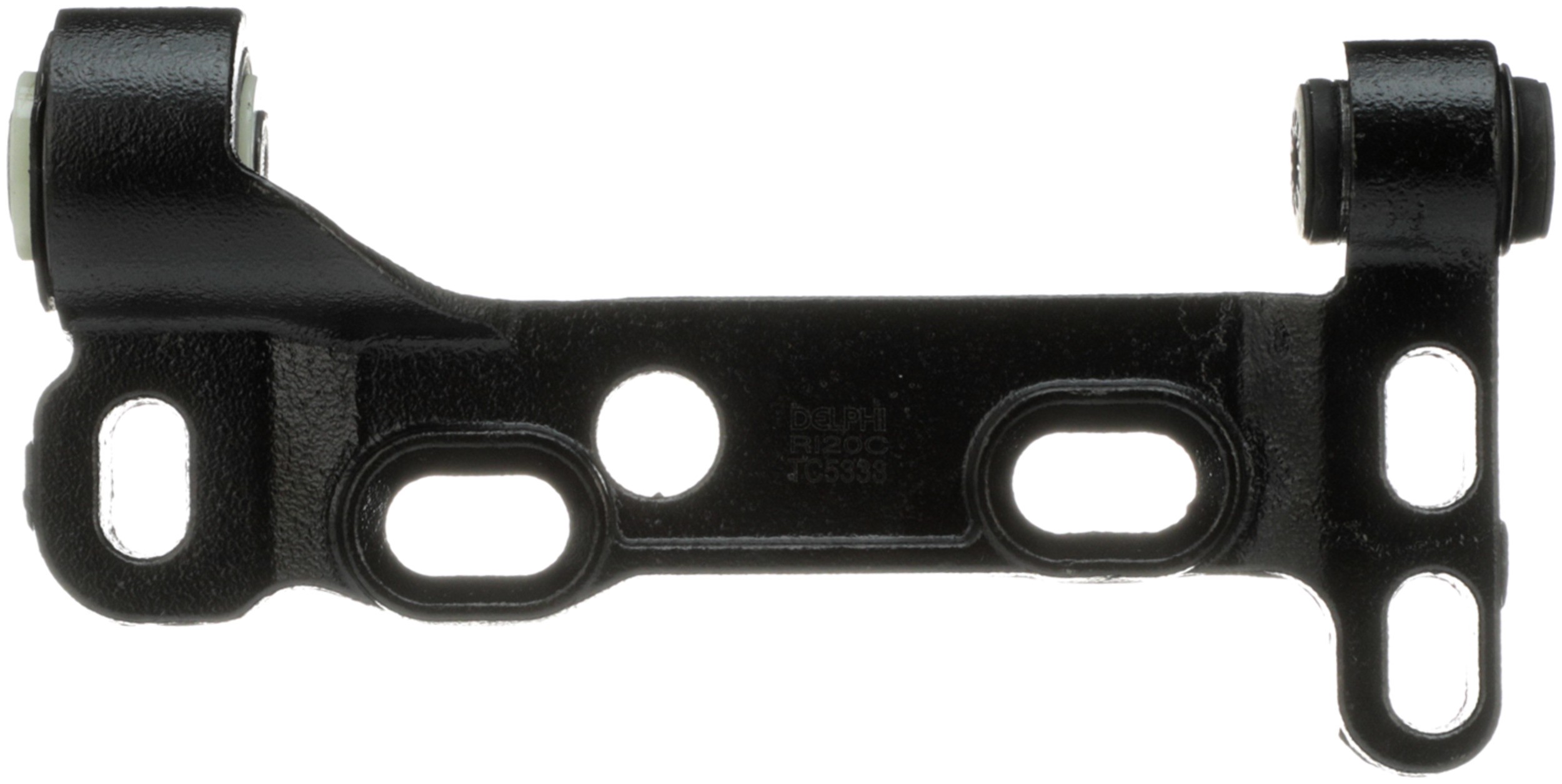

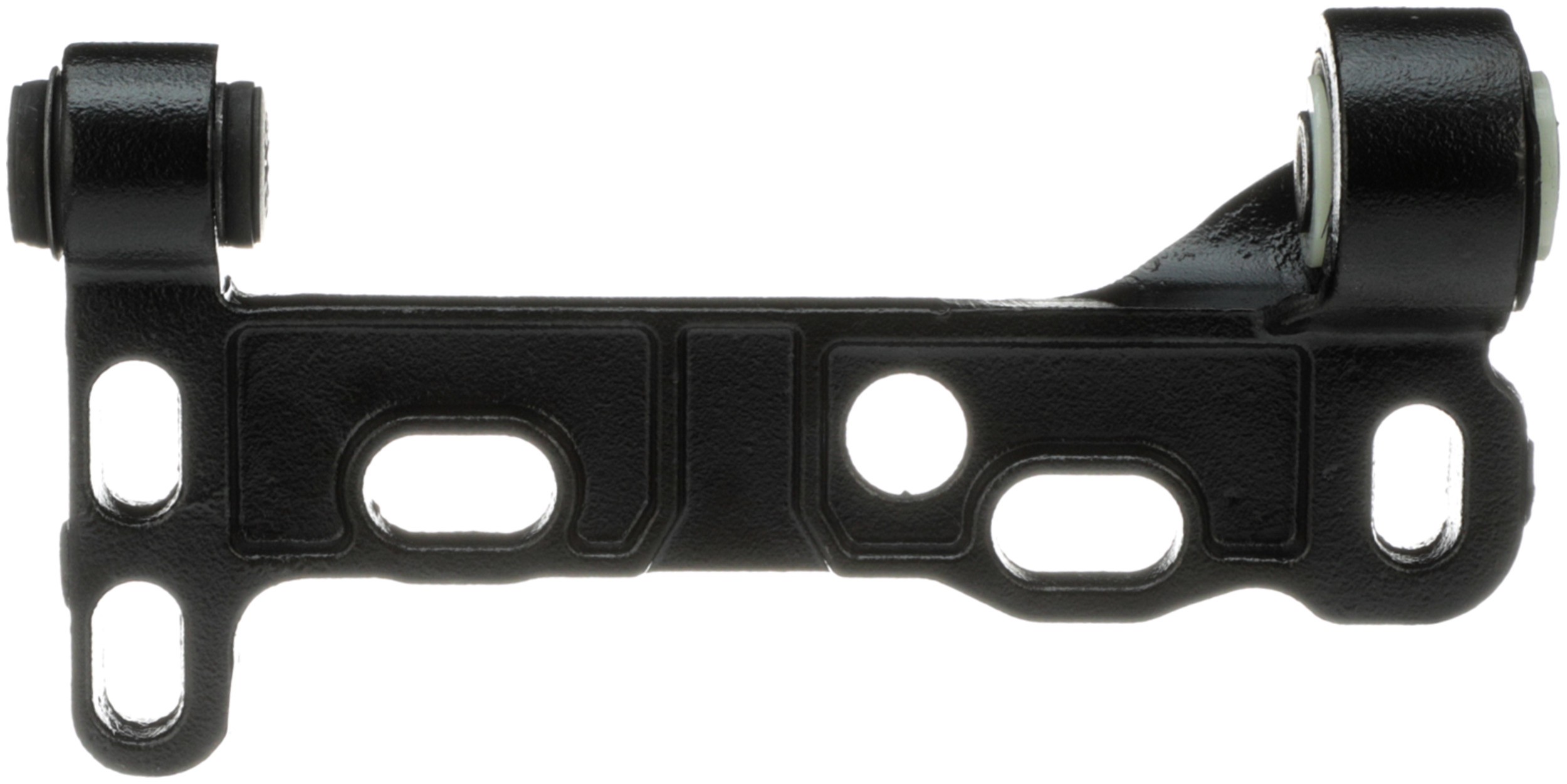

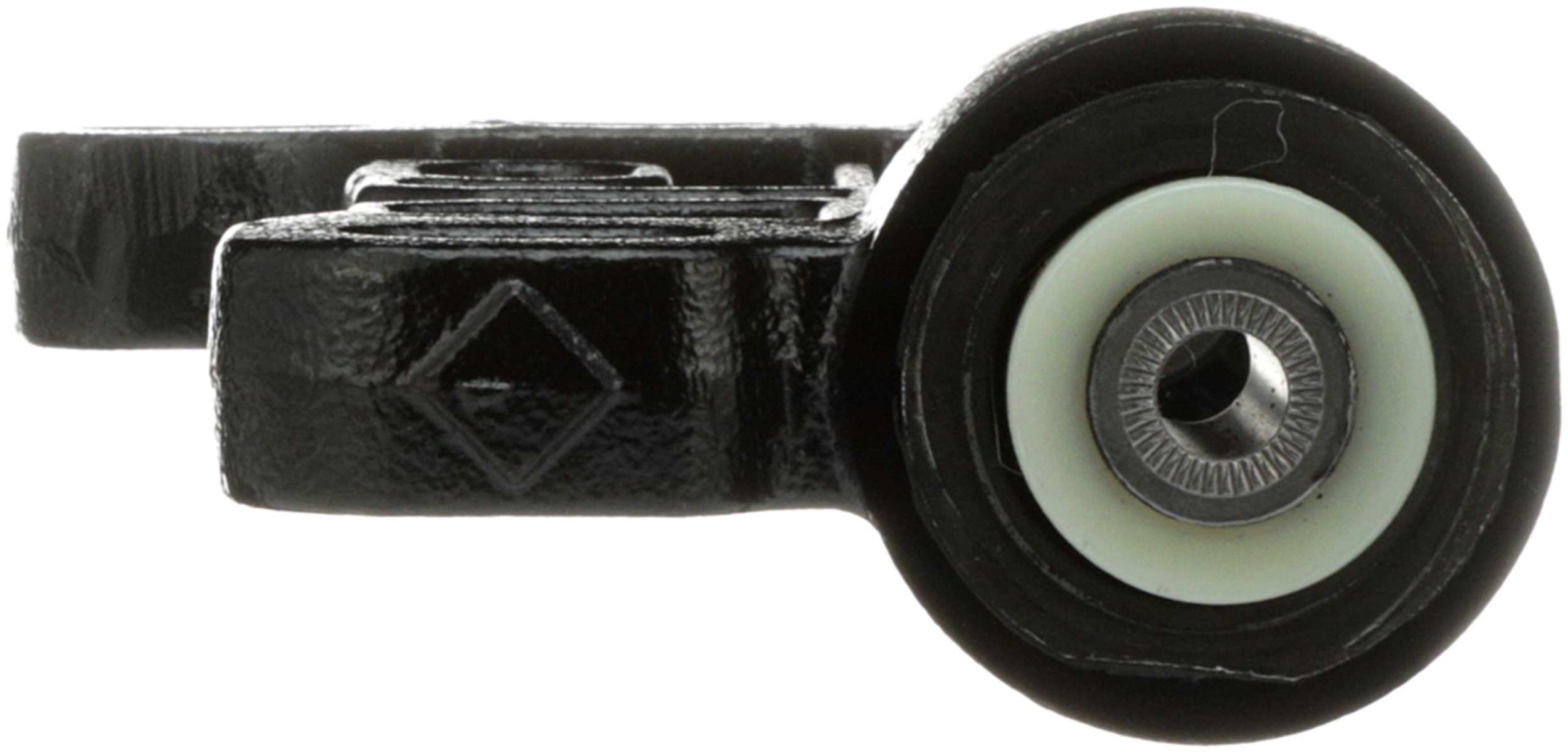

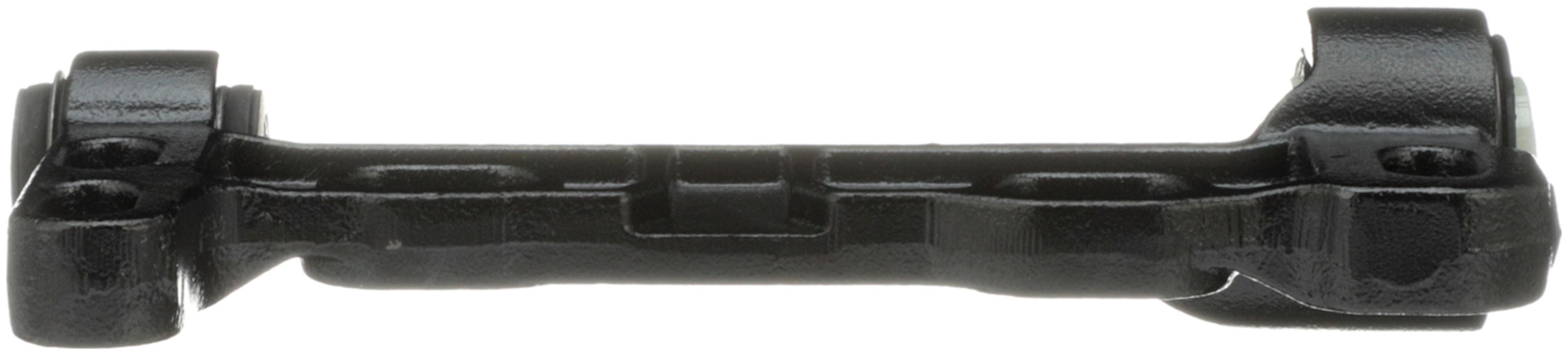

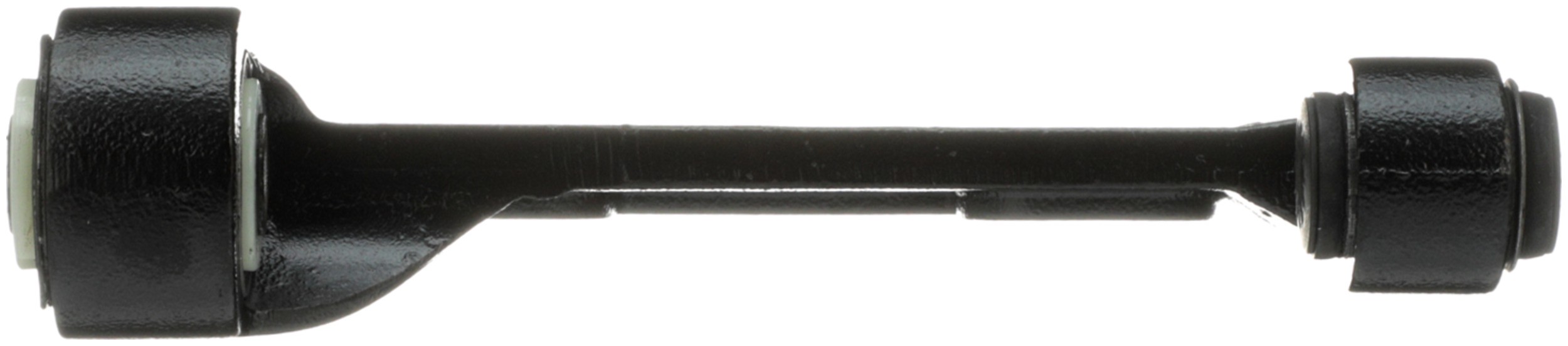

Delphi TC5333 Suspension Control Arm Support Bracket

Delphi TC5333 Suspension Control Arm Support Bracket

Features:

Support bracket utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi support brackets undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
Mounting Hole Diameter	14.4 MM
Mounting Hole Diameter	0.57 IN
Height	58.45 MM
Height	2.30 IN
Width	182 MM
Width	7.17 IN
Length	379.5 MM
Length	14.94 IN
Position(s)	Front Left Lower
Material	Steel
Attachment Type	Bolt
Universal Or Specific Fit	Specific
Mounting Hole Quantity	2

Vehicle Applications:

Make	Model	Years
Buick	Rainier	2004 to 2007
Chevrolet	SSR	2005 to 2006
Chevrolet	Trailblazer EXT	2002 to 2006
Chevrolet	Trailblazer	2002 to 2009
GMC	Envoy XL	2002 to 2006
GMC	Envoy XUV	2004 to 2005
GMC	Envoy	2002 to 2009
Oldsmobile	Bravada	2002 to 2004
Saab	9-7x	2005 to 2009
