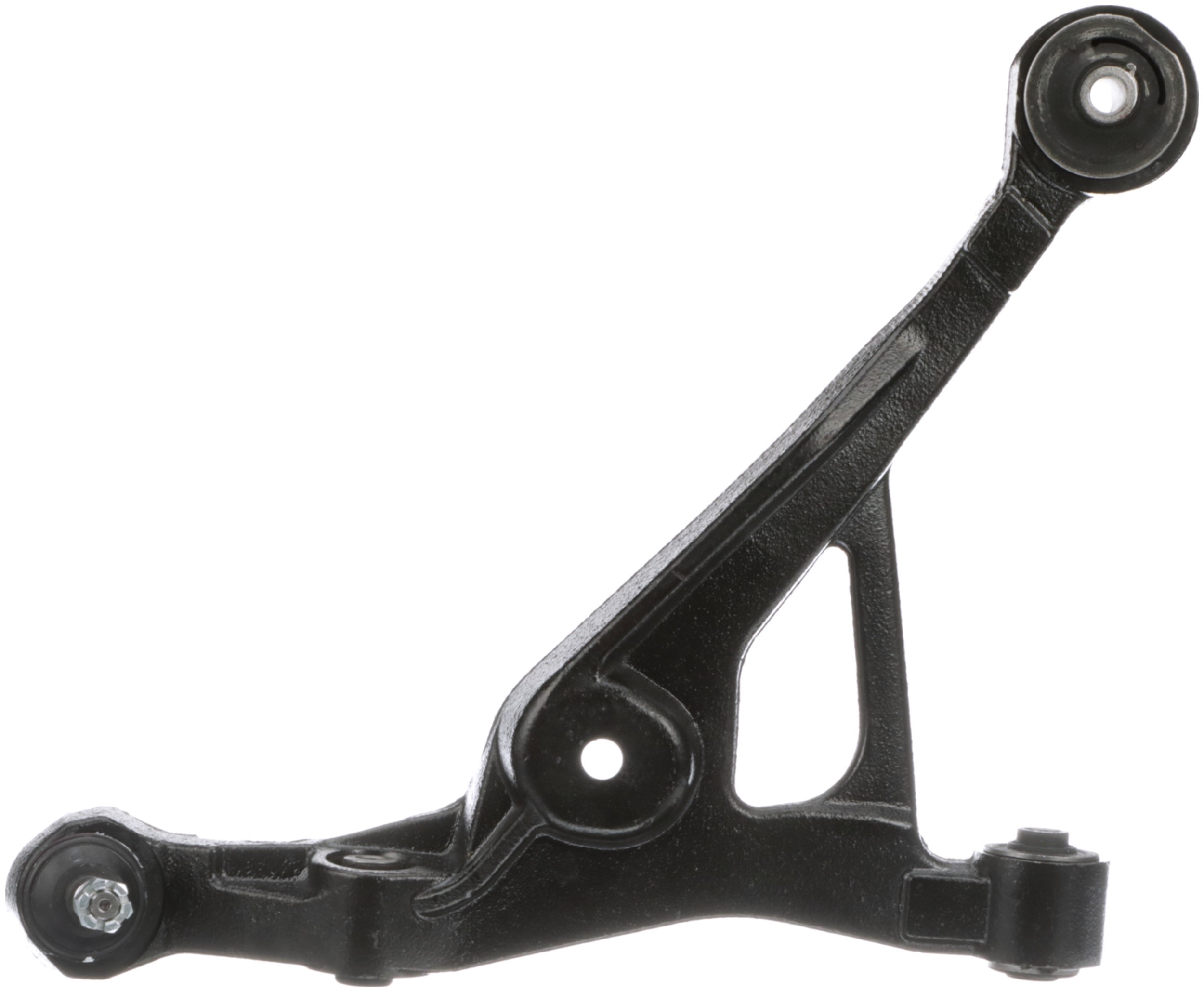

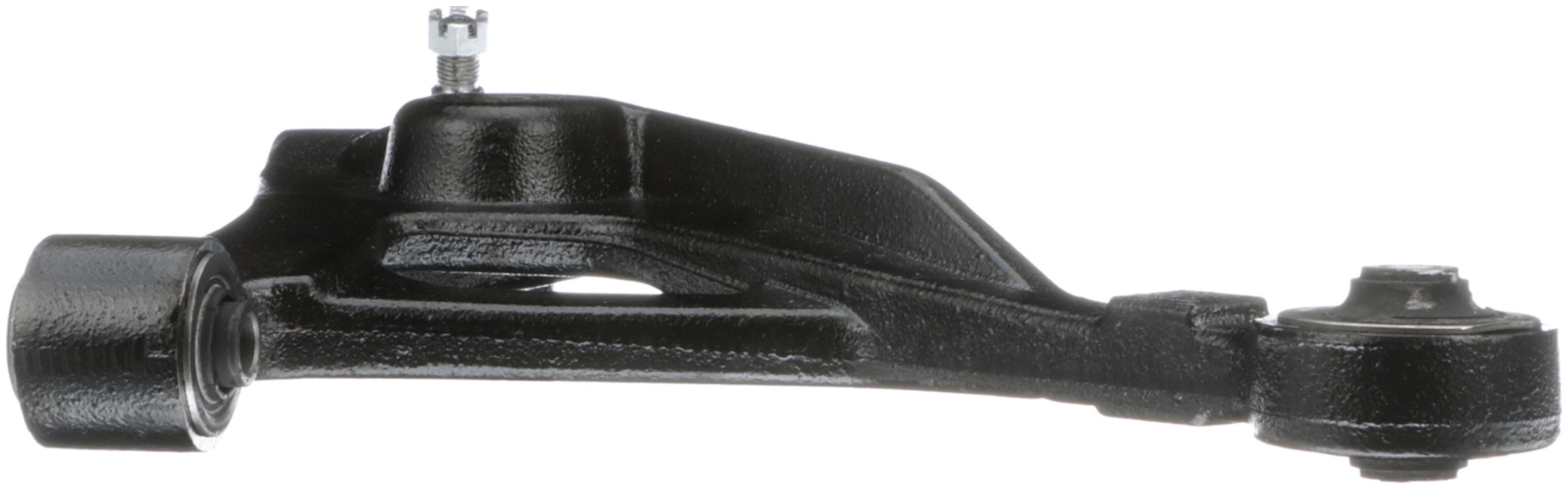

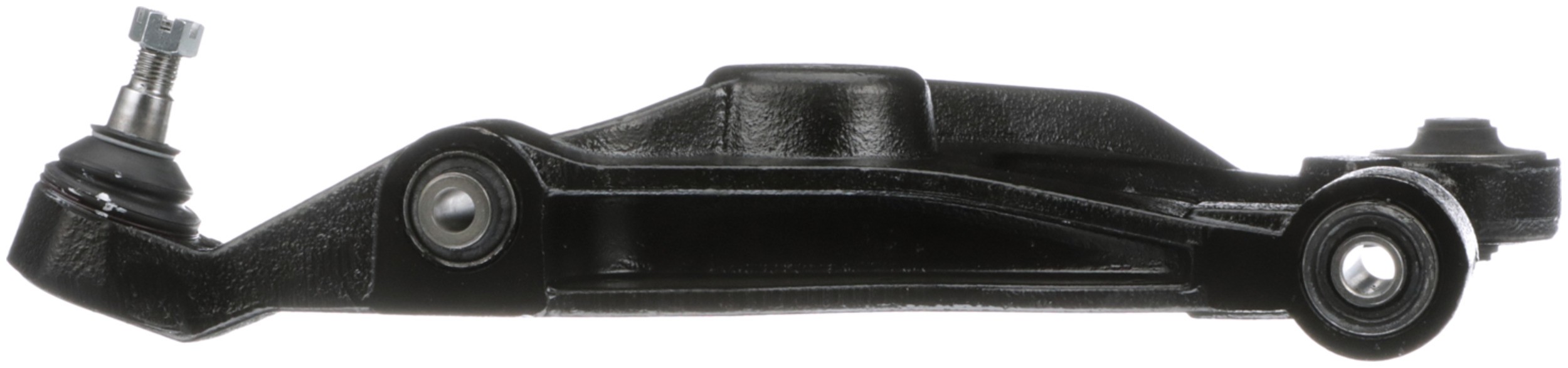

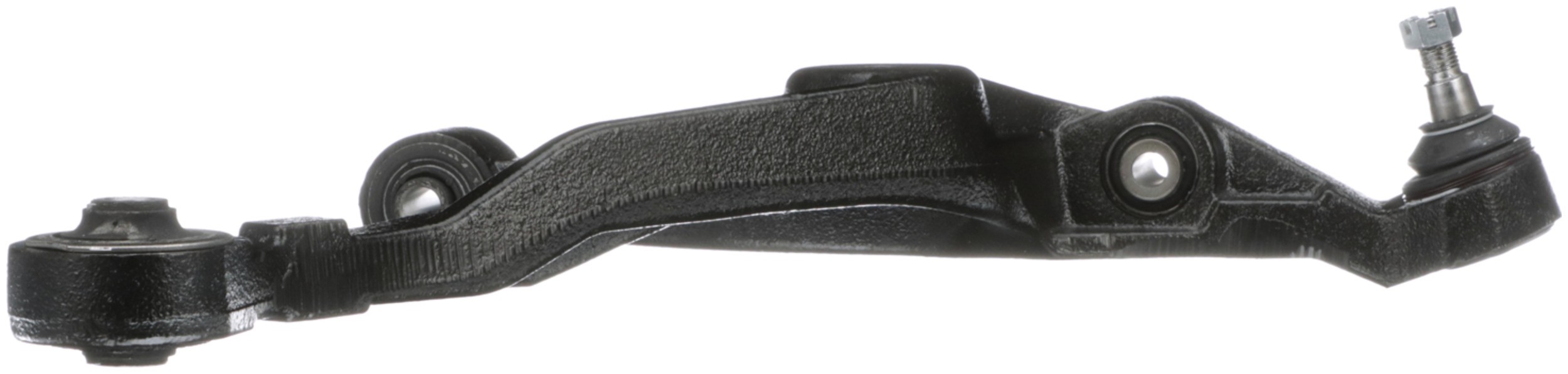

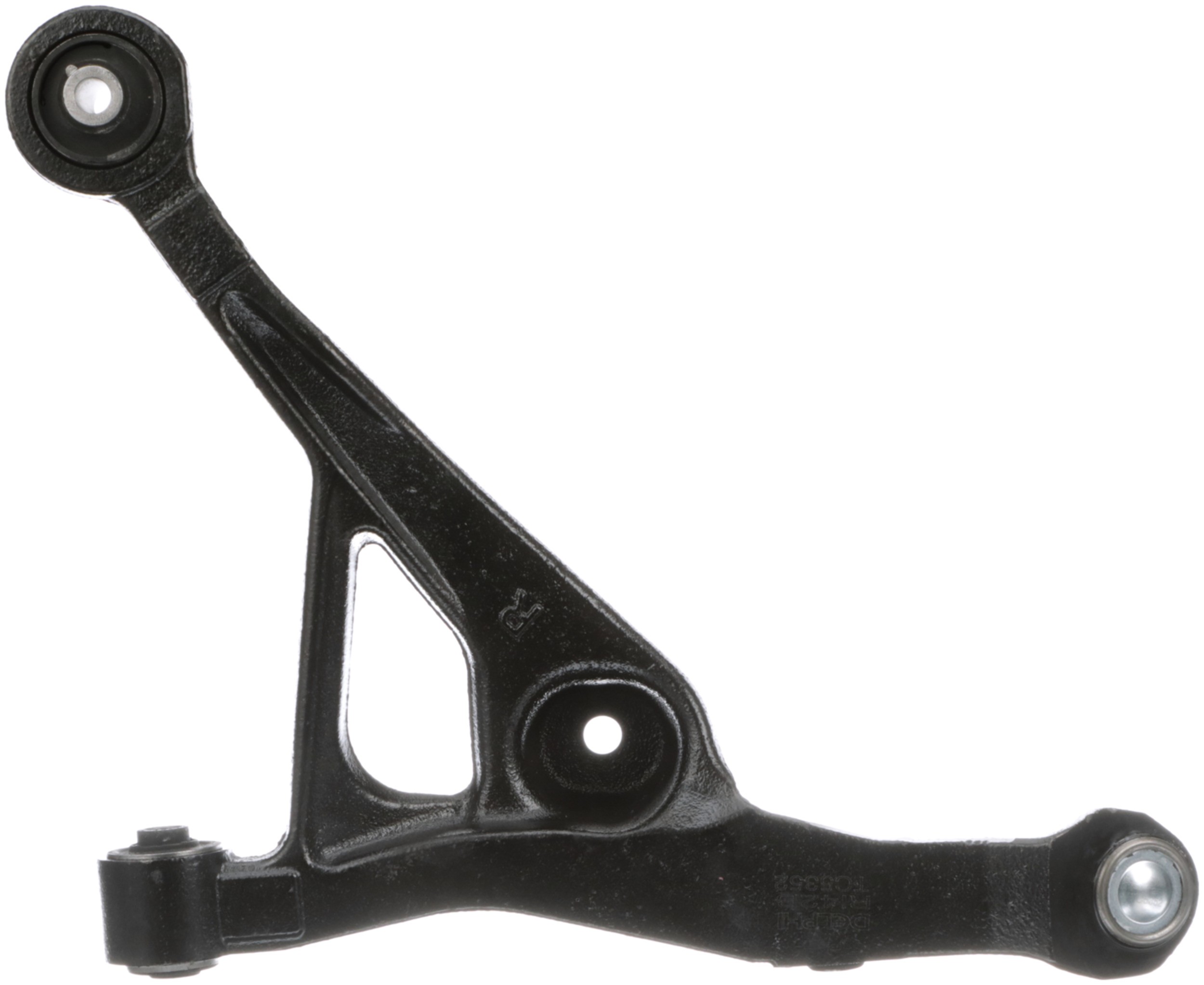

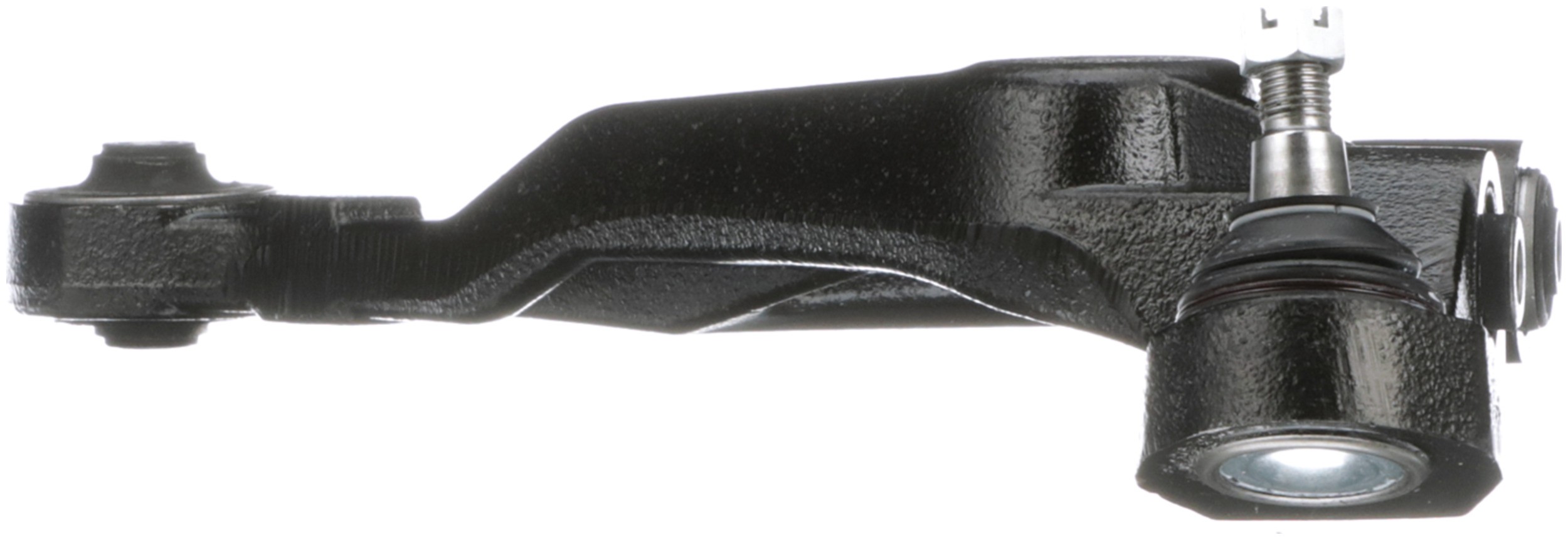

Delphi TC5352 Suspension Control Arm and Ball Joint Assembly

Delphi TC5352 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Finish	Painted
Pre-greased	Yes
Grade Type	Premium
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Thread Direction	Clockwise (Right)
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
4887	405.00 MM
4887	15.945 IN
4890	69.00 MM
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Lower
Attachment Type	Machined
Ball Joint Stud Type	Threaded
4890	2.717 IN
Greaseable	No
Finish	Black
Dust Boot Included	Yes
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Material	Steel
Bushings Included	Yes
Mounting Hardware Included	Yes
Mounting Hole Diameter	0.591 IN
Mounting Hole Diameter	15.00 MM
Length	17.717 IN
Length	450.00 MM
Bushing Colour	Black
