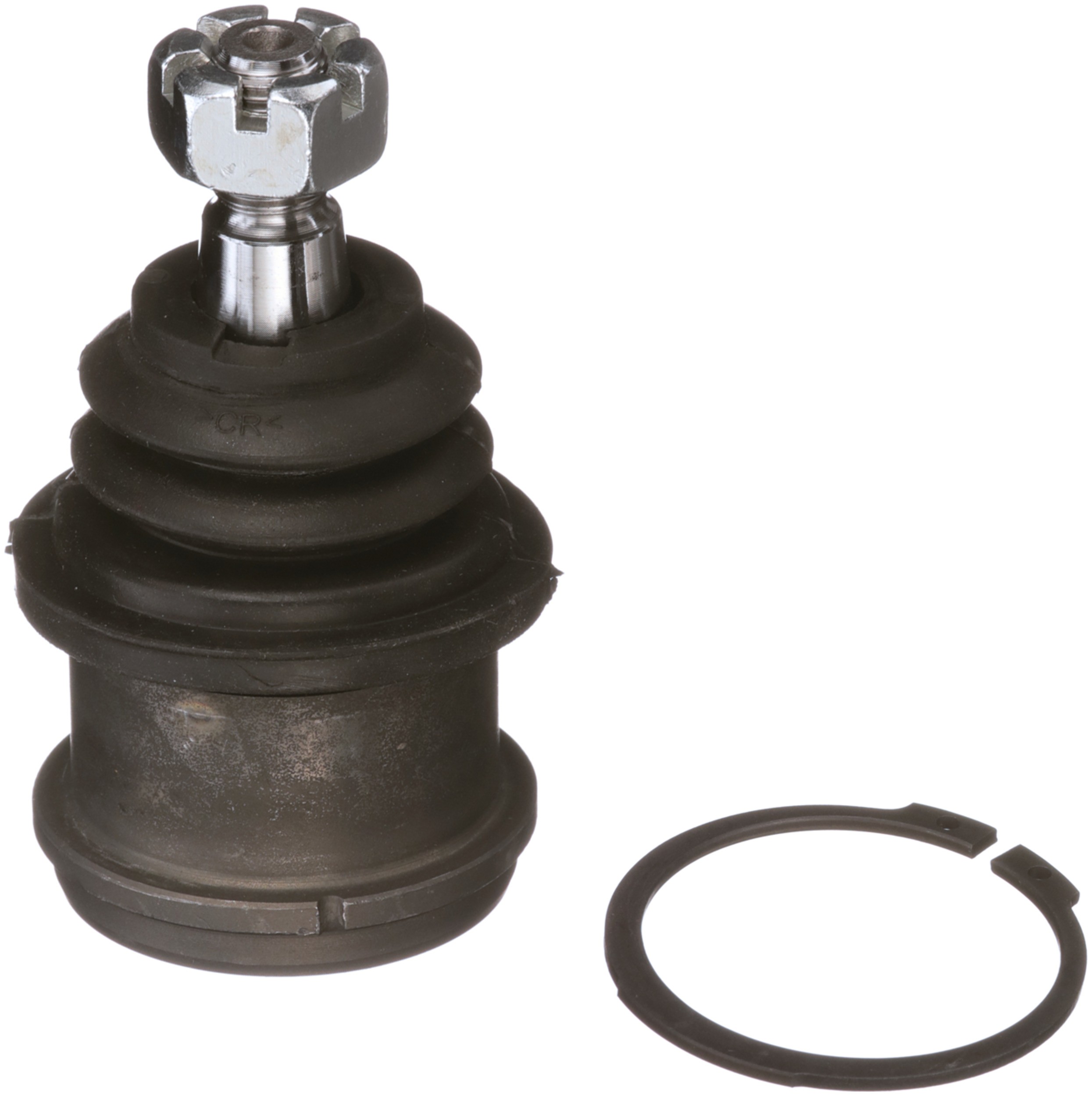

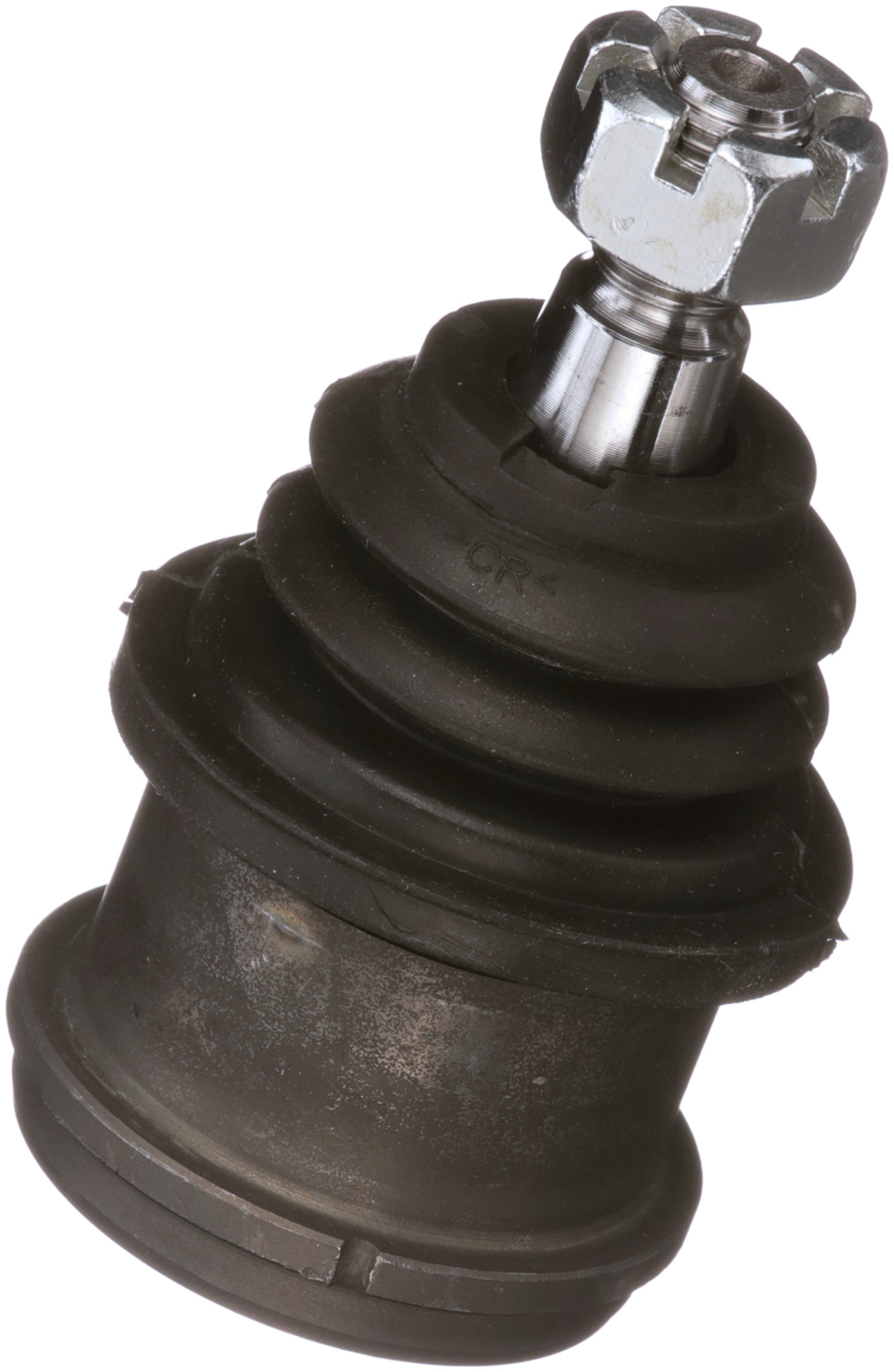

Delphi TC5389 Suspension Ball Joint

Delphi TC5389 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2334	Yes
Height	116.00 MM
Height	4.567 IN
Width	48.3 MM
Length	4.570 IN
Length	116.00 MM
Maximum Outside Diameter	48.30 MM
Maximum Outside Diameter	1.902 IN
Bushings Included	No
Material	Steel
Color	Gray
Grease Fitting Included	Yes
Dust Boot Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Adjustable	No
Greaseable	Yes
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Position(s)	Front Left Upper
2381	Yes
2827	Yes
881	Threaded
9090	Rubber
9204	No
9209	No
9210	Yes
4966	0.827 IN
4966	21.01 MM
9211	0.167 IN
9212	0.624 IN
9212	15.85 MM
9213	0.776 IN
9213	19.7 MM

Vehicle Applications:

Make	Model	Years
Ford	Expedition	1997 to 2002
Ford	F-150 Heritage	2004 to 2004
Ford	F-150	1997 to 2003
Ford	F-250 HD	1997 to 1997
Ford	F-250	1997 to 1999
Lincoln	Navigator	1998 to 2002
