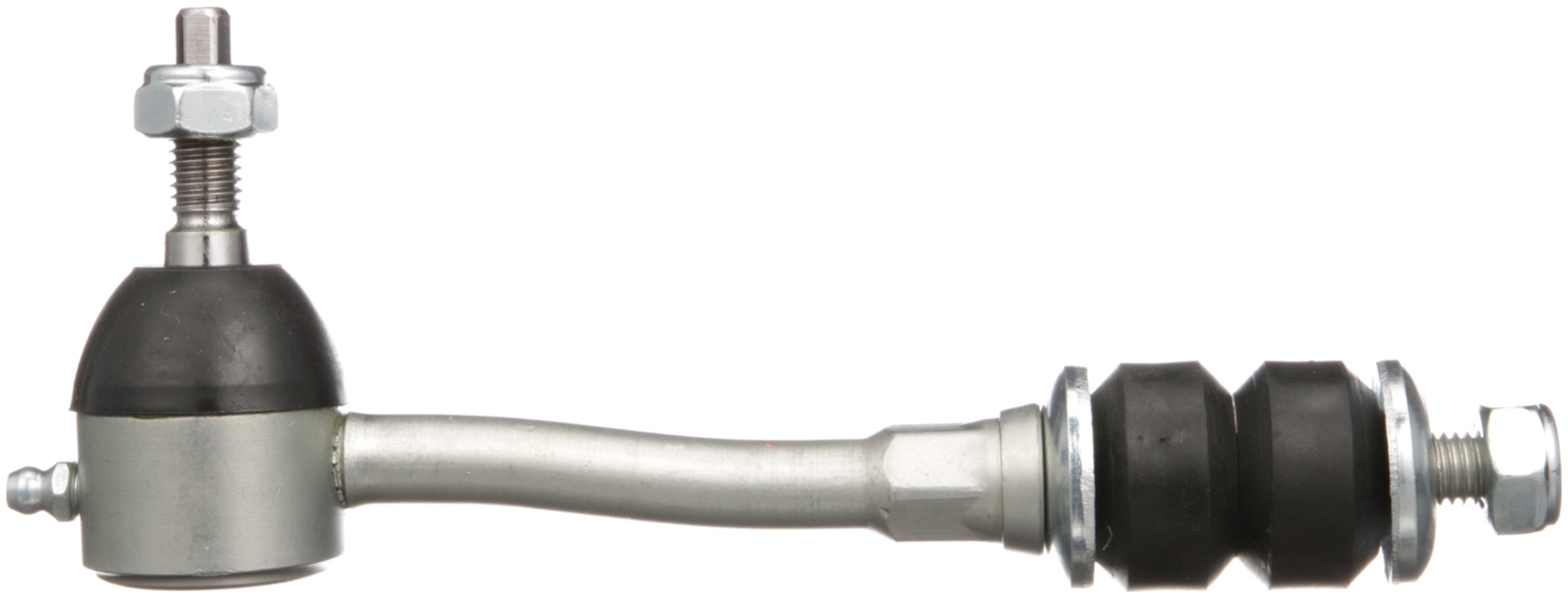

Delphi TC5468 Suspension Stabilizer Bar Link

Delphi TC5468 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Width	85 MM
627	0.17 LB
4504	0.870 IN
4504	22.00 MM
Position(s)	Front
839	15mm
9296	Yes
Grade Type	Standard Replacement
Bushing Type	Rubber
Greaseable	Yes
Housing Material	Steel
Bolts Included	No
Washers Included	Yes
Dust Boot Included	Yes
Bushings Included	Yes
Bushing Colour	Black
Bushing Outside Diameter	1.180 IN
Bushing Outside Diameter	30.00 MM
Length	250.00 MM
Length	9.840 IN
Width	3.35 IN
Height	1.570 IN
Height	40.00 MM
Bolt Length	29.00 MM
Bolt Length	1.140 IN
Bushing Inside Diameter	10.00 MM
Bushing Inside Diameter	0.390 IN
