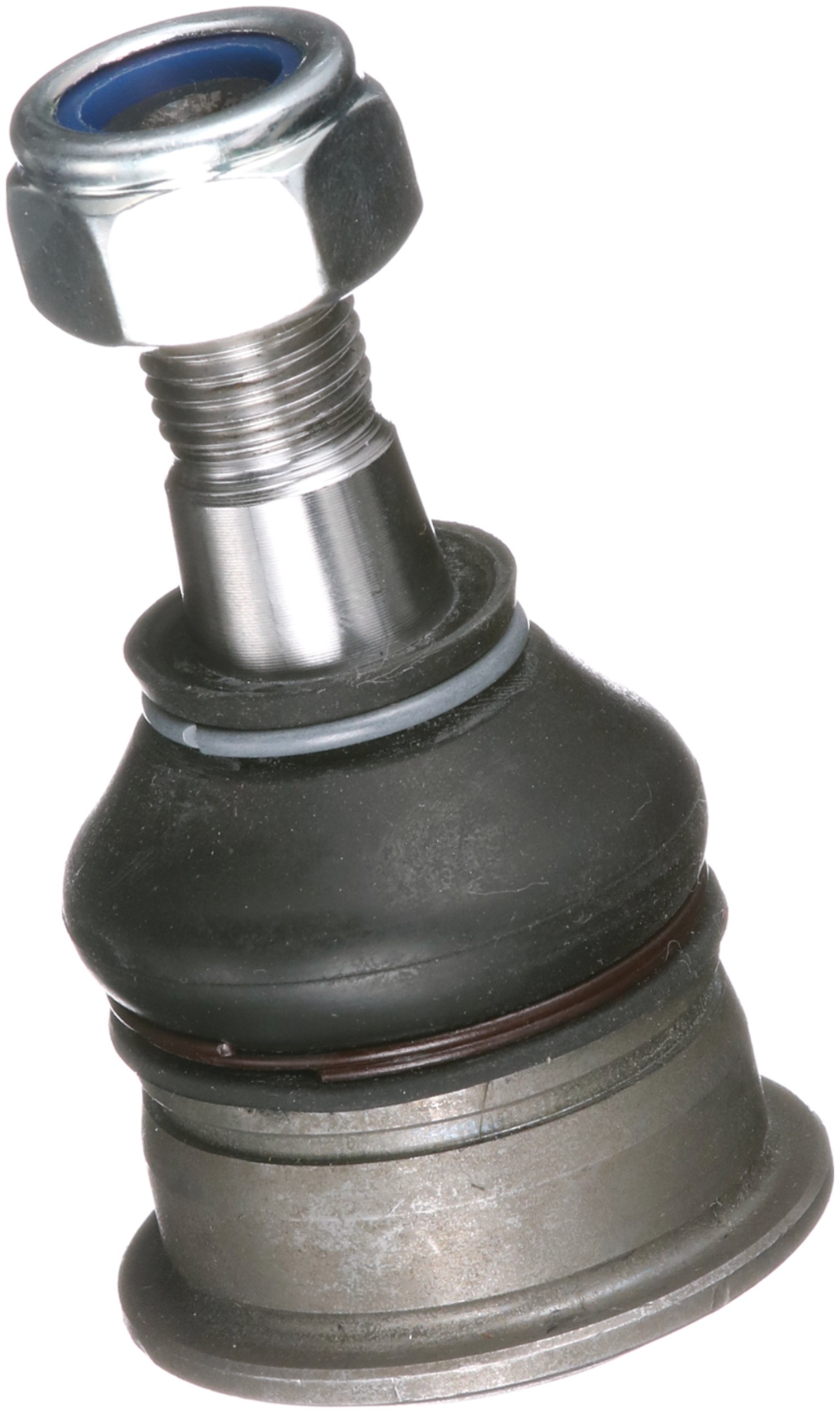

Delphi TC5495 Suspension Ball Joint

Delphi TC5495 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	84.00 MM
4966	0.866 IN
4966	22 MM
9211	0.167 IN
9212	0.581 IN
9212	14.75 MM
Height	3.307 IN
Width	45 MM
Length	3.310 IN
Length	84.00 MM
Maximum Outside Diameter	45.00 MM
Maximum Outside Diameter	1.772 IN
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
9213	18 MM
9213	0.709 IN
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
