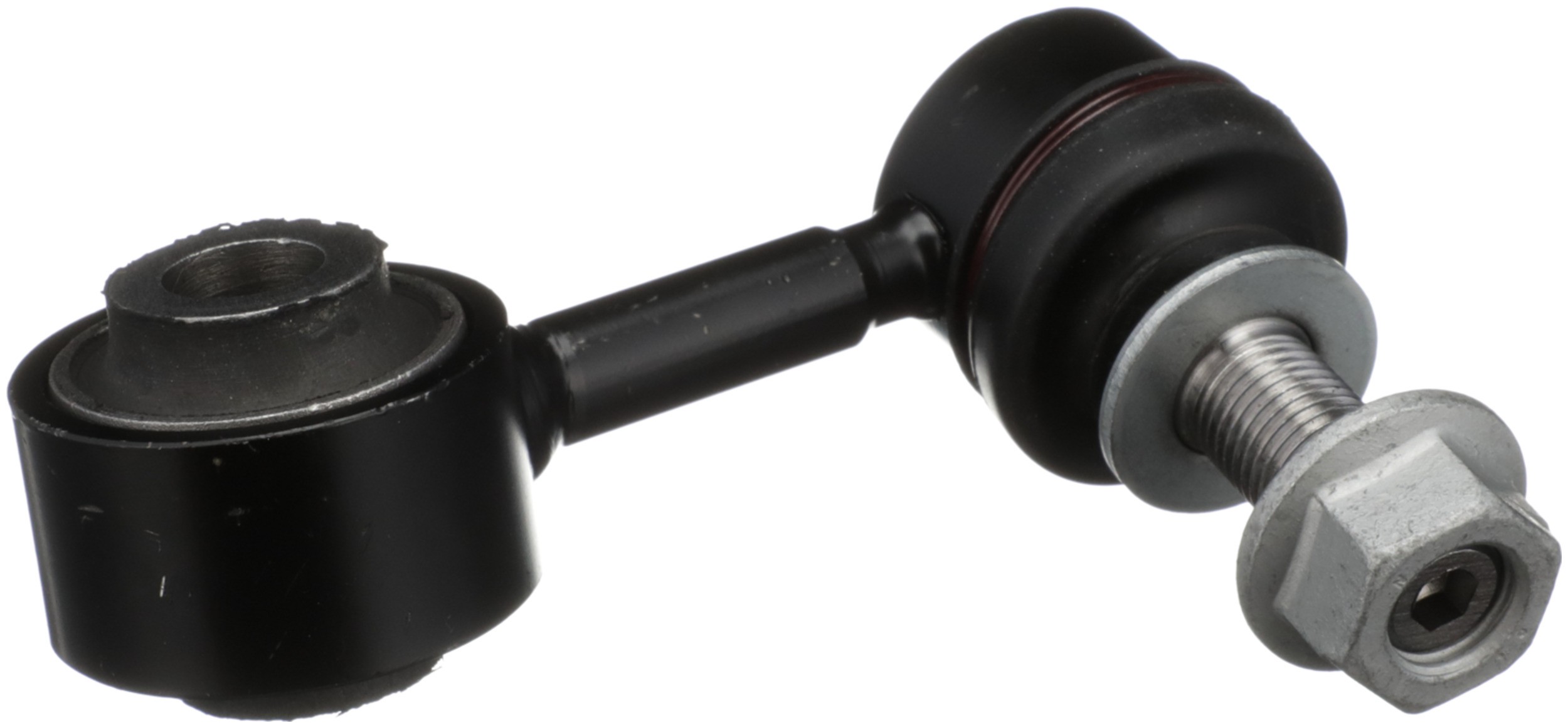

Delphi TC5515 Suspension Stabilizer Bar Link

Delphi TC5515 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	129.00 MM
Length	5.079 IN
Bushing Outside Diameter	37.50 MM
Bushing Outside Diameter	1.476 IN
Height	3.504 IN
Width	44 MM
Width	1.732 IN
Sleeve Length	1.496 IN
9058	85.00 MM
627	1.08 LB
2391	0.563 IN
2391	14.3 MM
Position(s)	Front Right
839	6mm
9296	Yes
Bushing Inside Diameter	0.866 IN
Bushing Inside Diameter	22.00 MM
Bushing Colour	Black
End 2 Type	Male – M14x1.5
Bushings Included	Yes
Dust Boot Included	Yes
Washers Included	Yes
Grade Type	Performance
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Polyoxymethylene (POM)
Bushing Type	Rubber
Height	89.00 MM
Sleeve Length	38 MM
