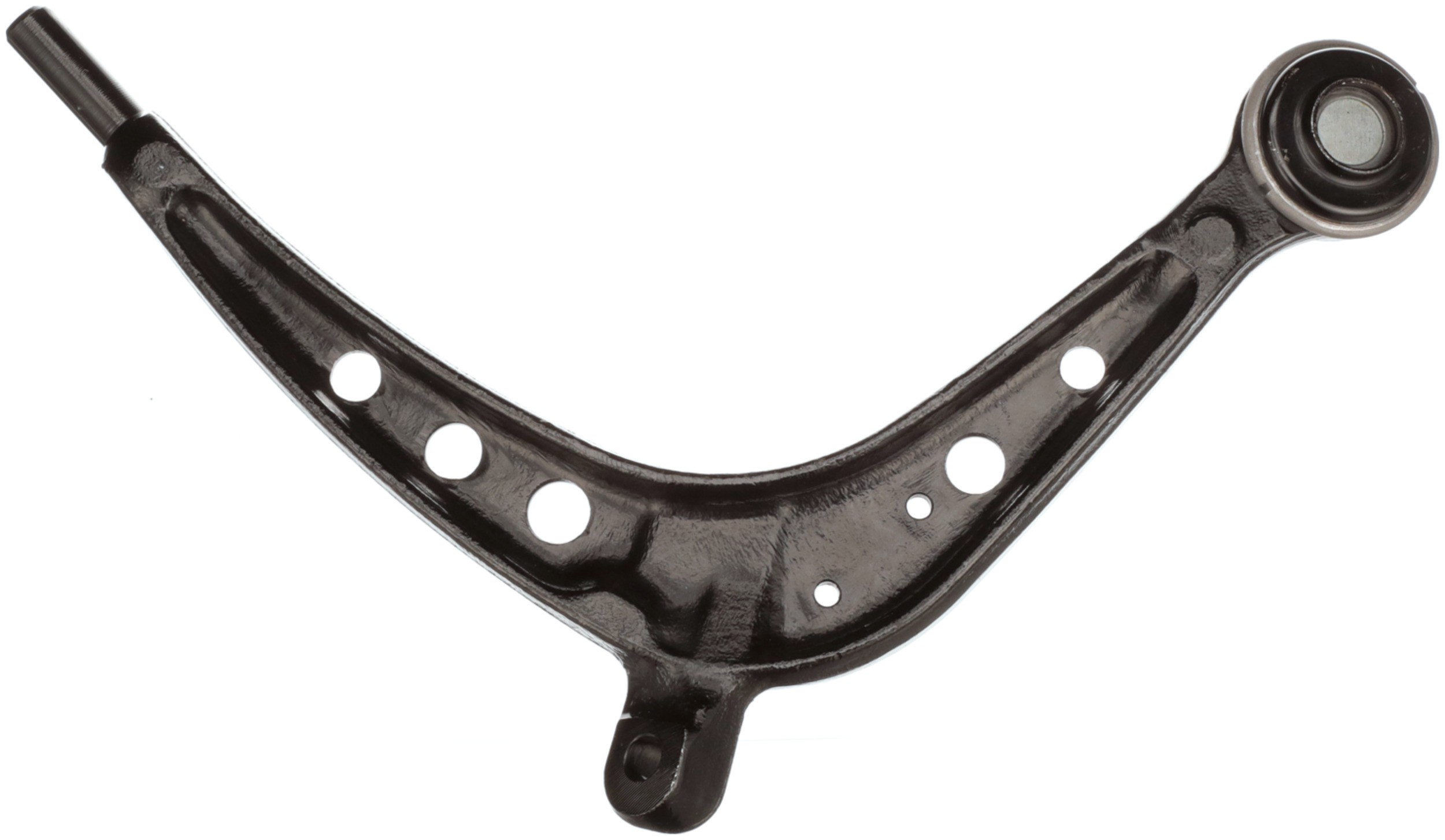

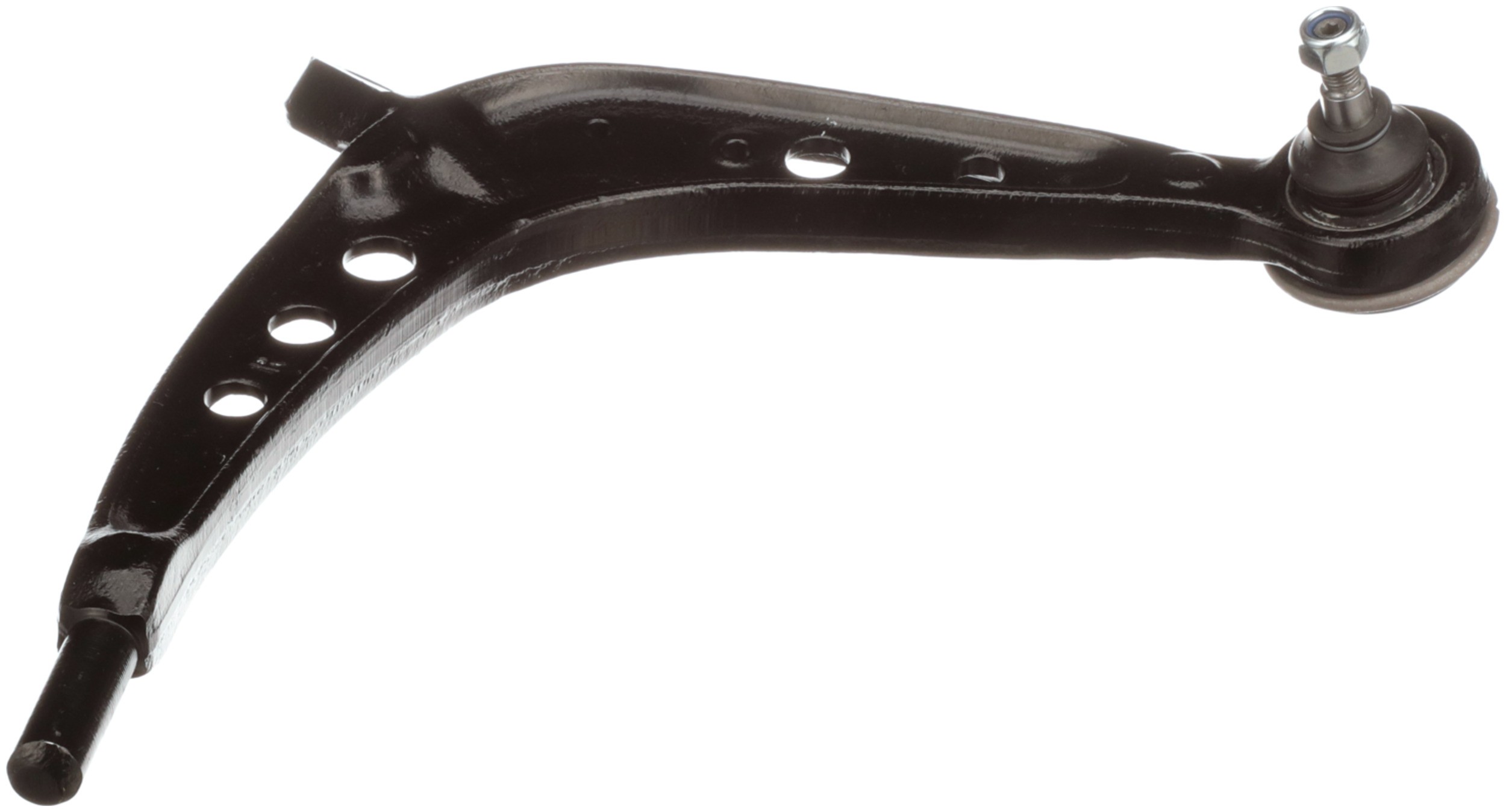

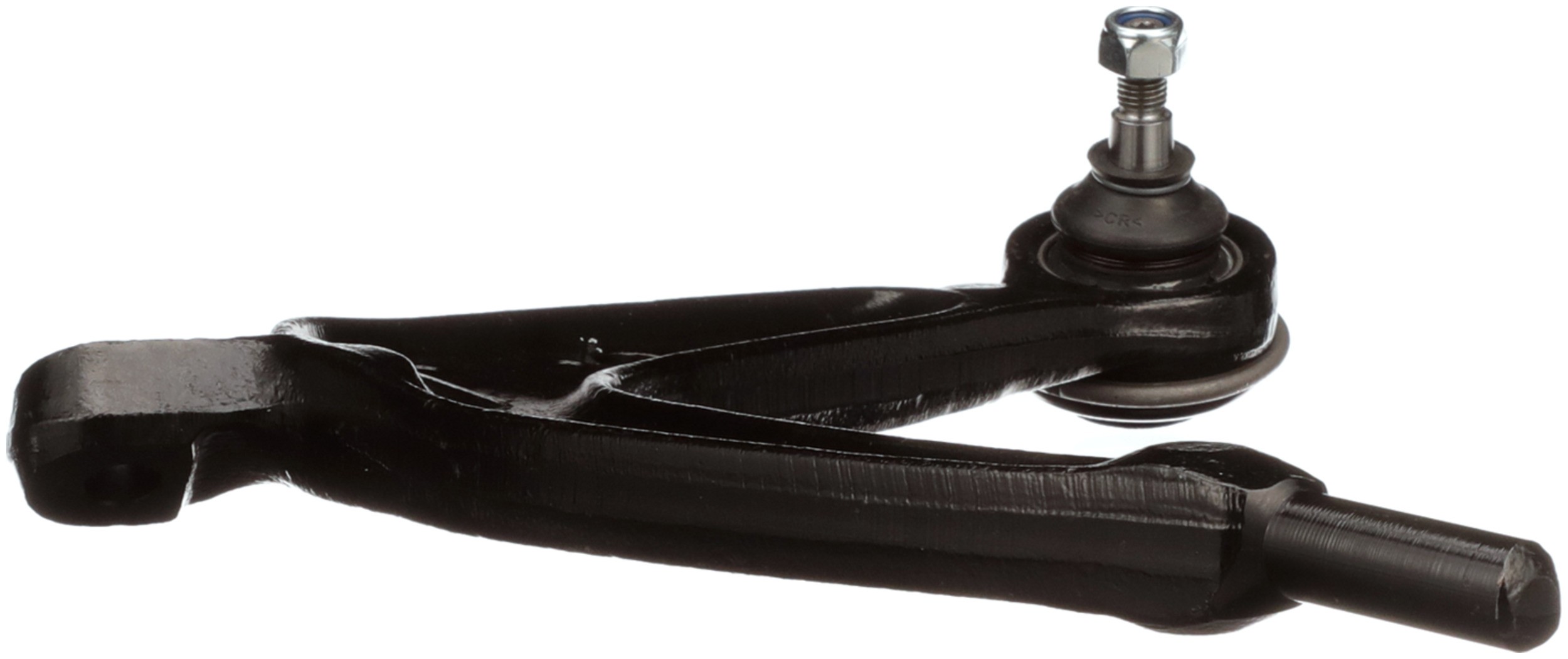

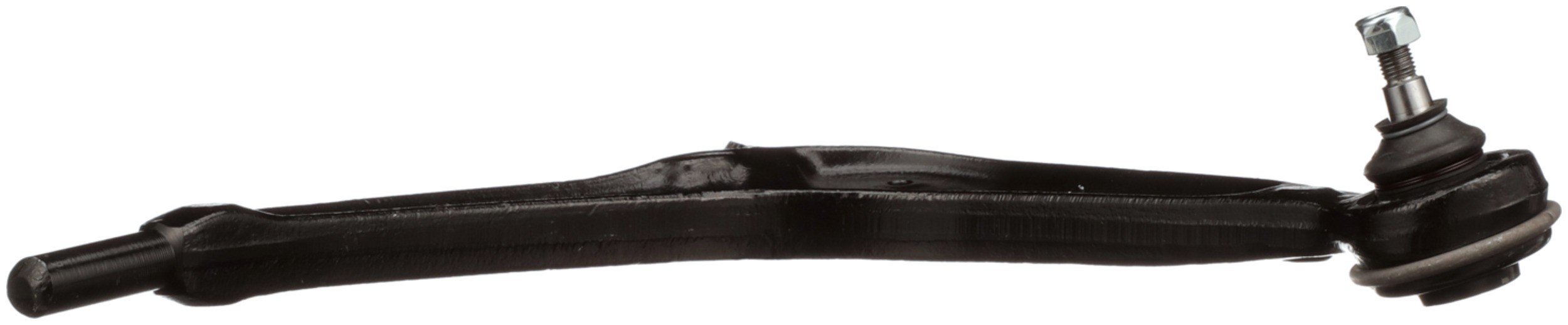

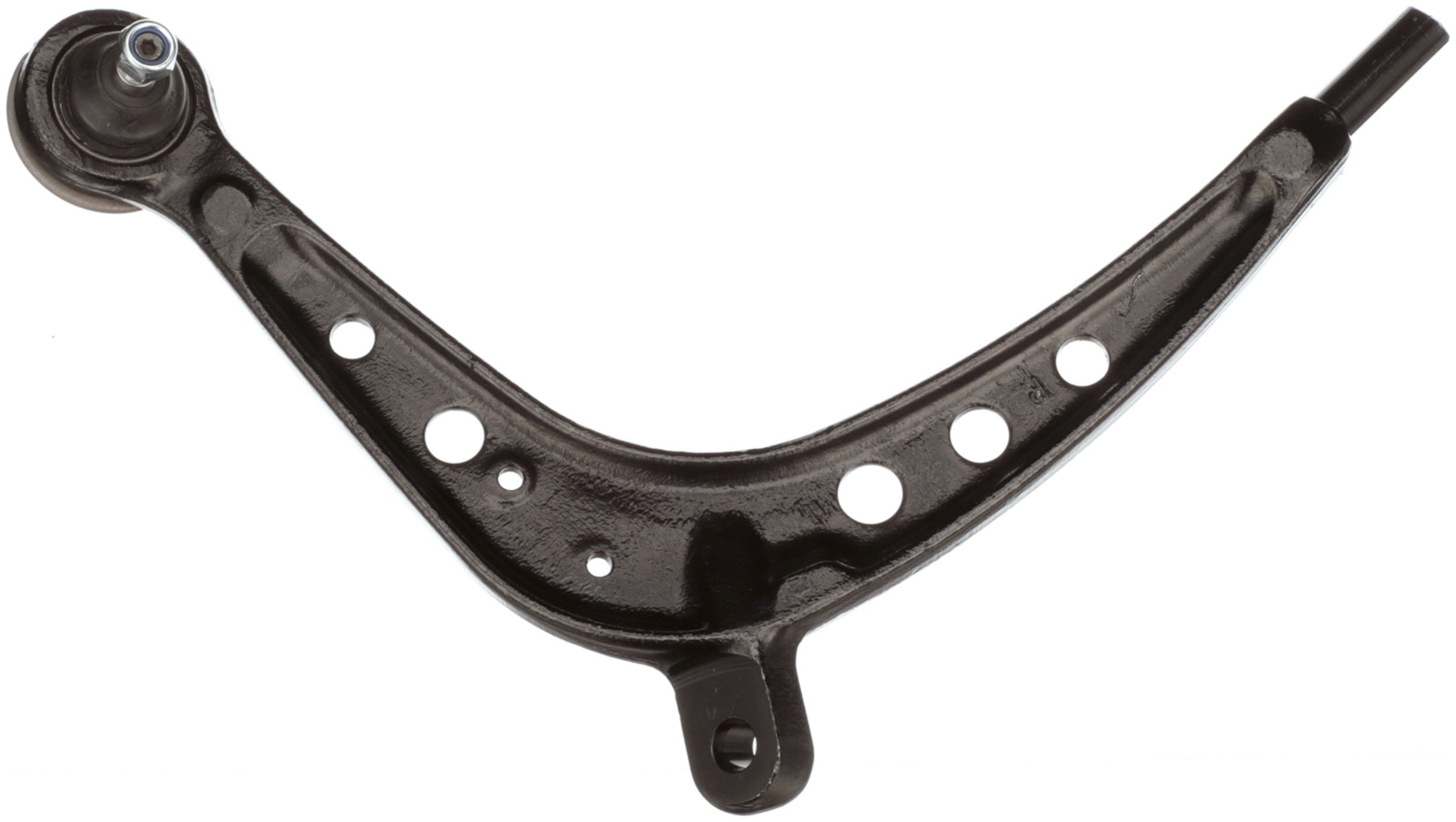

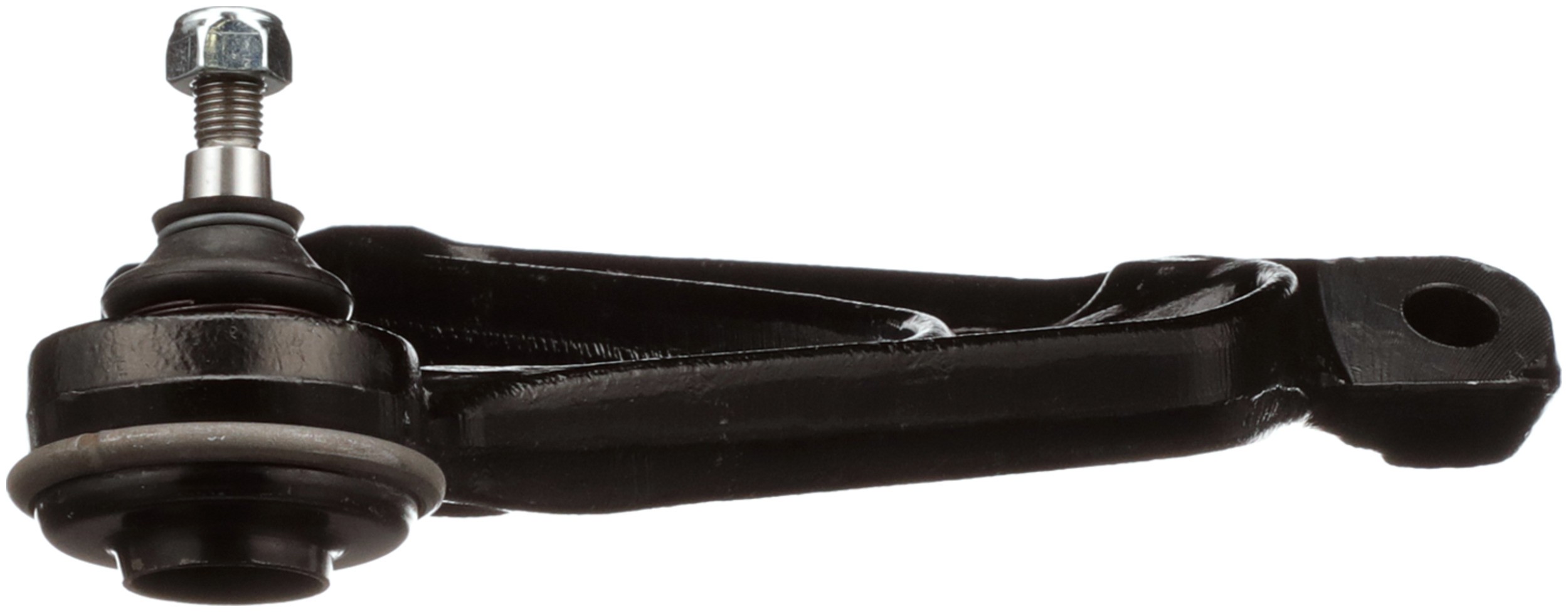

Delphi TC5525 Suspension Control Arm and Ball Joint Assembly

Delphi TC5525 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
Boot Colour	Black
Finish	Black
4241	Yes
2386	Casting/Forged
Length	14.811 IN
4887	136.50 MM
4887	5.374 IN
4890	20.00 MM
2384	Yes
Position(s)	Front Right
4890	0.787 IN
Bushing Type	Rubber
Length	376.20 MM
9090	Chloroprene Rubber (CR)
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Grade Type	Premium
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
6529	Power
