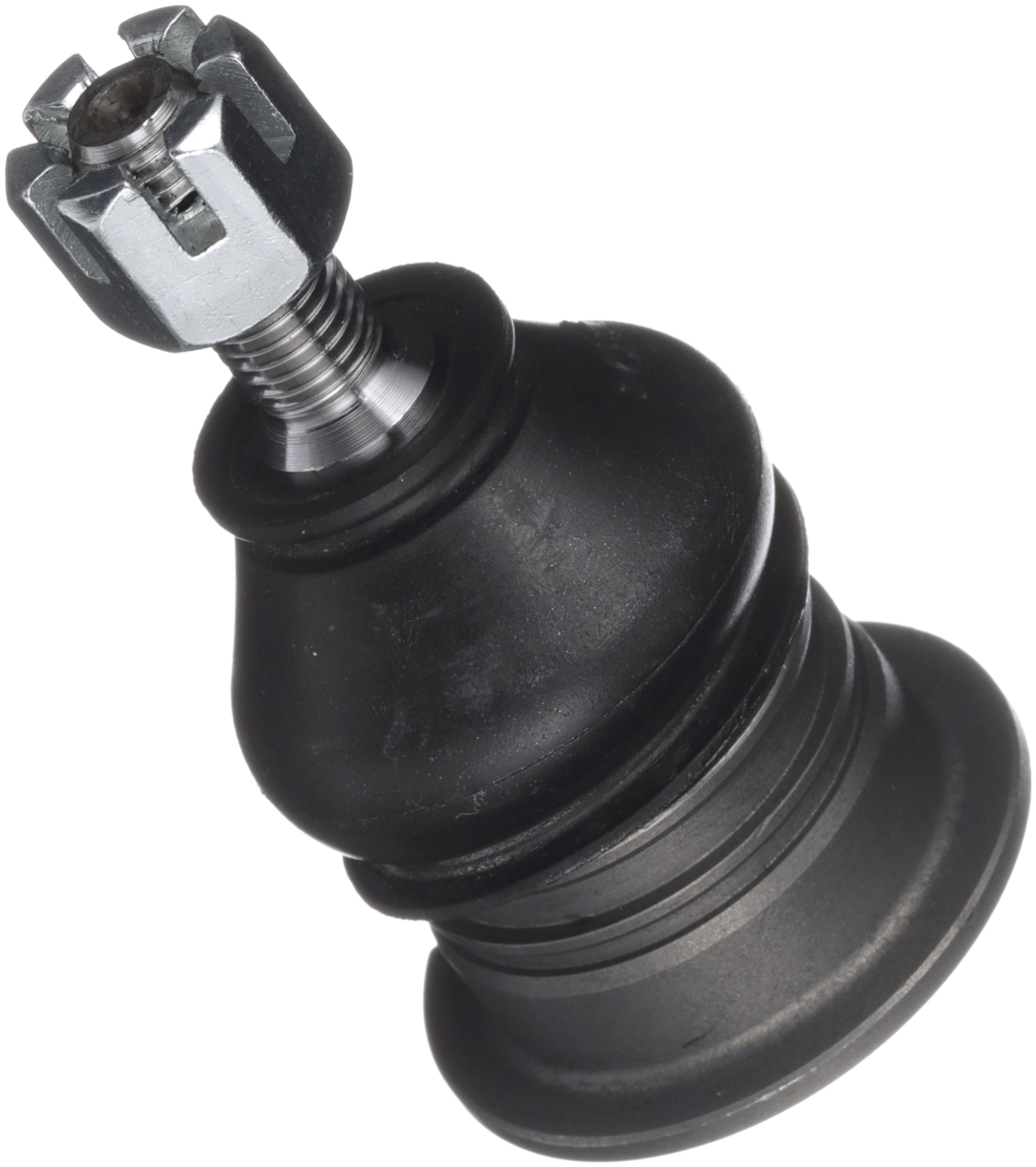

Delphi TC5526 Suspension Ball Joint

Delphi TC5526 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2334	Yes
9213	16 MM
Height	81.99 MM
Height	3.228 IN
Width	43.5 MM
9213	0.63 IN
9212	13.4 MM
9212	0.528 IN
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	Yes
2381	Yes
Length	3.230 IN
Position(s)	Front Upper
Suspension Grade Type	Standard Replacement
Mounting Type	Press-In
Greaseable	No
Adjustable	No
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Material	Steel
4966	1.024 IN
4966	26.01 MM
9211	0.125 IN
Maximum Outside Diameter	1.713 IN
Maximum Outside Diameter	43.50 MM
Length	82.00 MM
