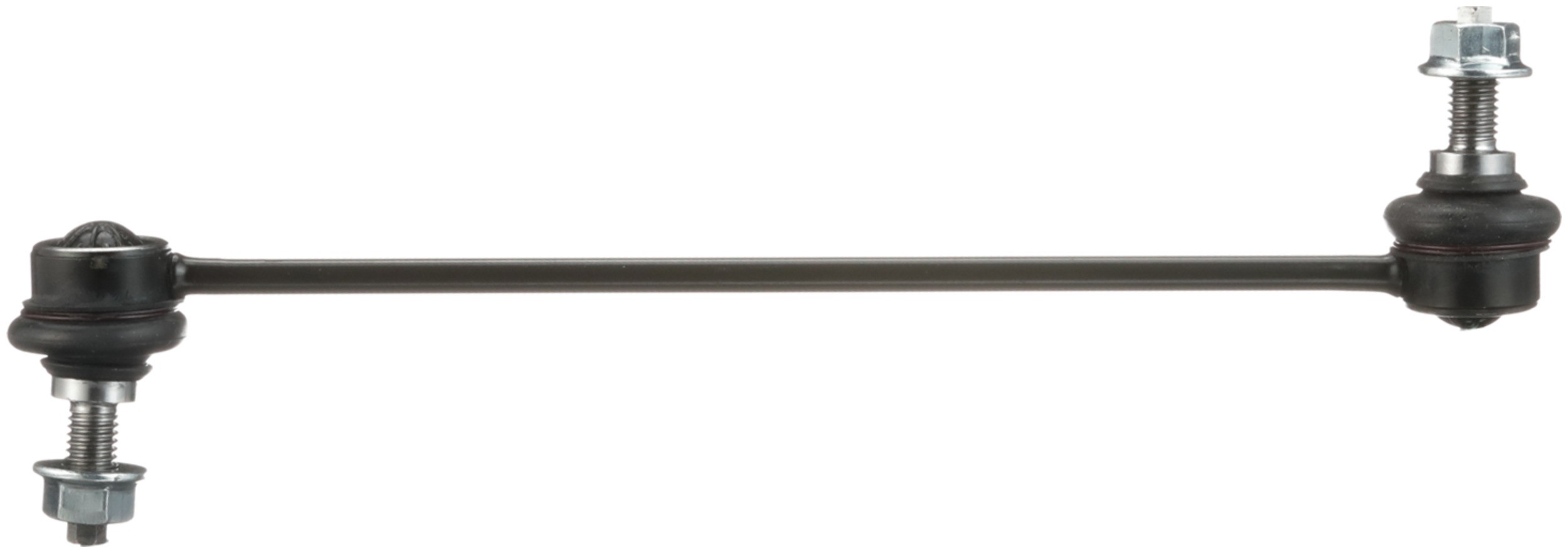

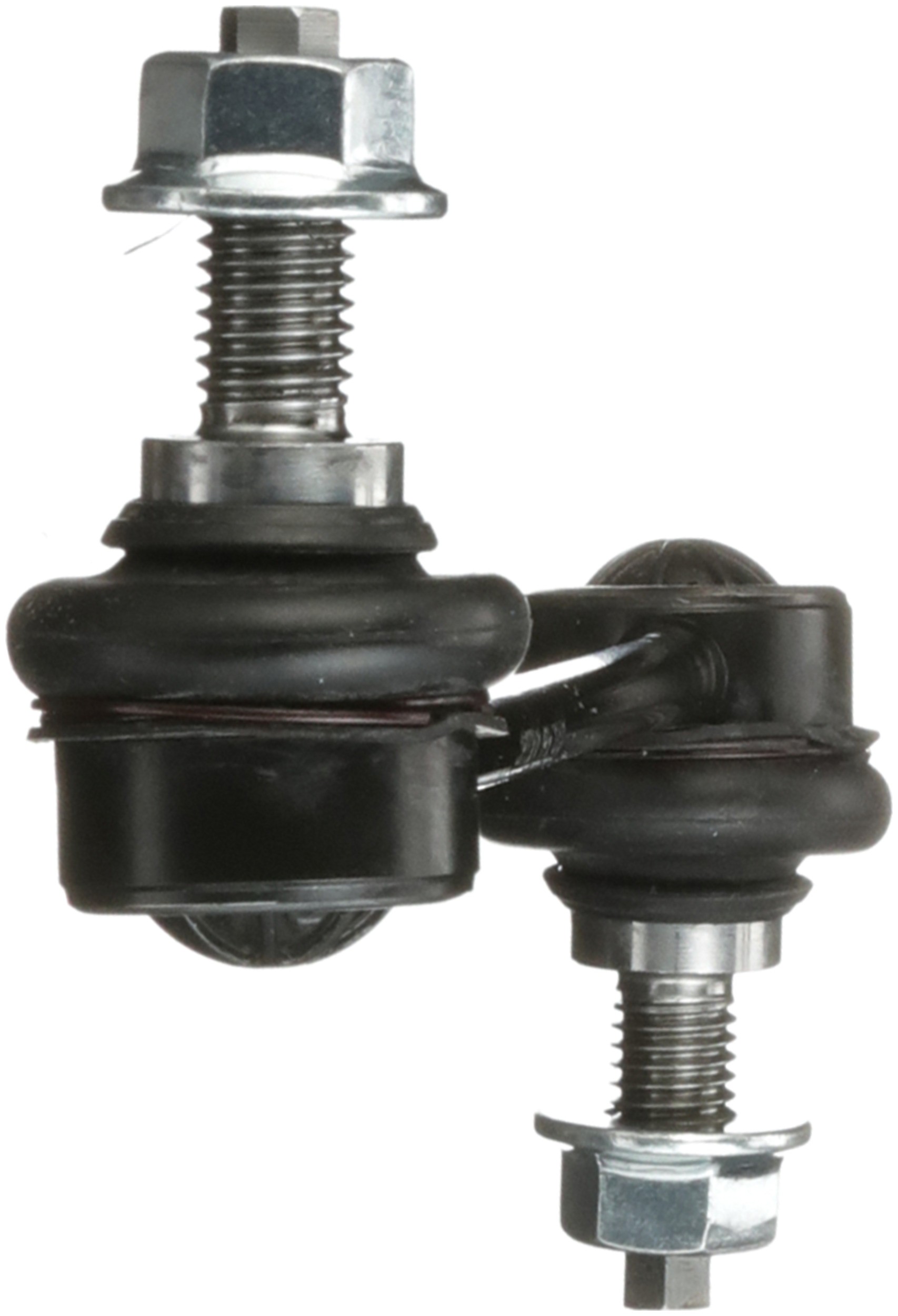

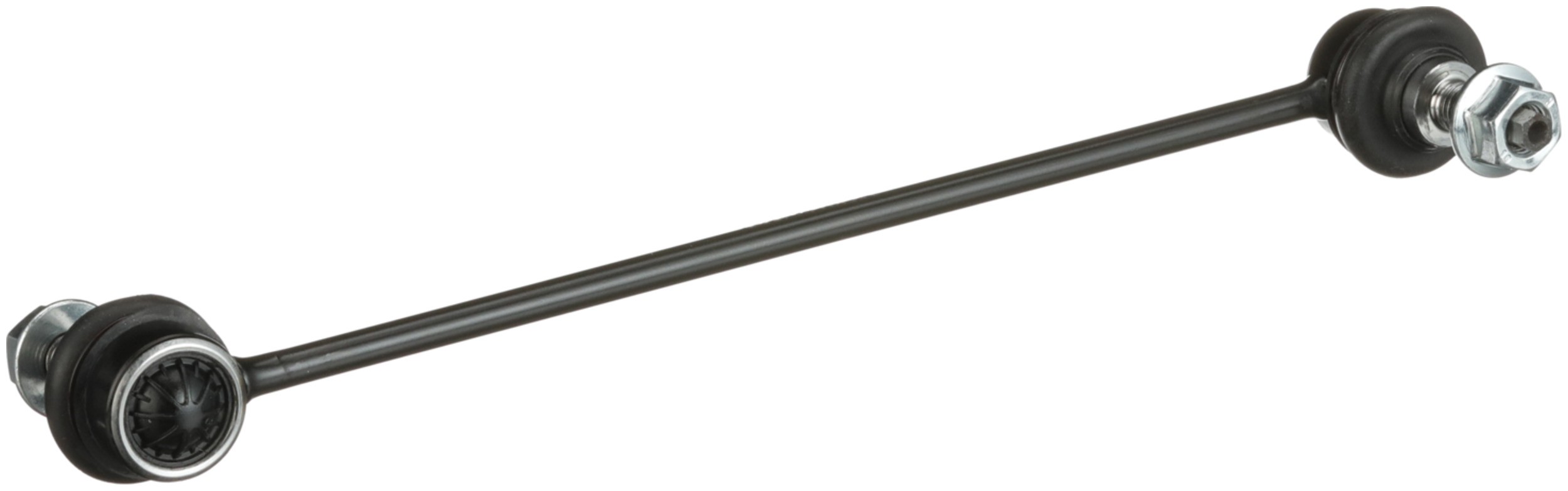

Delphi TC5530 Suspension Stabilizer Bar Link

Delphi TC5530 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	60.00 MM
Height	2.362 IN
Bolt Length	29.50 MM
Bolt Length	1.161 IN
4504	12.00 MM
4504	0.470 IN
627	0.22 LB
End 2 Type	Ball Joint
Washers Included	No
Bearing Material	Plastic
End 1 Type	Ball Joint
Housing Material	Steel
Bolts Included	No
Position(s)	Front
839	8mm
9296	Yes
Grade Type	Standard Replacement
Length	299.00 MM
Length	11.772 IN
Width	40 MM
Bushings Included	No
Greaseable	No
Width	1.575 IN
Dust Boot Included	Yes

Vehicle Applications:

Make	Model	Years
Chevrolet	Cobalt	2005 to 2010
Chevrolet	HHR	2006 to 2010
Chevrolet	Malibu	2004 to 2009
Pontiac	G5	2007 to 2010
Pontiac	G6	2005 to 2009
Pontiac	Pursuit	2005 to 2006
Saturn	Aura	2007 to 2009
Saturn	Ion	2003 to 2007
