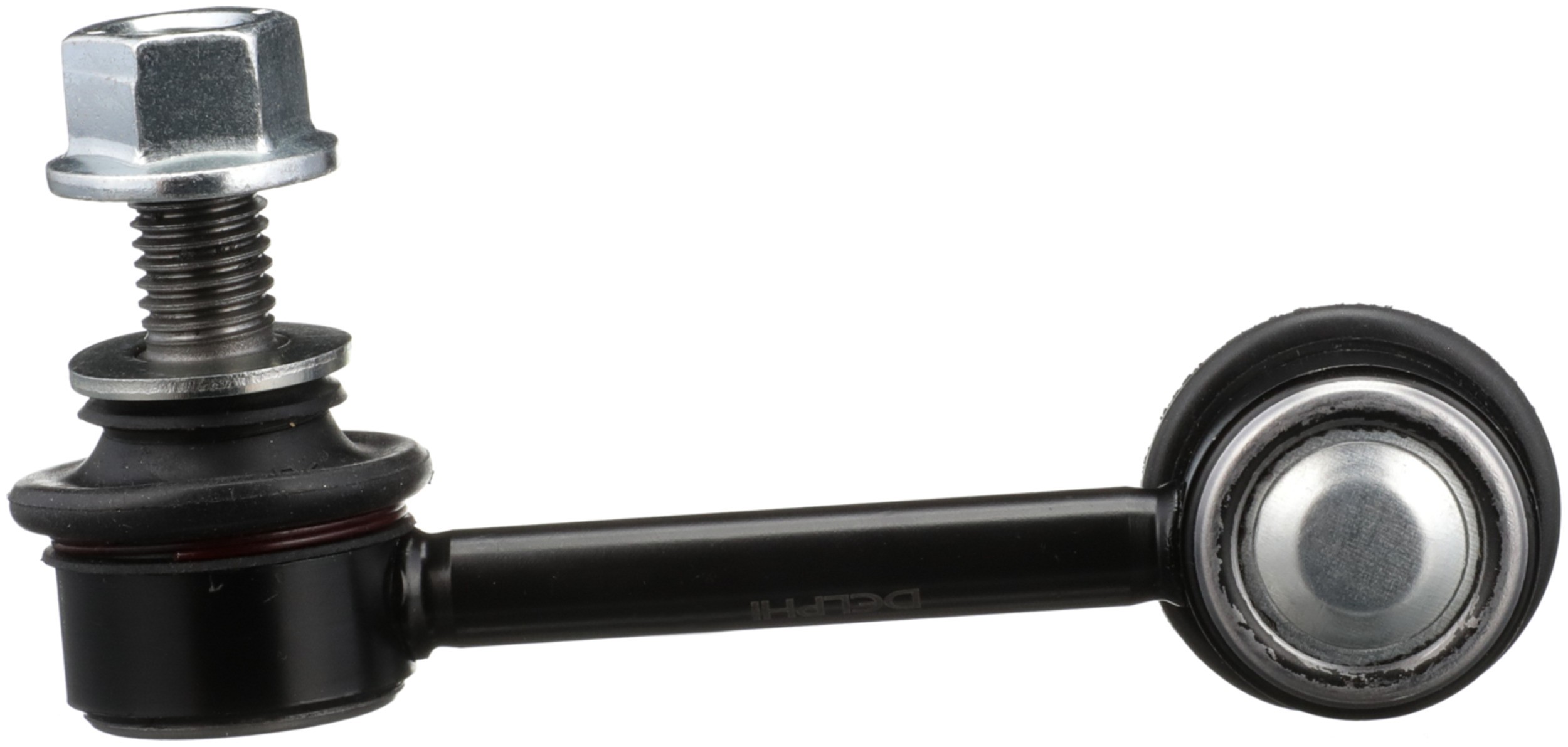

Delphi TC5548 Suspension Stabilizer Bar Link

Delphi TC5548 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Width	77 MM
Width	3.032 IN
9058	112.00 MM
Height	77.00 MM
Height	3.031 IN
End 1 Type	Male – M14x2
End 2 Type	Male – M14x2
Bushings Included	No
Dust Boot Included	Yes
Washers Included	Yes
Grade Type	Performance
Bolts Included	No
Bearing Material	Polyoxymethylene (POM)
Housing Material	Steel
Greaseable	No
627	1.14 LB
Position(s)	Front Right
839	6mm
9296	Yes
Length	6.063 IN
Length	154.00 MM

Vehicle Applications:

Make	Model	Years
Buick	Rainier	2004 to 2007
Chevrolet	SSR	2003 to 2006
Chevrolet	Trailblazer EXT	2004 to 2006
Chevrolet	Trailblazer	2004 to 2007
GMC	Envoy XL	2004 to 2006
GMC	Envoy XUV	2004 to 2005
GMC	Envoy	2004 to 2007
Isuzu	Ascender	2004 to 2008
Oldsmobile	Bravada	2004 to 2004
Saab	9-7x	2005 to 2009
