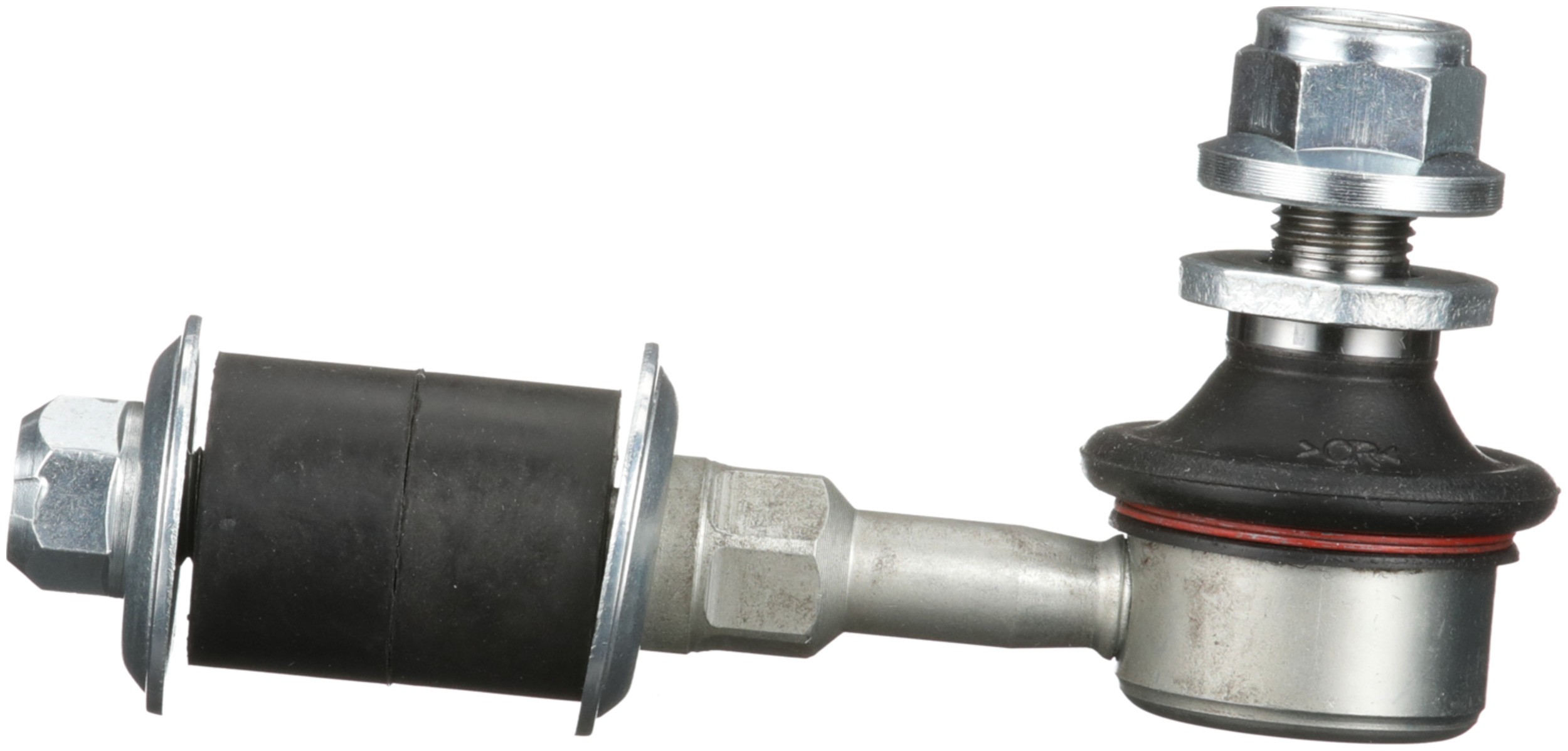

Delphi TC5553 Suspension Stabilizer Bar Link

Delphi TC5553 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pipe Diameter	0.39 IN
Color	Black
End 1 Type	Male
End 2 Type	Male
Length	130.00 MM
Hardware Included	Yes
Width	1.97 IN
Height	65.00 MM
Height	2.560 IN
Bolt Length	0.670 IN
Nuts Included	Yes
2391	0.41 IN
2391	10.50 MM
627	0.09 LB
4504	20.00 MM
4504	0.790 IN
9058	4.11 IN
9058	104.50 MM
839	6 MM
Bushing Type	Rubber
Boot Material	Rubber
Sleeve Length	1.26 IN
Bar Diameter	10.00 MM
Bushing Inside Diameter	0.39 IN
Sleeve Length	32.00 MM
Bushing Colour	Black
Pipe Diameter	10.00 MM
Bushing Outside Diameter	0.97 IN
Bushing Outside Diameter	24.80 MM
Bushing Inside Diameter	10.00 MM
Bushings Included	Yes
Dust Boot Included	Yes
Washers Included	Yes
Bolt Length	17.00 MM
Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
Width	50 MM
Length	5.120 IN
9296	Yes
Bolts Included	No
Bar Diameter	0.39 IN
Position(s)	Front
Grade Type	Standard Replacement
