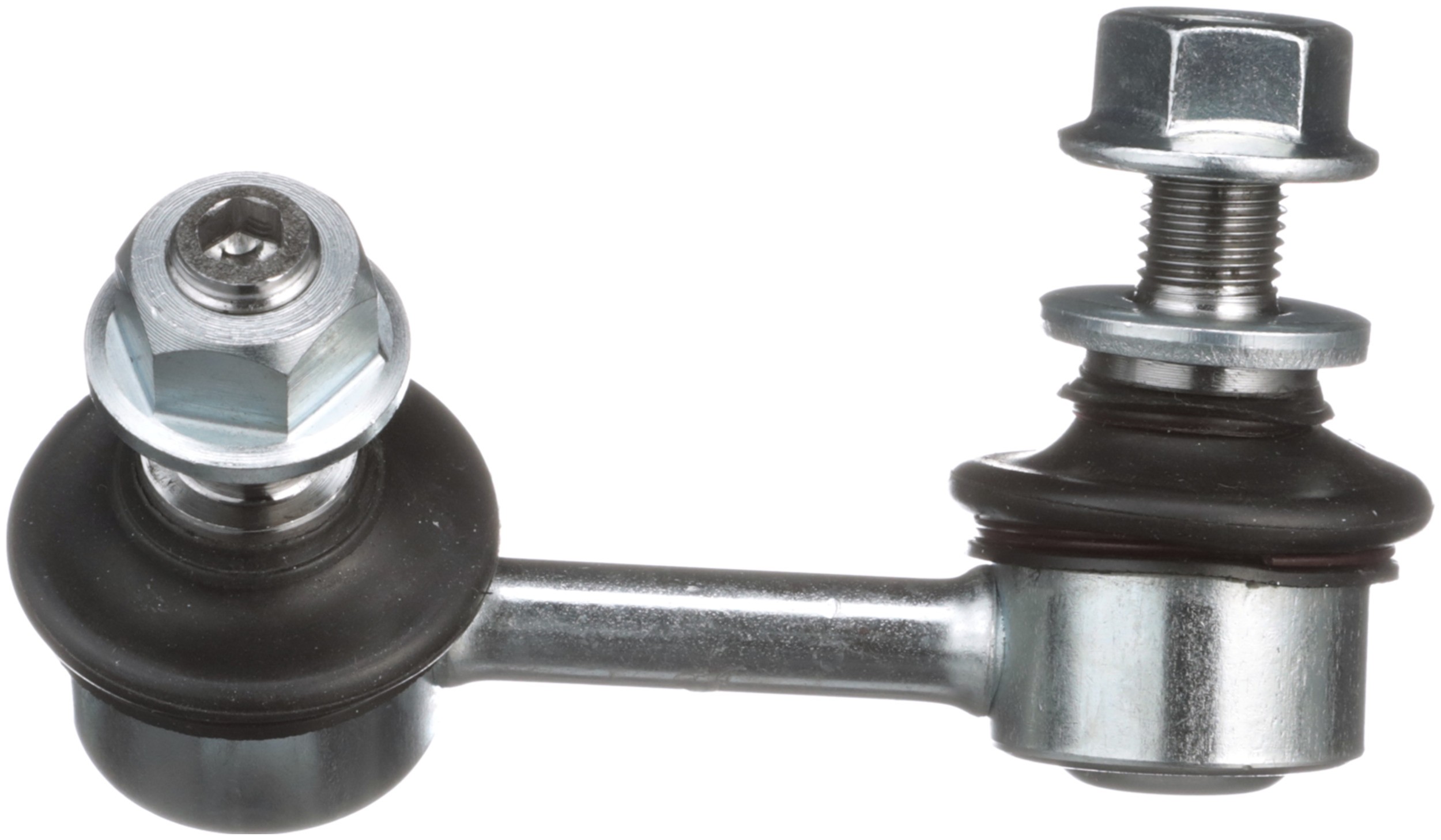

Delphi TC5559 Suspension Stabilizer Bar Link

Delphi TC5559 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bolt Length	24.00 MM
627	0.14 LB
4504	0.470 IN
4504	12.00 MM
Height	2.362 IN
Height	60.00 MM
Width	60 MM
Width	2.362 IN
Length	71.50 MM
Length	2.815 IN
Grade Type	Standard Replacement
Bearing Material	Plastic
Greaseable	No
Housing Material	Steel
Bolts Included	No
Washers Included	No
Dust Boot Included	Yes
Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
Bolt Length	0.945 IN
9296	Yes
Position(s)	Front Left
