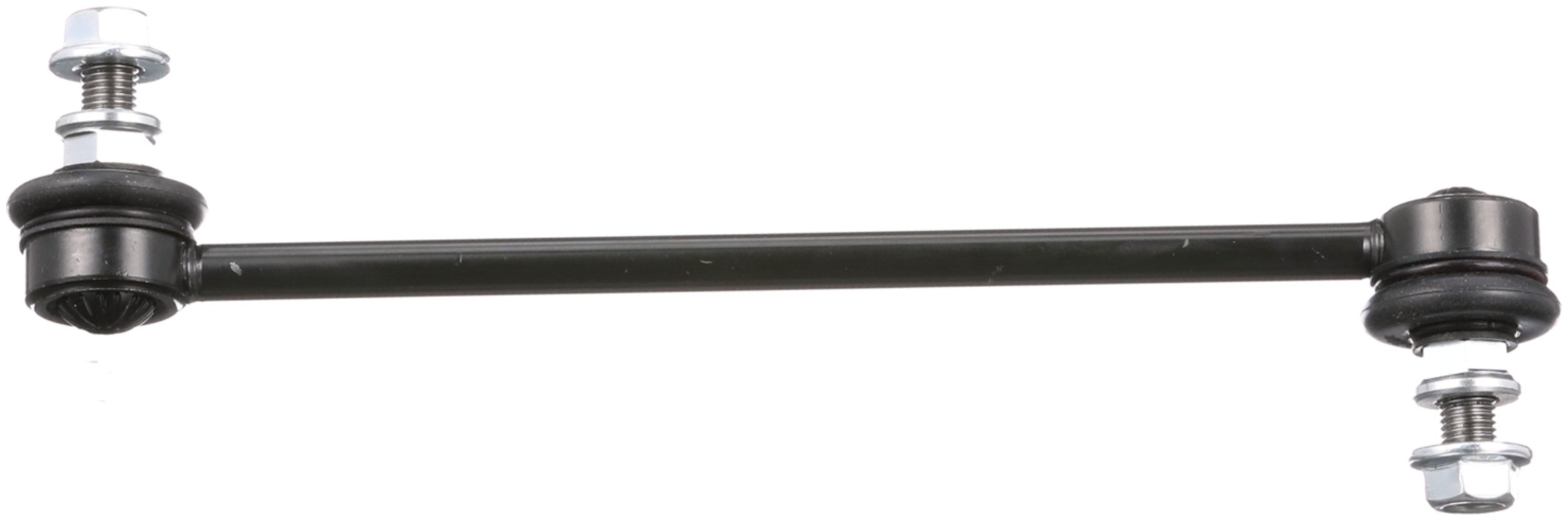

Delphi TC5565 Suspension Stabilizer Bar Link

Delphi TC5565 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
Bolt Length	0.768 IN
Bolt Length	19.50 MM
Height	3.465 IN
Washers Included	No
Height	88.00 MM
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
Grade Type	Standard Replacement
Position(s)	Rear
9296	Yes
Width	40 MM
Width	1.575 IN
Length	9.055 IN
Length	230.00 MM
4504	10.00 MM
627	0.16 LB
4504	0.390 IN
Dust Boot Included	Yes
