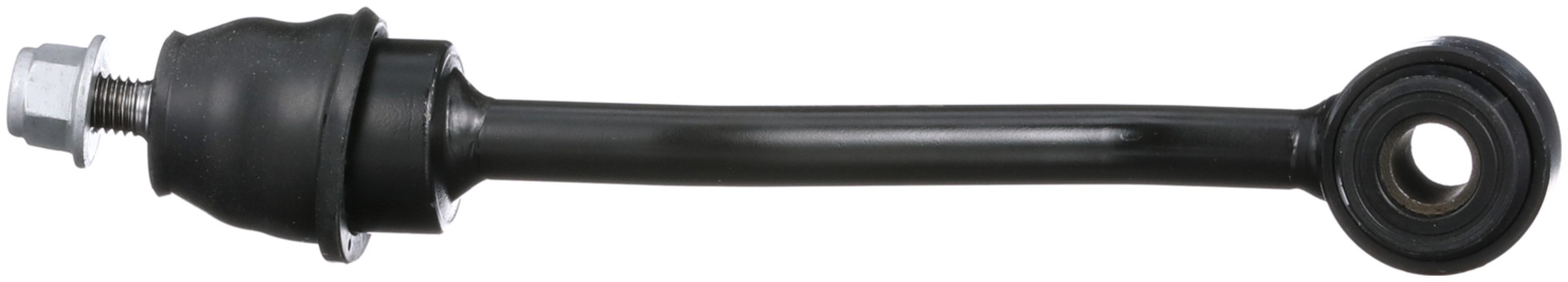

Delphi TC5588 Suspension Stabilizer Bar Link

Delphi TC5588 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushings Included	Yes
Dust Boot Included	Yes
Washers Included	No
Grade Type	Performance
Bolts Included	No
Bushing Outside Diameter	1.181 IN
Housing Material	Steel
Greaseable	No
Bearing Material	Polyoxymethylene (POM)
Bushing Type	Rubber
Bushing Inside Diameter	1.063 IN
Bushing Inside Diameter	27.00 MM
Height	2.598 IN
Height	66.00 MM
Width	40 MM
Width	1.575 IN
Sleeve Length	1.476 IN
Sleeve Length	37.5 MM
Length	9.449 IN
Length	240.00 MM
2391	15.5 MM
Bushing Colour	Black
End 2 Type	Male – M10x1.50
Bushing Outside Diameter	30.00 MM
Position(s)	Front
9296	Yes
2391	0.61 IN
627	0.99 LB
9058	203.00 MM
