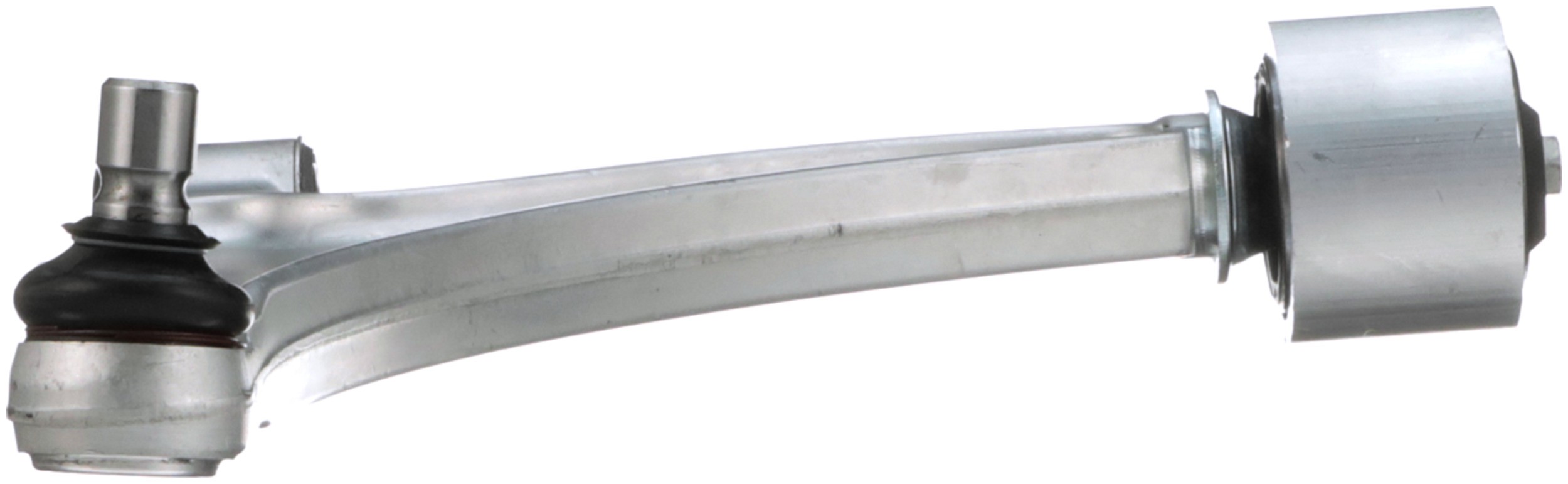

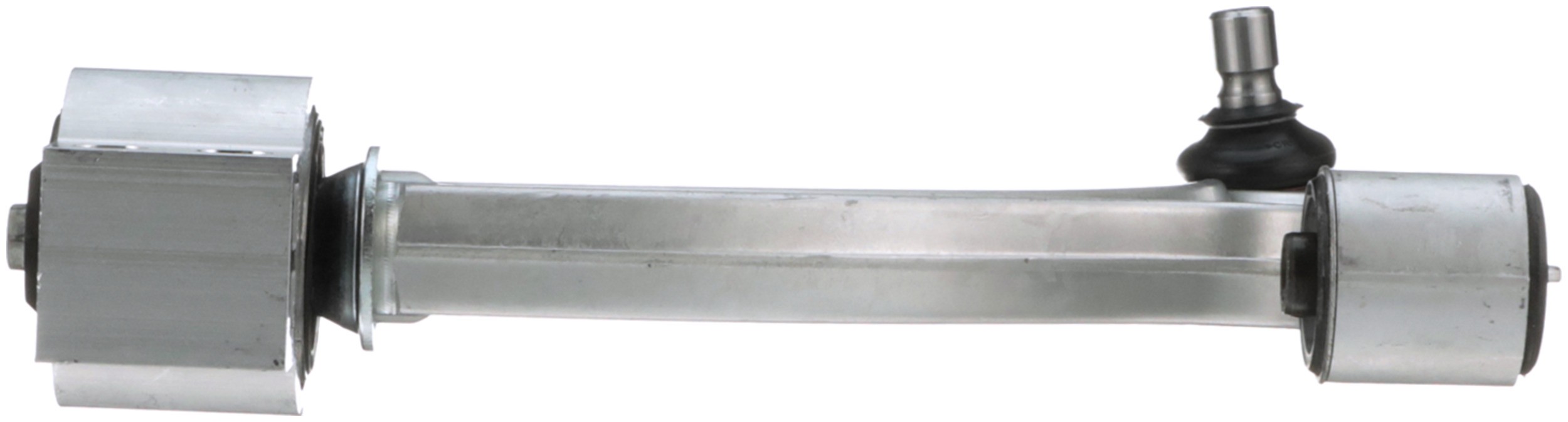

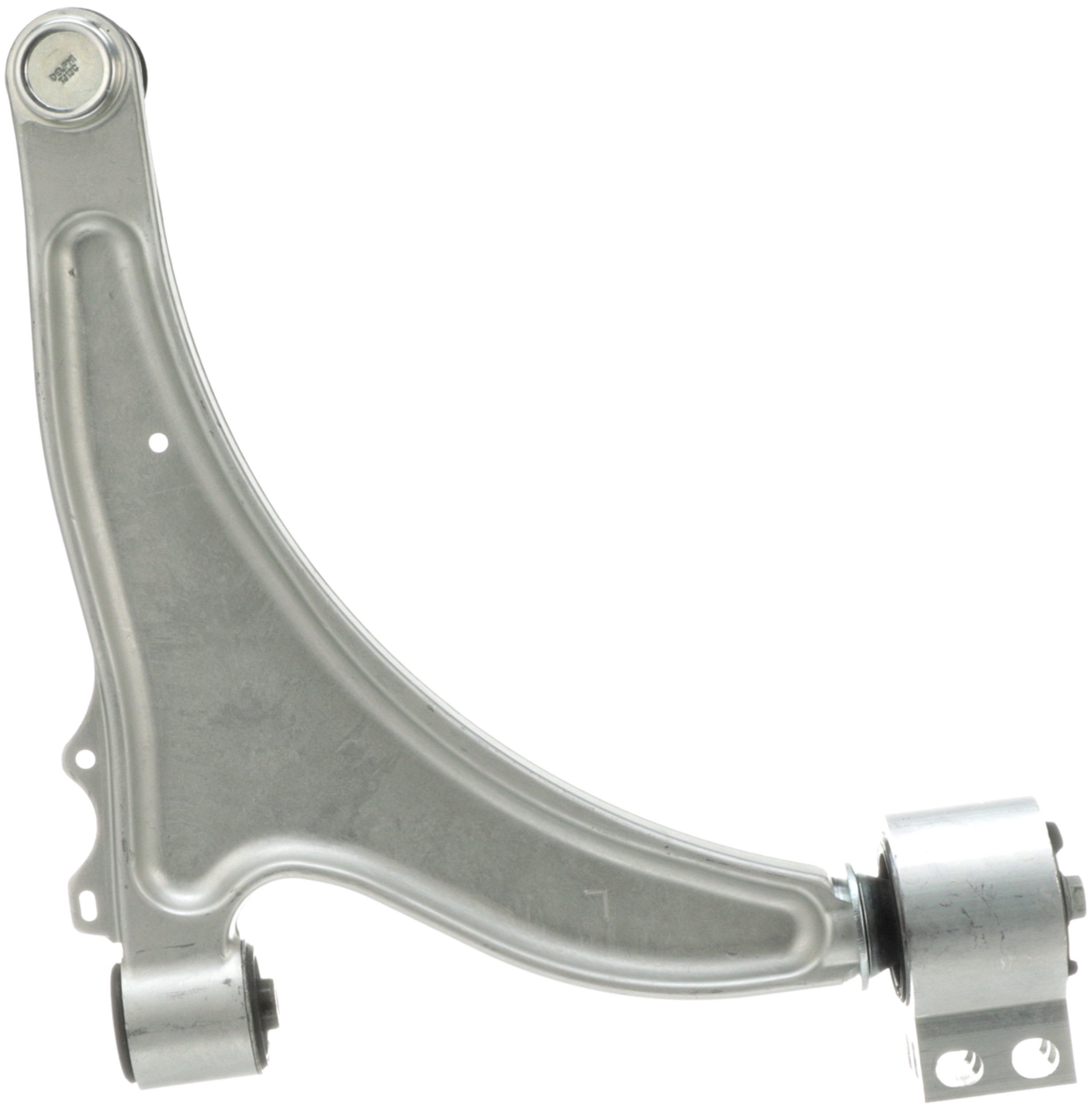

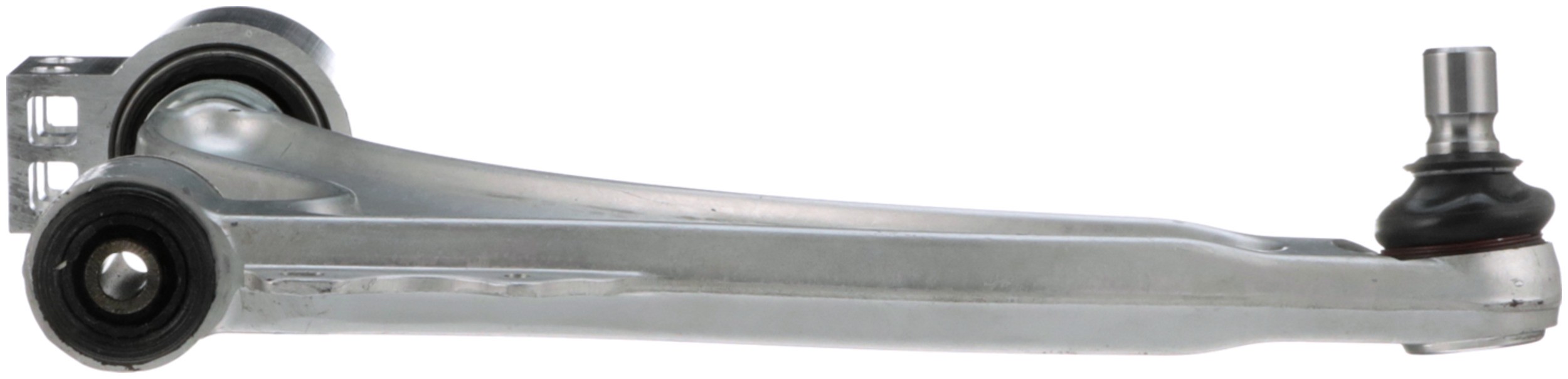

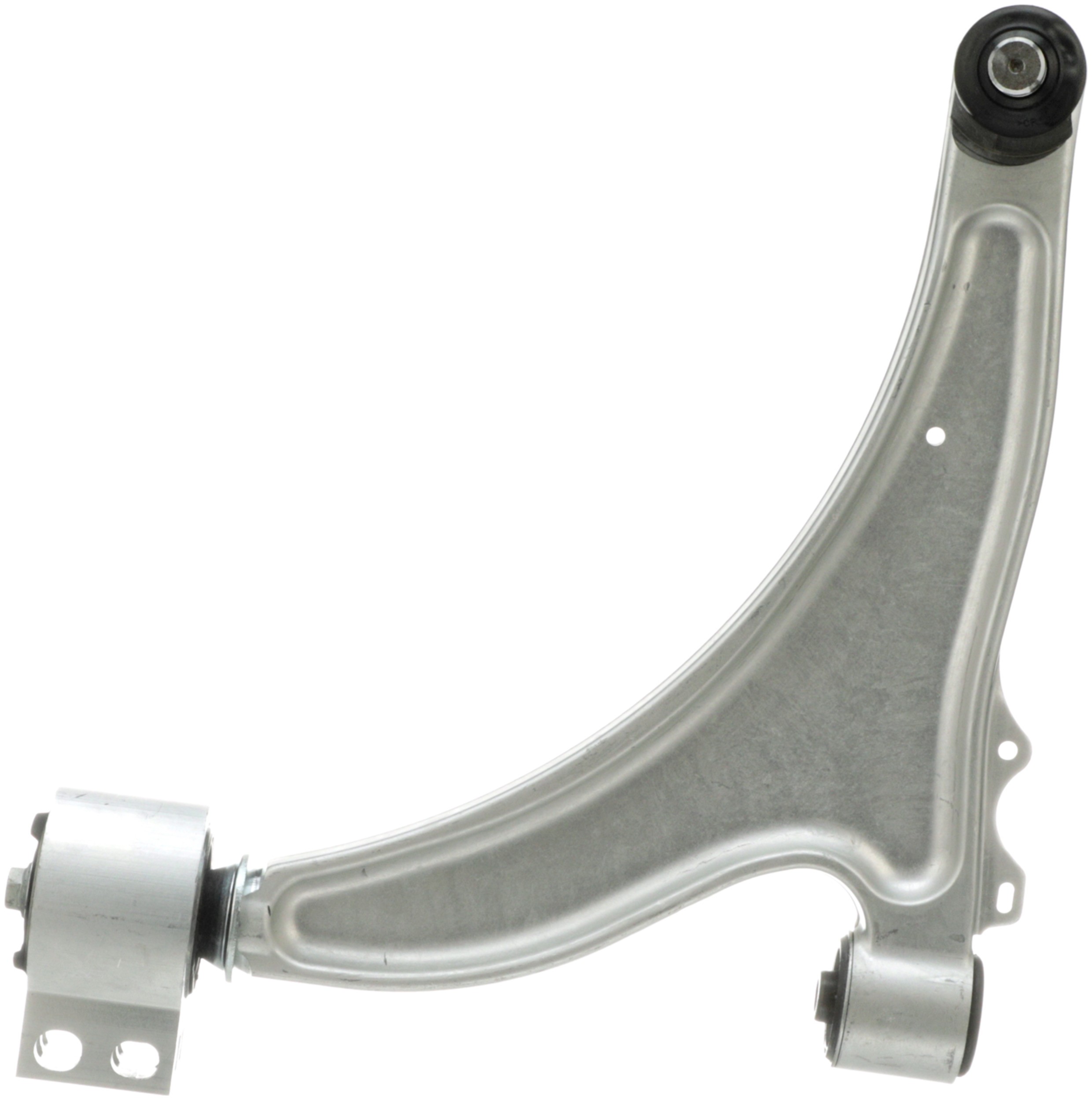

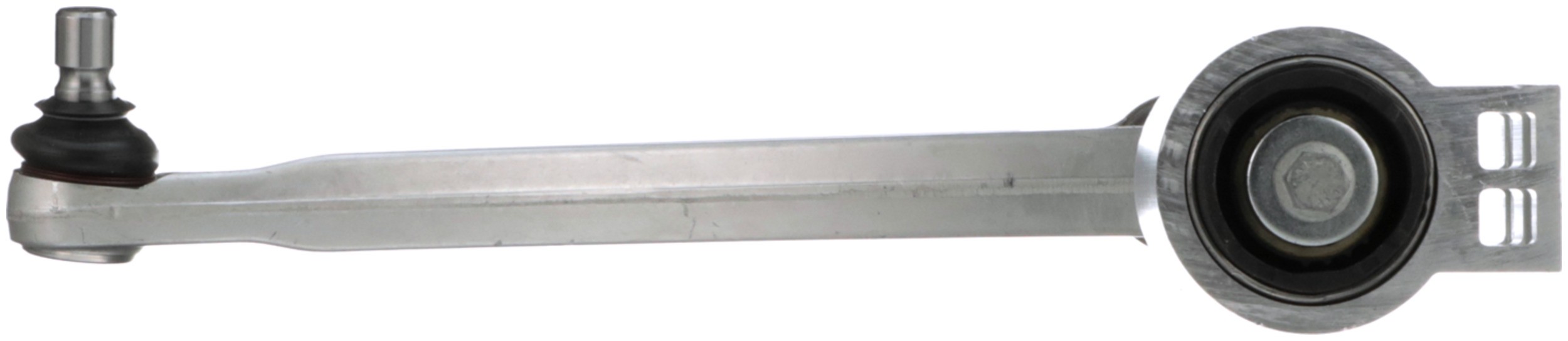

Delphi TC5610 Suspension Control Arm and Ball Joint Assembly

Delphi TC5610 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4890	2.835 IN
Position(s)	Front Left Lower
2384	Yes
2386	Casting/Forged
6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Diameter	0.886 IN
Mounting Hole Diameter	0.476 IN
Mounting Hole Diameter	22.50 MM
Mounting Hole Diameter	12.10 MM
Length	17.244 IN
Length	438.00 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Grooved
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
4890	72.00 MM
4887	4.134 IN
4887	105.00 MM
