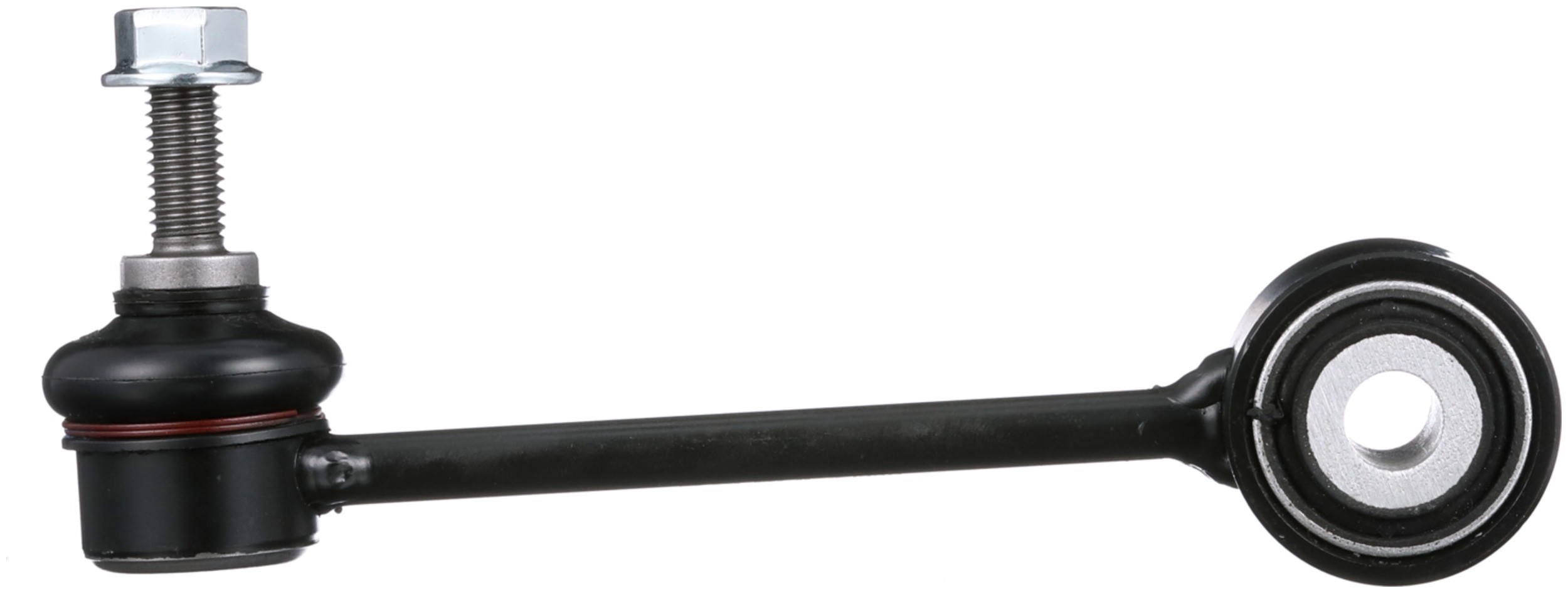

Delphi TC5623 Suspension Stabilizer Bar Link

Delphi TC5623 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Bushing Inside Diameter	24.00 MM
Bushing Inside Diameter	0.945 IN
Height	78.00 MM
9296	Yes
839	5mm
Position(s)	Rear
2391	0.48 IN
2391	12.2 MM
627	0.73 LB
9058	150.00 MM
Height	3.071 IN
Width	42 MM
Width	1.654 IN
Sleeve Length	1.181 IN
Sleeve Length	30 MM
Length	7.520 IN
Length	191.00 MM
Bushing Outside Diameter	1.437 IN
Bushing Outside Diameter	36.50 MM
Bushing Type	Rubber
Bearing Material	Polyoxymethylene (POM)
Housing Material	Steel
Bolts Included	No
Grade Type	Performance
Washers Included	No
Dust Boot Included	Yes
Bushings Included	Yes
End 2 Type	Male – M10x1.50
Bushing Colour	Black
