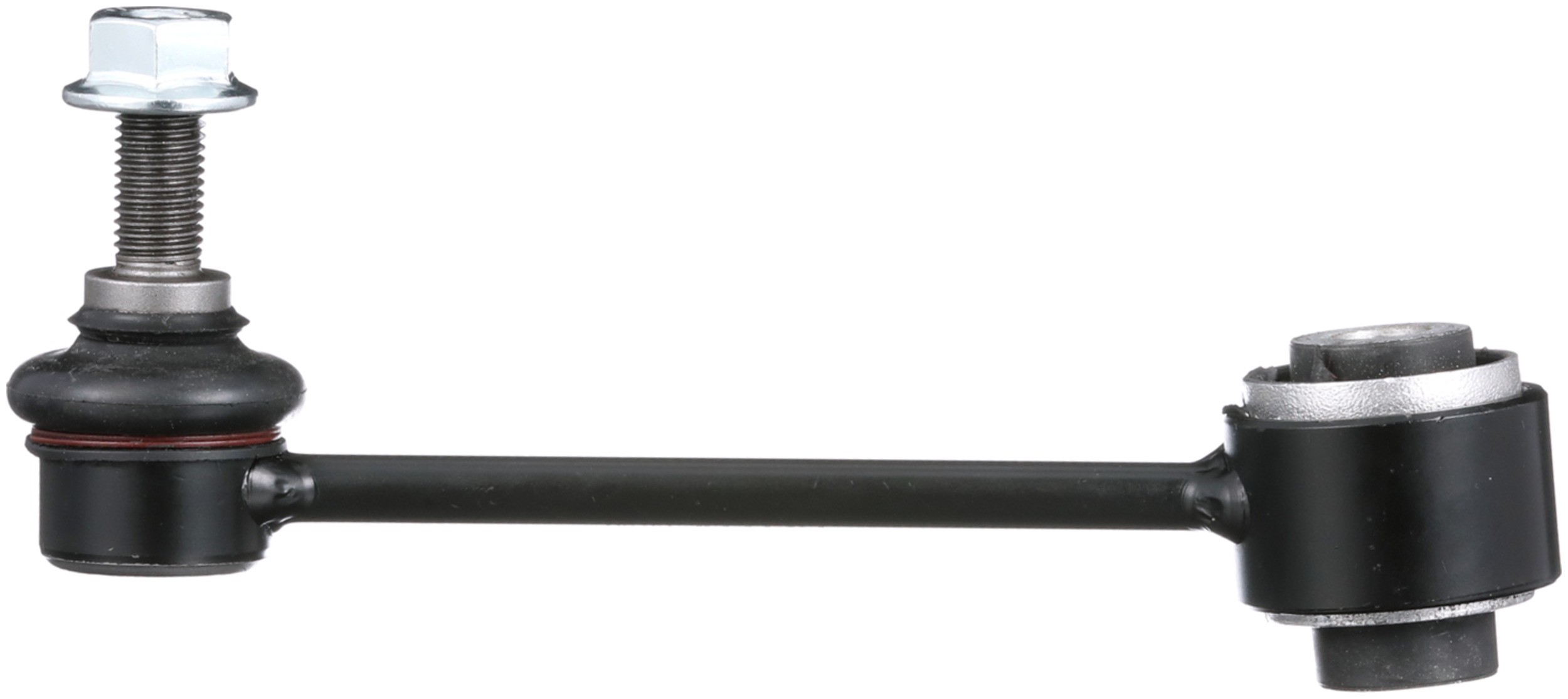

Delphi TC5624 Suspension Stabilizer Bar Link

Delphi TC5624 Suspension Stabilizer Bar Link

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	3.346 IN
Width	42 MM
Bushing Colour	Black
End 2 Type	Male – M12x1.50
Bushings Included	Yes
Dust Boot Included	Yes
Washers Included	No
Greaseable	No
Bushing Inside Diameter	23.00 MM
Bearing Material	Polyoxymethylene (POM)
Bushing Type	Rubber
Bolts Included	No
Grade Type	Performance
Bushing Inside Diameter	0.906 IN
Housing Material	Steel
Height	85.00 MM
9058	158.00 MM
Width	1.654 IN
627	0.8 LB
2391	0.472 IN
2391	12 MM
Position(s)	Front
839	5mm
9296	Yes
Bushing Outside Diameter	1.437 IN
Bushing Outside Diameter	36.50 MM
Length	203.00 MM
Length	7.992 IN
Sleeve Length	1.772 IN
Sleeve Length	45 MM
