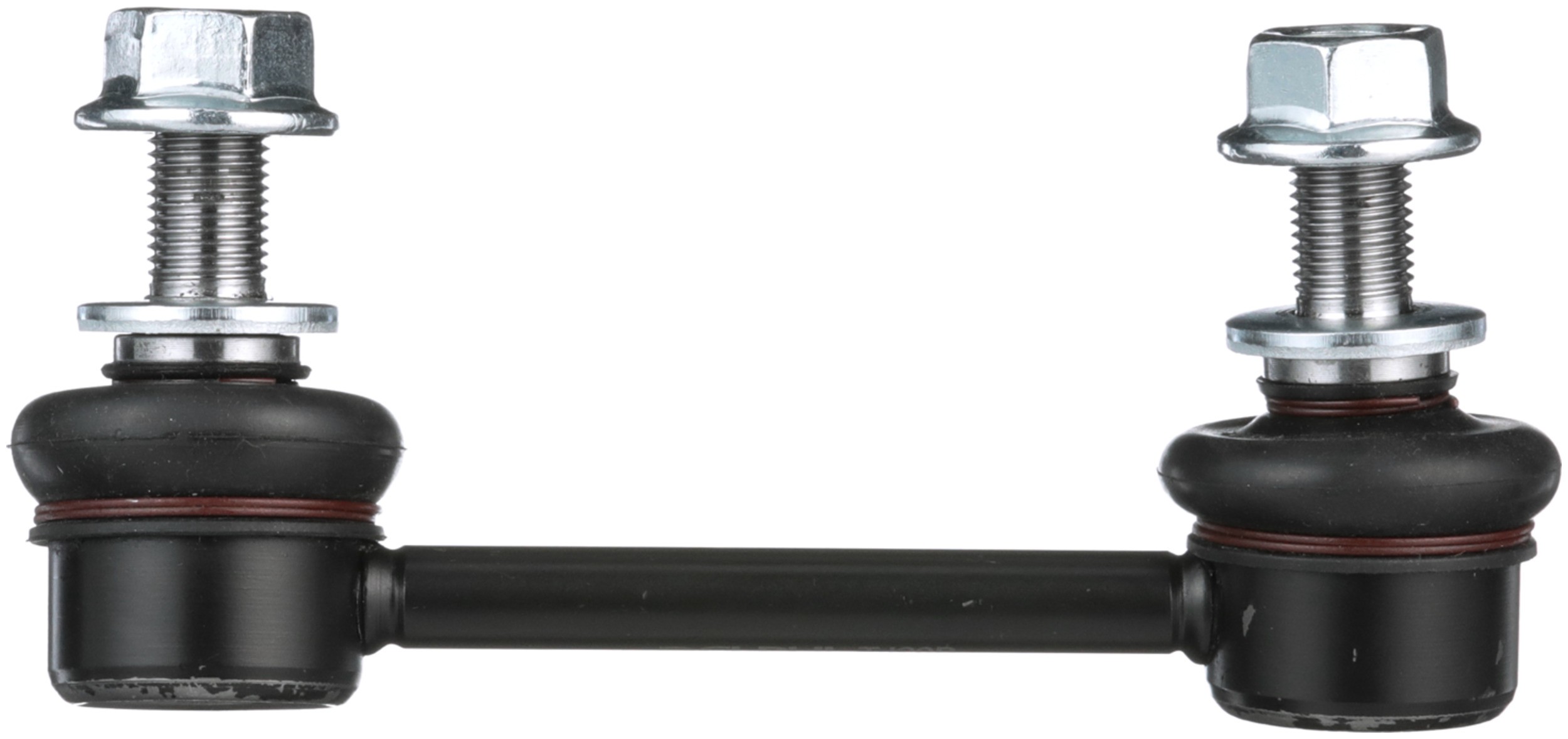

Delphi TC5636 Suspension Stabilizer Bar Link

Delphi TC5636 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9296	Yes
End 1 Type	Male – M12x1.25
End 2 Type	Male – M12x1.25
Bushings Included	No
Dust Boot Included	Yes
Washers Included	Yes
Grade Type	Performance
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Polyoxymethylene (POM)
627	0.79 LB
Position(s)	Front Left, Rear Left. For the position specific to your vehicle, refer to the Applications.
839	5mm
Length	146.00 MM
Length	5.748 IN
Width	1.496 IN
9058	110.00 MM
Width	38 MM
Height	2.598 IN
Height	66.00 MM

Vehicle Applications:

Make	Model	Years
Lexus	GS F	2016 to 2020
Lexus	RC F	2015 to 2021
Lexus	RX350	2010 to 2021
Lexus	RX350L	2018 to 2021
Lexus	RX450h	2010 to 2021
Lexus	RX450hL	2018 to 2021
Toyota	Highlander	2014 to 2019
