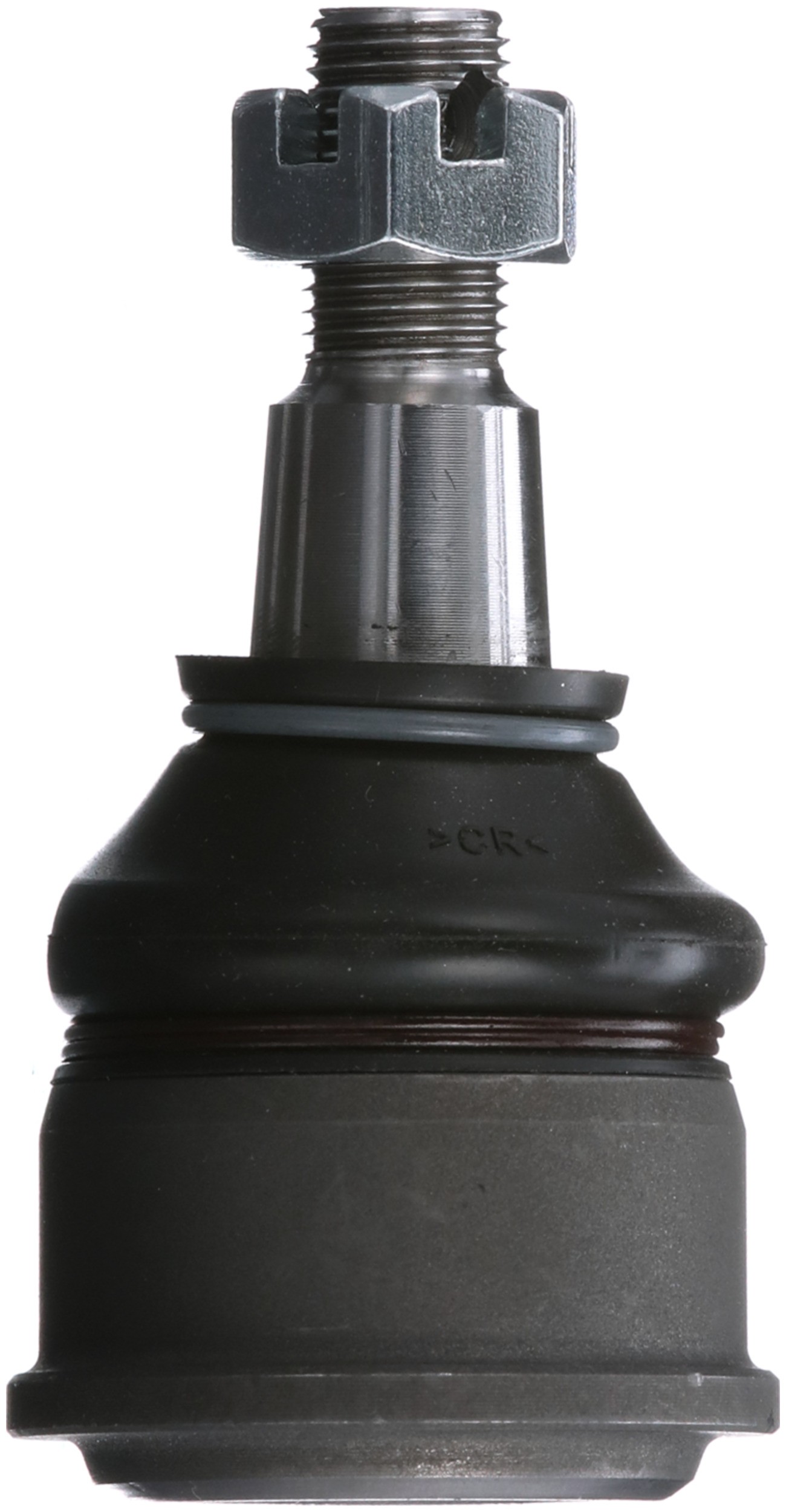

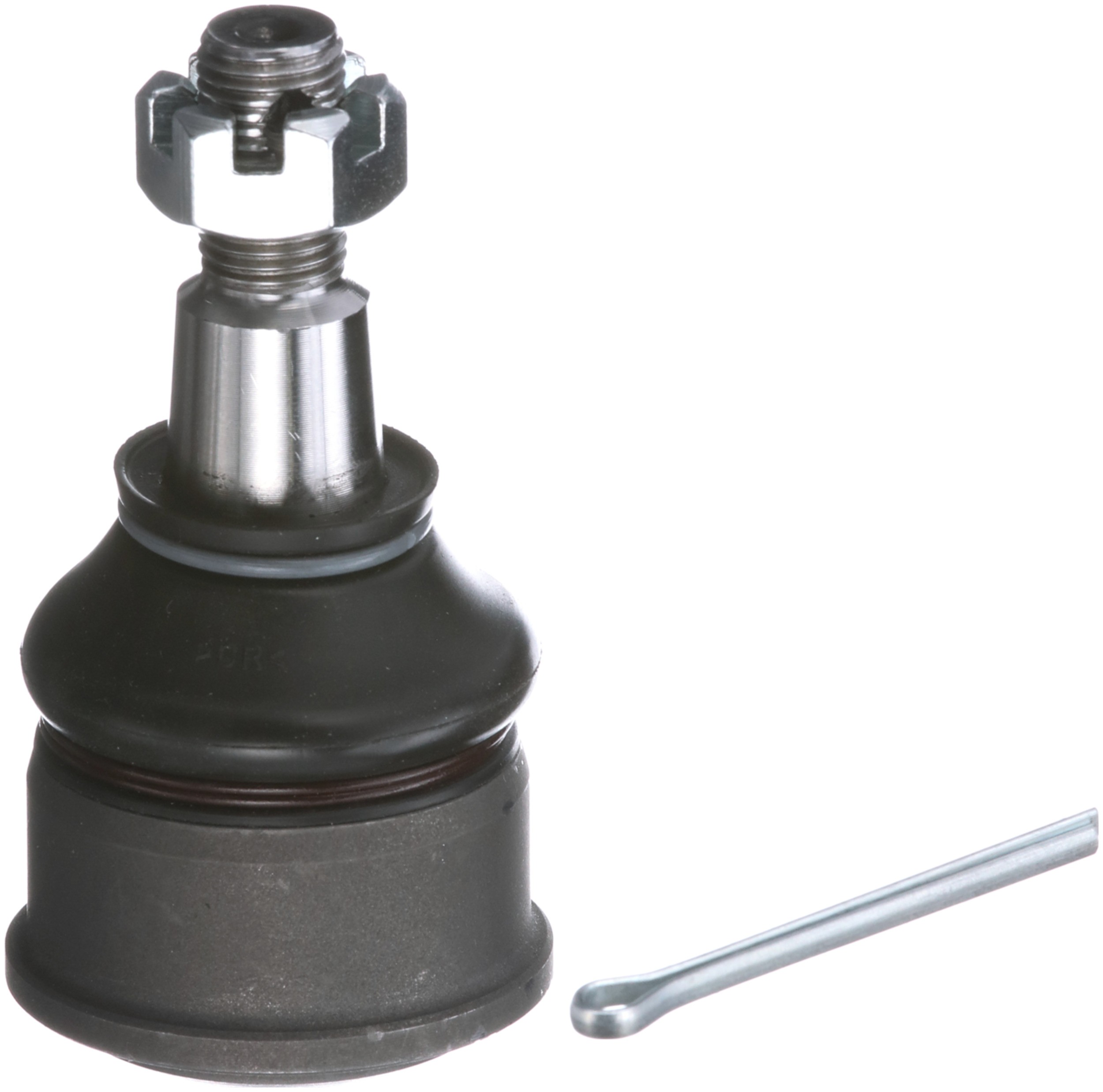

Delphi TC5638 Suspension Ball Joint

Delphi TC5638 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Maximum Outside Diameter	43.80 MM
Position(s)	Front Lower
2334	Yes
2381	Yes
2827	Yes
881	Threaded
9090	Rubber
9204	No
9209	No
9210	Yes
9213	18 MM
Height	84.99 MM
Height	3.346 IN
Width	43.8 MM
Length	3.350 IN
Length	85.00 MM
Maximum Outside Diameter	1.724 IN
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
9212	15.5 MM
9212	0.61 IN
9211	0.125 IN
4966	22.4 MM
4966	0.882 IN
9213	0.709 IN
