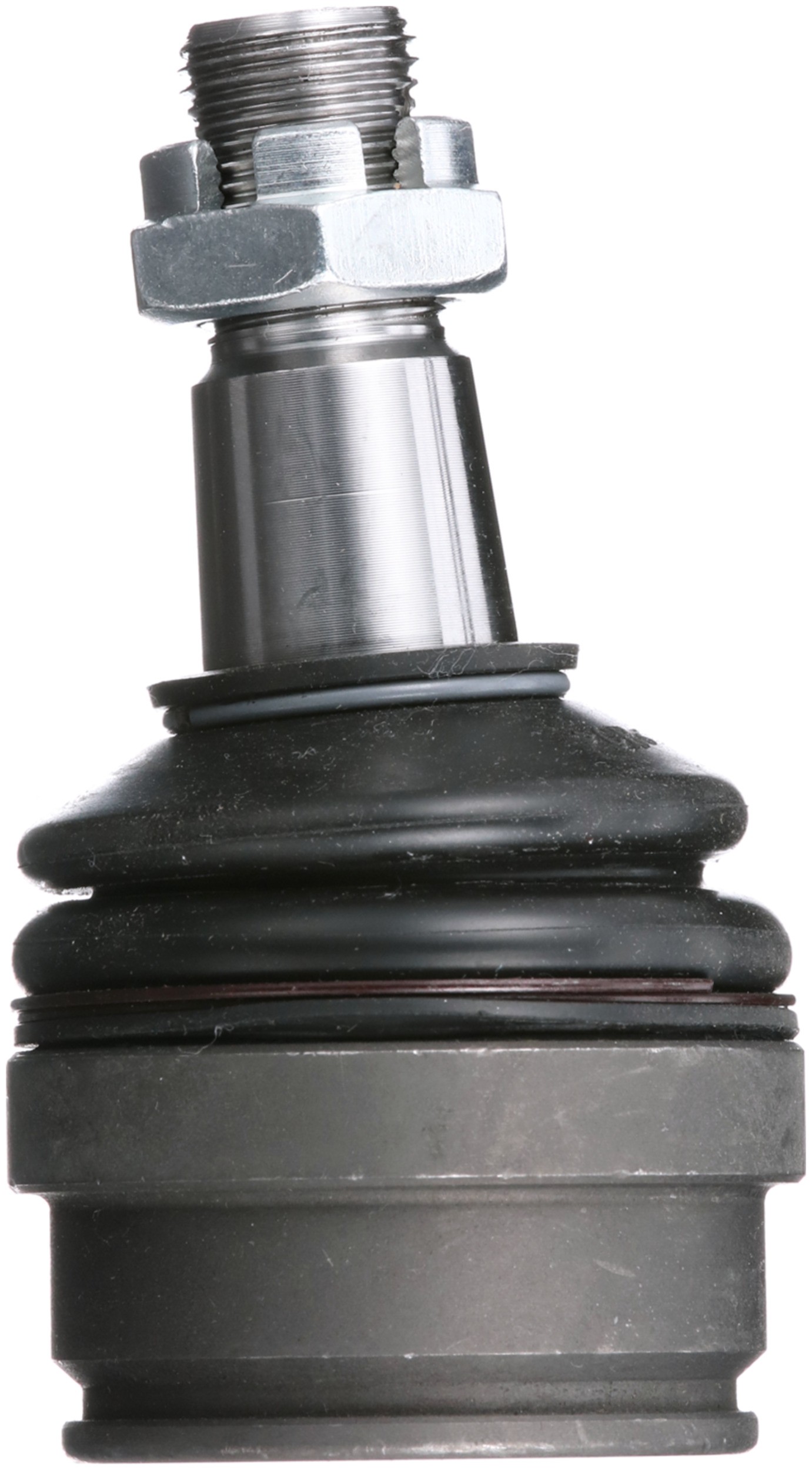

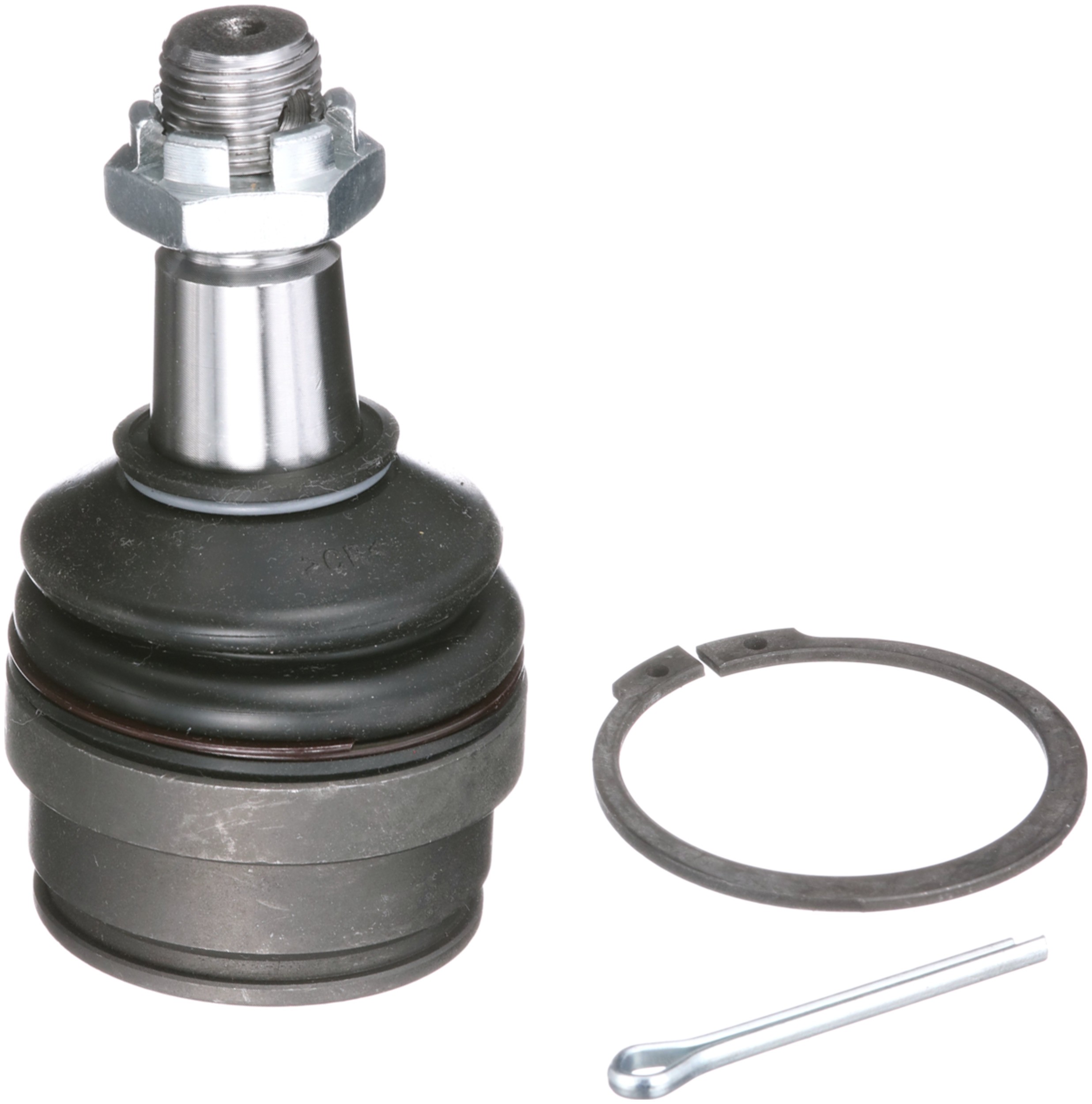

Delphi TC5648 Suspension Ball Joint

Delphi TC5648 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
9213	23 MM
9213	0.906 IN
9212	20.5 MM
9212	0.807 IN
9211	0.125 IN
4966	24 MM
4966	0.945 IN
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	Yes
2381	Yes
2334	Yes
Position(s)	Front Lower
Maximum Outside Diameter	2.264 IN
Maximum Outside Diameter	57.50 MM
Length	102.00 MM
Length	4.020 IN
Width	57.5 MM
Suspension Grade Type	Standard Replacement
Mounting Type	Press-In
Adjustable	No
Washers Included	Yes
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Material	Steel
Height	4.016 IN
Height	102.01 MM
