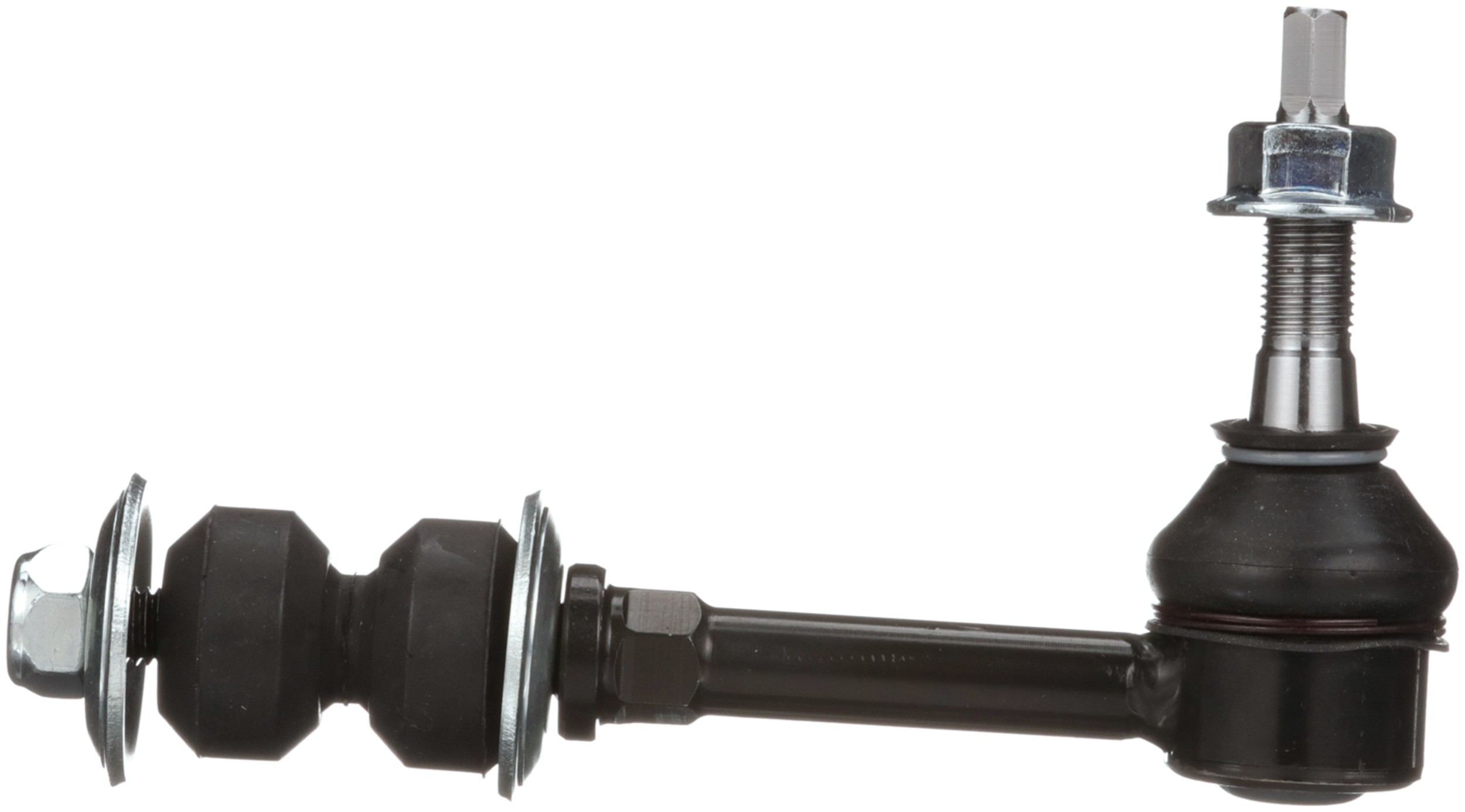

Delphi TC5675 Suspension Stabilizer Bar Link

Delphi TC5675 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4504	12.00 MM
Bushing Inside Diameter	0.394 IN
Bolt Length	42.00 MM
Bolt Length	1.654 IN
Height	3.937 IN
Height	100.00 MM
Width	30 MM
Width	1.181 IN
Length	6.181 IN
Length	157.00 MM
Bushing Outside Diameter	31.00 MM
Bushing Outside Diameter	1.220 IN
Greaseable	No
627	0.21 LB
4504	0.470 IN
Bearing Material	Plastic
Bushing Type	Rubber
Grade Type	Standard Replacement
Position(s)	Front
839	8mm
9296	Yes
Bushing Inside Diameter	10.00 MM
Bushing Colour	Black
End 1 Type	Bushing
End 2 Type	Ball Joint
Bushings Included	Yes
Dust Boot Included	Yes
Washers Included	Yes
Bolts Included	No
Housing Material	Steel
