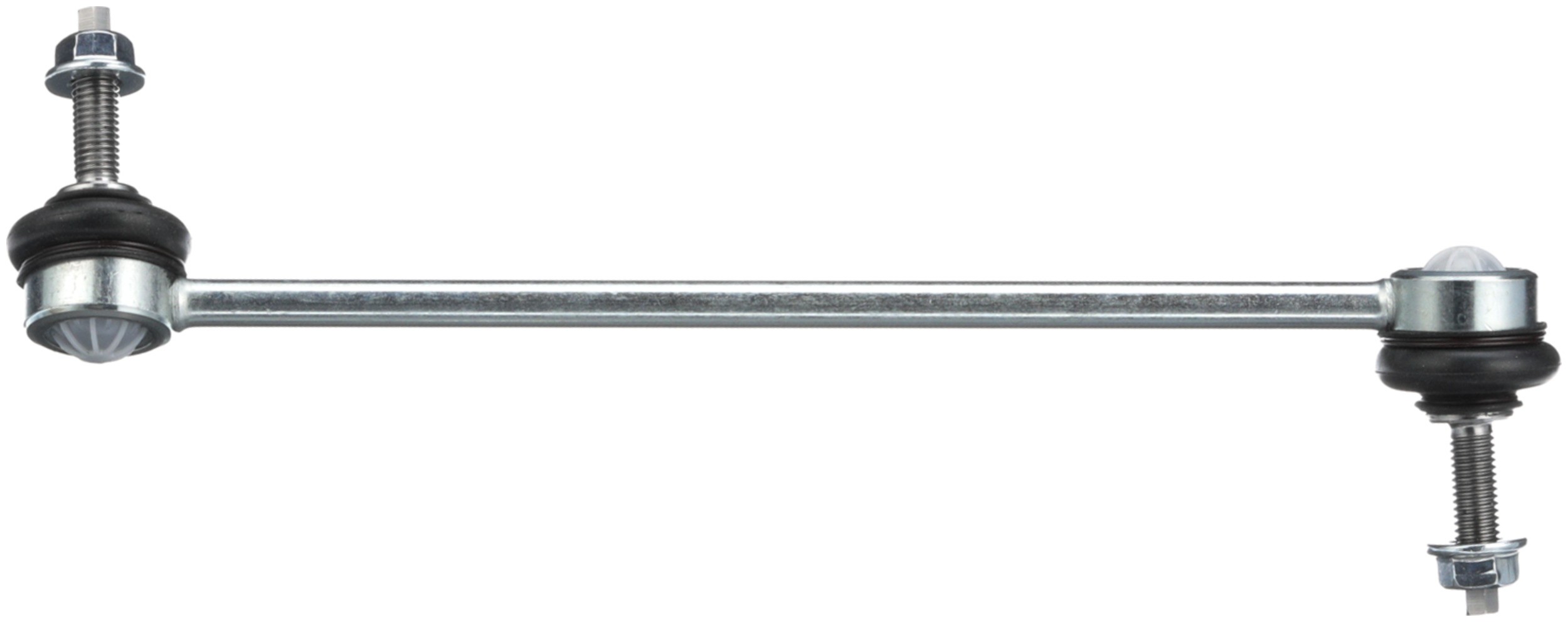

Delphi TC5681 Suspension Stabilizer Bar Link

Delphi TC5681 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Washers Included	No
Bushings Included	No
627	0.22 LB
4504	0.390 IN
4504	10.00 MM
End 2 Type	Ball Joint
End 1 Type	Ball Joint
Bolt Length	38.50 MM
Height	124.00 MM
Height	4.882 IN
Width	1.969 IN
Width	50 MM
Length	11.043 IN
Length	280.50 MM
Grade Type	Standard Replacement
Bearing Material	Plastic
Bolt Length	1.516 IN
9296	Yes
839	7mm
Position(s)	Front Left
Greaseable	No
Housing Material	Steel
Bolts Included	No
Dust Boot Included	Yes

Vehicle Applications:

Make	Model	Years
Ford	Five Hundred	2005 to 2007
Ford	Freestyle	2005 to 2007
Ford	Taurus X	2008 to 2009
Ford	Taurus	2008 to 2009
Mercury	Montego	2005 to 2007
Mercury	Sable	2008 to 2009
