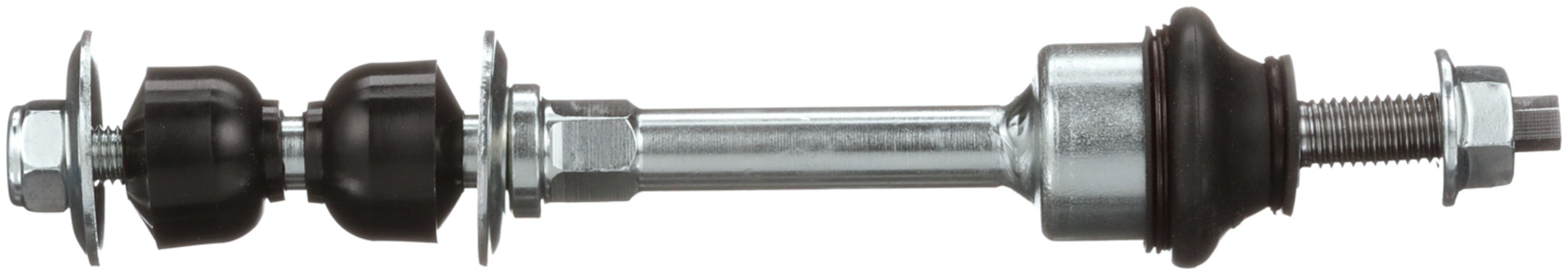

Delphi TC5684 Suspension Stabilizer Bar Link

Delphi TC5684 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Outside Diameter	1.150 IN
End 1 Type	Ball Joint
End 2 Type	Bushing
Bushings Included	Yes
Dust Boot Included	Yes
Washers Included	No
Bolts Included	Yes
Housing Material	Steel
Greaseable	No
Bearing Material	Polyoxymethylene (POM)
Bushing Type	Polyurethane
Hardware Included	Yes
Grade Type	Standard Replacement
Bolt Length	244.70 MM
Bolt Length	9.630 IN
Length	244.70 MM
Length	9.630 IN
Bushing Outside Diameter	29.30 MM
4504	15.00 MM
4504	0.310 IN
4504	8.00 MM
4504	0.590 IN
Position(s)	Front
839	15 mm
9296	Yes
Bushing Colour	Black
