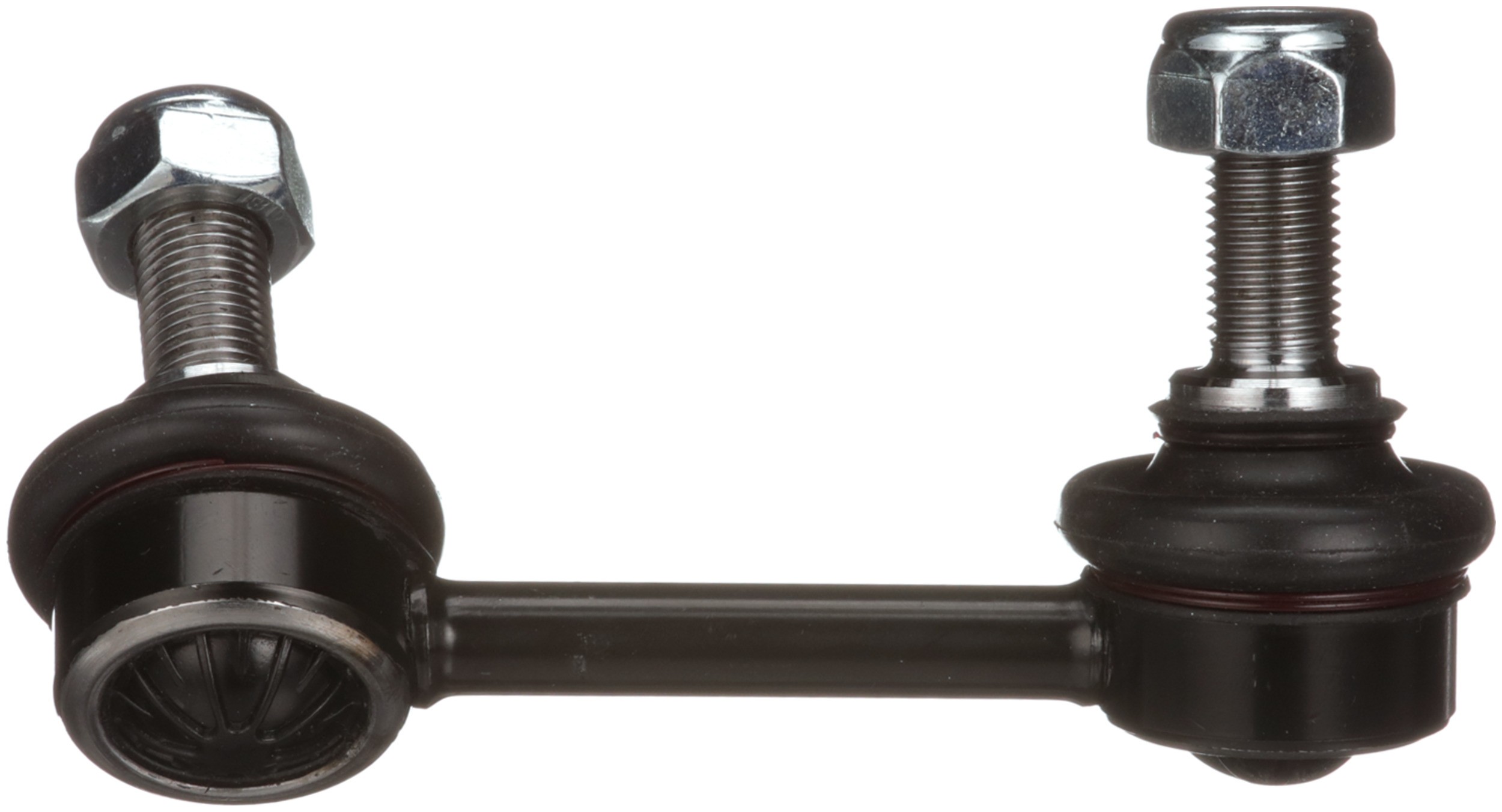

Delphi TC5690 Suspension Stabilizer Bar Link

Delphi TC5690 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Dust Boot Included	Yes
Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
4504	0.470 IN
9296	Yes
Position(s)	Front Right
Length	3.543 IN
Length	89.99 MM
Width	2.362 IN
627	0.15 LB
4504	12.00 MM
Grade Type	Standard Replacement
Bearing Material	Plastic
Width	60 MM
Height	70.00 MM
Height	2.756 IN
Bolt Length	26.80 MM
Bolt Length	1.055 IN
Housing Material	Steel
Bolts Included	No
Washers Included	No
