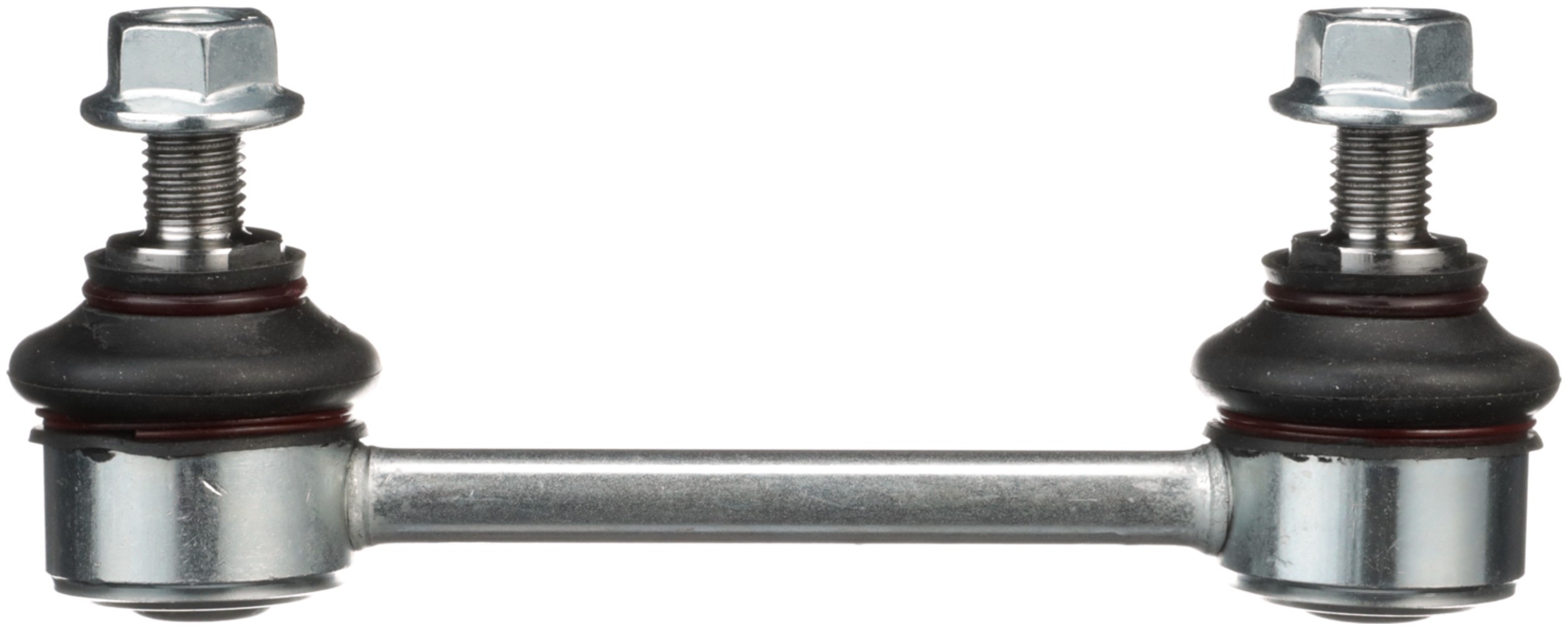

Delphi TC5697 Suspension Stabilizer Bar Link

Delphi TC5697 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bolt Length	0.925 IN
4504	12.00 MM
End 1 Type	Ball Joint
End 2 Type	Ball Joint
Bushings Included	No
Dust Boot Included	Yes
Bolt Length	23.50 MM
Height	70.00 MM
Height	2.756 IN
Length	133.00 MM
Washers Included	No
Bolts Included	No
Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
Grade Type	Standard Replacement
627	0.25 LB
4504	0.470 IN
9296	Yes
Width	1.772 IN
Width	45 MM
Length	5.236 IN
839	18mm
Position(s)	Rear
