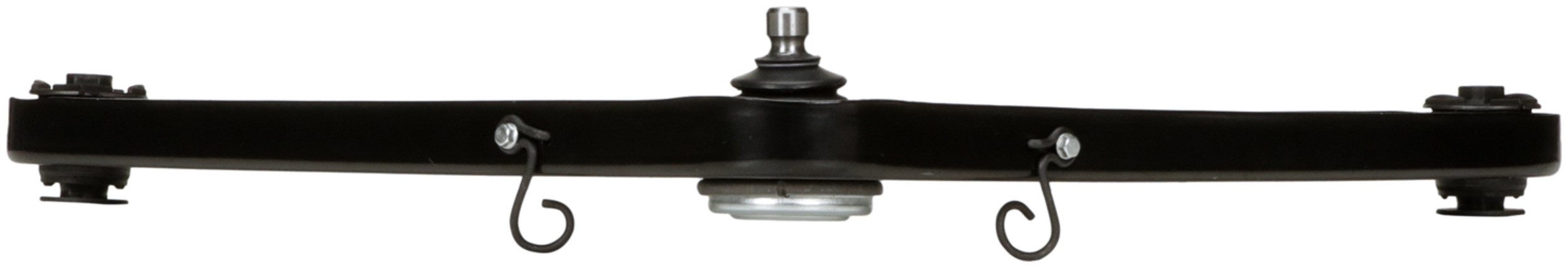

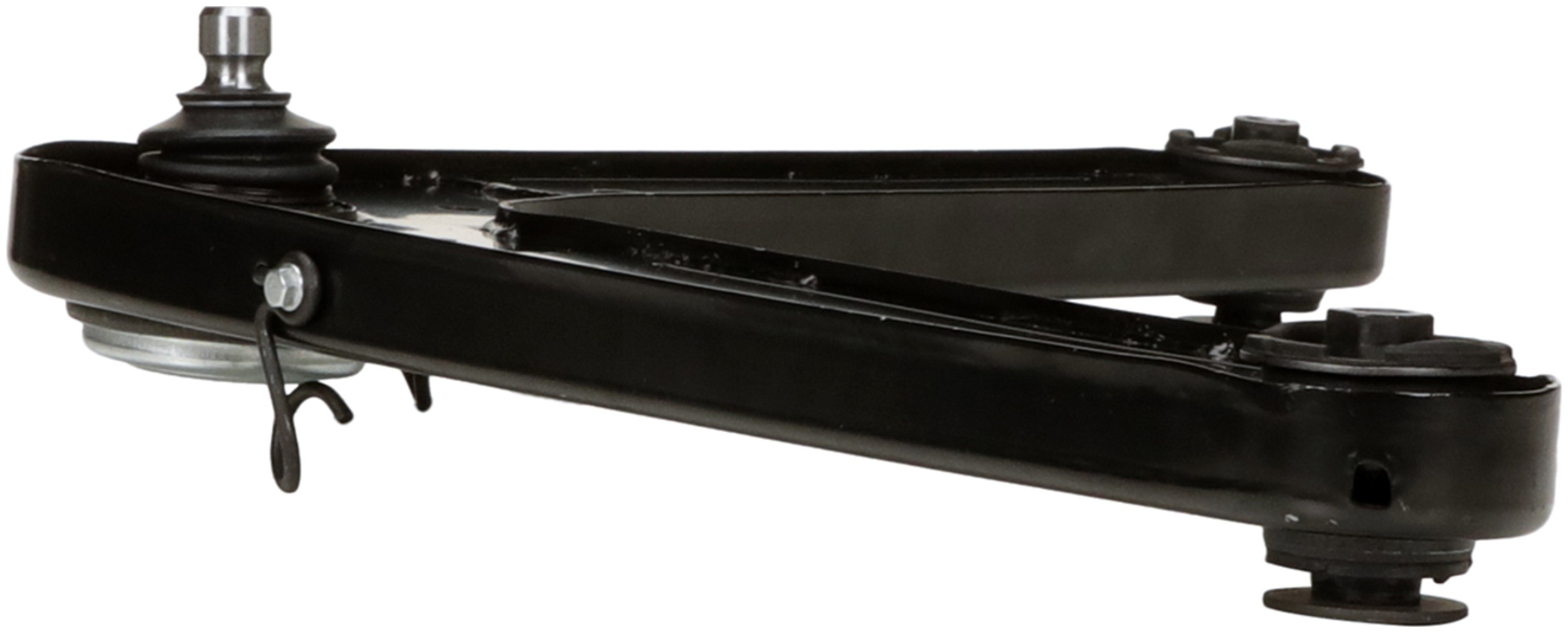

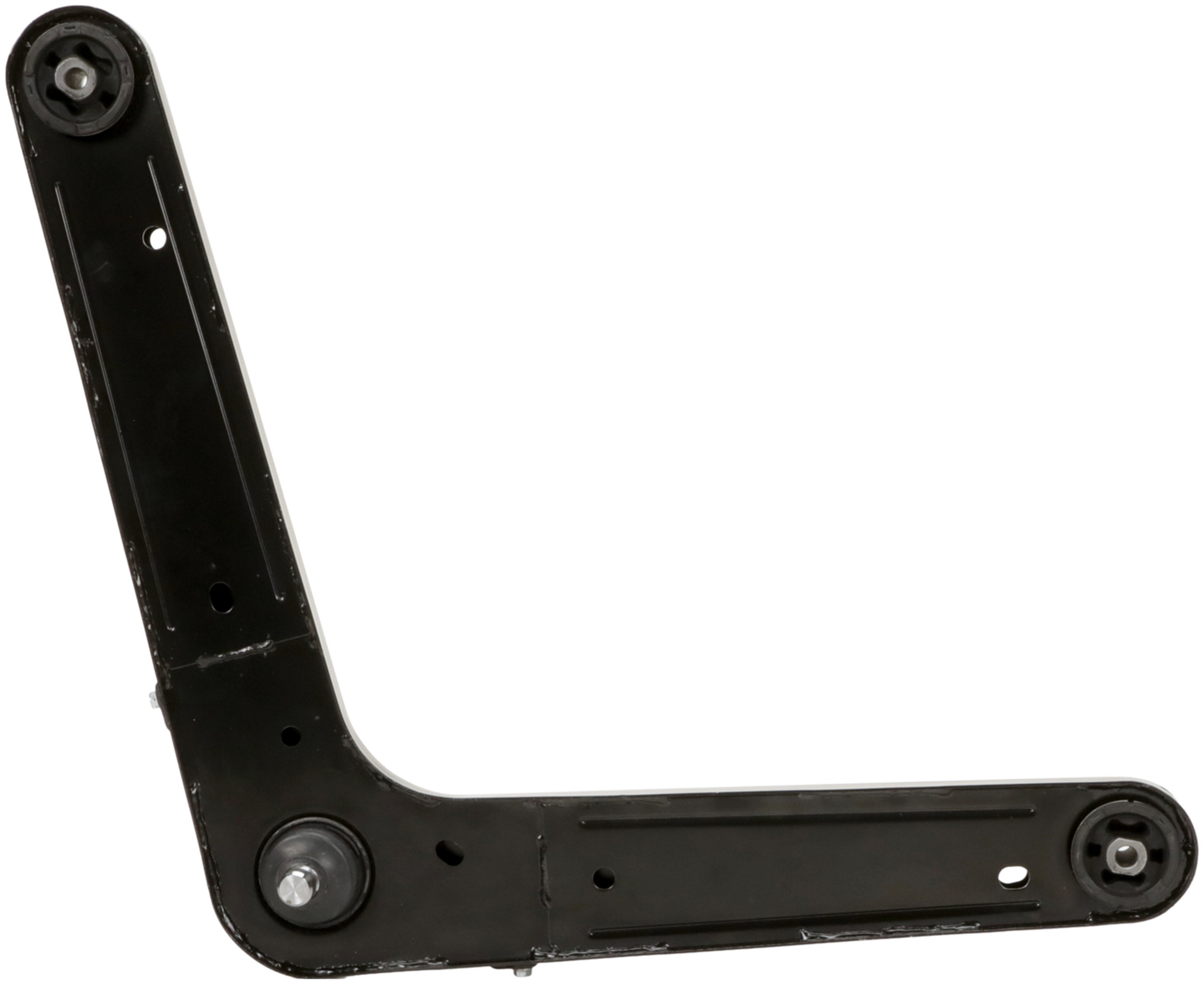

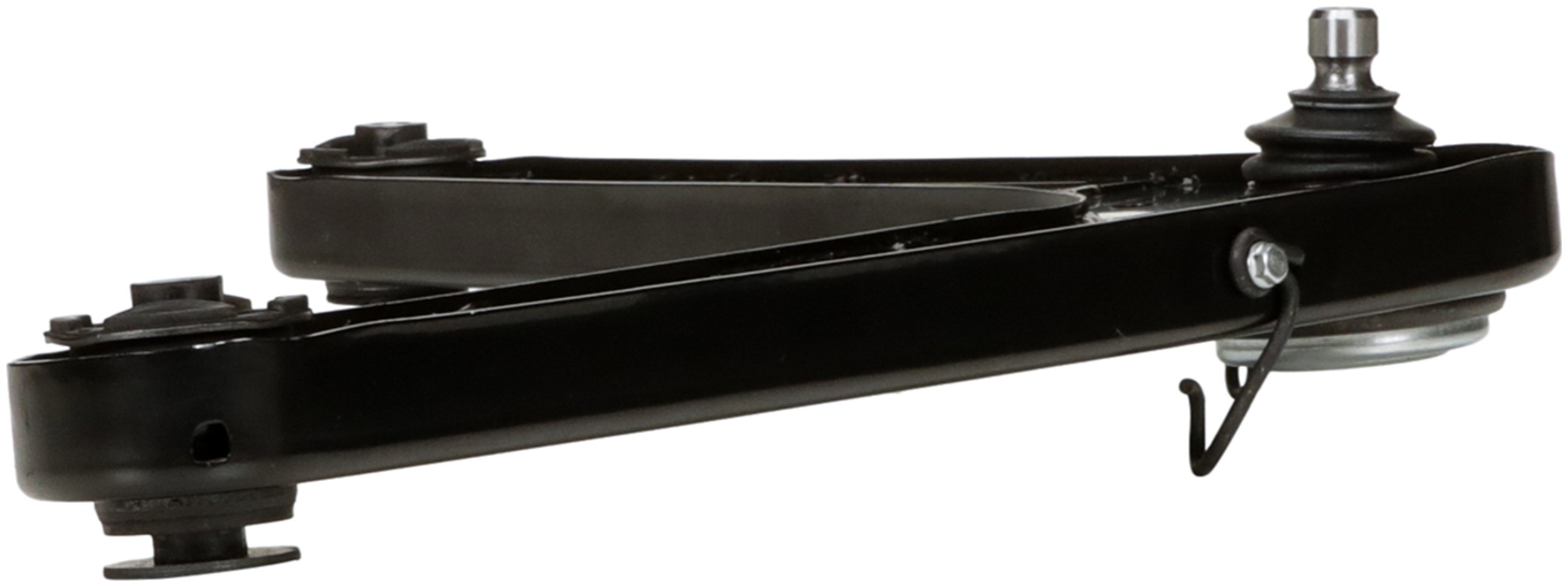

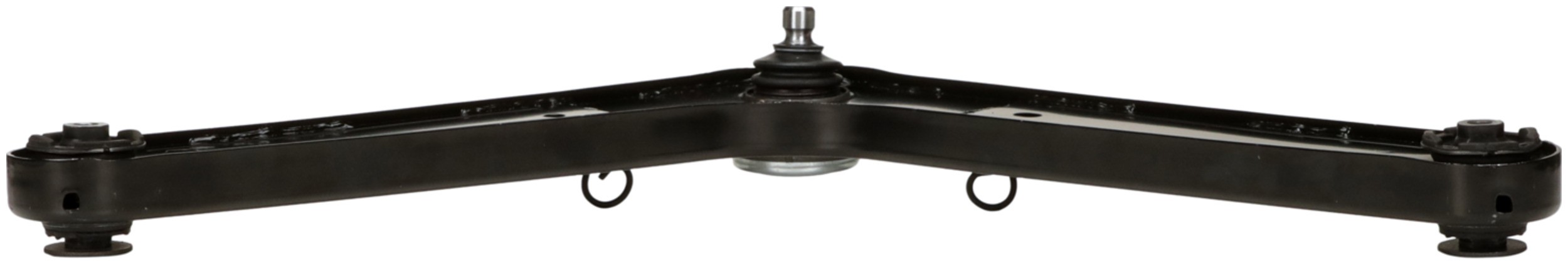

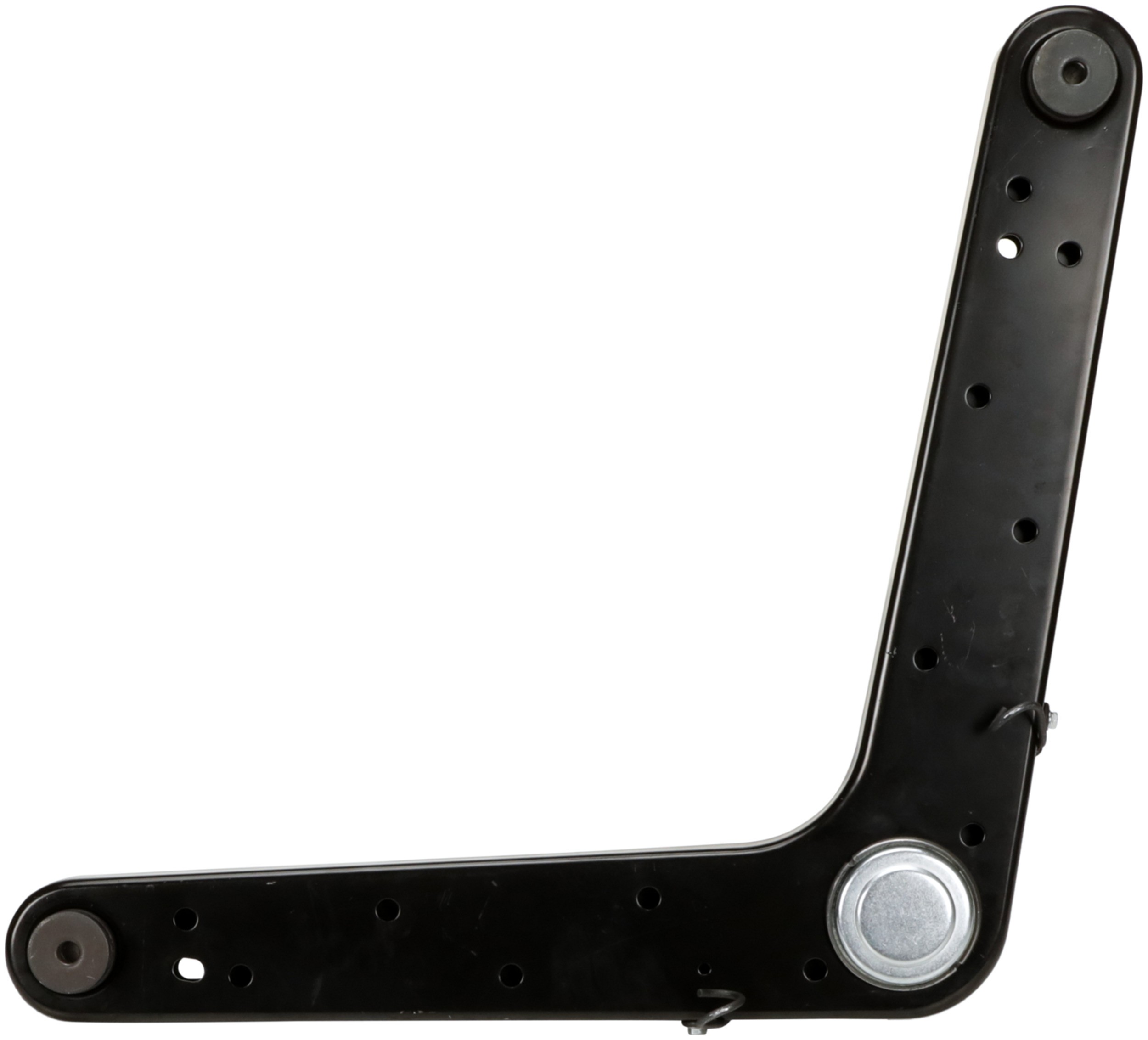

Delphi TC5733 Suspension Control Arm and Ball Joint Assembly

Delphi TC5733 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Material	Steel
4887	4.067 IN
Boot Colour	Black
Length	848.20 MM
Length	33.394 IN
Mounting Hole Diameter	6.00 MM
Mounting Hole Diameter	0.236 IN
4887	103.30 MM
2386	Stamped
6529	Power
9090	Chloroprene Rubber (CR)
Bushing Type	Rubber
Bearing Material	Plastic
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Position(s)	Rear Upper
2384	Yes
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Mounting Hardware Included	Yes
