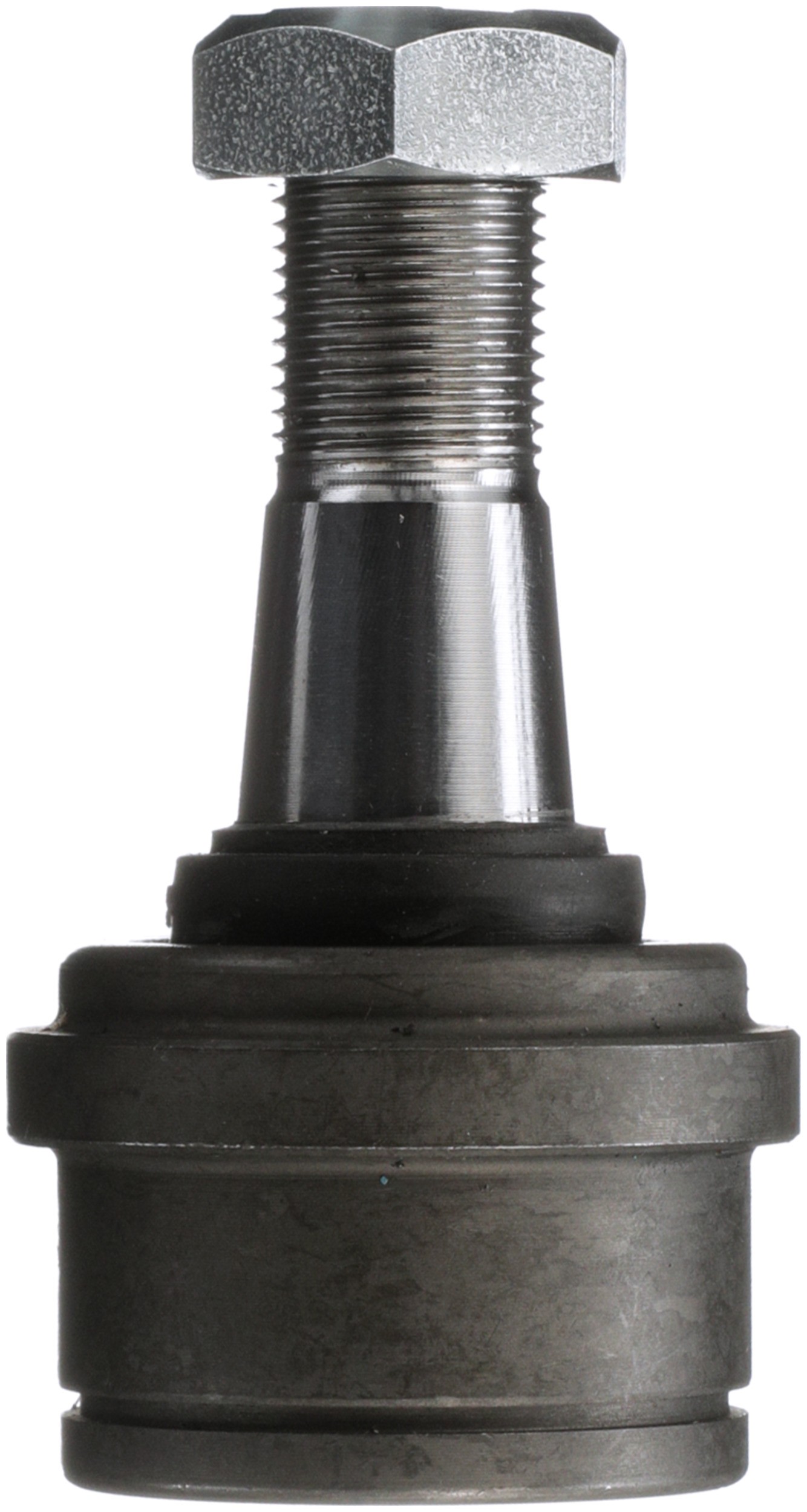

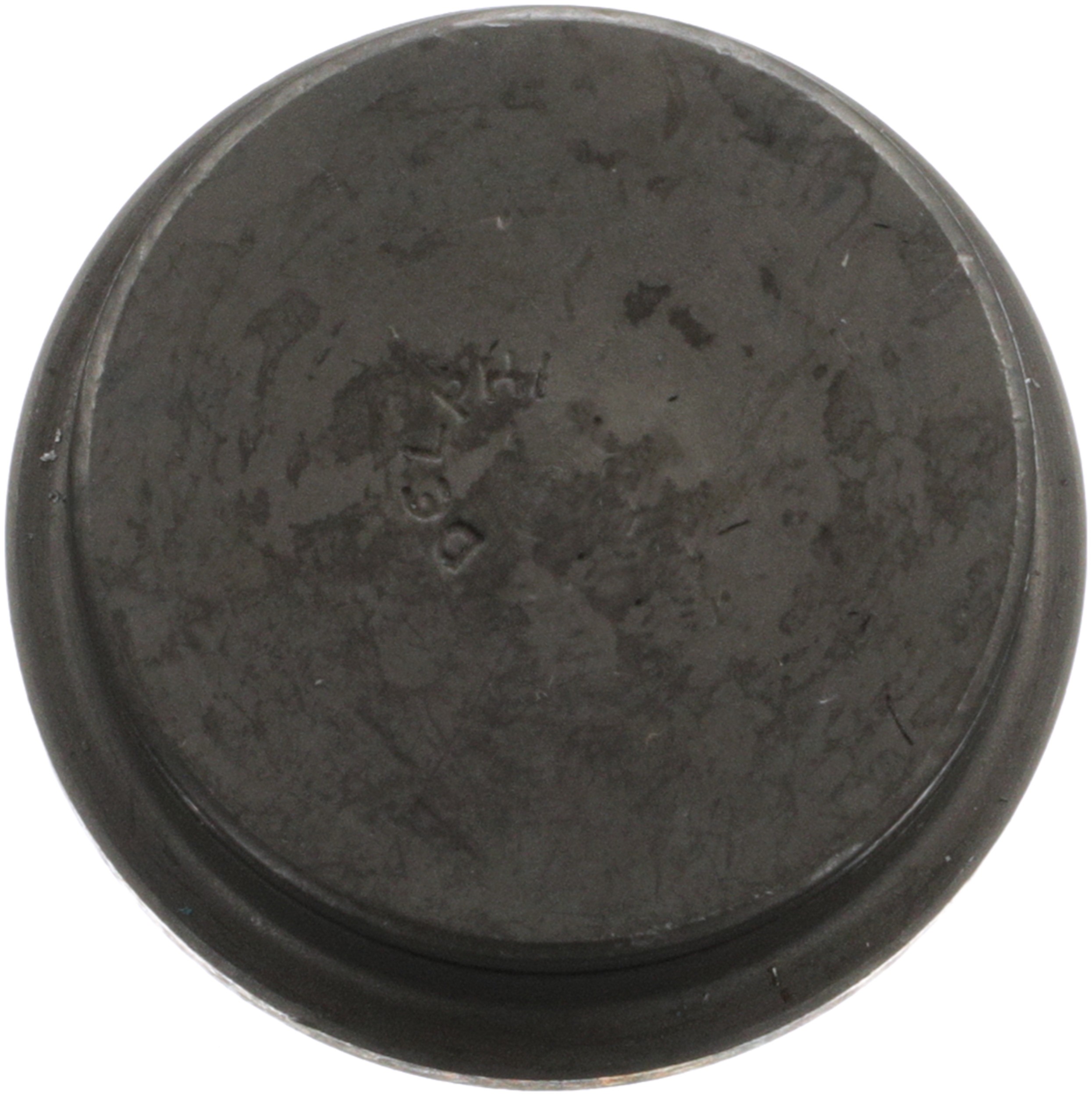

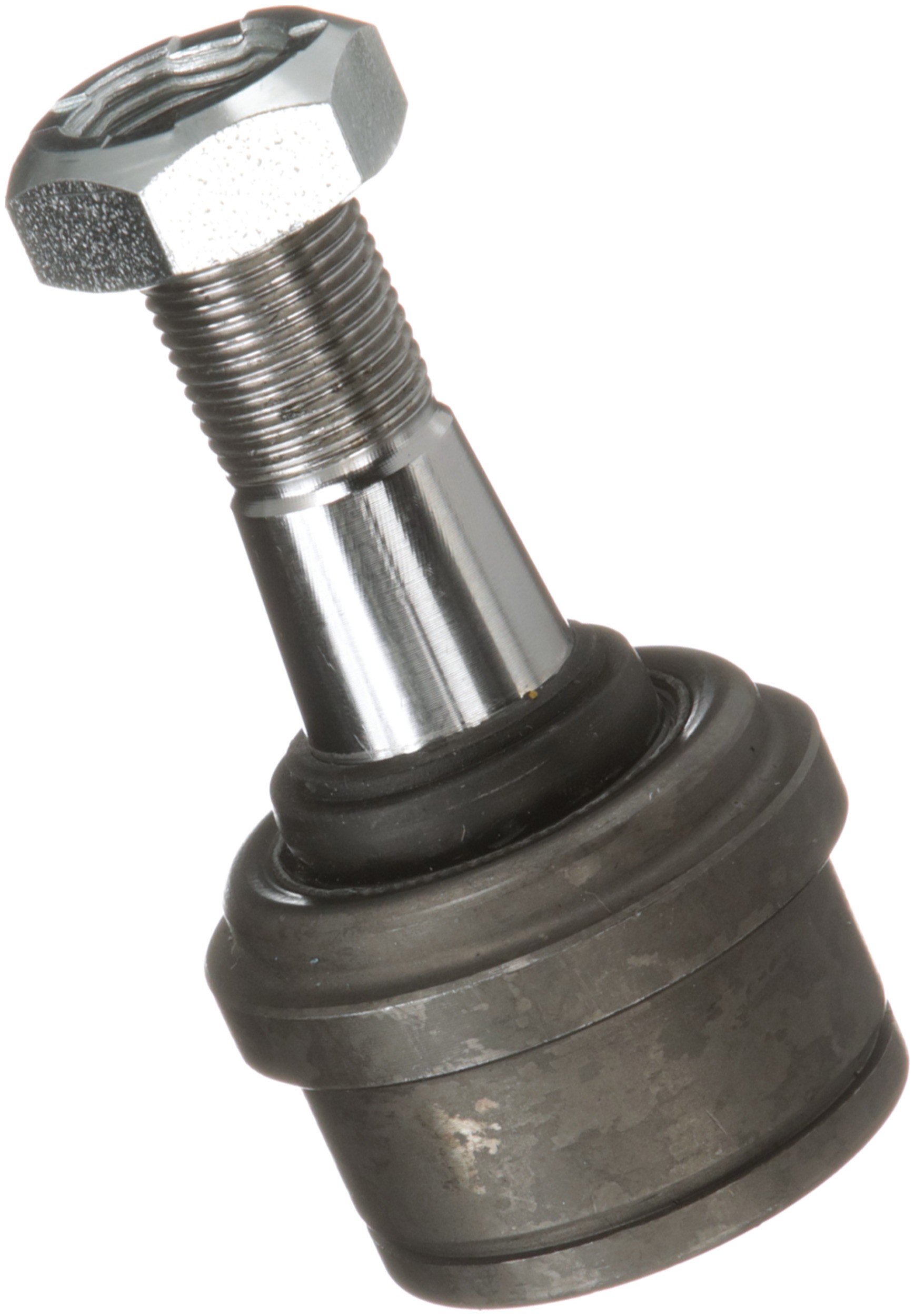

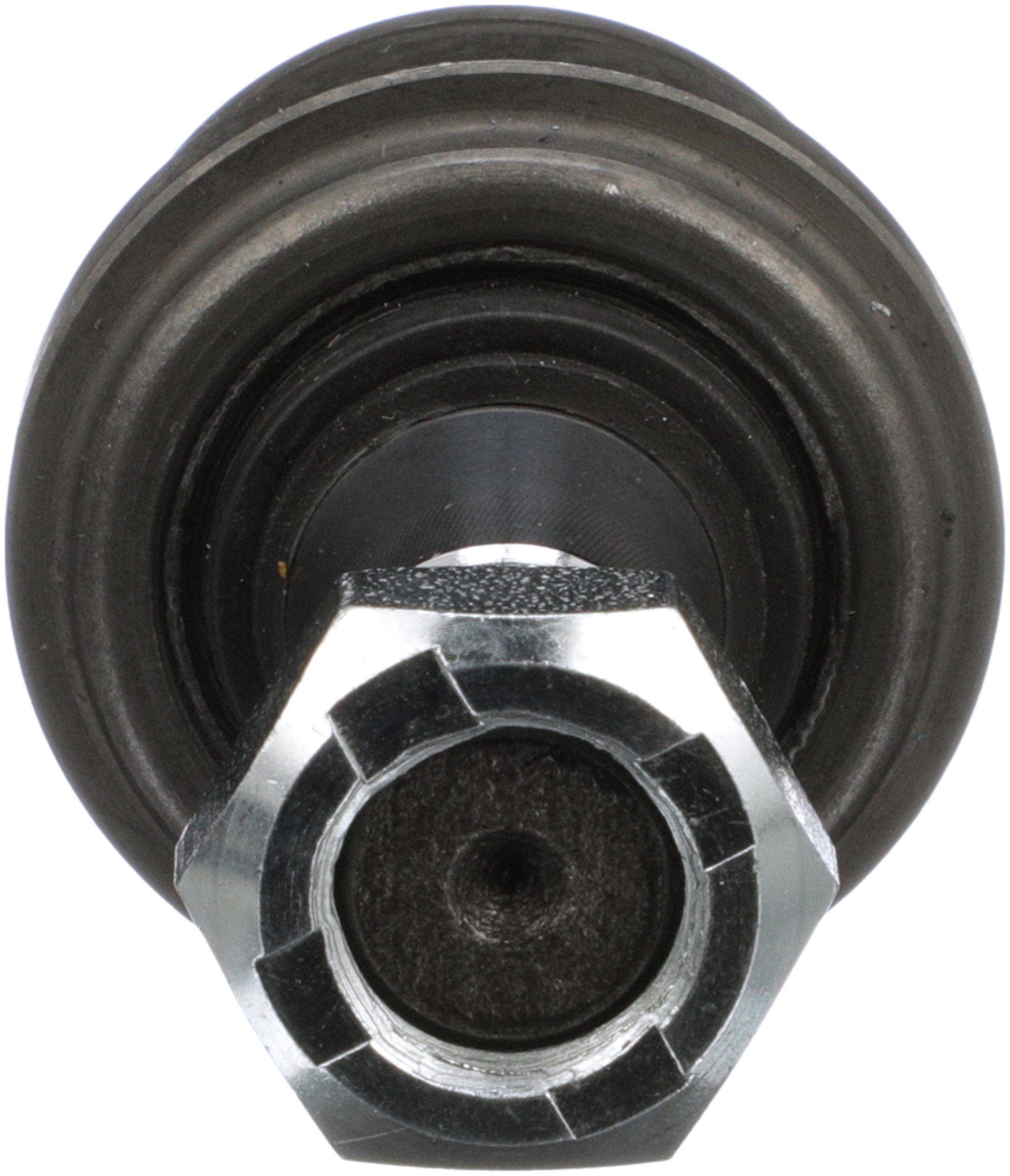

Delphi TC5768 Suspension Ball Joint

Delphi TC5768 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Cotter Pin Hole	No
Suspension Grade Type	Standard Replacement
Mounting Type	Press-In
Greaseable	No
Adjustable	No
Washers Included	No
Maximum Outside Diameter	2.000 IN
Maximum Outside Diameter	50.80 MM
Length	91.00 MM
Length	3.580 IN
Width	50.8 MM
Height	3.583 IN
Height	91.01 MM
Mounting Hardware Included	Yes
Color	Gray
Grease Fitting Included	No
Bushings Included	No
4966	1.063 IN
Material	Steel
4966	27 MM
9213	0.878 IN
9213	22.3 MM
9211	0.167 IN
9212	0.728 IN
9212	18.5 MM
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
