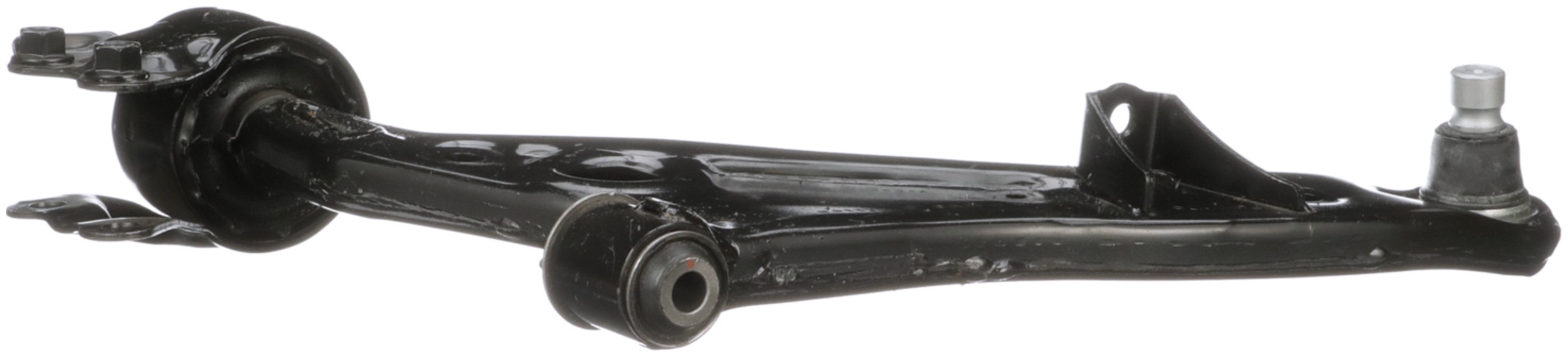

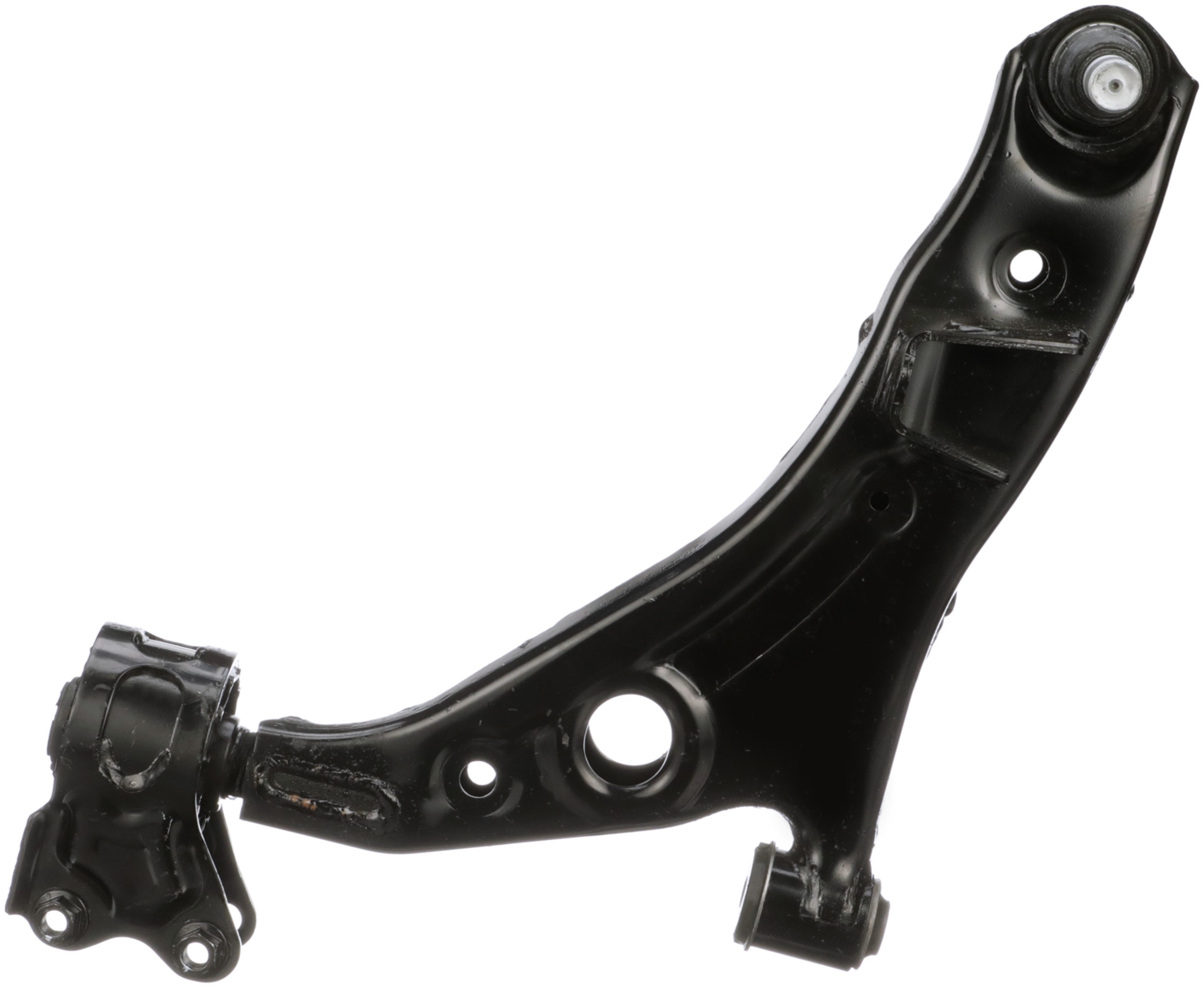

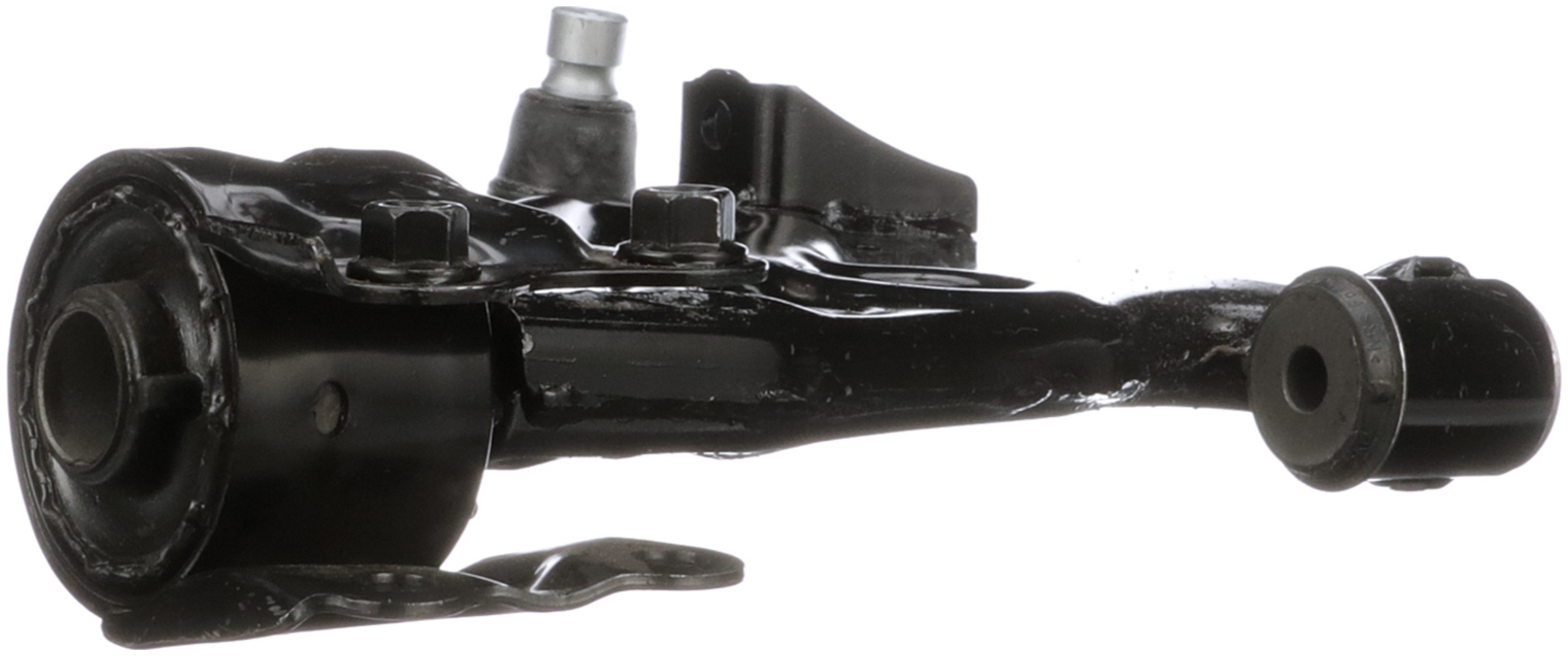

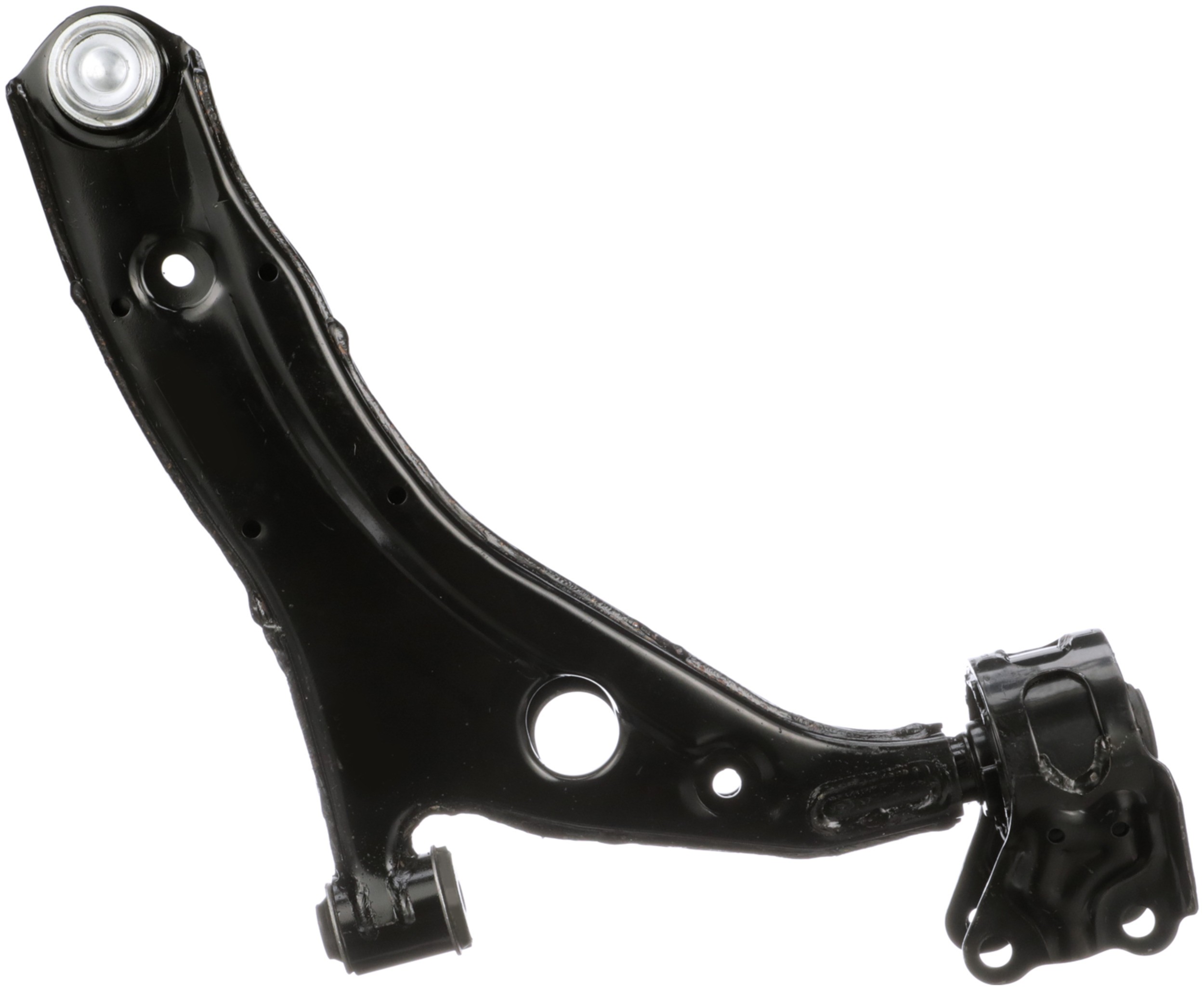

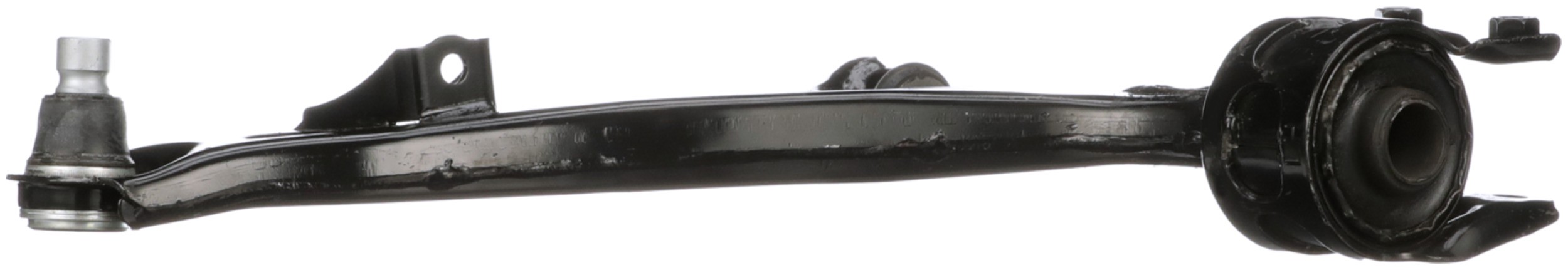

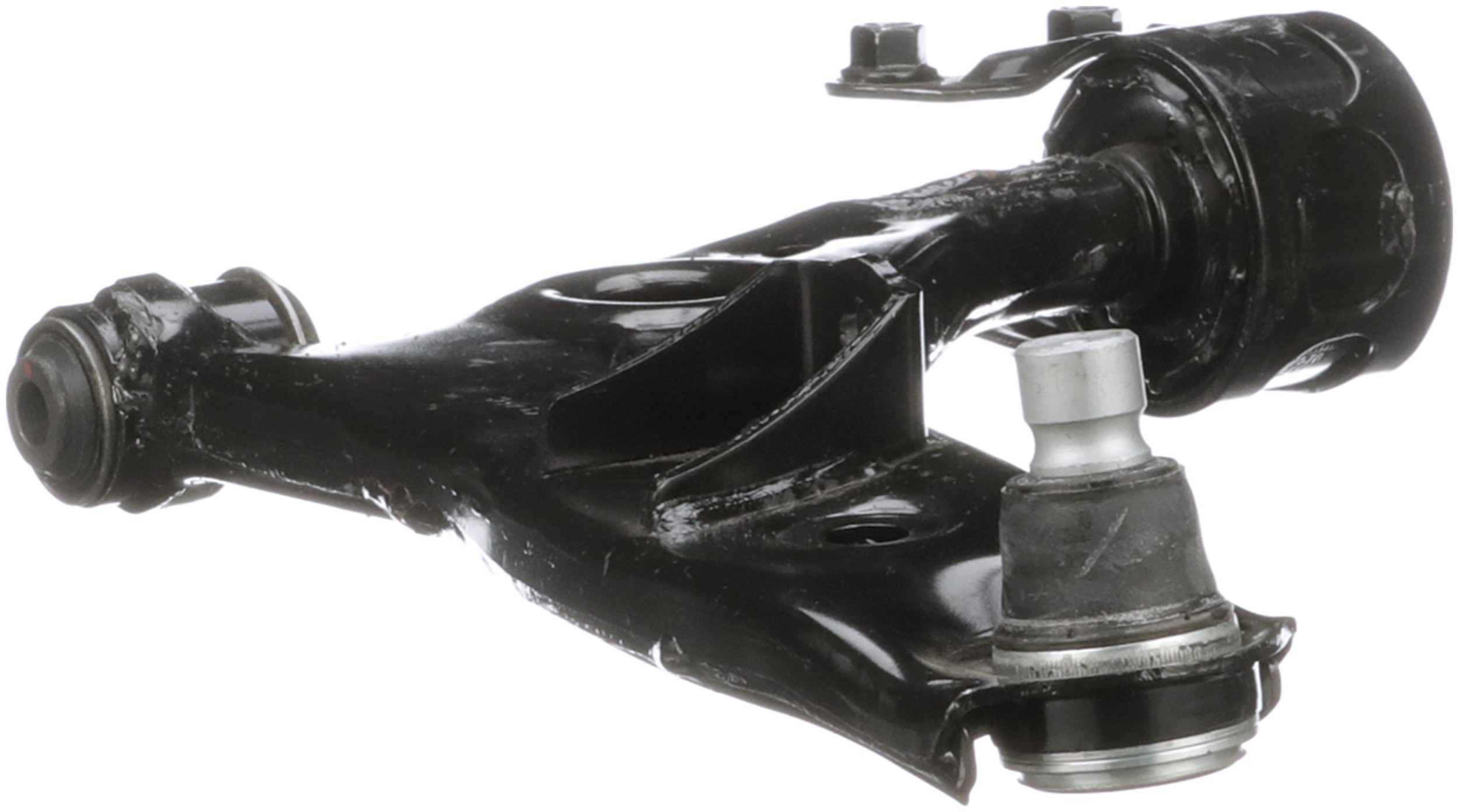

Delphi TC5787 Suspension Control Arm and Ball Joint Assembly

Delphi TC5787 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Attachment Type	Press In
2384	Yes
Position(s)	Front Left Lower
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Stud Type	Grooved
Material	Steel
Mounting Hardware Included	No
9090	Chloroprene Rubber (CR)
6529	Power
2386	Stamped
4890	2.835 IN
Length	506.00 MM
Length	19.921 IN
Mounting Hole Diameter	12.00 MM
Mounting Hole Diameter	0.472 IN
4890	72.00 MM
4887	16.102 IN
4887	409.00 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	4
Grade Type	Premium
